Advanced Calibration Techniques for IQ Mixers: Enhancing Performance Across Variable Conditions

In many sensing applications, the precision and reliability of IQ mixers used as single sideband upconverters are crucial. These components are foundational in vector signal analyzers and sophisticated communication architectures, necessitating operations with minimal artifacts to ensure high signal integrity. This application note explores advanced calibration methods that address inherent challenges in IQ mixers, focusing on passive imbalance compensation and incorporating recent laboratory insights to achieve superior performance.

Understanding IQ Mixer Imbalance

IQ mixers rely on precise phase and amplitude balance in both the LO quadrature hybrid and the mixers for effective vector component cancellation. Deviations in these balances introduce unwanted artifacts such as LO feedthrough, RF/IF feedthrough, and spurious products, degrading performance. Traditional compensation techniques, as detailed in "5 Ways to Compensate for Passive IQ Mixer Imbalance," provide foundational methods for addressing these issues.

Recent Insights into Calibration Procedures

Experiments with the MMIQ-0520L mixer have highlighted critical nuances in the calibration process, revealing the importance of microvolt-range adjustments and frequency-specific voltage requirements. These insights guide the enhancement of calibration techniques to optimize mixer performance dynamically across different conditions.

Innovative Experimentation with the MMIQ-0218HXPC Mixer

A recent experiment using the MMIQ-0218HXPC, a connectorized IQ mixer with an H diode, has provided further insights into the calibration process. This mixer's higher barrier height allowed us to modify the L-R isolation with a higher voltage, enabling better resolution. The lower frequency range enabled sufficient drive power from our network analyzer to turn on the mixer, enabling a realistic LO to RF isolation measurement. Key steps and findings from the experiment include:

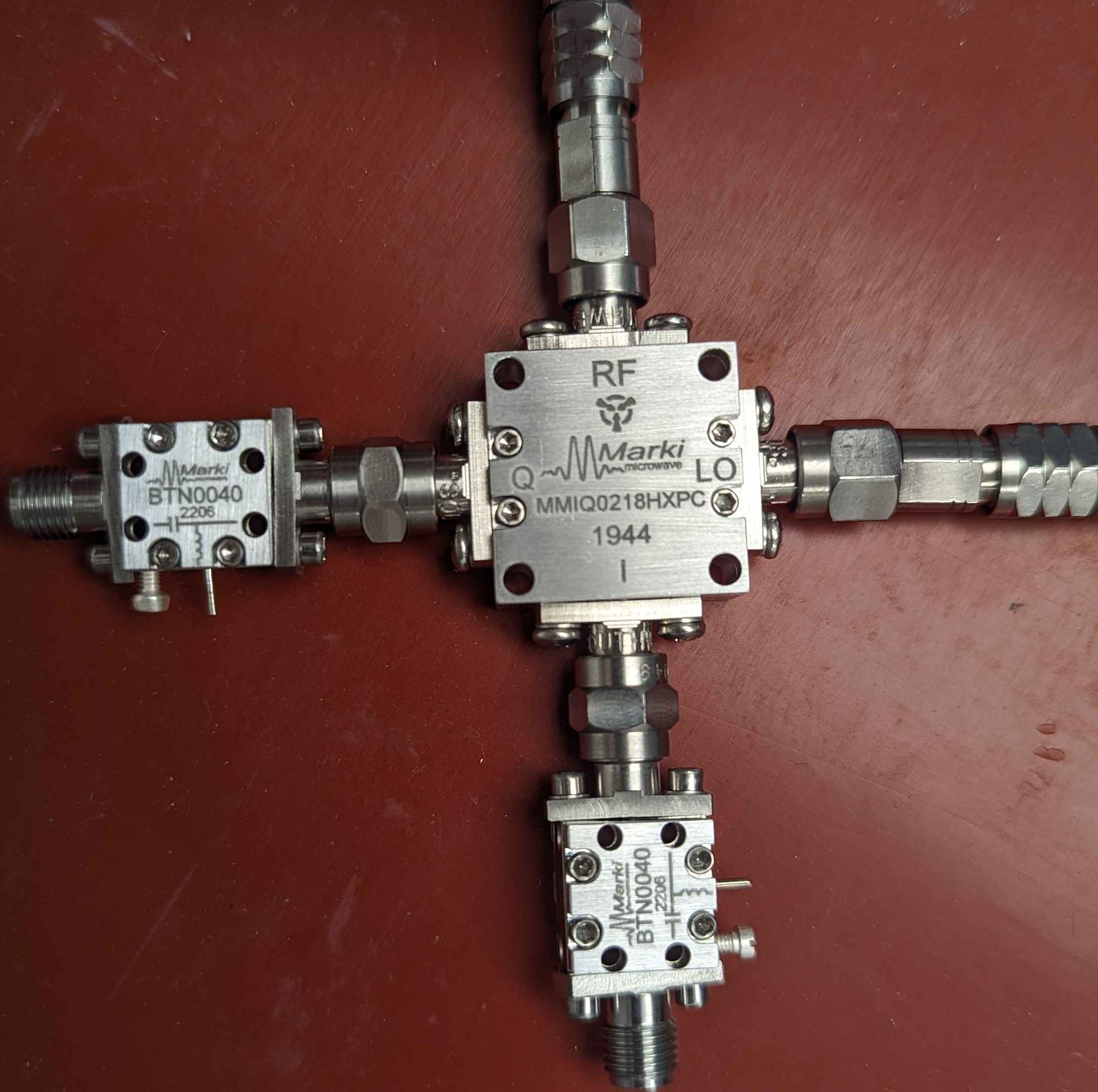

1. Setup and Measurement: An insertion loss measurement was conducted with the network analyzer's port 2 feeding the LO port and the RF signal into port 1. Bias tees (BTN-0040) were attached to the I and Q ports, terminated in 50 ohm loads.

2. Voltage Application via Bias Tees: A resistive power divider was used to apply controlled voltages to the I and Q ports, enhancing voltage resolution and acting as a current sink for the rectified current from the LO. The values of the resistors were 10 ohms from the power source to the pin, then 1 ohm from the ground of both bias tees to the ground on the power supply.

1. Observations of LO-RF Isolation: As small voltages were applied, significant improvements in LO-RF isolation were noted at certain frequencies, with isolation improvements of 10 dB or more. However, this technique's effectiveness varied by frequency and was sensitive to setup stability, including factors like temperature and voltage noise.

Updated Step-by-Step Calibration Procedure

Incorporating the latest experimental findings, the refined calibration procedure for IQ mixers is as follows:

1. Initial Setup and LO Application: Apply the LO signal to the mixer. Introduce finely controlled DC voltage to the I and Q ports, adjusting to minimize LO to RF feedthrough within mixer specifications. Ensure that the circuitry applied to the I and Q ports has a low resistance path to ground to sink the rectified DC current from application of the LO.

2. Signal Transmission and Dynamic Adjustment to Improve Sideband Suppression:

   1. Apply a signal to the I port and measure the upper sideband power

   2. Apply a signal to the Q port and measure the upper sideband power again

   3. Calculate the difference between upper sideband with the I and Q applied

   4. Apply an attenuation to the I or Q port equal to the calculated difference in upper sideband
   5. This should calibrate for the amplitude imbalance and calibrate for most of the sideband suppression since the phase balance is nearly perfect on the LO quad hybrid.




3. Long-Term Optimization and Stability Monitoring: Store calibration settings for each condition in the memory for real-time automatic adjustments, according to the LO frequency, temperature, and potentially LO power. The calibration procedure may be repeated periodically depending on how critical it is to have maximum LO-RF and sideband suppression.

Conclusion

Through fine tuning calibration techniques, the performance of IQ mixers as single sideband upconverters can be significantly enhanced. This application note not only updates previous methodologies but also introduces nuanced understandings from recent laboratory experiments, ensuring maximum performance in mixer calibration.

Further Reading

For a complete background, please read our IQ, Image Reject, and Single Sideband Mixer Primer.
