Marki Microwave connectorized RF/microwave equalizers are designed to compensate for the lowpass response of most components and systems. They provide broadband equalization with low minimum insertion loss, flat group delay, optimal return loss, and low unit-to-unit variation up to 67 GHz. These equalizers are suitable for airborne applications, high channel count systems, SWaP-C, and signal conditioning.

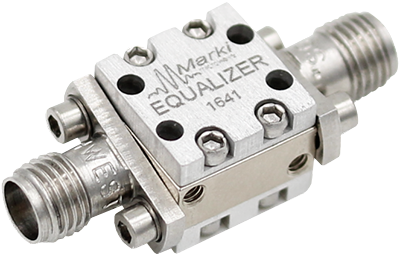

Passive GaAs MMIC 3 dB DC to 26.5 GHz Equalizer
DC Loss: 3.0 dB Return Loss: 26 dB

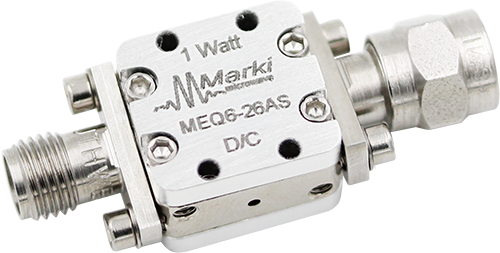

Passive GaAs MMIC 6 dB DC to 26.5 GHz Equalizer
DC Loss: 6.0 dB Return Loss: 26 dB
Passive GaAs MMIC 10 dB DC to 26.5 GHz Equalizer
DC Loss: 10.0 dB Return Loss: 27 dB

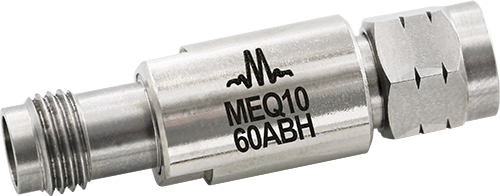

Passive GaAs MMIC DC-60 GHz 10 dB Equalizer
DC Loss: 10.1 dB Return Loss: 22 dB
Passive GaAs MMIC DC-60 GHz 6dB Equalizer
DC Loss: 5.9 dB Return Loss: 24 dB

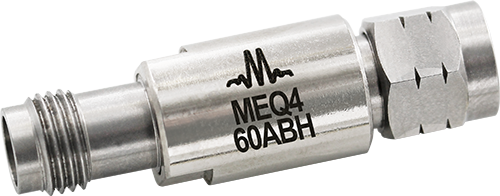

Passive GaAs MMIC DC-60 GHz 4 dB Equalizer
DC Loss: 3.9 dB Return Loss: 25 dB

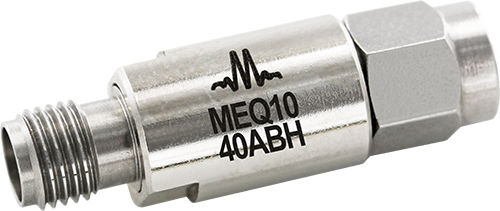

Passive GaAs MMIC 10dB DC-40GHz Equalizer
DC Loss: 10.0 dB Return Loss: 25 dB
Passive GaAs MMIC 6dB DC-40 GHz Equalizer
DC Loss: 6.1 dB Return Loss: 24 dB
Passive GaAs MMIC 26.5 GHz Equalizer
DC Loss: 6 dB Return Loss: 20 dB
Equalizer (26 Gb/s)
DC Loss: 3 dB Return Loss: 20 dB
Passive GaAs MMIC 26.5 GHz Equalizer
DC Loss: 3 dB Return Loss: 18 dB
Equalizer (26 Gb/s)
DC Loss: 6 dB Return Loss: 18 dB
Equalizer (40 Gb/s)
DC Loss: 6 dB Return Loss: 18 dB
Passive GaAs MMIC 26.5 GHz Equalizer
DC Loss: 10 dB Return Loss: 20 dB
Passive GaAs MMIC 50GHz Equalizer
DC Loss: 10 dB Return Loss: 15 dB
Equalizer (40 Gb/s)
DC Loss: 3 dB Return Loss: 18 dB
