- Double Balanced IQ Mixers offer exceptional balance across multi-octave bandwidths, which translates to better image rejection, sideband suppression, and IQ balance.
- Differential IF IQ Mixers offer the same high performance of our standard IQ mixers, but with differential I/Q ports, enabling direct interface with differential circuits.
- Single Sideband Mixers are used to upconvert a signal to a single sideband while suppressing the other sideband. These SSB mixers are tuned for optimal sideband suppression, conversion loss and isolations.
- Legacy IQ/IR/SSB Mixers offer lower conversion loss compared to MMIC products at the expense of image rejection, sideband suppression, amp/phase balance, and isolations.
Marki Microwave connectorized RF/microwave IQ mixers consist of two mixers where the RF ports are connected in-phase and the LO ports are connected in quadrature, enabling single sideband, image reject, or IQ conversions. Marki IQ mixers operate up to 120 GHz and are known for their wide bandwidth, tight balance, high spurious suppression, low conversion loss, and high port-to-port isolation. These IQ mixers are ideal for radar, satcom, space, and electronic warfare.
Click here to view subfamily information.
3 - 7 GHz
IQ-0307LXP
Quadrature-If Double-Balanced Mixers
IF Range: 0 - 0.5 GHz CL: 5.5 dB Image Rejection: 23 dBc
6 - 18 GHz
SSB-0618MXW-1
Single-Sideband Double-Balanced Mixers
IF Range: 0.004 - 0.21 GHz CL: 7.5 dB Image Rejection: - dBc
2 - 18 GHz
MMIQ-0218HXPC
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 3 GHz CL: 7.5 dB Image Rejection: 35 dBc
10 - 37 GHz
MMIQ-1037HS
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 12 GHz CL: 12 dB Image Rejection: 25 dBc

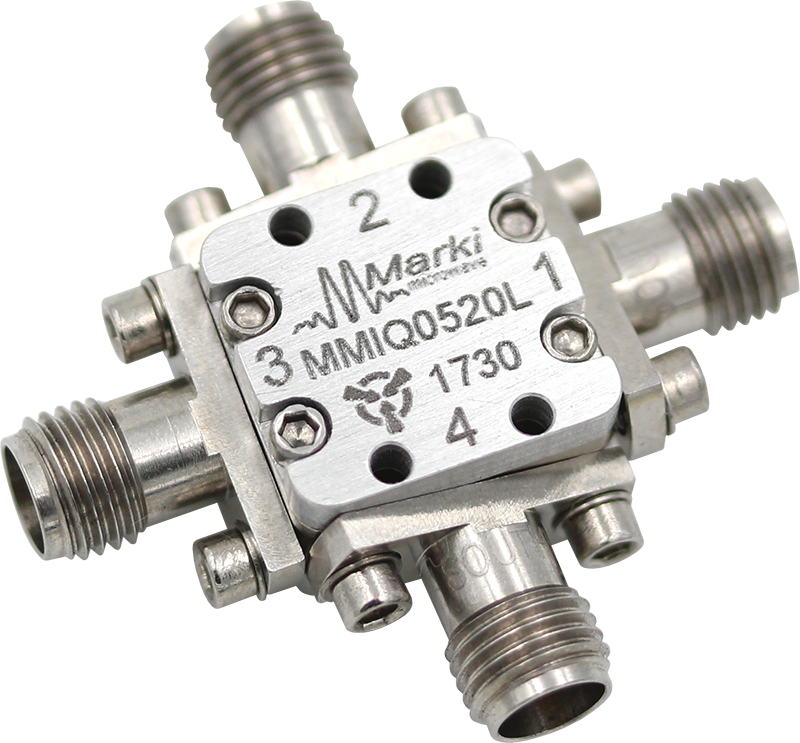

5 - 20 GHz
MMIQ-0520LS
Low LO Drive Passive GaAs MMIC IQ Mixer
IF Range: 0 - 6 GHz CL: 12 dB Image Rejection: 35 dBc
18 - 65 GHz
MMIQ-1865HUB
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 23 GHz CL: 11 dB Image Rejection: 35 dBc
6 - 18 GHz
IRW-0618LXW-1
Image Reject Double-Balanced 6 - 18 GHz Mixer
IF Range: 0.004 - 0.21 GHz CL: 10 dB Image Rejection: 23 dBc
4.5 - 9 GHz
IR-4509MXP-2
Image Reject Double-Balanced 4.5 - 9.0 GHz Mixers
IF Range: 0.05 - 0.09 GHz CL: 5.5 dB Image Rejection: 23 dBc
10 - 40 GHz
MMIQ-1040LS
Low LO Drive Passive GaAs MMIC IQ Mixer
IF Range: 0 - 12 GHz CL: 12 dB Image Rejection: 25 dBc
18 - 50 GHz
MMIQ-1865SUB
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 23 GHz CL: 12 dB Image Rejection: 35 dBc
6 - 18 GHz
IQ-0618LXP
Quadrature-If Double-Balanced Mixers
IF Range: 0 - 0.5 GHz CL: 7.5 dB Image Rejection: 23 dBc
40 - 60 GHz
MMIQ-4067LU
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 20 GHz CL: 12 dB Image Rejection: 35 dBc
4 - 16 GHz
MMIQ-0416HS
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 6 GHz CL: 12 dB Image Rejection: 29 dBc
30 - 120 GHz
MMIQ-30120HM
GaAs MMIC mmWave Differential IF IQ Mixer
IF Range: 0 - 30 GHz CL: 8.5 dB Image Rejection: 27 dBc
2 - 18 GHz
MMIQ-0218LXPC
Low LO Drive Passive GaAs MMIC IQ Mixer
IF Range: 0 - 3 GHz CL: 8 dB Image Rejection: 27 dBc
6 - 18 GHz
IRW-0618MXW-1
Image Reject Double-Balanced 6 - 18 GHz Mixer
IF Range: 0.004 - 0.21 GHz CL: 7.5 dB Image Rejection: 23 dBc

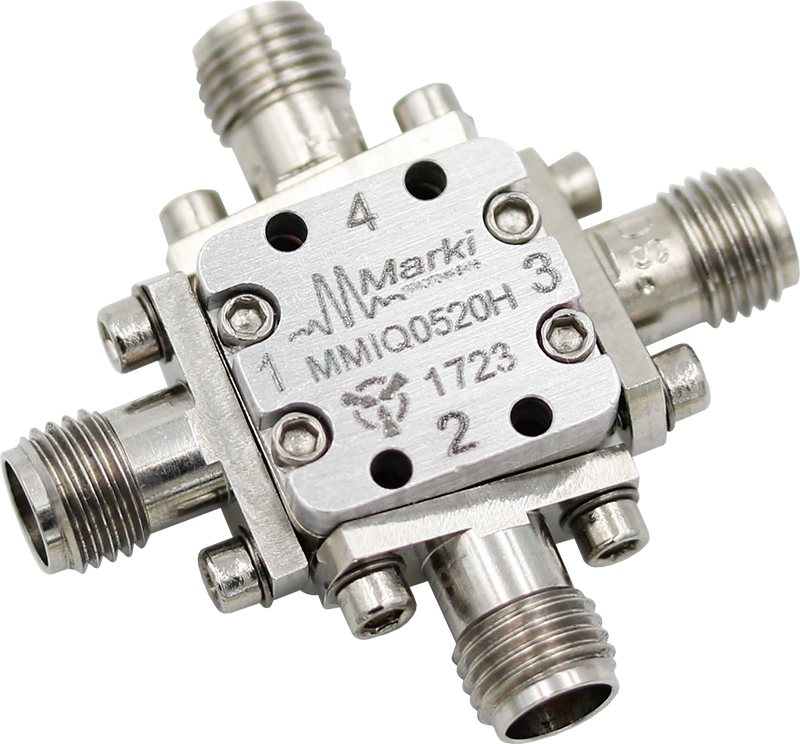

5 - 20 GHz
MMIQ-0520HS
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 6 GHz CL: 12 dB Image Rejection: 35 dBc
40 - 100 GHz
MMIQ-40100HM
GaAs MMIC mmWave IQ Mixer
IF Range: 0 - 20 GHz CL: 10 dB Image Rejection: 30 dBc
6 - 18 GHz
IQ-0618MXP
Quadrature-If Double-Balanced Mixers
IF Range: 0 - 0.5 GHz CL: 7.5 dB Image Rejection: 23 dBc
4.5 - 9 GHz
IR-4509LXP
Image Reject Double-Balanced 4.5 - 9.0 GHz Mixers
IF Range: 0.05 - 0.09 GHz CL: 5.5 dB Image Rejection: 23 dBc
6 - 18 GHz
IRW-0618LXW-2
Image Reject Double-Balanced Mixers
IF Range: 0.004 - 0.21 GHz CL: 10 dB Image Rejection: 23 dBc
6 - 18 GHz
IRW-0618MXW-2
Image Reject Double-Balanced Mixers
IF Range: 0.004 - 0.21 GHz CL: 7.5 dB Image Rejection: 23 dBc
40 - 100 GHz
MMIQ-40100LM
GaAs MMIC mmWave IQ Mixer
IF Range: 0 - 20 GHz CL: 10 dB Image Rejection: 30 dBc

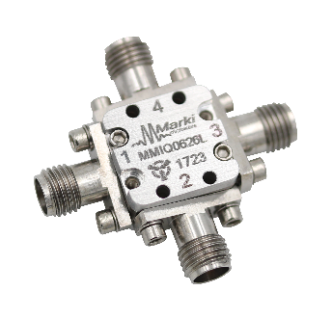

6 - 26 GHz
MMIQ-0626LS
Low LO Drive Passive GaAs MMIC IQ Mixer
IF Range: 0 - 6 GHz CL: 12 dB Image Rejection: 35 dBc
6 - 26 GHz
MMIQ-0626HS
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 6 GHz CL: 12 dB Image Rejection: 35 dBc
1.5 - 4.5 GHz
IQ-1545LMP
Quadrature-IF Double-Balanced Mixers
IF Range: 0 - 0.5 GHz CL: 5.5 dB Image Rejection: 25 dBc
6 - 18 GHz
SSB-0618MXW-2
Single-Sideband Double-Balanced 6 - 18 GHz Mixers
IF Range: 0.004 - 0.21 GHz CL: 7.5 dB Image Rejection: - dBc
4 - 16 GHz
MMIQ-0416LS
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 6 GHz CL: 11 dB Image Rejection: 28 dBc
10 - 40 GHz
MMIQ-1040SS
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 12 GHz CL: 12 dB Image Rejection: 25 dBc
1.75 - 5 GHz
MMIQ-0205HXA
MMIC Double-Balanced I/Q Mixer
IF Range: 0 - 2 GHz CL: 8 dB Image Rejection: 33 dBc

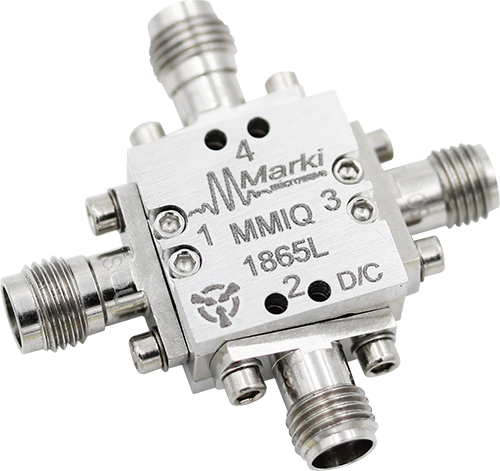

18 - 65 GHz
MMIQ-1865LUB
Passive GaAs MMIC IQ Mixer
IF Range: 0 - 23 GHz CL: 11 dB Image Rejection: 35 dBc
