- Distributed Microwave Amplifiers provide excellent performance in terms of gain, linearity, noise figure, and dynamic range.
- Gain Block Microwave Amplifiers offer high dynamic range and gain, making these suitable for applications in the middle of a signal or multiplication chain.
- Driver Microwave Amplifiers are optimized for driving Marki's passive diode mixers, multipliers and other single tone applications.
- Low Noise Microwave Amplifiers prioritize low noise figure for RF front-end applications over other specs such as output power or linearity.
- Low Phase Noise Microwave Amplifiers are HBT amplifiers featuring a low -170 dBc/Hz additive phase noise, requiring positive only bias and are optimized to drive our NLTL line.
- Millimeterwave Microwave Amplifiers use circuits optimized for performance above 40 GHz. They offer broader bandwidth than competing high frequency amplifiers.
Marki Microwave connectorized RF/microwave amplifiers use advanced simulation and design techniques to deliver strong output power, gain, linearity, and noise figure up to 95 GHz. Marki offers a variety of amplifier types, including distributed, driver, low noise, high dynamic range gain block, low phase noise, and high OIP2 amplifiers. These amplifiers are ideal for applications including mobile test and measurement, radar, satcom, 5G, and electronic warfare.
Click here to view subfamily information.
0.01 - 20 GHz

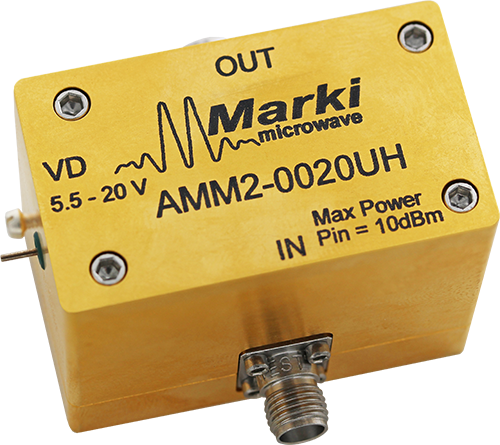

AMM2-0020UH
10MHz - 20GHz, Broadband High Gain Distributed Amplifier
P1dB: 21 dBm Gain: 29 dB Psat: 23 dBm
0.01 - 70 GHz
AMM2-0070UH
10 MHz - 70GHz, Broadband High Gain Distributed Amplifier
P1dB: 11 dBm Gain: 18 dB Psat: - dBm
2 - 40 GHz
ADM1-8007APC
2 - 40 GHz Wideband LO Driver Amplifier
P1dB: 21 dBm Gain: 22 dB Psat: 22 dBm
45 - 95 GHz
AMM-9893M
45 – 95 GHz mmWave LO Driver Amplifier
P1dB: - dBm Gain: 18 dB Psat: 18 dBm
12 - 40 GHz
AMM-7200UC-K
12 GHz – 40 GHz GaAs Driver Amplifier
P1dB: 19 dBm Gain: 18 dB Psat: 21.5 dBm
0.0003 - 10 GHz
ADM-8622PC
300 kHz - 10 GHz High Dynamic Range Gain Block
P1dB: 13 dBm Gain: 15 dB Psat: 14 dBm
0.75 - 8 GHz

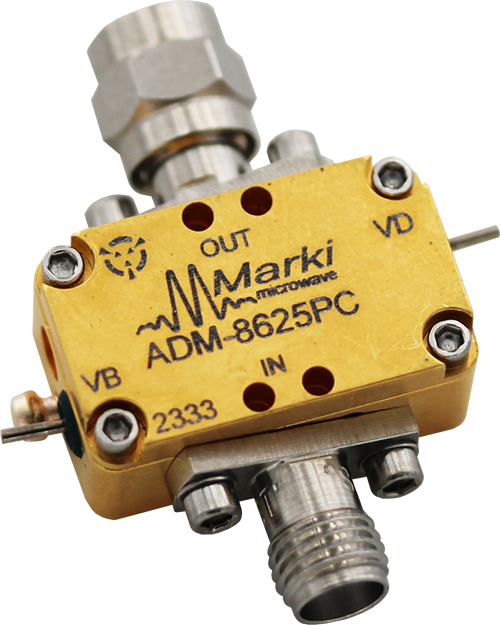

ADM-8625PC
0.75 - 8 GHz Low Noise Amplifier
P1dB: 18 dBm Gain: 18 dB Psat: 19 dBm
0 - 18 GHz
ADM-8344PC
DC - 18 GHz Distributed Amplifier
P1dB: 18 dBm Gain: 18 dB Psat: - dBm
0.2 - 20 GHz
ADM-8624PC
0.2 - 20 GHz High Dynamic Range Gain Block
P1dB: 13.5 dBm Gain: 10.5 dB Psat: 14.5 dBm
6 - 20 GHz
ADM-8556PC
6 - 20 GHz Distributed Amplifier
P1dB: 15 dBm Gain: 23 dB Psat: 17 dBm
0.005 - 20 GHz

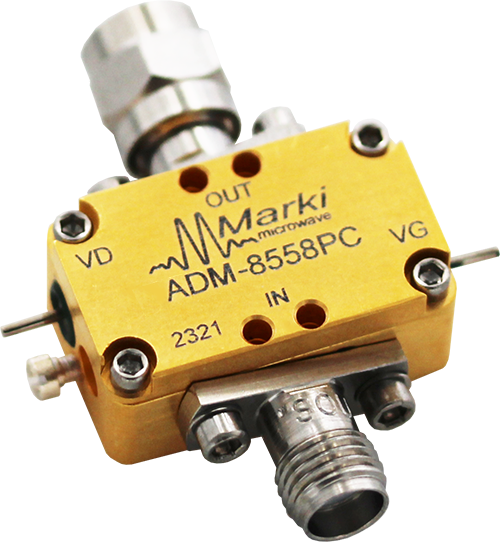

ADM-8558PC
0.005 - 20 GHz Distributed Amplifier
P1dB: 14 dBm Gain: 15 dB Psat: 19 dBm
45 - 95 GHz

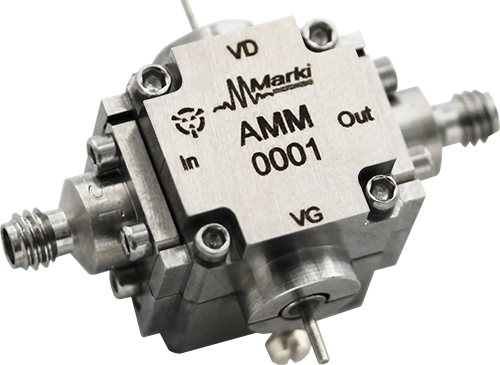

AMM-0001M
45 – 95 GHz mmWave LO Driver Amplifier
P1dB: - dBm Gain: 11.5 dB Psat: 19 dBm
0.4 - 26.5 GHz

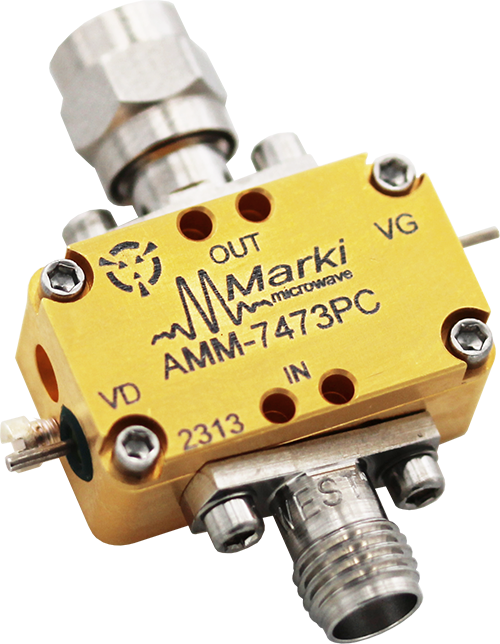

AMM-7473PC
0.4 – 26.5 GHz GaAs MMIC Amplifier
P1dB: 18 dBm Gain: 16 dB Psat: 25 dBm
0 - 22 GHz

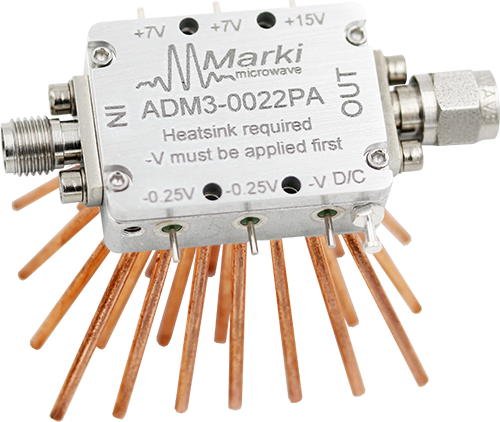

ADM3-0022PA-H
Broadband Power Amplifier
P1dB: 26 dBm Gain: 35 dB Psat: 30 dBm
0.1 - 22 GHz
APM-7098PA
0.1GHz – 22GHz Low Phase Noise Amplifier
P1dB: 18 dBm Gain: 14 dB Psat: 23 dBm
20 - 55 GHz

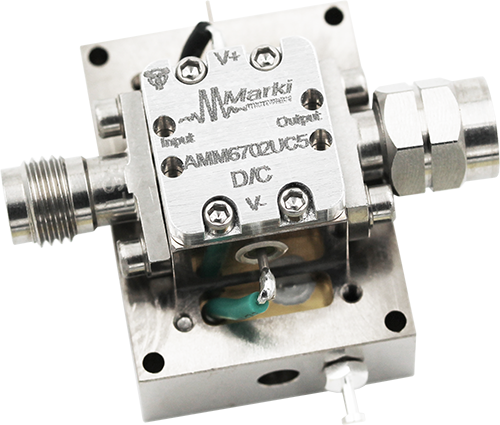

AMM-6702UC5
20-55 GHz GaAs LO Driver Amplifier
P1dB: 14.8 dBm Gain: 25 dB Psat: 21 dBm
30 - 67 GHz
A-3567UC
30 GHz – 67 GHz LO Driver Amplifier
P1dB: - dBm Gain: 19 dB Psat: 20 dBm
1 - 22 GHz

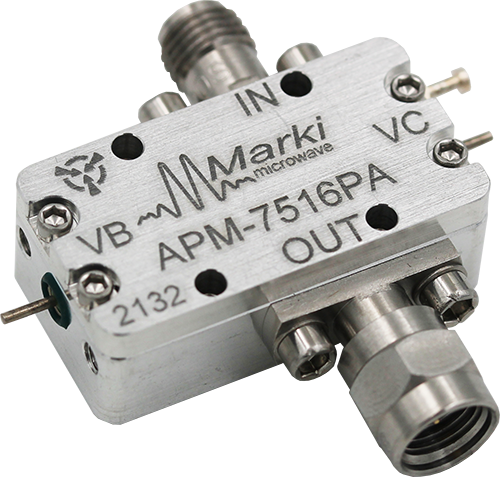

APM-7516PA
1 GHz – 22 GHz Low Phase Noise Amplifier
P1dB: 18 dBm Gain: 12.5 dB Psat: 23 dBm
0.01 - 20 GHz
APM-7099PA
0.01GHz – 20 GHz Low Phase Noise Amplifier
P1dB: 23 dBm Gain: 14 dB Psat: 25 dBm
0.1 - 35 GHz
ADM2-0035PA
0.1-35 GHz 2-Stage LO Driver Amplifier
P1dB: 18 dBm Gain: 23 dB Psat: 23 dBm
22 - 57 GHz
AMM-8211UC5
22 - 57 GHz GaAs Driver Amplifier
P1dB: 19 dBm Gain: 13 dB Psat: 21 dBm
0.09 - 6 GHz
ADM1-8096PC
0.09 - 6 GHz High Dynamic Range Gain Block
P1dB: 23 dBm Gain: 22.5 dB Psat: 23 dBm
2 - 29 GHz

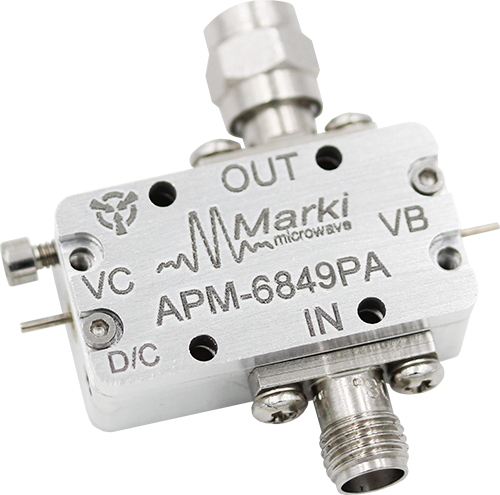

APM-6849PA
GaAs Broadband Low Phase Noise Amplifier
P1dB: 20 dBm Gain: 11 dB Psat: 21 dBm
22 - 57 GHz

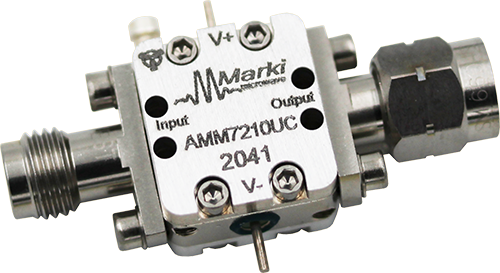

AMM-7210UC
22 GHz – 57 GHz GaAs Driver Amplifier
P1dB: 19 dBm Gain: 14.5 dB Psat: 20.5 dBm
11 - 38 GHz
AMM-7199UC
11 GHz – 38 GHz GaAs Driver Amplifier
P1dB: 18 dBm Gain: 20.5 dB Psat: 21 dBm
0.09 - 10 GHz

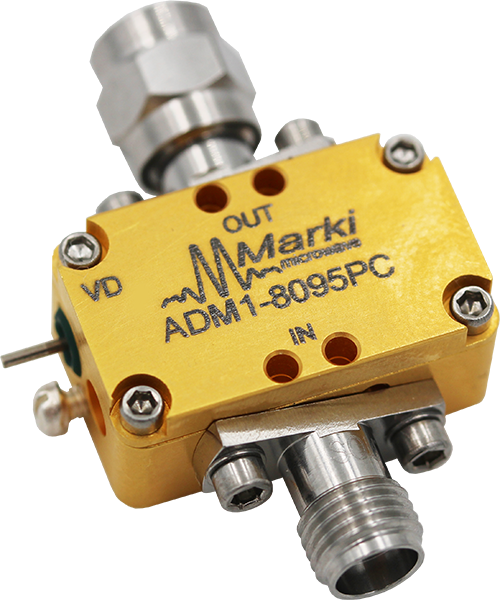

ADM1-8095PC
0.09 - 10 GHz High Dynamic Range Gain Block
P1dB: 18.5 dBm Gain: 18 dB Psat: 19 dBm
12 - 46 GHz

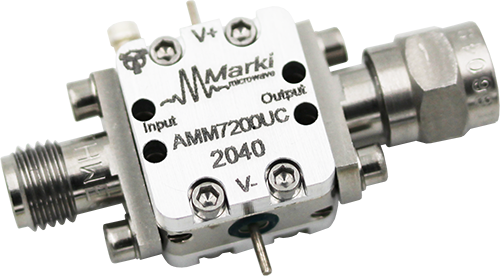

AMM-7200UC
12 GHz – 46 GHz GaAs Driver Amplifier
P1dB: 19 dBm Gain: 18 dB Psat: 21.5 dBm
30 - 60 GHz
AMM-7203UC
30 GHz – 60 GHz Low Noise Amplifier
P1dB: 11 dBm Gain: 11.5 dB Psat: 16 dBm
0.0003 - 18 GHz
ADM3-00001PD
300 kHz – 18 GHz Broadband High-Gain Amplifier
P1dB: 19.5 dBm Gain: 37 dB Psat: 23 dBm
0.005 - 26.5 GHz
ADM1-0026PA
Broadband Distributed Amplifier
P1dB: 19 dBm Gain: 12 dB Psat: 20 dBm
20 - 55 GHz

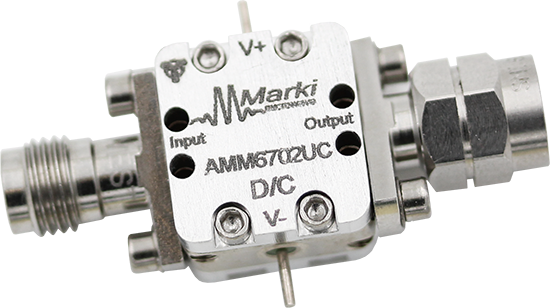

AMM-6702UC
20-55 GHz GaAs LO Driver Amplifier
P1dB: 14.8 dBm Gain: 24 dB Psat: 19 dBm
0 - 22 GHz
ADM3-0022PA
Broadband Power Amplifier
P1dB: 26 dBm Gain: 35 dB Psat: 30 dBm
