Port Diagram
A top-down x-ray view of the MM1A-0222HPSM’s PSM Package outline drawing is shown below. The MM1A-0222HPSM has the input and output ports given in Port Functions.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MM1A-0222HPSM is a versatile, robust, and broadband double balanced mixer with an integrated broadband LO driver amplifier. The MM1A-0222HPSM is ideal for applications with wide bandwidths and operation through the K band. The integrated LO driver amplifier allows for operation with LO powers as low as +3dBm while retaining exceptional conversion loss and linearity.
Features
RF/LO response: 2GHz - 22GHz
IF response: DC – 3.5GHz
Conversion Loss: 7.5 dB
Minimum LO drive: +3dBm
Applications
- Test and Measurement Equipment
- SATCOM
- Radar
- Low LO Drive Applications
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1A-0222HPSM-2 | Double Balanced Mixer/LO Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1A-0222HP | Evaluation Board, Double Balanced Mixer/LO Amplifier | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1A-0222HPSM-2 | Double Balanced Mixer/LO Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1A-0222HP | Evaluation Board, Double Balanced Mixer/LO Amplifier | EVB | REACH RoHS | Released | EAR99 |
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2022-09-01 | Datasheet Initial Release |
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pin 15 | IF | Pin 15 is DC coupled to the diodes. Blocking capacitor is optional. |  |
| Pin 18 | RF | Pin 18 is DC open and AC matched to 50 Ohms from 2 to 22 GHz. Blocking capacitor is optional. |  |
| Pin 28 | Vb | Port VB is the DC voltage bias for the current mirror that controls collector current supplied to the amplifier. |  |
| Pin 31 | VC | Port VC is the DC voltage supply that supplies the amplifier’s collector current. |  |
| Pin 7 | LO | Pin 7 is the input of the integrated LO driver amplifier and is matched to 50 ohms. It is internally DC blocked. | |
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime. All Absolute Maximum Ratings are individual and should not be met in parallel.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Collector Positive Bias Voltage (Vc) | 6 | V |
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Pin 15 DC Current (IF) | 30 | mA |
| Pin 15 RF Input Power | 30 | dBm |
| Pin 18 DC Current (RF) | 30 | mA |
| Pin 18 RF Input Power | 30 | dBm |
| Pin 7 LO Input Power | 18 | dBm |
| Positive Bias Current (Ic) | 240 | mA |
| Positive DC Current Mirror Voltage (Vb) | 6 | V |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 5 x 5 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -40 | 25 | 85 | °C |
| LO Input Power | 3 | 6 | 15 | dBm |
| Positive DC Voltage (Vc or Vb) | 4 | 5 | 7 | V |
| Current Draw | - | - | 225 | mA |
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +6dBm LO input to the integrated LO driver amp biased at +5Vb/+5Vb unless otherwise specified.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss 1 | RF/LO = 2 - 22 GHz I = 0.2 – 3.5 GHz | - | 9.5 | 13 | dB |
| Conversion Loss 2 | RF/LO = 2 - 22 GHz I = DC – 0.2 GHz | - | 7.5 | - | dB |
| Current Consumption | +6.0VB/+7.0VC | - | 105 | - | mA |
| IF Frequency Range | - | 0 | - | 3.5 | GHz |
| Input IP3 | RF/LO = 2 - 22 GHz I = DC – 0.2 GHz | - | 17 | - | dBm |
| Input P1dB | - | - | 9 | - | dBm |
| LO Frequency Range | - | 2 | - | 22 | GHz |
| Noise Figure 3 | RF/LO = 1.5 - 13 GHz I = DC – 0.2 GHz | - | 7.5 | - | dB |
| RF Frequency Range | - | 2 | - | 22 | GHz |
| RF-IF Isolation | RF/LO = 2 - 22 GHz | - | 36 | - | dB |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss 1 | RF/LO = 2 - 22 GHz I = 0.2 – 3.5 GHz | - | 9.5 | 13 | dB |
| Conversion Loss 2 | RF/LO = 2 - 22 GHz I = DC – 0.2 GHz | - | 7.5 | - | dB |
| Current Consumption | +6.0VB/+7.0VC | - | 105 | - | mA |
| IF Frequency Range | - | 0 | - | 3.5 | GHz |
| Input IP3 | RF/LO = 2 - 22 GHz I = DC – 0.2 GHz | - | 17 | - | dBm |
| Input P1dB | - | - | 9 | - | dBm |
| LO Frequency Range | - | 2 | - | 22 | GHz |
| Noise Figure 3 | RF/LO = 1.5 - 13 GHz I = DC – 0.2 GHz | - | 7.5 | - | dB |
| RF Frequency Range | - | 2 | - | 22 | GHz |
| RF-IF Isolation | RF/LO = 2 - 22 GHz | - | 36 | - | dB |
[1][2] Measured as a down converter to a fixed 91 MHz IF.
[3] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier
Typical Performance Plots
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier

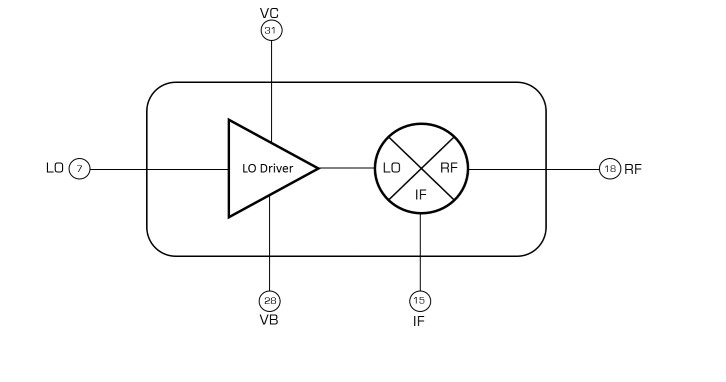

Application Circuit
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier

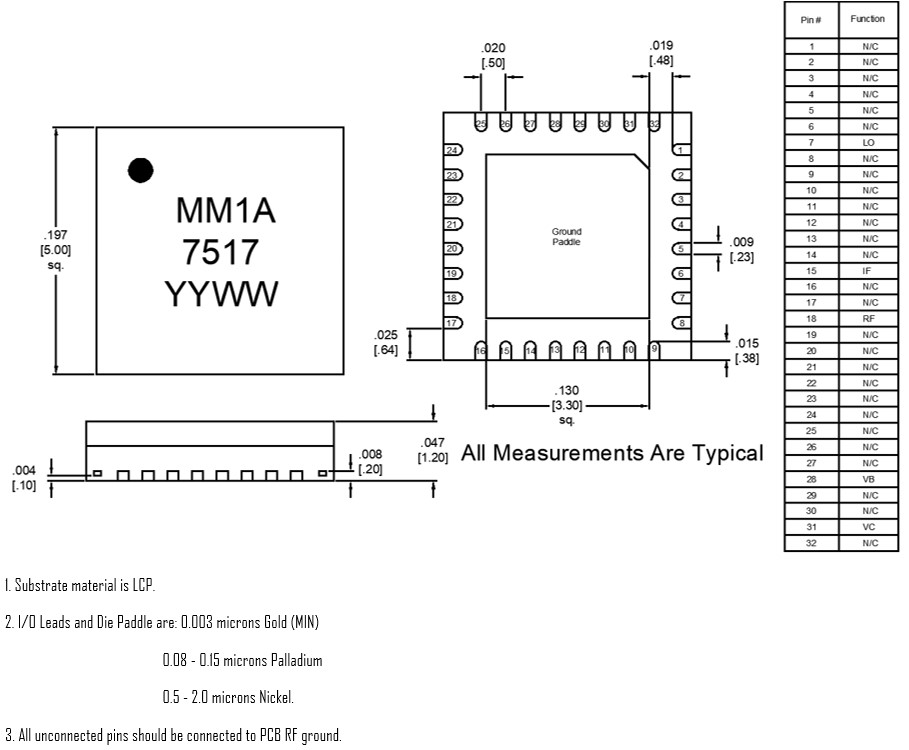

Mechanical Data
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier

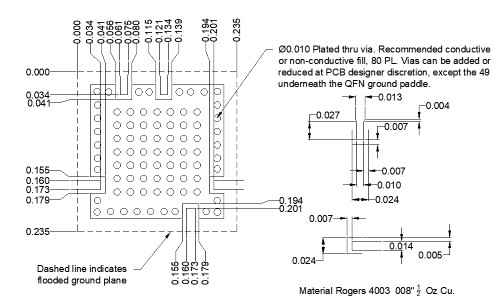

Footprint Image
MM1A-0222HPSM-2
Double Balanced Mixer/LO Amplifier

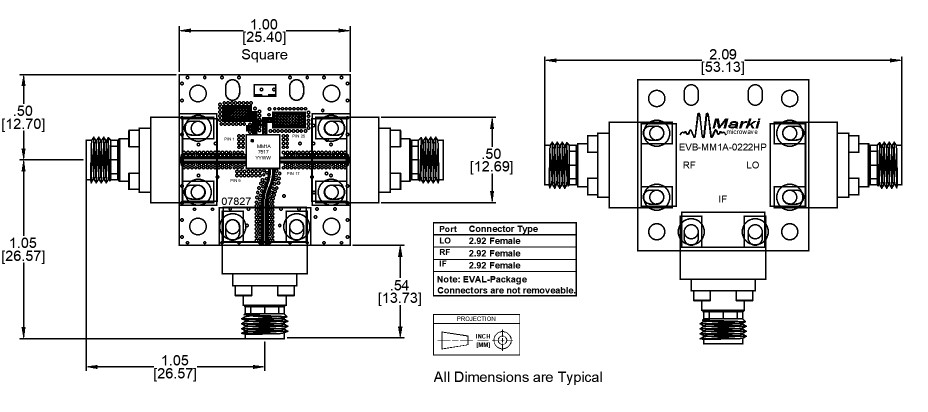

Evaluation Board - Outline Drawing
