MM1A-0222HPSM-2

Double Balanced Mixer/LO Amplifier

The MM1A-0222HPSM is a versatile, robust, and broadband double balanced mixer with an integrated broadband LO driver amplifier. The MM1A-0222HPSM is ideal for applications with wide bandwidths and operation through the K band. The integrated LO driver amplifier allows for operation with LO powers as low as +3dBm while retaining exceptional conversion loss and linearity.

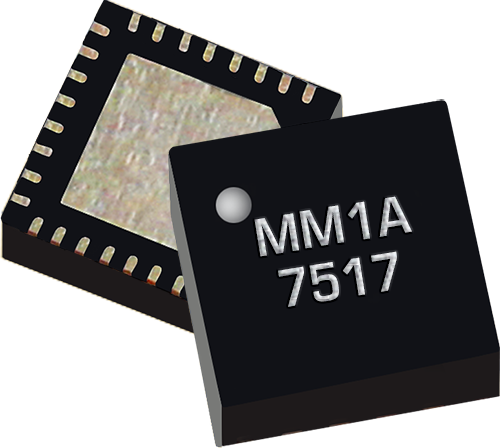

Product Variant : MM1A-0222HPSM-2
Sorted by: No sorting applied
EVB-MM1A-0222HP
Integrated Drive
-----------Released
MM1A-0222HPSM-2
Integrated Drive
22203.53157.5-17-5 x 5 mmReleased

Technical Resources
