MDPX-00010CSP3

Passive MMIC 20.3 GHz Diplexer/Reflectionless Filter

The MDPX-00010CSP3 is a MMIC surface mount balanced diplexer featuring a 20.3 GHz crossover frequency. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-00010CSP3 is available as a 3.5x3.5mm CSP3. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.

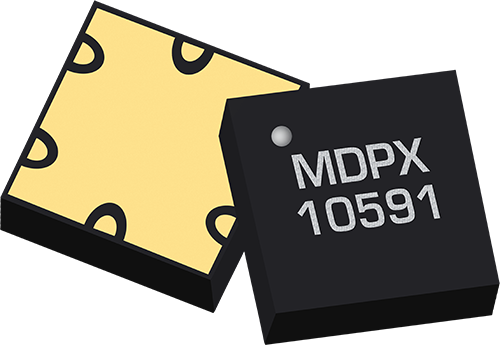

Product Variant : MDPX-00010CSP3
Sorted by: No sorting applied
EVB-MDPX-00010
Diplexer
----Released
MDPX-00010CSP3
Diplexer
19.7820.37-3.50 x 3.50 mmReleased

Technical Resources
