Device Overview
General Description
The EVB-MDPX-00010 is a connectorized evaluation board for the MDPX-00010CSP3 is a MMIC surface mount diplexer featuring a 20.3 GHz crossover frequency.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MDPX-00010CSP3 | Passive MMIC 20.3 GHz Diplexer/Reflectionless Filter | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MDPX-00010 | Evaluation Board, Passive MMIC 20.3GHz Diplexer/Reflectionless Filter | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MDPX-00010CSP3 | Passive MMIC 20.3 GHz Diplexer/Reflectionless Filter | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MDPX-00010 | Evaluation Board, Passive MMIC 20.3GHz Diplexer/Reflectionless Filter | EVB | RoHS REACH | Released | EAR99 |
EVB-MDPX-00010
Evaluation Board, Passive MMIC 20.3GHz Diplexer/Reflectionless Filter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-10-21 | Initial Release |
EVB-MDPX-00010
Evaluation Board, Passive MMIC 20.3GHz Diplexer/Reflectionless Filter
Mechanical Data
EVB-MDPX-00010
Evaluation Board, Passive MMIC 20.3GHz Diplexer/Reflectionless Filter

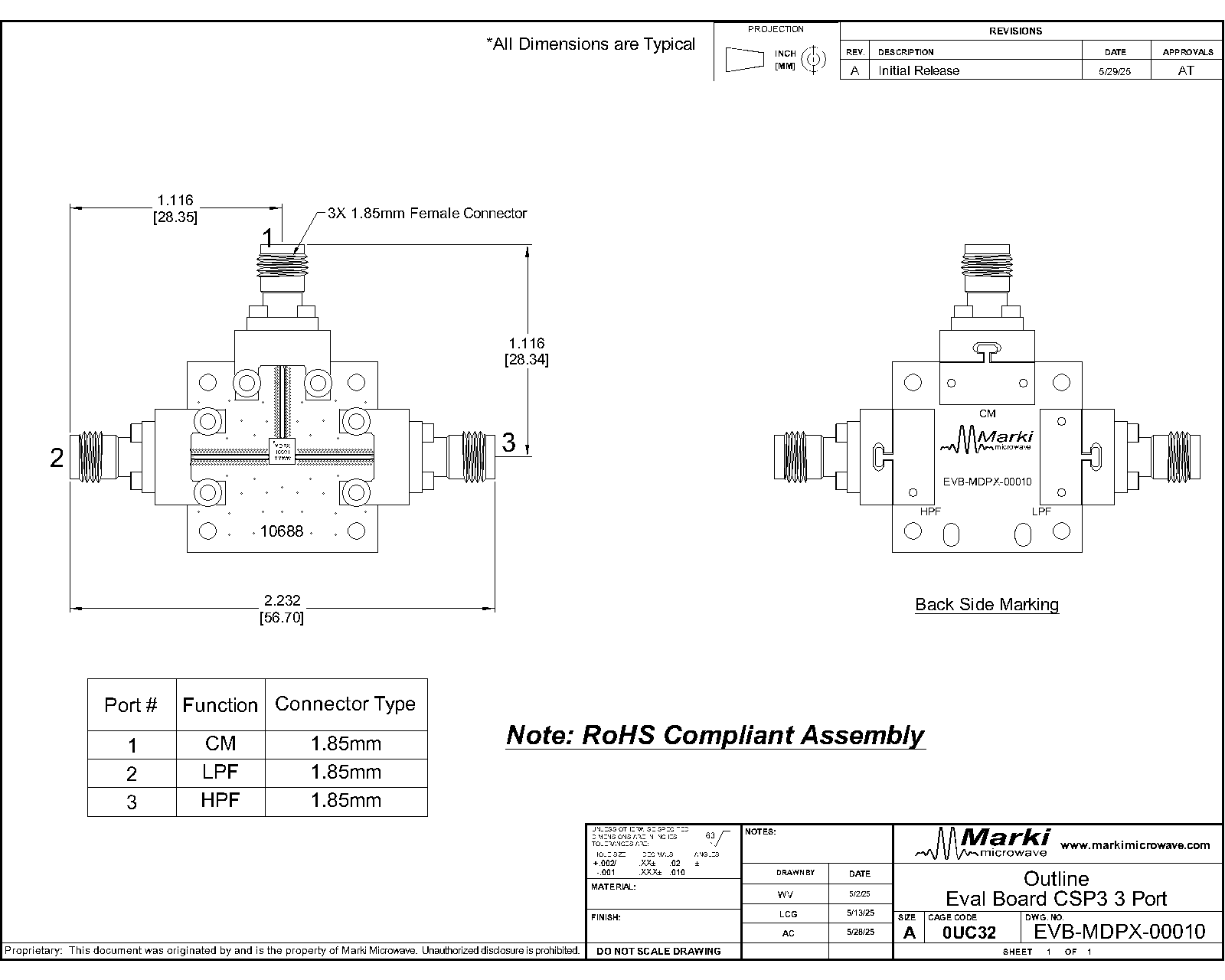

Evaluation Board - Outline Drawing
