Surface Mount Diplexers

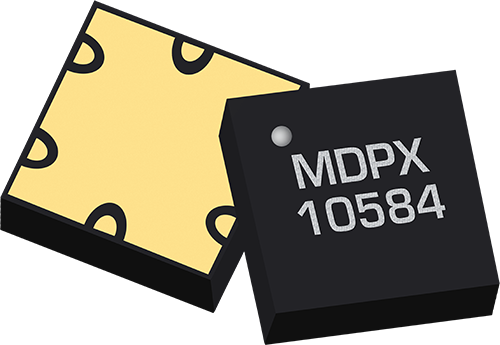

MDPX-00009CSP3

Passive MMIC 7.4GHz Reflectionless Diplexer

The MDPX-00009CSP3 is a MMIC surface mount balanced diplexer featuring a 7.4 GHz crossover frequency and high 30 dB isolation between the lowpass and highpass ports. The reflectionless architecture provides excellent return losses both in-band and out-of-band for the lowpass and highpass ports. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-00009CSP3 is available as a 3.5x3.5mm CSP3. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.
