Device Overview
General Description
The EVB-MDPX-00009 is a connectorized evaluation board for the MDPX-00009CSP3 is a MMIC surface mount reflectionless diplexer featuring a 7.4 GHz crossover frequency and excellent in-band and out-of-band return losses.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MDPX-00009CSP3 | Passive MMIC 7.4GHz Reflectionless Diplexer | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MDPX-00009 | Evaluation Board, Passive MMIC 7.4GHz Reflectionless Diplexer | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MDPX-00009CSP3 | Passive MMIC 7.4GHz Reflectionless Diplexer | CSP3 | RoHS REACH | Released | EAR99 |
| EVB-MDPX-00009 | Evaluation Board, Passive MMIC 7.4GHz Reflectionless Diplexer | EVB | RoHS REACH | Released | EAR99 |
EVB-MDPX-00009
Evaluation Board, Passive MMIC 7.4GHz Reflectionless Diplexer
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-10-21 | Initial Release |
EVB-MDPX-00009
Evaluation Board, Passive MMIC 7.4GHz Reflectionless Diplexer
Mechanical Data
EVB-MDPX-00009
Evaluation Board, Passive MMIC 7.4GHz Reflectionless Diplexer

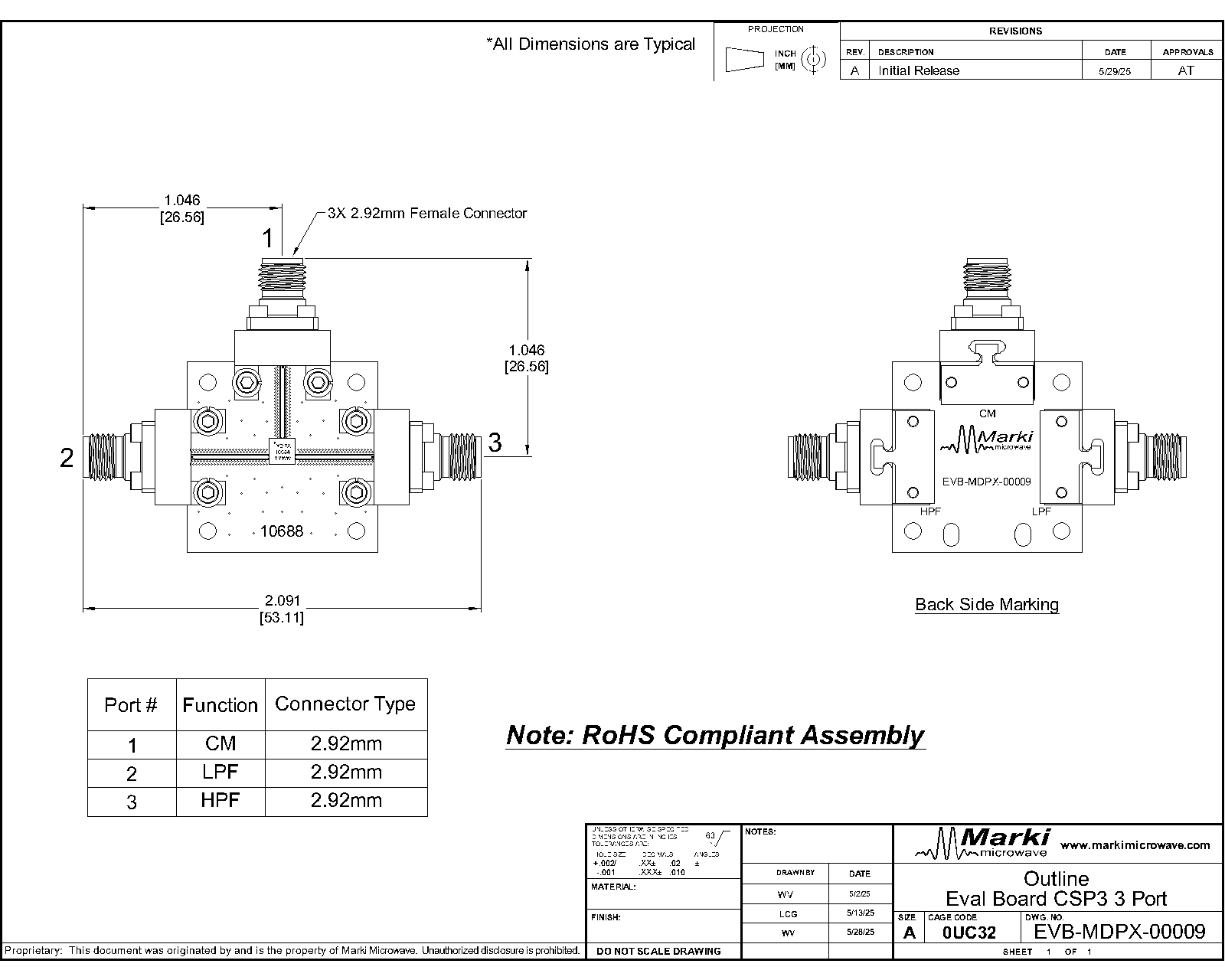

Evaluation Board - Outline Drawing
