Device Overview

General Description

The MDPX-00005PSM is a MMIC surface mount diplexer capable of multiplexing low frequency DC to 8 GHz and high frequency 10 to 28 GHz signals. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-00005PSM is available as a 4x4mm QFN and connectorized evaluation board. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.

Photo of MDPX-00005PSM

Features

  • Excellent ≤1dB Insertion Loss
  • 9 GHz Crossover Point
  • High Stop Band Suppression
  • Reflectionless Filter

Applications

  • SATCOM
  • Reflectionless Filter Applications
  • Electronic Warfare

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MDPX-00005PSMPassive MMIC 9GHz Diplexer/Reflectionless FilterQFN

RoHS

REACH

ReleasedEAR99
EVB-MDPX-00005PEvaluation Board, Passive MMIC 9 GHz Diplexer/Reflectionless FilterEVB

RoHS

REACH

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2024-12-04Initial Release

Rev: - | Copyright © 2024 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

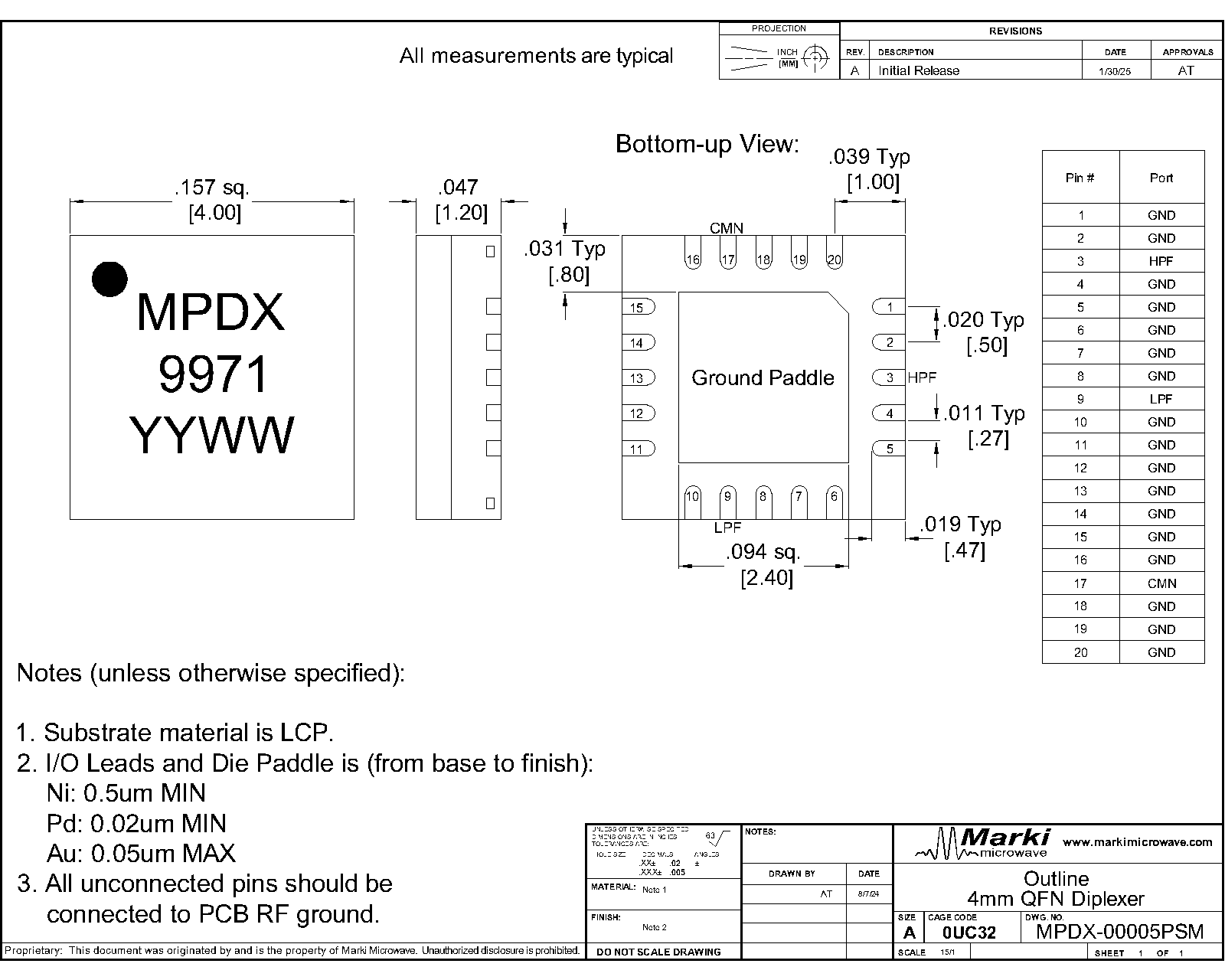

A bottom-up x-ray view of the MDPX-00005PSM’s PSM package outline drawing is shown below. Input to the diplexer is on Pin 17, Pin 3 will be the output after passing through a high pass filter and Pin 9 will be the output after passing through the low pass filter.

Diagram of the port configuration for MDPX-00005PSM

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
Ground PaddleGround PSM package ground path is provided through the ground paddle and should be connected to RF ground.Equivalent circuit for the Ground
Pin 17Common/Input Pin 17 is DC short to Pin 9 and open to GND and Pin 3.Equivalent circuit for the Common/Input
Pin 3RF High Band Pin 3 is DC short to GND and open to the other ports.Equivalent circuit for the RF High Band
Pin 9RF Low Band Pin 9 is DC short to Pin 17 and open to GND and Pin 3.Equivalent circuit for the RF Low Band

Rev: - | Copyright © 2024 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded or met simultaneously the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 100°C
Minimum Operating Temperature -65°C
Minimum Storage Temperature -65°C
RF Power Handling 30dBm

Package Information

ParameterDetailsRating
Dimensions-4 x 4 mm
Moisture Sensitivity Level-MSL 1

Rev: - | Copyright © 2024 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the filter in a PSM package with a sine wave input applied to Pin 17. Min and Max limits are guaranteed at TA=+25°C.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
1 dBc High Passband -- -10.5-28GHz
1 dBc Low Passband -- -0-7.49GHz
30 dBc High Pass Rejection Point -8.31 8.31---dB
30 dBc Low Pass Rejection Point -9.69 9.69---GHz
3 dBc High Passband -9.55 28---GHz
3 dBc Low Passband -0 8.78---GHz
Common Port Return Loss -0 28-22-dB
Cross Over Frequency -9.2 9.2---GHz
Crossover Isolation -7.49 10.5-17-dB
Group Delay, High Band -- --60-ps
Group Delay, Low Band -- --114-ps
High Band Center Frequency -19.25 19.25---GHz
High Pass Filter, Pass Band Insertion Loss -- --0.6-dB
High Pass Filter, Pass Band Return Loss -10.5 28-21-dB
High Pass Isolation -10.5 28-51-dB
Impedance -- --50-Ω
Low Band Center Frequency -3.75 3.75---GHz
Low Pass Filter, Pass Band Insertion Loss -- --0.5-dB
Low Pass Filter, Pass Band Return Loss -0 7.49-28-dB
Low Pass Isolation -0 7.49-42-dB

Rev: - | Copyright © 2024 Marki Microwave LLC.

5

Typical Performance Plot

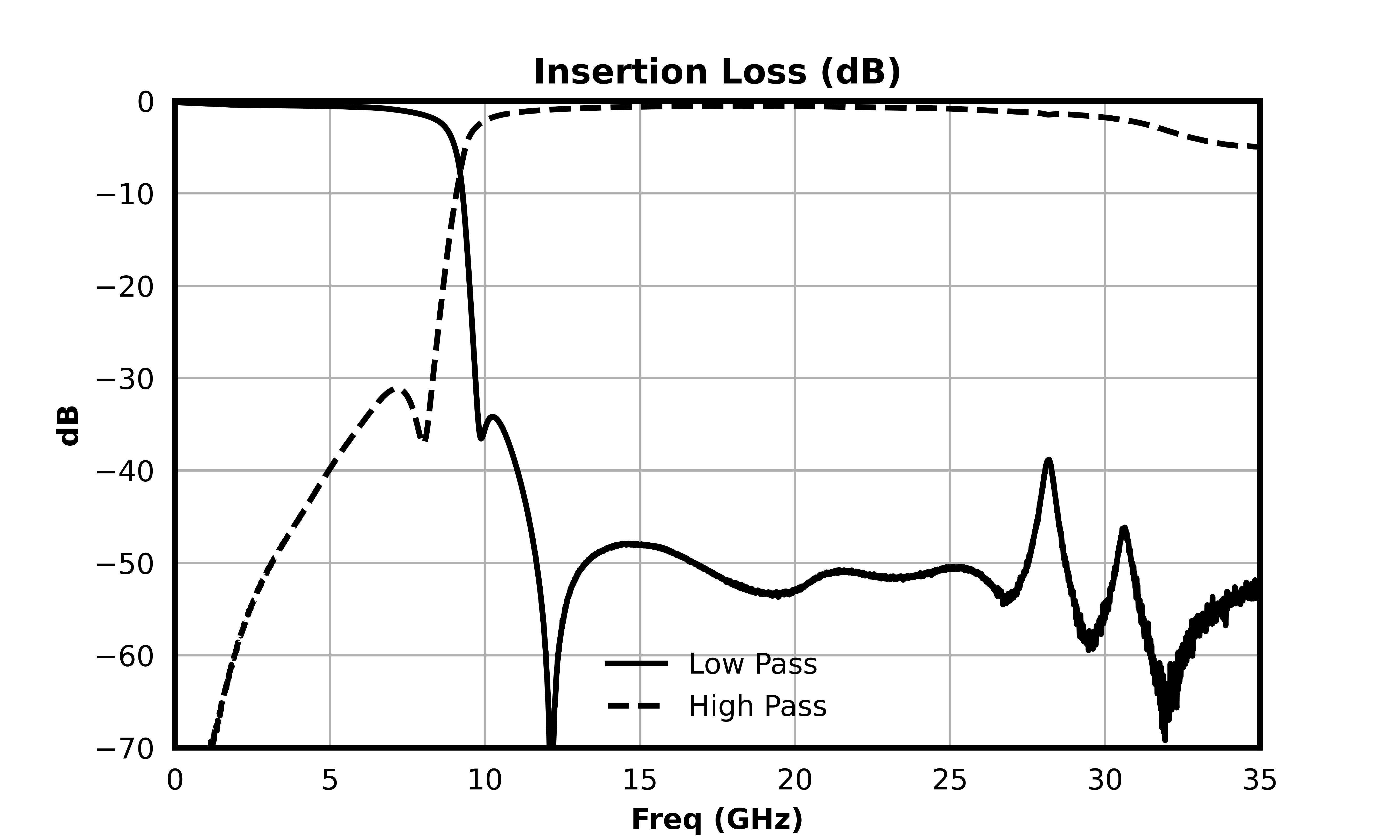

Insertion Loss (dB) graph for MDPX-00005PSM

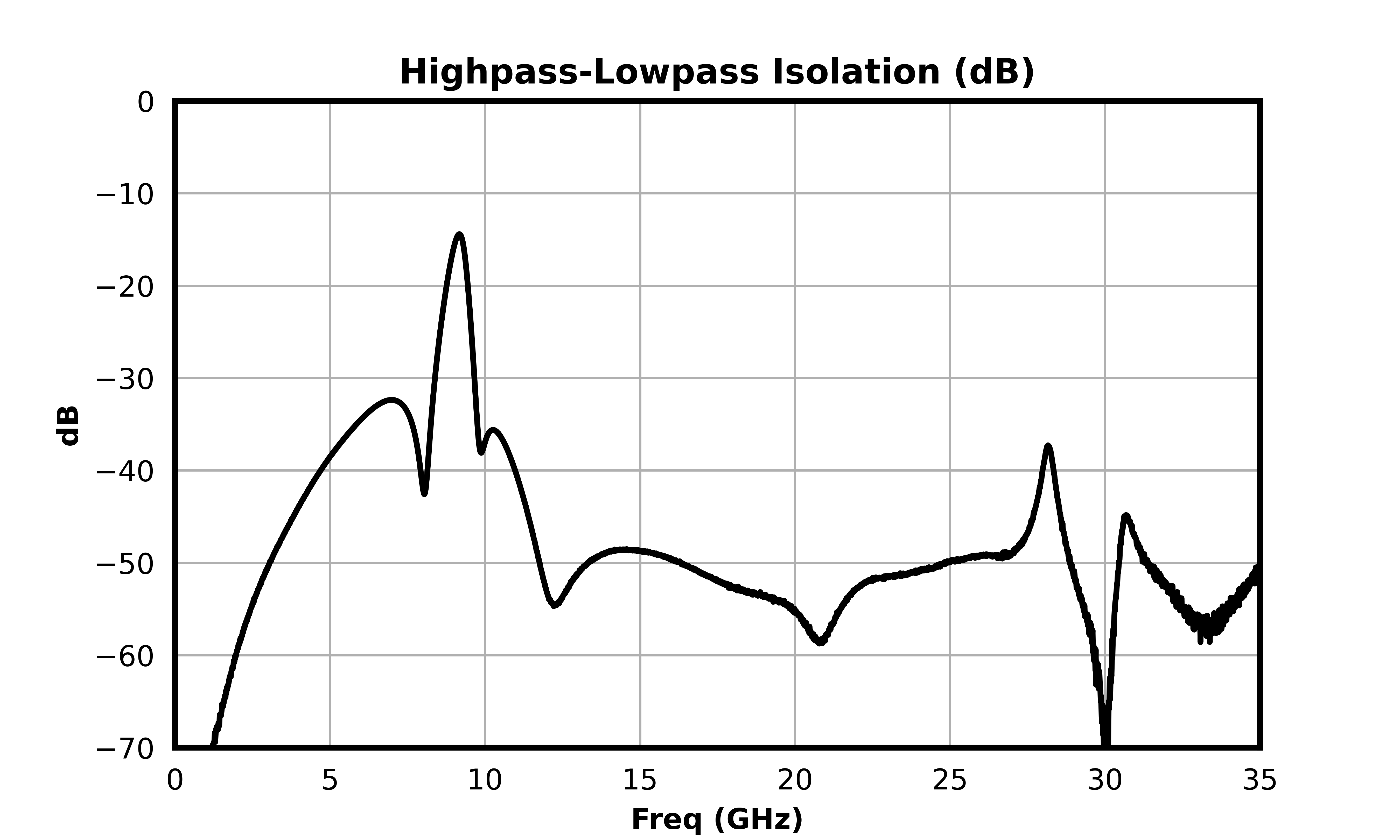

Highpass-Lowpass Isolation (dB) graph for MDPX-00005PSM

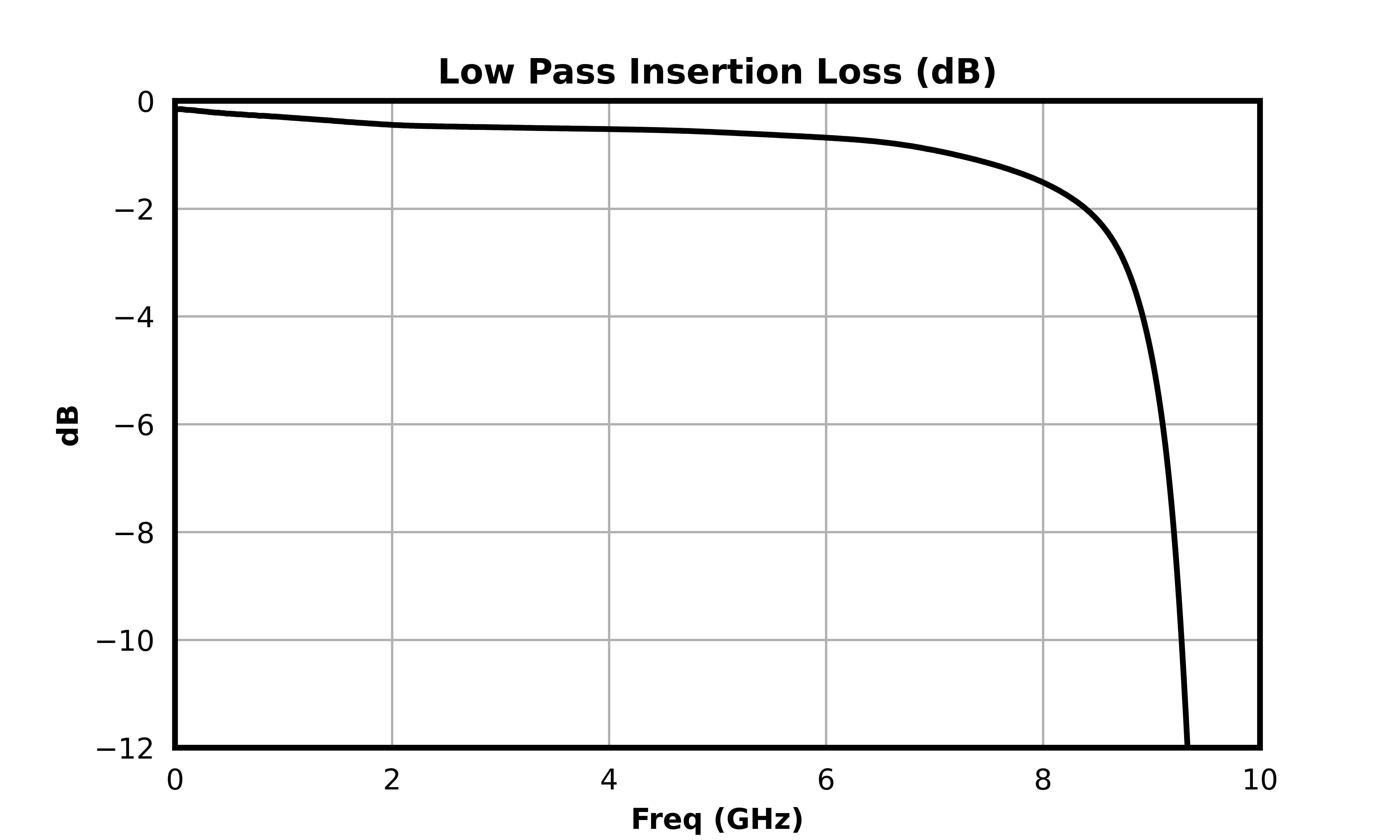

Low Pass Insertion Loss (dB) graph for MDPX-00005PSM

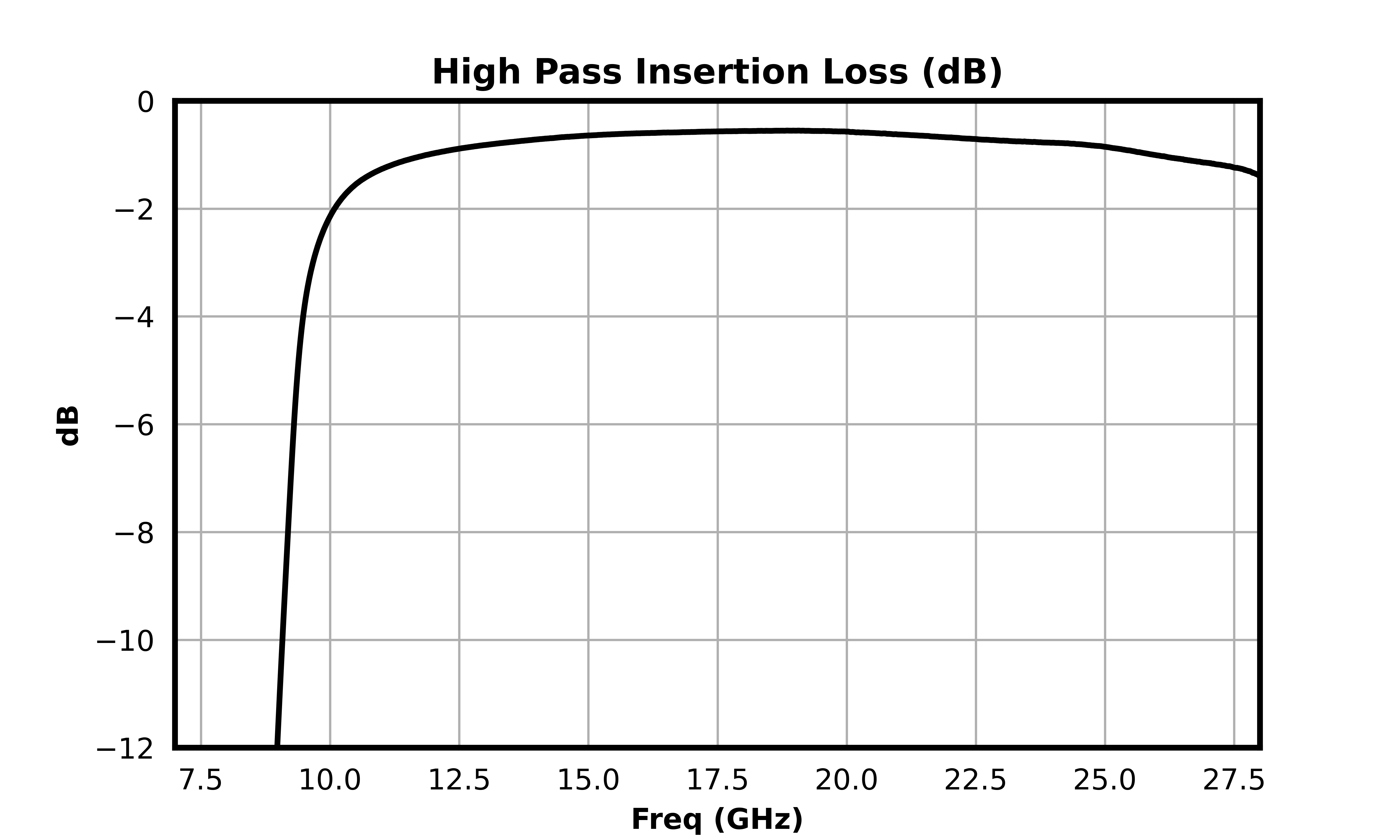

High Pass Insertion Loss (dB) graph for MDPX-00005PSM

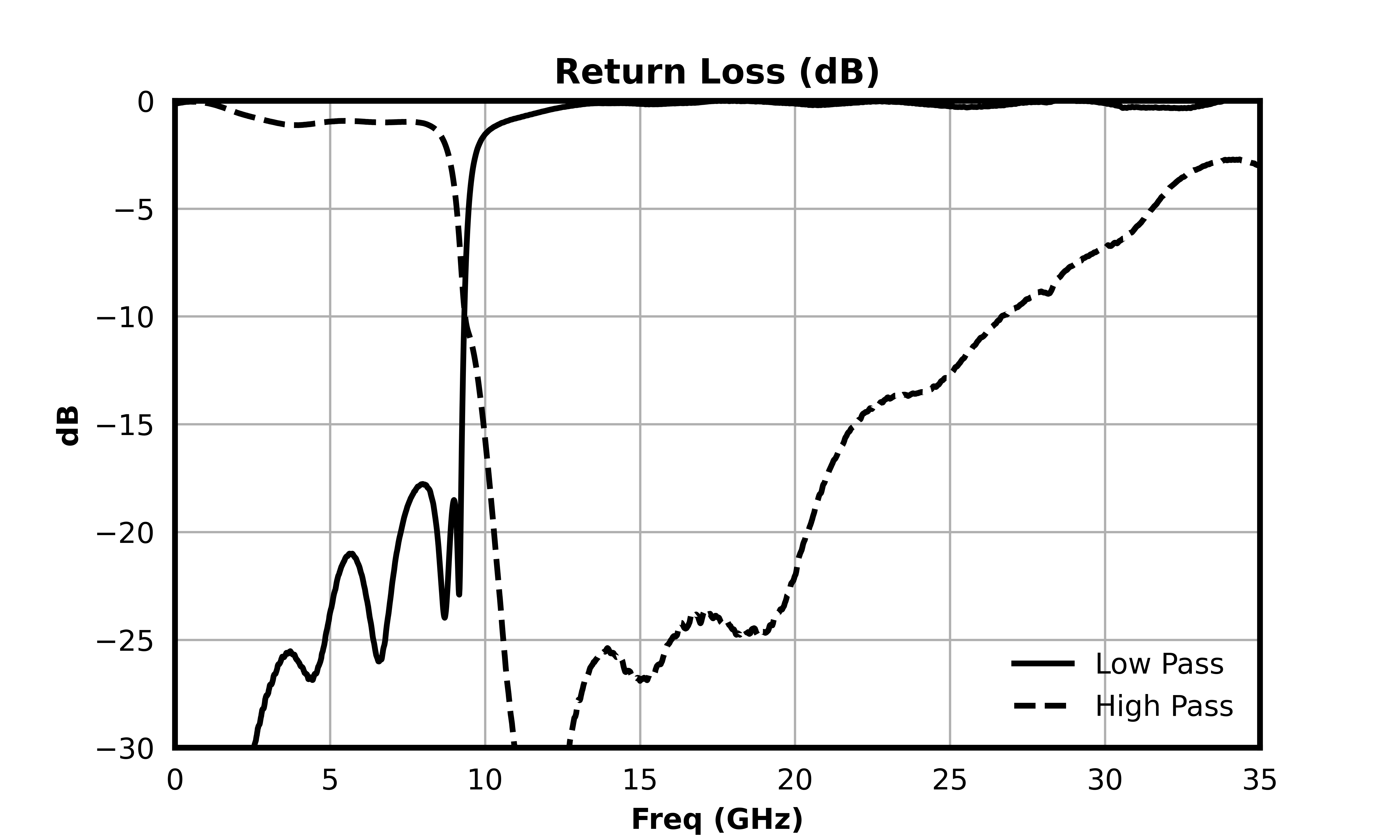

Return Loss (dB) graph for MDPX-00005PSM

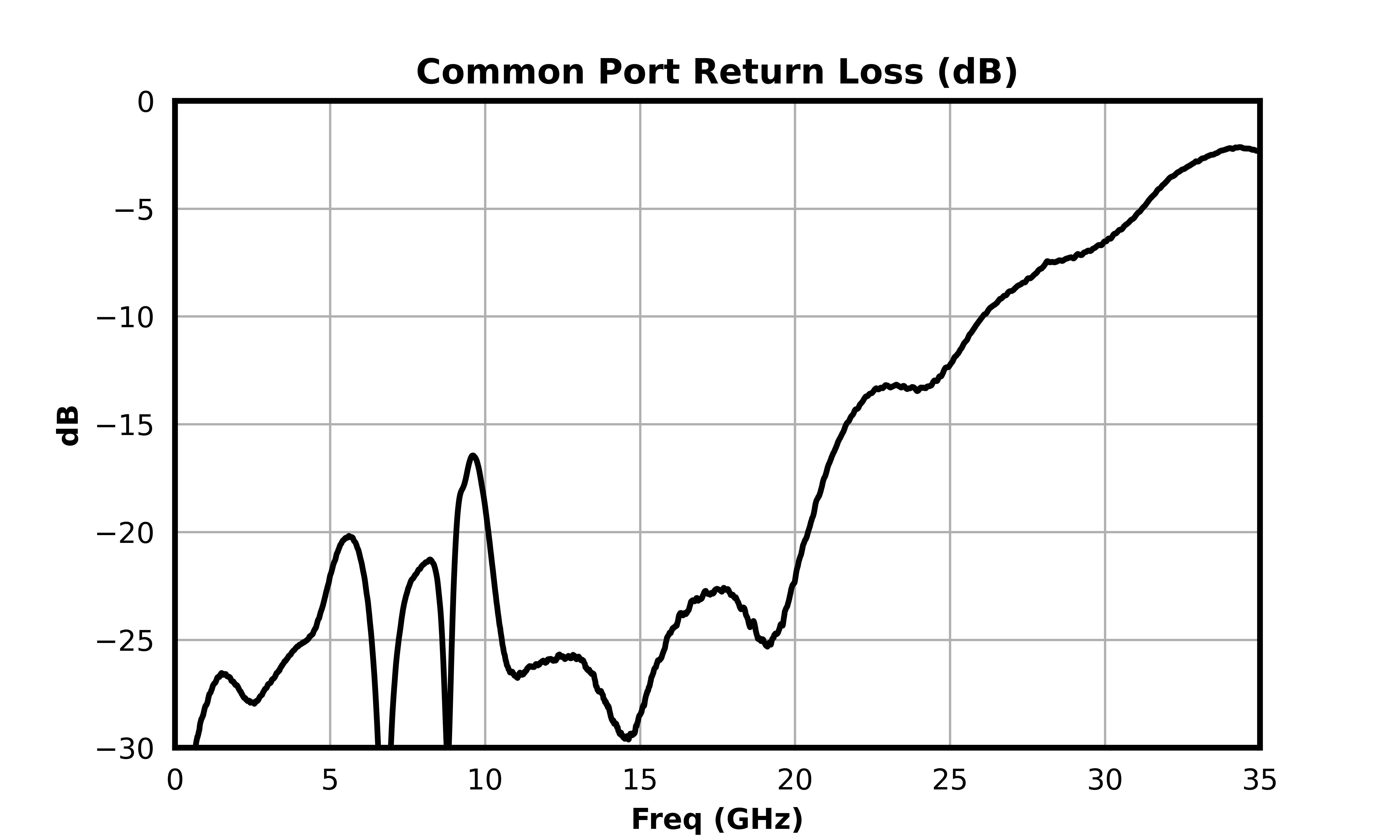

Common Port Return Loss (dB) graph for MDPX-00005PSM

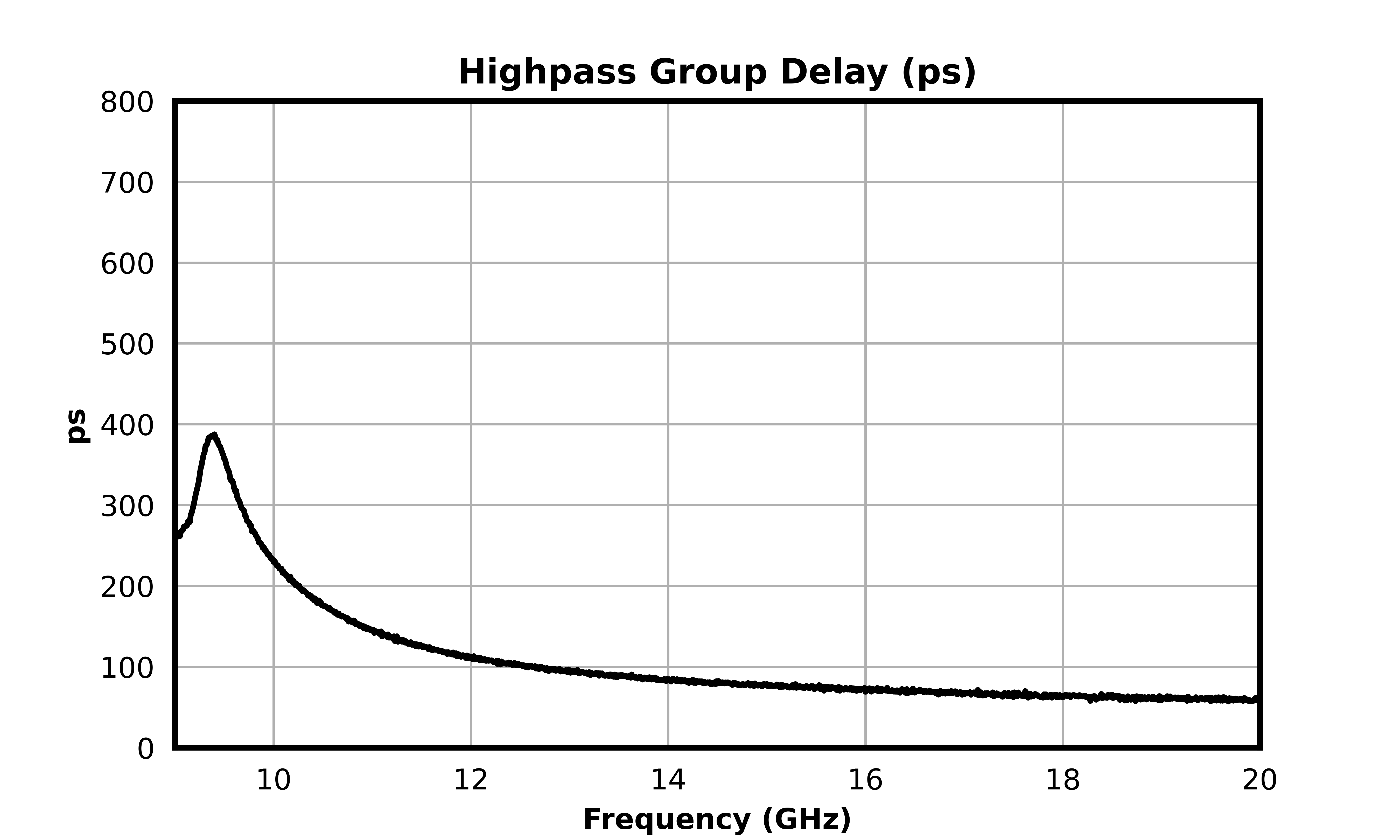

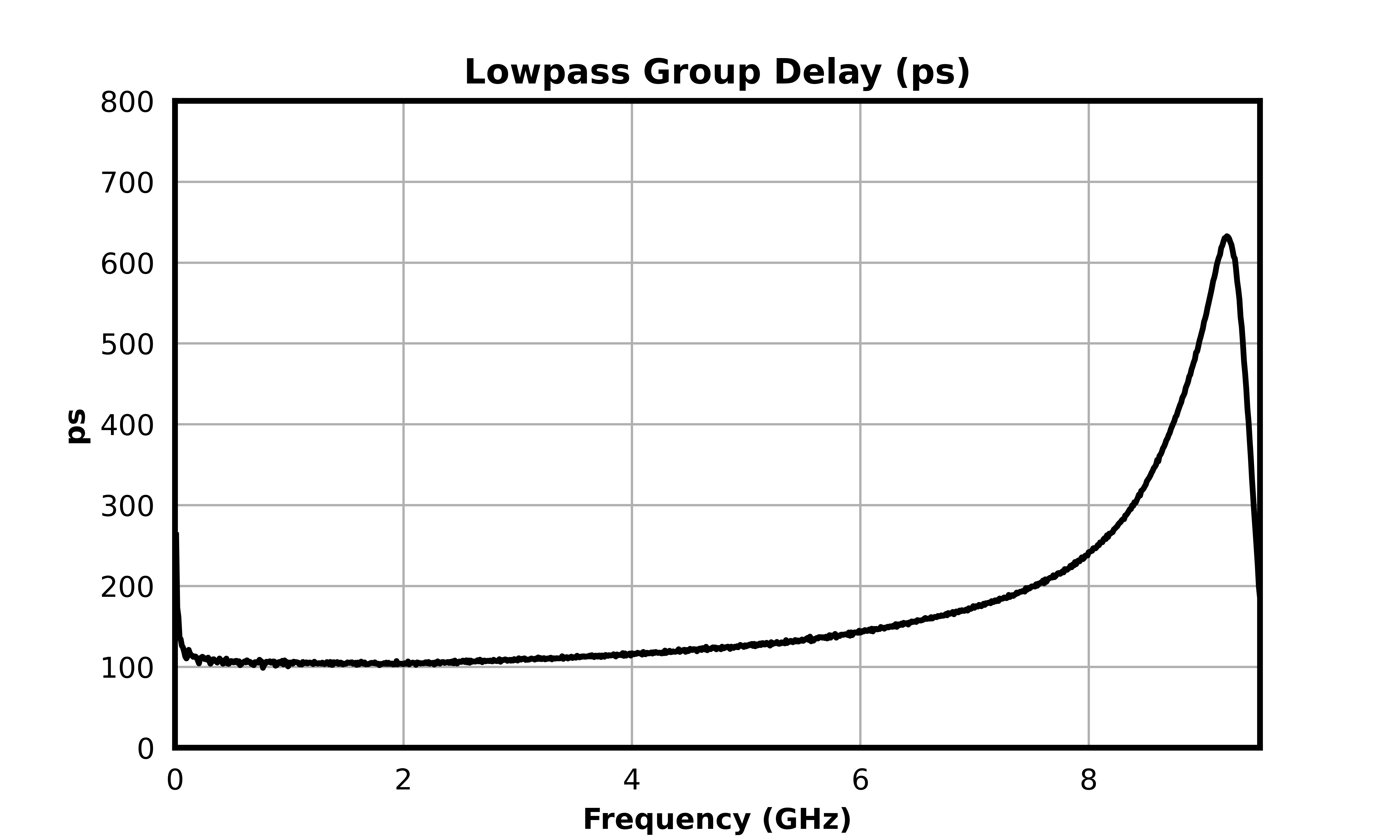

Lowpass Group Delay (ps) graph for MDPX-00005PSM
Highpass Group Delay (ps) graph for MDPX-00005PSM

Rev: - | Copyright © 2024 Marki Microwave LLC.

6

Mechanical Data

Rev: - | Copyright © 2024 Marki Microwave LLC.

7

Rev: - | Copyright © 2024 Marki Microwave LLC.

8

Evaluation Board - Outline Drawing

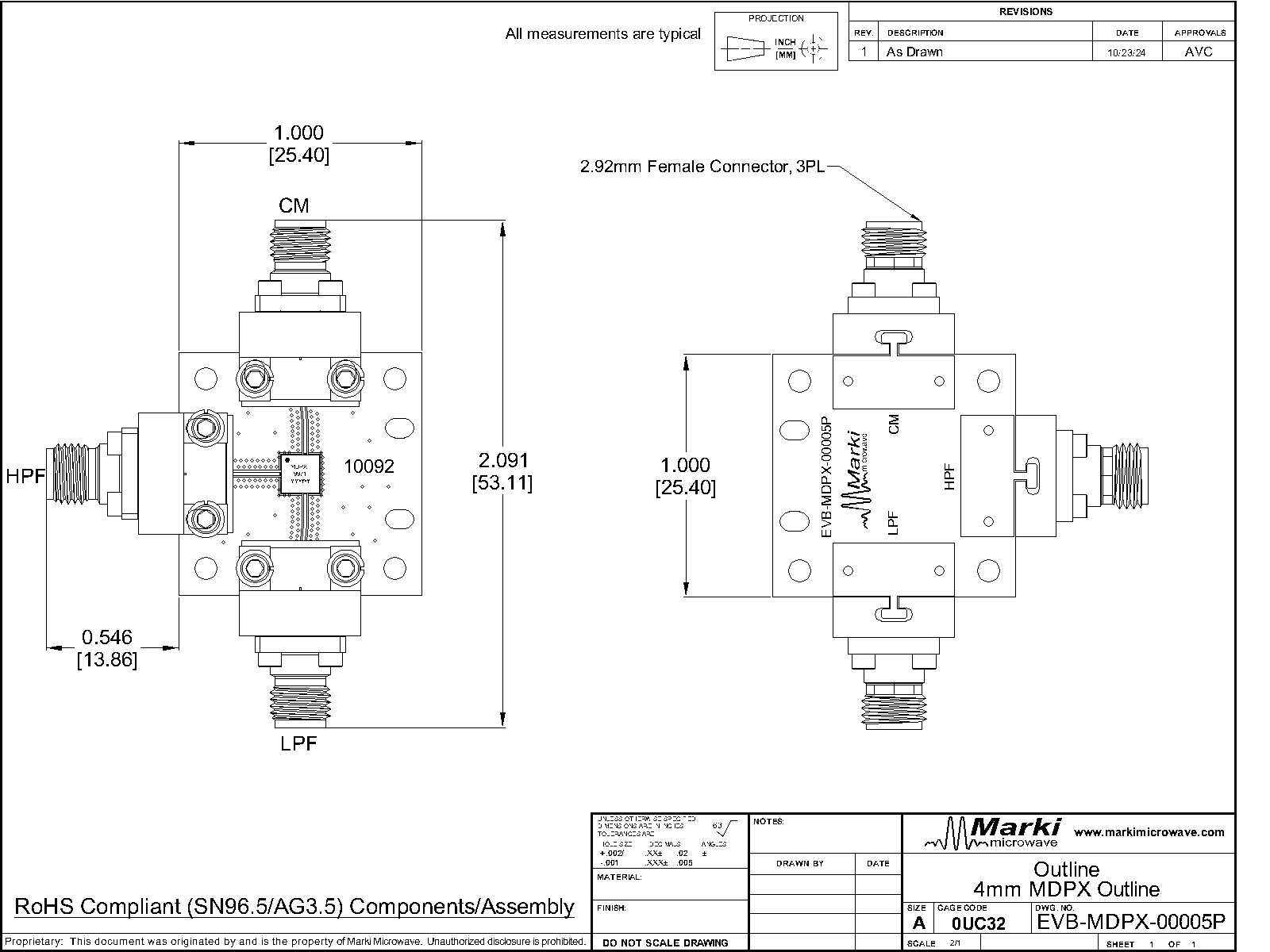

Outline Drawing
