Surface Mount Diplexers

MDPX-00005PSM

Passive MMIC 9GHz Diplexer/Reflectionless Filter

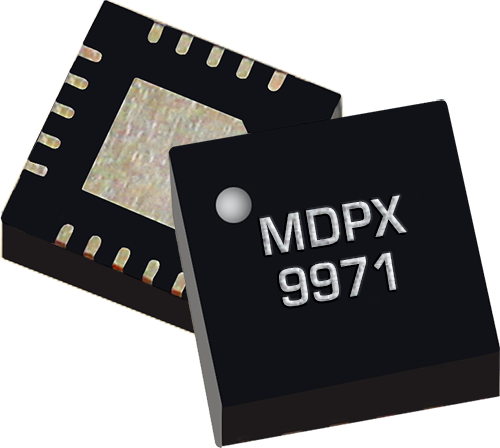

The MDPX-00005PSM is a MMIC surface mount diplexer capable of multiplexing low frequency DC to 8 GHz and high frequency 10 to 28 GHz signals. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-00005PSM is available as a 4x4mm QFN and connectorized evaluation board. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.
