Device Overview
General Description
The EVB-MDPX-00005P is a connectorized evaluation board for the MDPX-00005PSM is a MMIC surface mount diplexer capable of multiplexing low frequency DC to 8 GHz and high frequency 10 to 28 GHz signals.
Features
N/A
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MDPX-00005PSM | Passive MMIC 9GHz Diplexer/Reflectionless Filter | QFN | RoHS REACH | Released | EAR99 |
| EVB-MDPX-00005P | Evaluation Board, Passive MMIC 9 GHz Diplexer/Reflectionless Filter | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MDPX-00005PSM | Passive MMIC 9GHz Diplexer/Reflectionless Filter | QFN | RoHS REACH | Released | EAR99 |
| EVB-MDPX-00005P | Evaluation Board, Passive MMIC 9 GHz Diplexer/Reflectionless Filter | EVB | RoHS REACH | Released | EAR99 |
EVB-MDPX-00005P
Evaluation Board, Passive MMIC 9 GHz Diplexer/Reflectionless Filter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-12-04 | Initial Release |
EVB-MDPX-00005P
Evaluation Board, Passive MMIC 9 GHz Diplexer/Reflectionless Filter
Mechanical Data
EVB-MDPX-00005P
Evaluation Board, Passive MMIC 9 GHz Diplexer/Reflectionless Filter

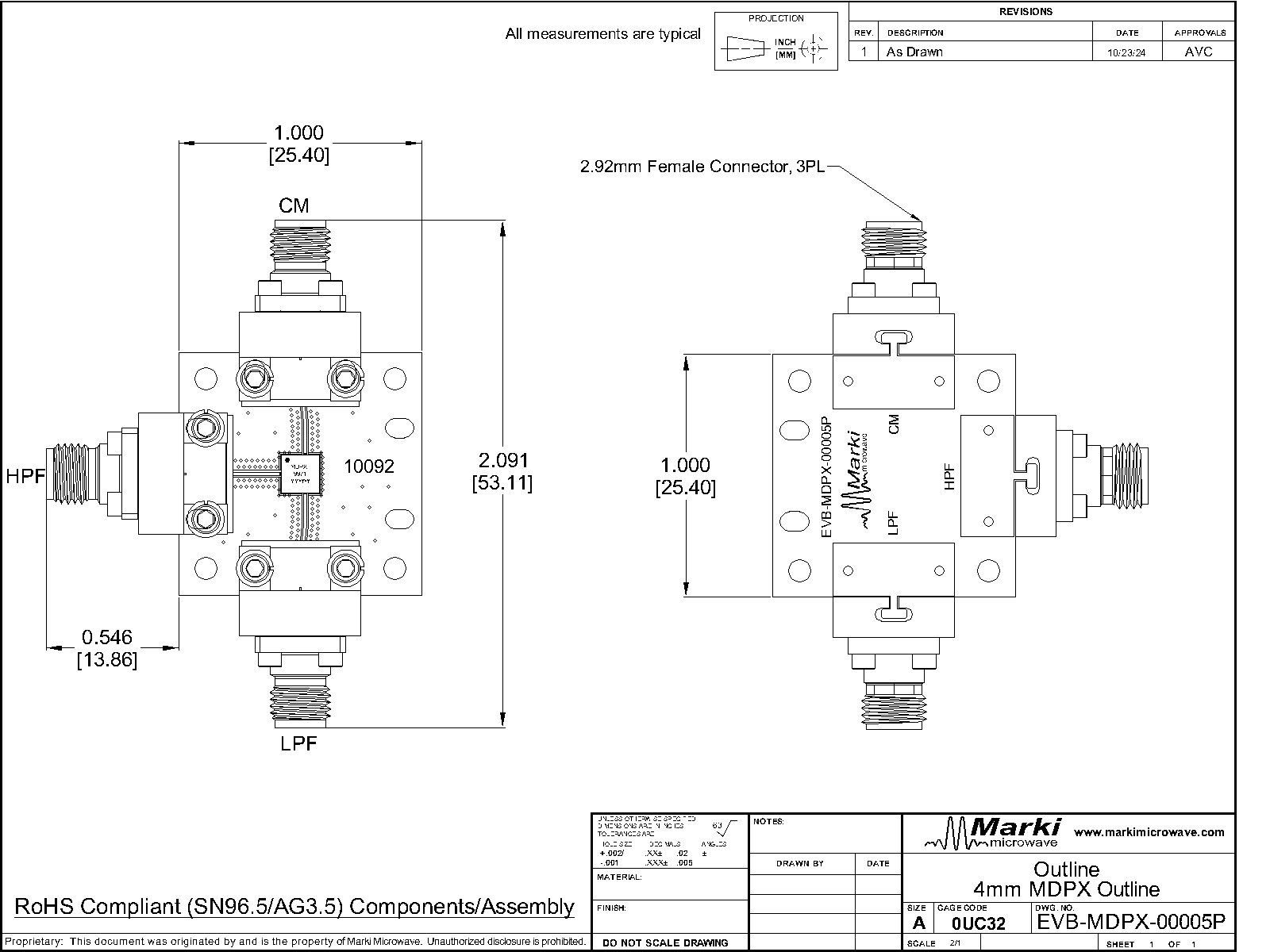

Evaluation Board - Outline Drawing
-Model.png)
