Surface Mount Configurable Filters

MFBT-00002PSM

GaAs MMIC 4.5 - 16.5 GHz Tunable Filter

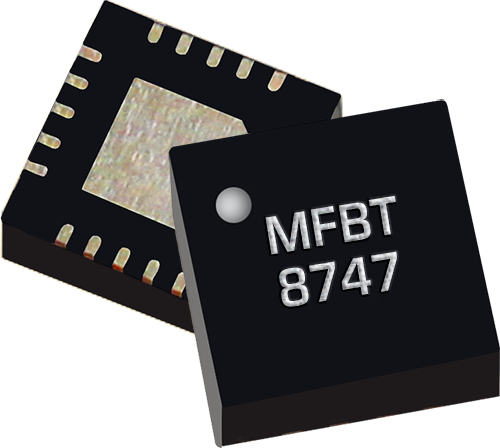

The MFBT-00002PSM is a surface mount MMIC tunable filter for adaptive filtering applications. The MFBT-00002PSM offers separate low pass and high pass tuning capability, allowing users to create bandpass filters with variable center frequencies and % bandwidths. Performance features include low return loss in both the passband and stopband and low insertion loss, high stopband rejection, and high IP3 relative to other tunable filters. The MFBT-00002PSM is available as a 4x4mm plastic QFN, replacing much larger switched filter banks.
