EVB-MFBT-00002P

GaAs MMIC 4.5 - 16.5 GHz Tunable Filter

The EVB-MFBT-00002P is a surface mount MMIC tunable filter for adaptive filtering applications. The EVB-MFBT-00002P offers separate low pass and high pass tuning capability, allowing users to create bandpass filters with variable center frequencies and % bandwidths. Performance features include low return loss in both the passband and stopband and low insertion loss, high stopband rejection, and high IP3 relative to other tunable filters.

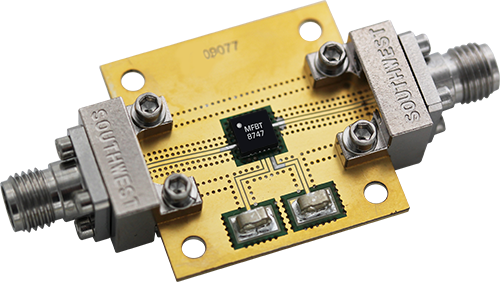

Product Variant : EVB-MFBT-00002P
Sorted by: No sorting applied
MFBT-00002PSM
Tunable
4.516.5Adjustable6.54 x 4 mmReleased
EVB-MFBT-00002P
Tunable
--Adjustable--Released
