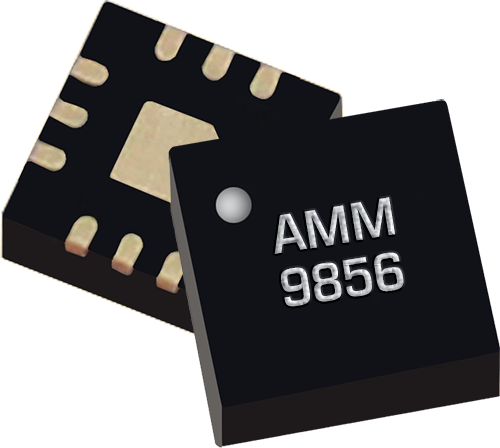

AMM-9856PSM

DC-40 GHz GaAs Surface Mount Driver Amplifier

The AMM-9856PSM is a surface-mount amplifier suitable for use as a single tone driver or general-purpose gain block. It can drive an L diode mixer up to 40 GHz or an H diode mixer up to 20 GHz. This amplifier also is optimized for excellent gain flatness in-band and high IP3/IP2 performance. The AMM-9856PSM is packaged in a compact 3mm QFN for surface mount integration onto printed circuit boards

Product Variant : AMM-9856PSM
Sorted by: No sorting applied
EVB-AMM-9856P-1
Driver
mm-wave
040------Released
AMM-9856PSM
Driver
mm-wave
040103.81525143 x 3 mmReleased
