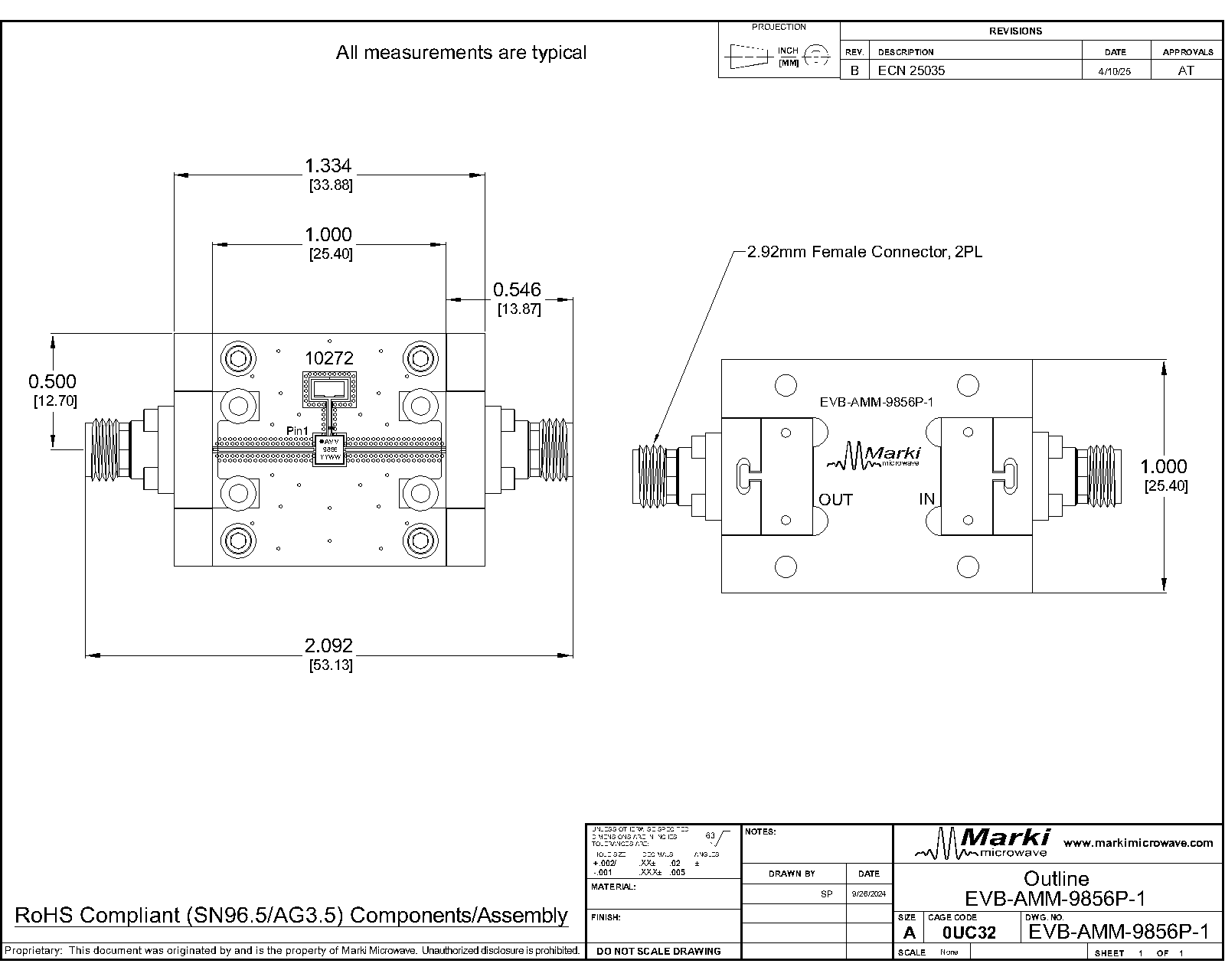

EVB-AMM-9856P-1

General Description

This is the evaluation board for the AMM-9856PSM. This version is designed to be used with external bias tees. The AMM-9856PSM is a surface-mount amplifier suitable for use as a single tone driver or general-purpose gain block. It can drive an L diode mixer up to 40 GHz or an H diode mixer up to 20 GHz. This amplifier also is optimized for excellent gain flatness in-band and high IP3/IP2 performance. The AMM-9856PSM is packaged in a compact 3mm QFN for surface mount integration onto printed circuit boards
