AMM-9619PSM_2 - 26 GHz GaAs Surface Mount LO Driver Amplifier

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
AMM-9619PSM	2 - 26 GHz GaAs Surface Mount LO Driver Amplifier	QFN	REACH RoHS	Released	EAR99
EVB-AMM-9619P	Evaluation Board, 2-26GHz Surface Mount LO Driver Amplifier	EVB	REACH RoHS	Released	EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
AMM-9619PSM	2 - 26 GHz GaAs Surface Mount LO Driver Amplifier	QFN	REACH RoHS	Released	EAR99
EVB-AMM-9619P	Evaluation Board, 2-26GHz Surface Mount LO Driver Amplifier	EVB	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2024-11-13	Initial Release

Port Configuration and Functions

Port Diagram

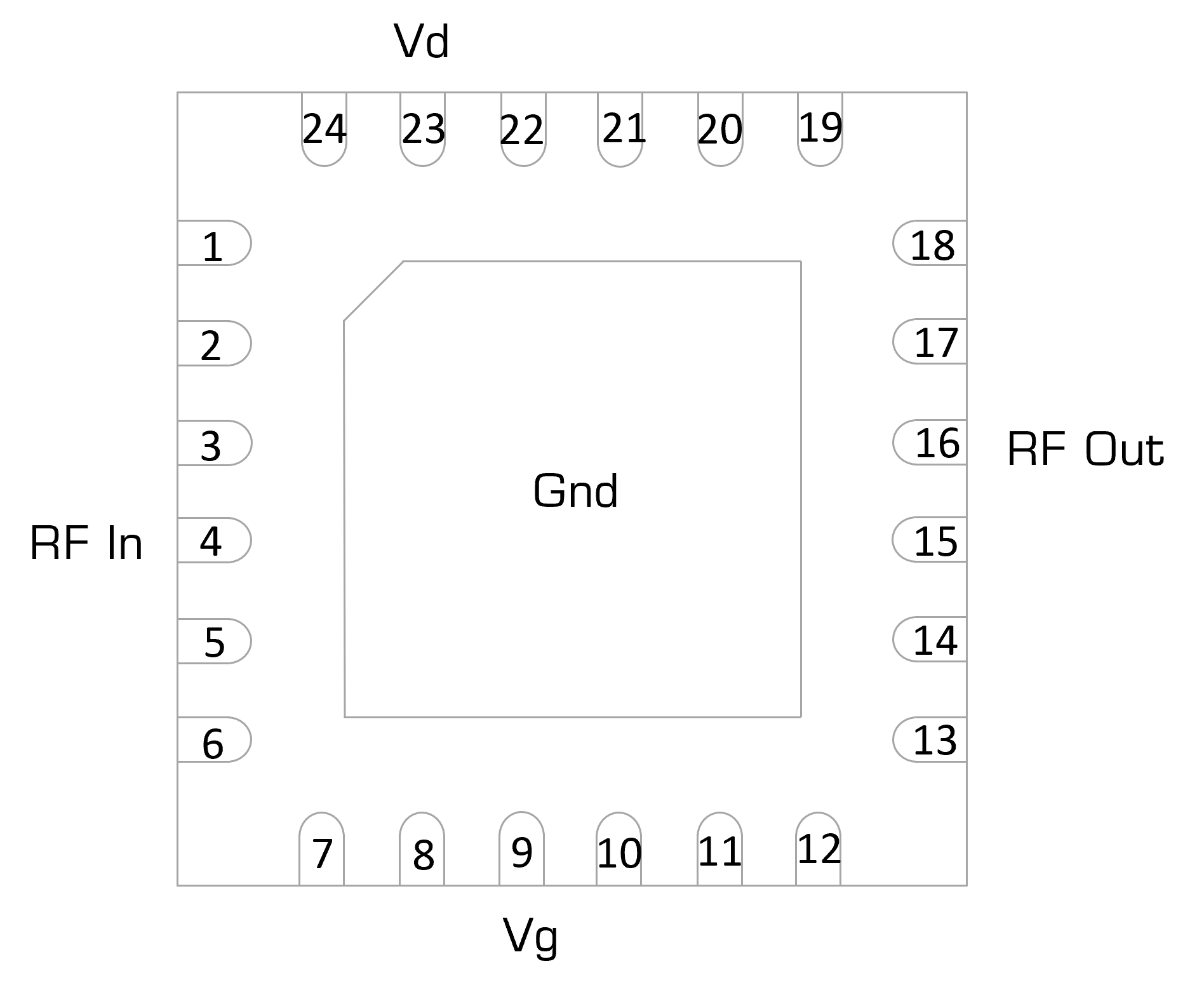

A port diagram of the AMM-9619PSM QFN package is shown below (X-ray view from the top).

Diagram of the port configuration for AMM-9619PSM

Port Functions

Port	Function	Description	DC Equivalent Circuit
1-3, 5-8, 10-15, 17-22, 24, Paddle	Ground	These pins should be connected to ground. Package ground paddle must be connected to a DC/RF ground potential with high thermal and electrical conductivity.	-
16	RF Output	Pin 16 is the RF Output port of the amplifier. It is DC blocked, and RF matched to 50 Ω.
23	Vd	Pin 23 provides the main power supply for the amplifier. Apply gate bias voltage Vg before applying drain power supply.
4	RF Input	Pin 4 is the RF Input port of the amplifier die. It is internally DC blocked and RF matched to 50 Ω.
9	Vg	Pin 9 provides a required negative bias which controls the power supply currents to the amplifier. More negative voltages decrease supply current. Apply gate bias voltage Vg before applying drain power supply.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If any one of these limits are exceeded, the device may become inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Drain Current (RF Applied)	130	mA
Drain Supply Voltage (Vd)	6	V
Gate Voltage (Vg)	-1	V
Maximum Operating Temperature for MTTF > 1E6 hours	85	°C
Maximum Storage Temperature	150	°C
Minimum Operating Temperature for MTTF > 1E6 hours	-55	°C
Minimum Storage Temperature	-65	°C
RF Input Power	20	dBm

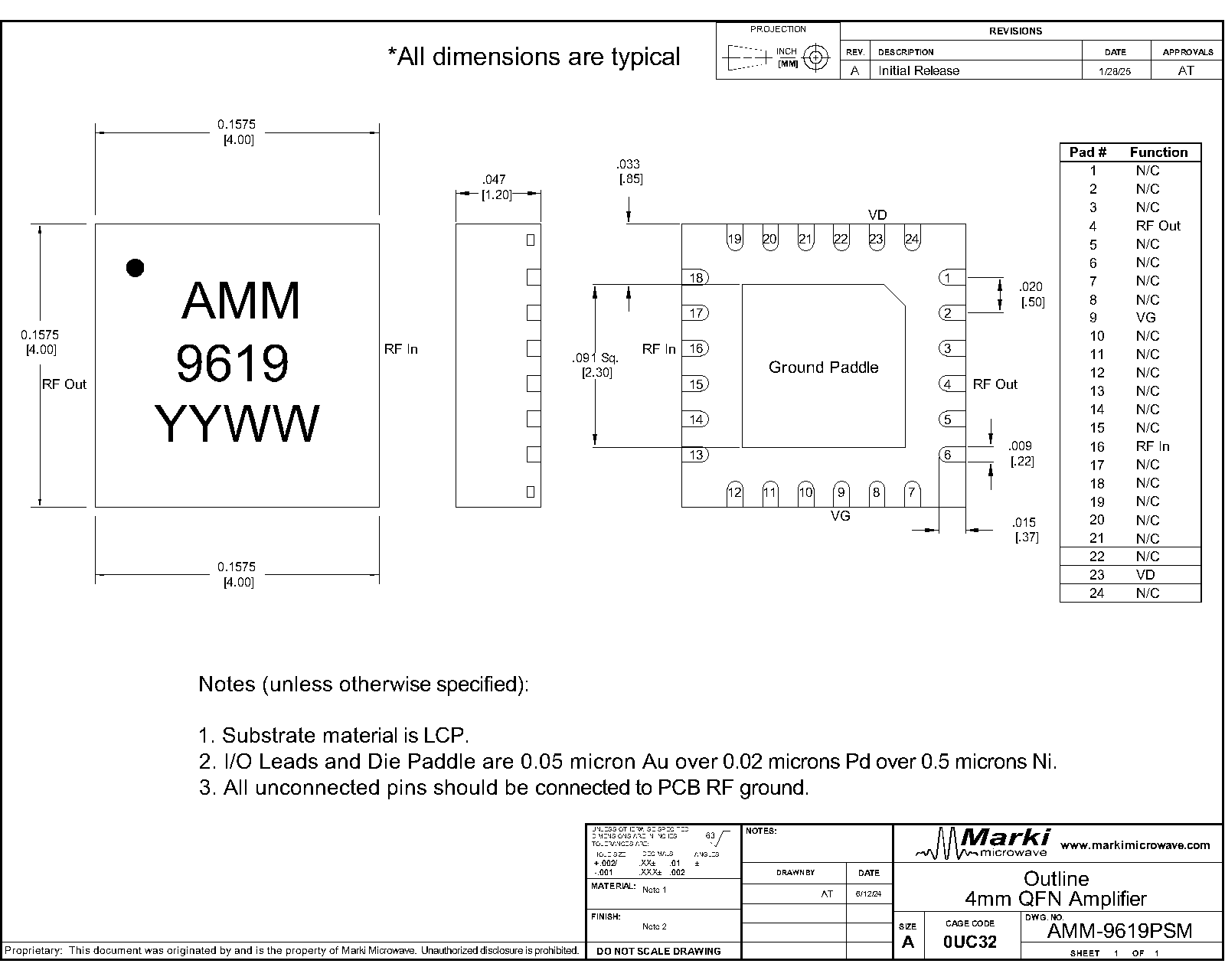

Package Information

Parameter	Details	Rating
Dimensions	-	4 x 4 mm
Moisture Sensitivity Level	-	MSL 1

Recommended Operating Conditions

Datasheet operating parameters are taken and guaranteed using constant voltage biasing with TA = 25 °C, Vd = 5 V, Idq = 74 mA, and 50 Ω matched input and output. Adjust Vg from −1 V to -0.41 V max to achieve Idq = 74 mA typical.

Parameter	Min	Nominal	Max	Unit
Positive DC Voltage (Vd)	-	5	-	V
Positive DC Current (Id) (No RF Input)	-	74	-	mA
Operating Temperature	-40	25	85	°C
Negative Bias Voltage (Vg)	-0.5	-0.4	-0.3	V

Electrical Specifications

Unless otherwise specified, electrical specifications apply at TA=+25°C, Vd = 5 V, Idq=74 mA (where Idq is the drain current with no RF applied), Vg set as required to achieve Idq = 74 mA in a 50 Ω system.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit

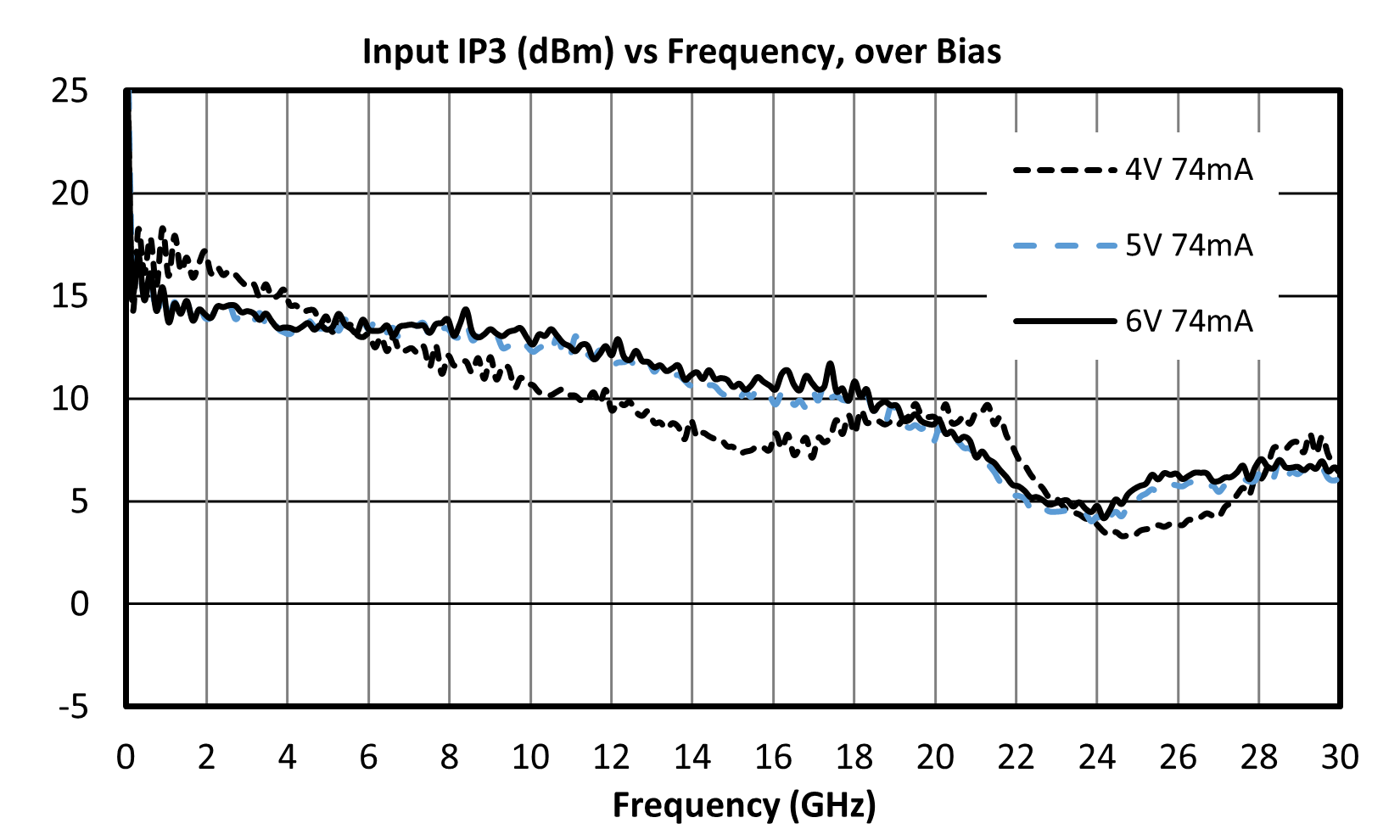

Input IP3	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -15 dBm per tone, 10 MHz tone spacing	18	26	-	5.8	-	dBm
Input IP3	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -15 dBm per tone, 10 MHz tone spacing	8	18	-	11.5	-	dBm

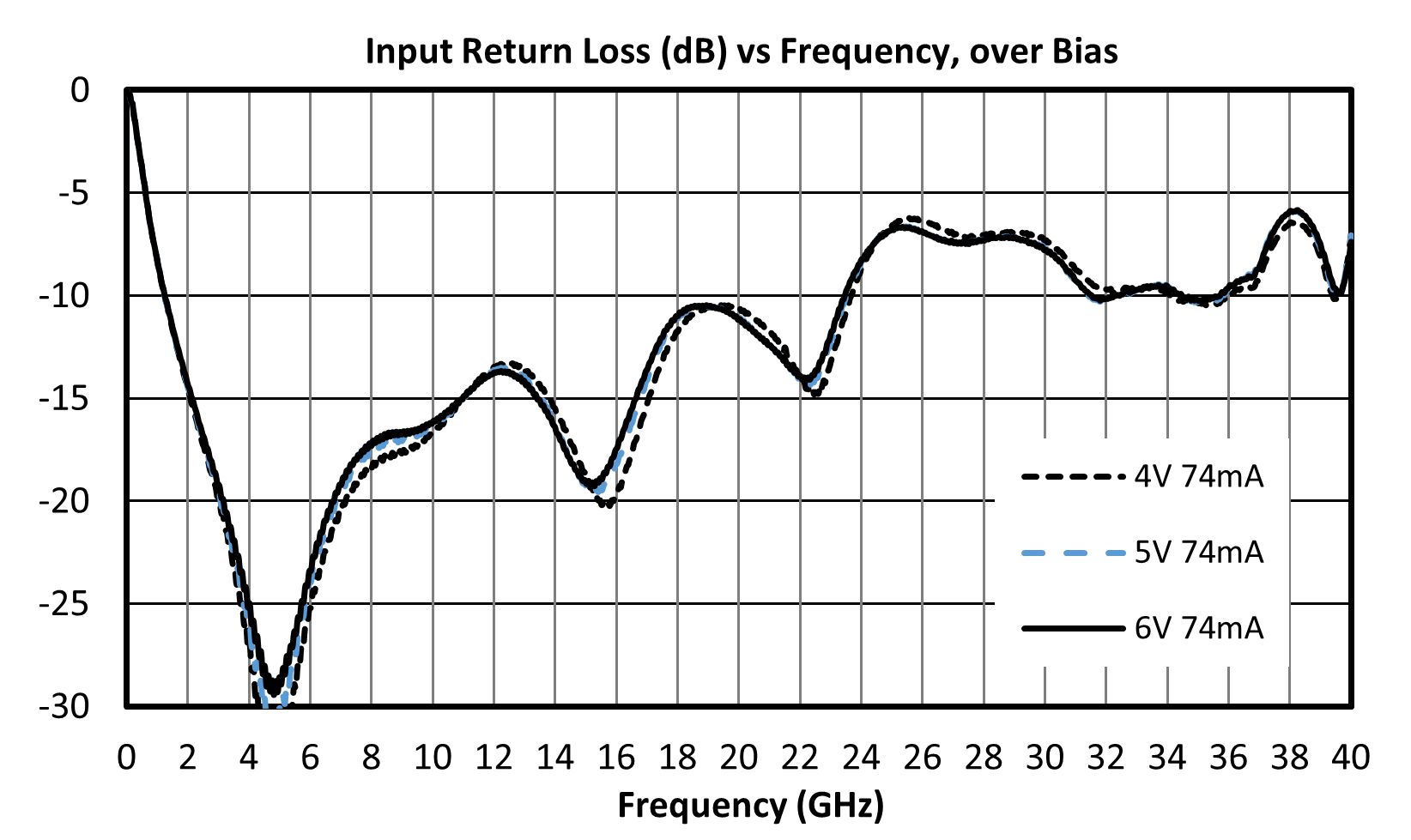

Input Return Loss	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	18	26	-	11	-	dB
Input Return Loss	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	8	18	-	16	-	dB

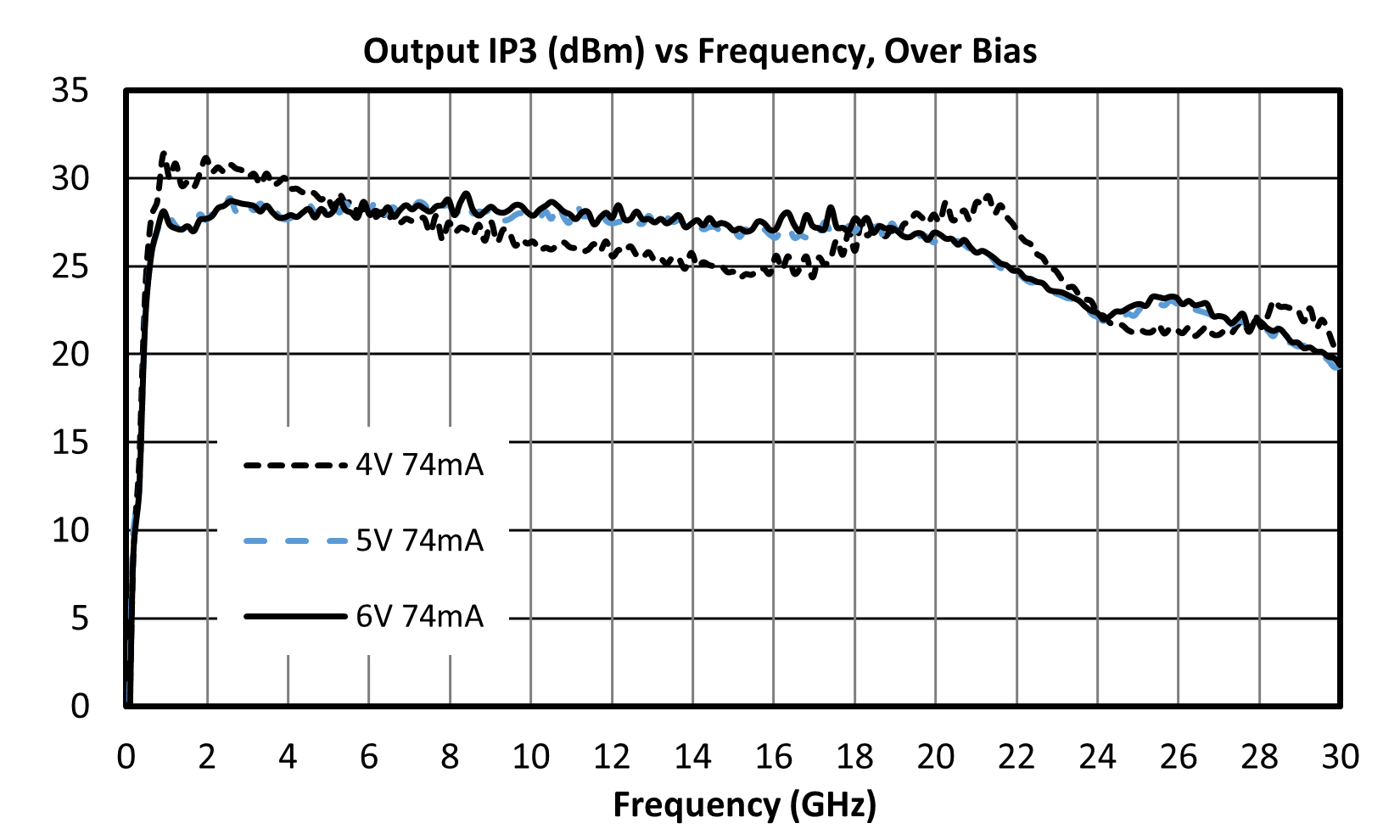

Output IP3	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -15 dBm per tone, 10 MHz tone spacing	18	26	-	25	-	dBm
Output IP3	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -15 dBm per tone, 10 MHz tone spacing	8	18	-	28	-	dBm

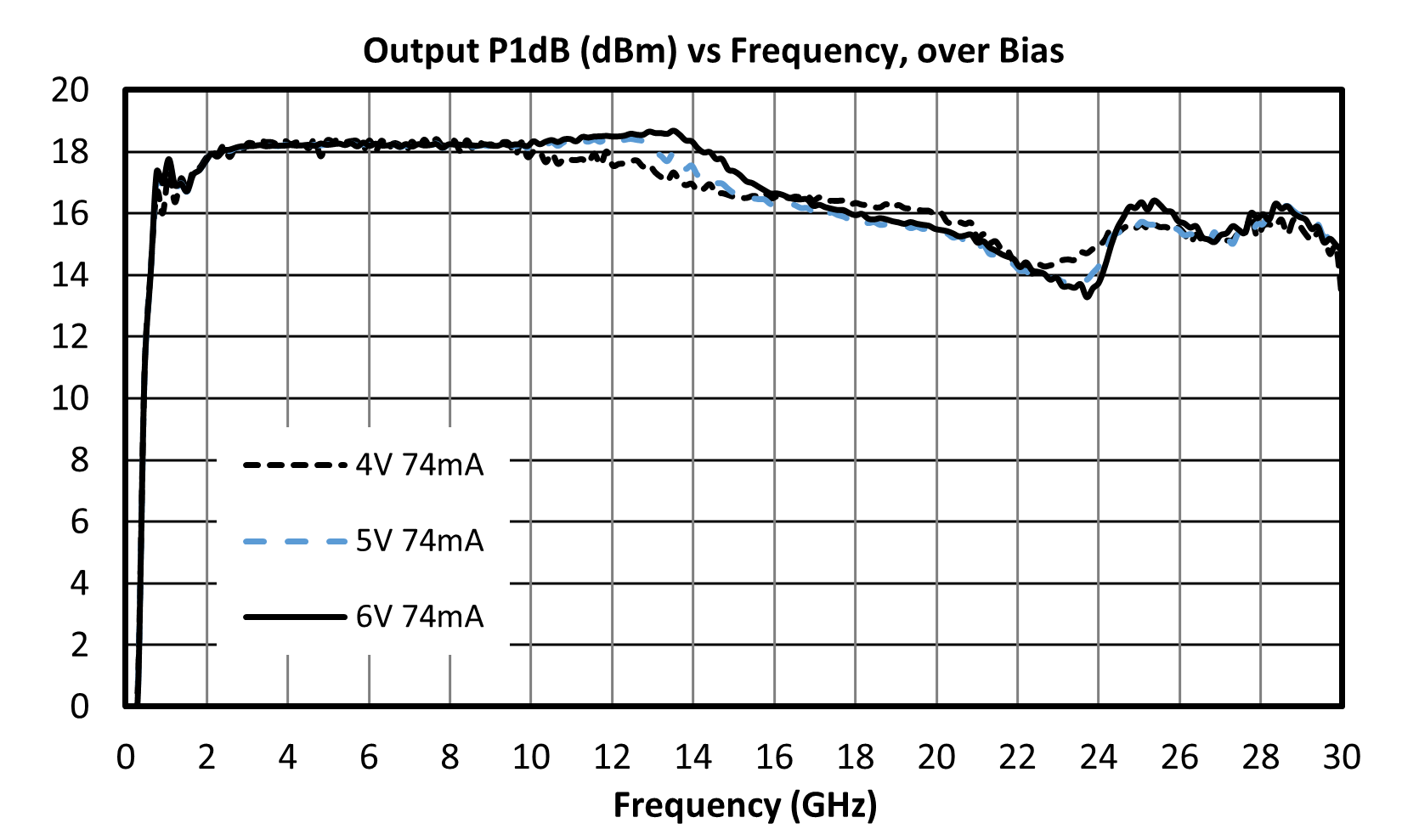

Output P1dB	Vd = 5 V, Vg set to achieve Idq = 74 mA	14	26	-	15.6	-	dBm
Output P1dB	Vd = 5 V, Vg set to achieve Idq = 74 mA	2	14	-	18.2	-	dBm

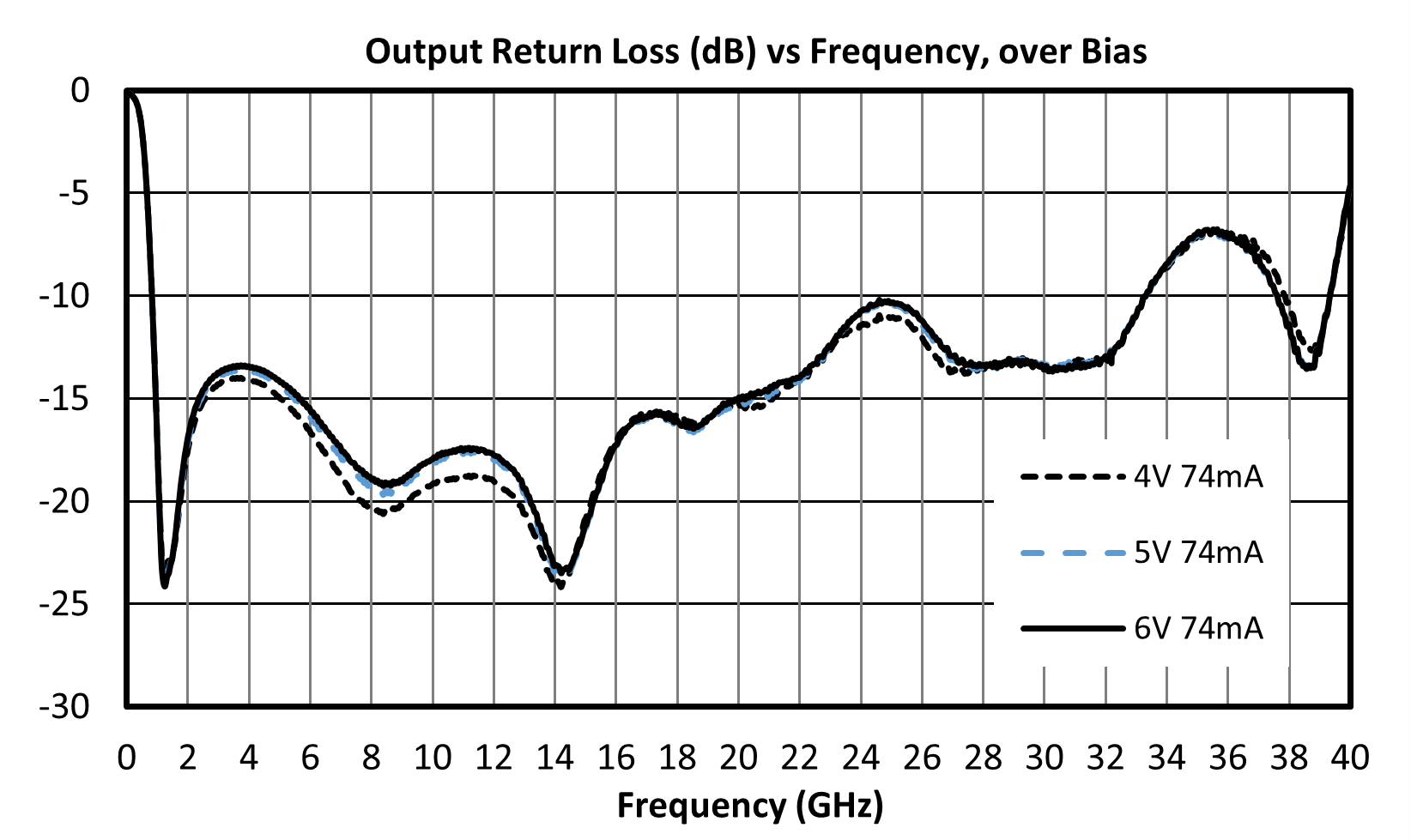

Output Return Loss	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	8	18	-	18	-	dB
Output Return Loss	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	18	26	-	14	-	dB

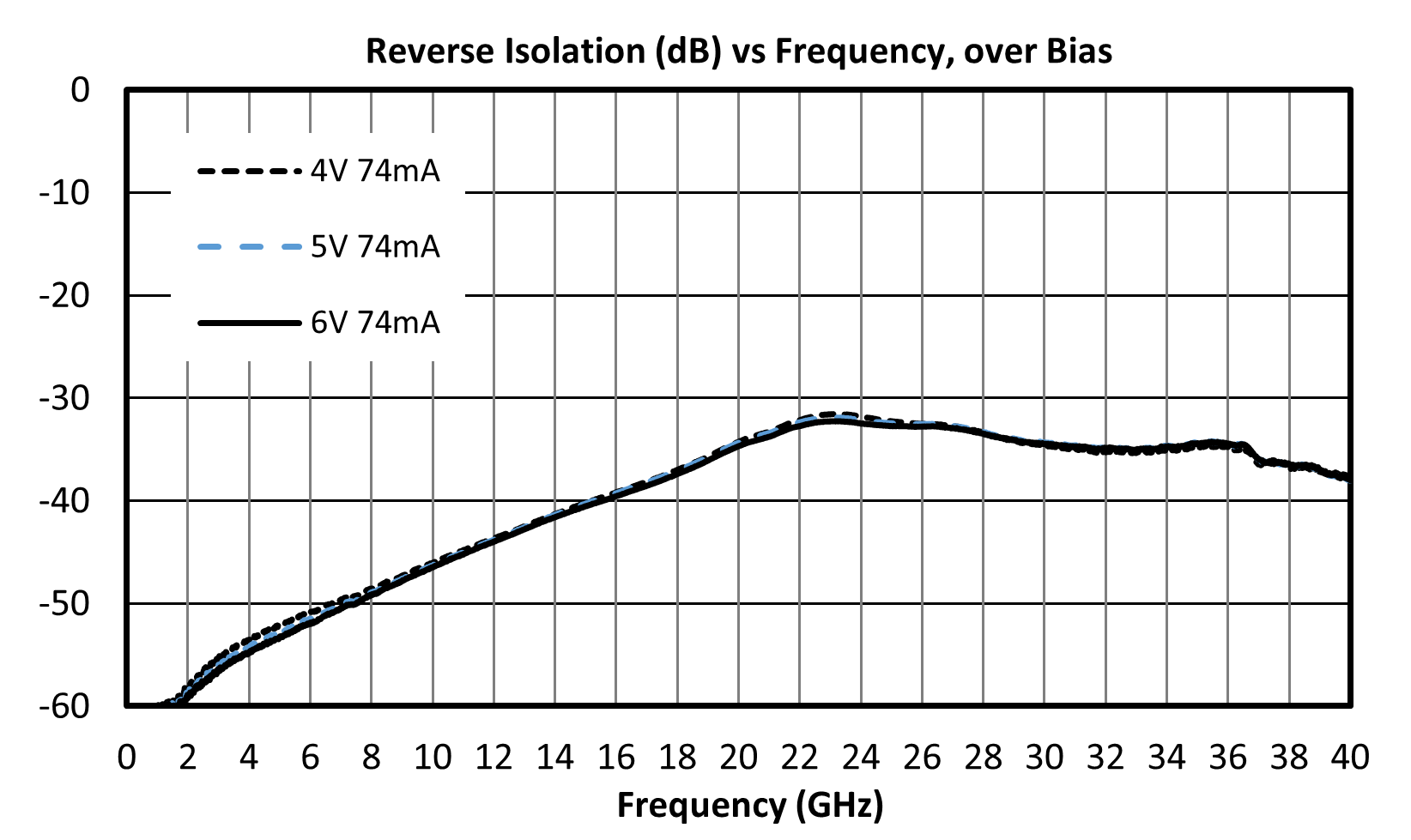

Reverse Isolation	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	8	18	-	43	-	dB
Reverse Isolation	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	2	8	-	46	-	dB
Reverse Isolation	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	18	26	-	33	-	dB

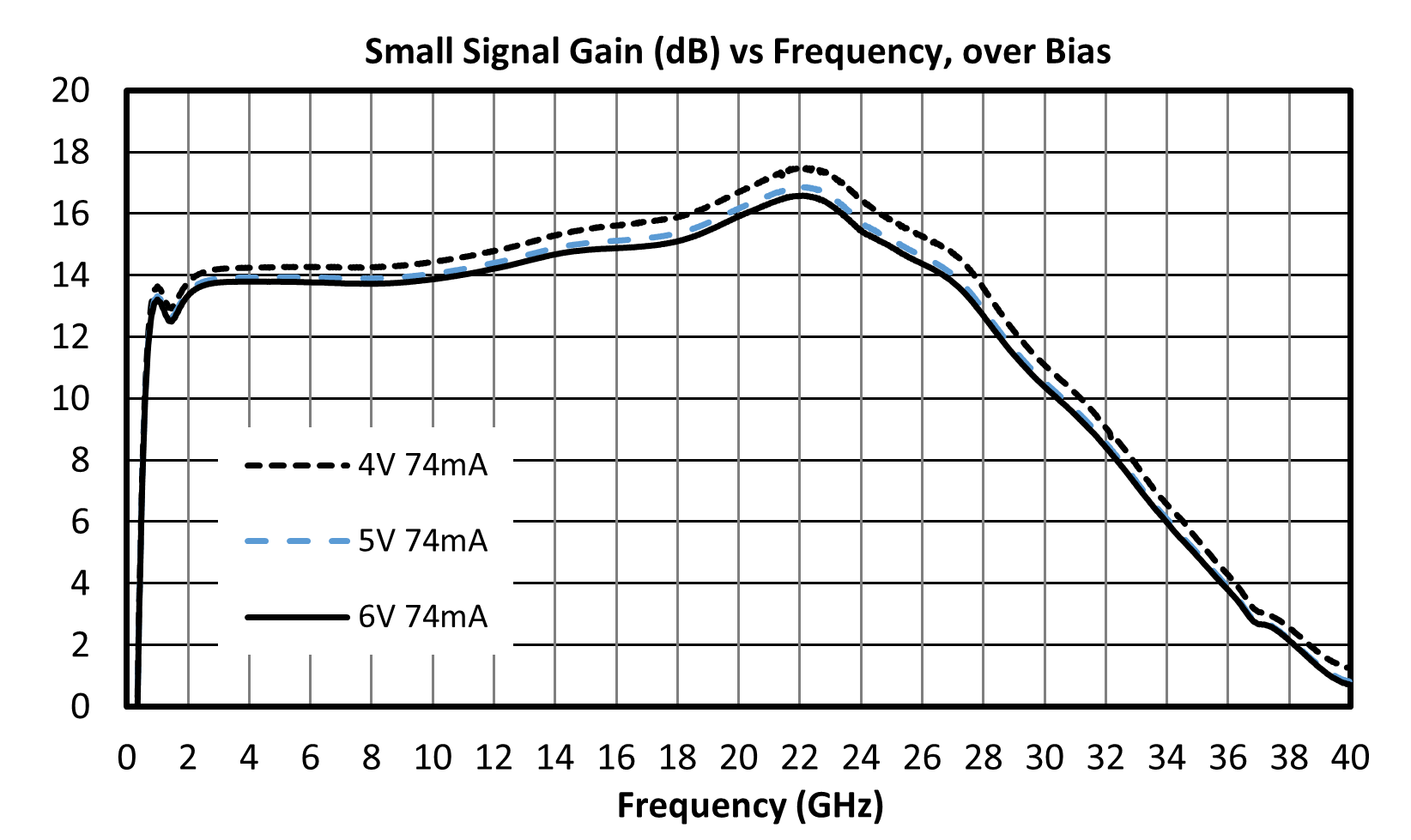

Small Signal Gain	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	8	18	-	14.5	-	dB
Small Signal Gain	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	18	26	-	16.1	-	dB
Current Consumption	Vd = 5 V, Vg = -0.41V, No RF Applied	-	-	-	74	-	mA
Input IP3	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -15 dBm per tone, 10 MHz tone spacing	2	8	-	13.5	-	dBm
Input Return Loss	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	2	8	-	17	-	dB

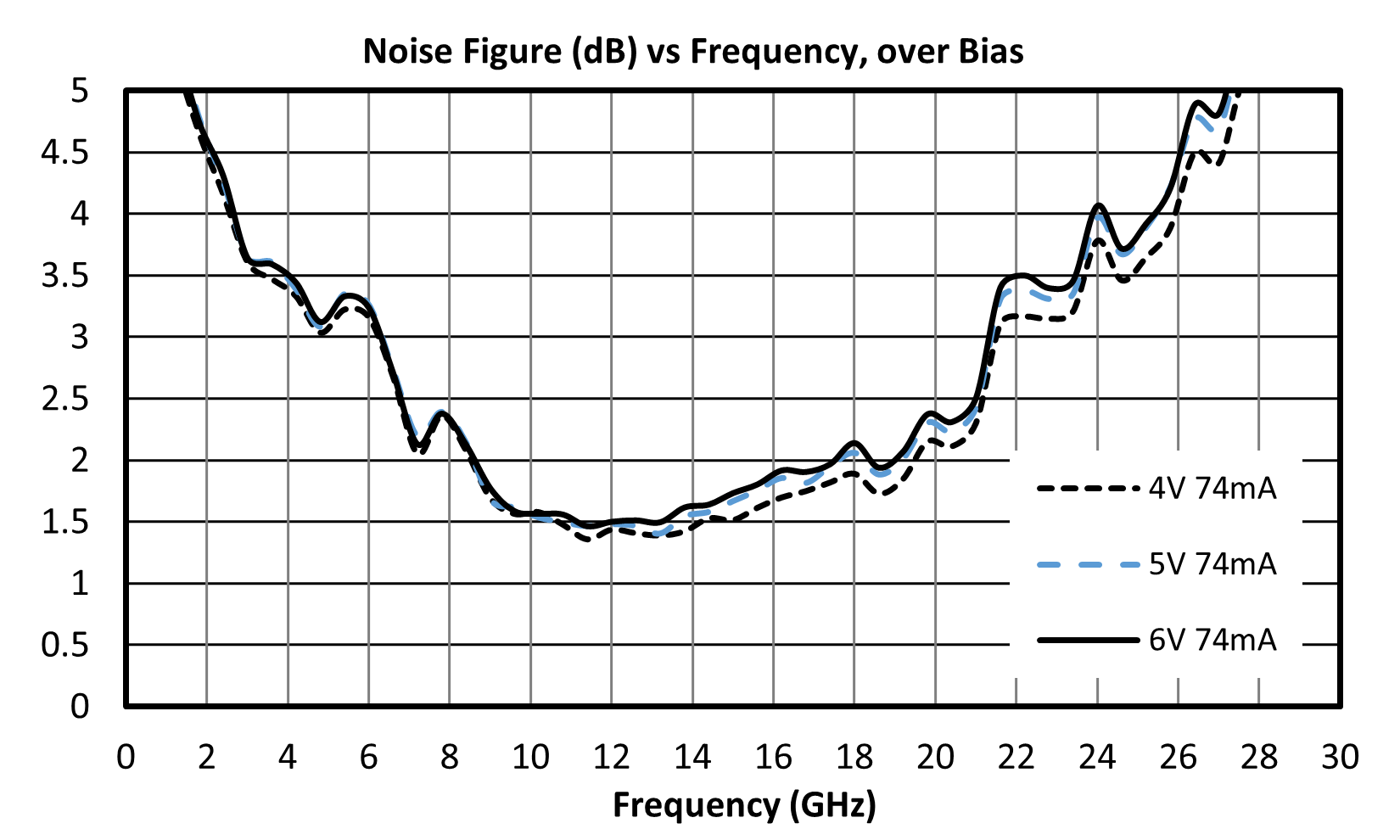

Noise Figure	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	8	18	-	1.6	-	dB
Noise Figure	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	2	8	-	3.4	-	dB
Noise Figure	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	18	26	-	3.3	-	dB
Output IP3	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -15 dBm per tone, 10 MHz tone spacing	2	8	-	28	-	dBm
Output Return Loss	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	2	8	-	18	-	dB
Small Signal Gain	Vd = 5 V, Vg set to achieve Idq = 74 mA, Pin = -20 dBm	2	8	-	14	-	dB
