Port Diagram
A port diagram of the AMM-10860PSM is shown below (X-ray view).
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The AMM-10860PSM is a wideband pHEMT-based GaAs surface-mount gain block driver amplifier operating from 10 to 30 GHz. This amplifier offers high gain at 24.5 dB, +21.5 dBm saturated output power, and strong linearity with output IP3 of +28.5 dBm. It’s an excellent driver for our H- and S-diode mixers and multipliers, and comes in a compact 3 mm surface-mount package for easy integration onto printed circuit boards.
Features
- Wideband, 10 to 30 GHz
- High Gain, 24.5 dB Typical
- Positive Gain Slope
- High Output Power, +21.5 dBm Typical
- Minimal Application Circuit
- Internal Blocking Capacitors
- Small 3 x 3 mm QFN Package
Applications
- Satellite Communications
- Test and Measurement Equipment
- LO Driver Amplifier
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-10860PSM | 10-30 GHz Broadband Driver Gain Block Amplifier | Plastic QFN | REACH RoHS | Released | EAR99 |
| EVB-AMM-10860P | Evaluation Board, 10 - 30 GHz Broadband Power Amplifier | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-10860PSM | 10-30 GHz Broadband Driver Gain Block Amplifier | Plastic QFN | REACH RoHS | Released | EAR99 |
| EVB-AMM-10860P | Evaluation Board, 10 - 30 GHz Broadband Power Amplifier | EVB | REACH RoHS | Released | EAR99 |
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-04-01 | Initial Release |
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Ground | Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance. |  |
| Pin 11 | Vd | Pin 11 is the DC bias supply for the amplifier. The voltage at this pin should be set to 4V for normal operation. This part requires an off-chip bypass capacitor of 0.1uF installed at this pin as close to the IC as possible. See applications circuit. |  |
| Pin 2 | RF Input | Pin 2 is the amplifier's RF input pin. This port is internally matched to 50 Ohms and is internally DC blocked. |  |
| Pin 5 | Vg | This is the negative DC bias voltage for the amplifier IC. The voltage at this pin controls the current draw Id of the part. Higher voltage results in higher current. For normal operation, the voltage at this pin is adjusted to produce an Id of 136mA when Vd=4V. This part requires an off-chip 0.1uF bypass capacitor installed at this pin as close to the IC as possible. See applications circuit. |  |
| Pin 8 | RF Output | Pin 8 is the amplifier's RF output pin. This port is internally matched to 50 Ohms and is internally DC blocked. | |
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime. This amplifier is designed and characterized in a 50Ω system, and operation in a reflective environment can cause performance degradation.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF > 1E6 hours | 175 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Positive Drain Supply Current (with RF Input) | 200 | mA |
| Positive Drain Supply Voltage (Vd) | 4.5 | V |
| RF Input Power | 15 | dBm |
| Gate Supply Voltage (Vg) | 0 | V |
| Thermal Resistance, θJC | 110 | ºC/W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | < 250 Volts | HBM Class 0 |
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings .
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Power Supply DC Voltage (Vd) | 3 | 4 | 4 | V |
| Ambient Temperature | -40 | 25 | 85 | °C |
| Gate Bias DC Voltage (Vg) | -0.3 | -0.16 | -0.05 | V |
| Positive DC Current (Id) (No RF Input) | 104 | 136 | 168 | mA |
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. QFNs are 100% RF tested.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | 4V/-0.16V, 136mA | 10 | 30 | - | 24.4 | - | dB |
| Input Return Loss | 4V/-0.16V, 136mA | 10 | 30 | - | 17 | - | dB |
| Output Return Loss | 4V/-0.16V, 136mA | 10 | 30 | - | 14 | - | dB |
| Reverse Isolation | 4V/-0.16V, 136mA | 10 | 30 | - | 53 | - | dB |
| Saturated Output Power | 4V/-0.16V, 136mA | 10 | 30 | - | 21.54 | - | dB |
| Input P1dB | 4V/-0.16V, 136mA | 10 | 30 | - | -5 | - | dBm |
| Output P1dB | 4V/-0.16V, 136mA | 10 | 30 | - | 18.5 | - | dBm |
| Input IP3 | 4V/-0.16V, 136mA, -15dBm input power, 1 MHz tone spacing | 10 | 30 | - | 4 | - | dBm |
| Current Consumption 1 | 4V/-0.16V bias | - | - | - | 136 | - | mA |
| Output IP3 | 4V/-0.16V, 136mA, -15dBm input power, 1 MHz tone spacing | 10 | 30 | - | 28.5 | - | dBm |
| Input IP2 | 4V/-0.16V, 136mA, -15dBm input power, 1 MHz tone spacing | 10 | 15 | - | 18 | - | dBm |
| Output IP2 | 4V/-0.16V, 136mA, -15dBm input power, 1 MHz tone spacing | 10 | 15 | - | 41.5 | - | dBm |
| Noise Figure | 4V/-0.16V, 136mA | 10 | 30 | - | 7.3 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Small Signal Gain | 4V/-0.16V, 136mA | 10 | 30 | - | 24.4 | - | dB |
| Input Return Loss | 4V/-0.16V, 136mA | 10 | 30 | - | 17 | - | dB |
| Output Return Loss | 4V/-0.16V, 136mA | 10 | 30 | - | 14 | - | dB |
| Reverse Isolation | 4V/-0.16V, 136mA | 10 | 30 | - | 53 | - | dB |
| Saturated Output Power | 4V/-0.16V, 136mA | 10 | 30 | - | 21.54 | - | dB |
| Input P1dB | 4V/-0.16V, 136mA | 10 | 30 | - | -5 | - | dBm |
| Output P1dB | 4V/-0.16V, 136mA | 10 | 30 | - | 18.5 | - | dBm |
| Input IP3 | 4V/-0.16V, 136mA, -15dBm input power, 1 MHz tone spacing | 10 | 30 | - | 4 | - | dBm |
| Current Consumption 1 | 4V/-0.16V bias | - | - | - | 136 | - | mA |
| Output IP3 | 4V/-0.16V, 136mA, -15dBm input power, 1 MHz tone spacing | 10 | 30 | - | 28.5 | - | dBm |
| Input IP2 | 4V/-0.16V, 136mA, -15dBm input power, 1 MHz tone spacing | 10 | 15 | - | 18 | - | dBm |
| Output IP2 | 4V/-0.16V, 136mA, -15dBm input power, 1 MHz tone spacing | 10 | 15 | - | 41.5 | - | dBm |
| Noise Figure | 4V/-0.16V, 136mA | 10 | 30 | - | 7.3 | - | dB |
[1] Bias conditions for Id tested with no RF input power. Bias conditions presented as Vd/Vg.
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier

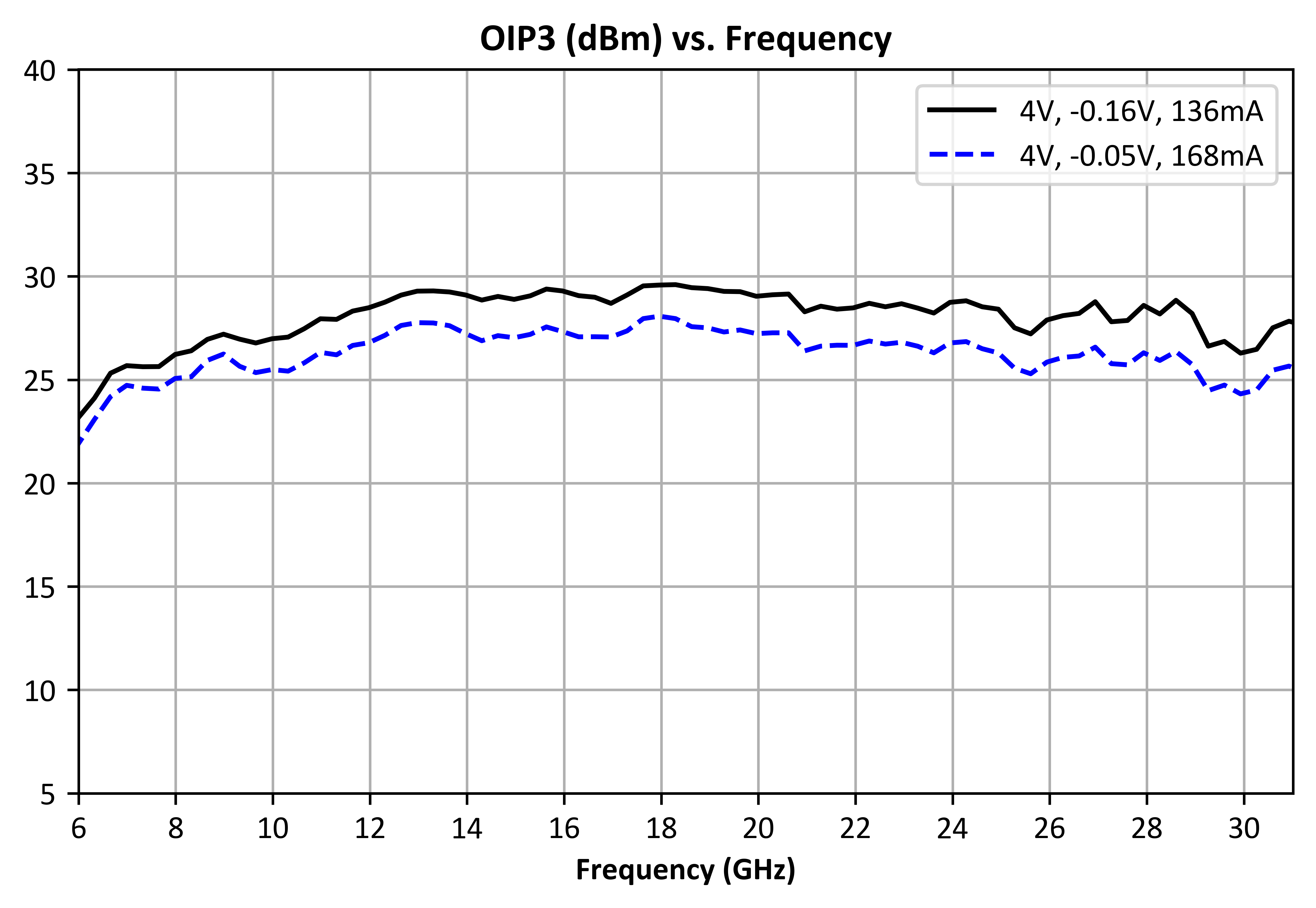

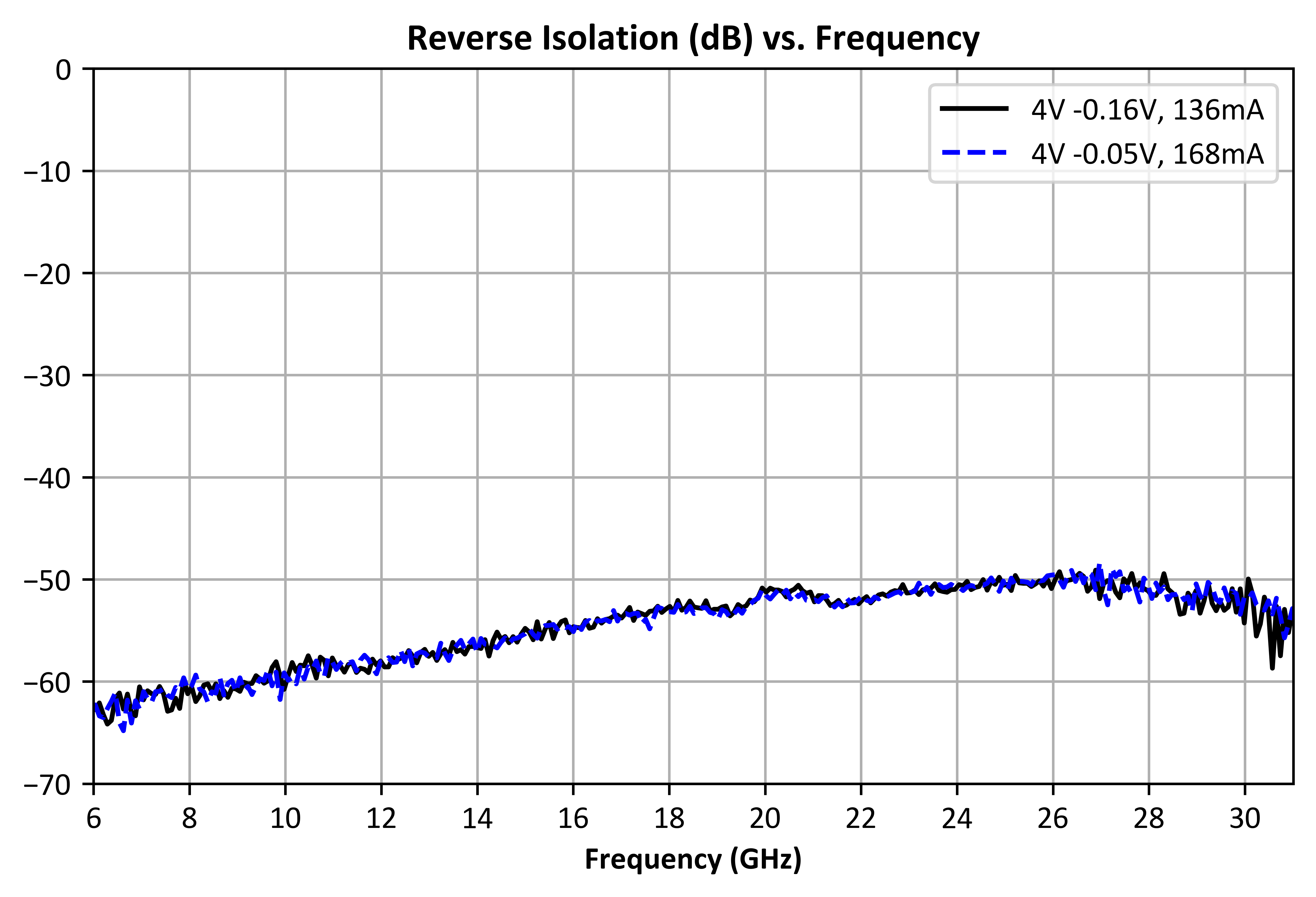

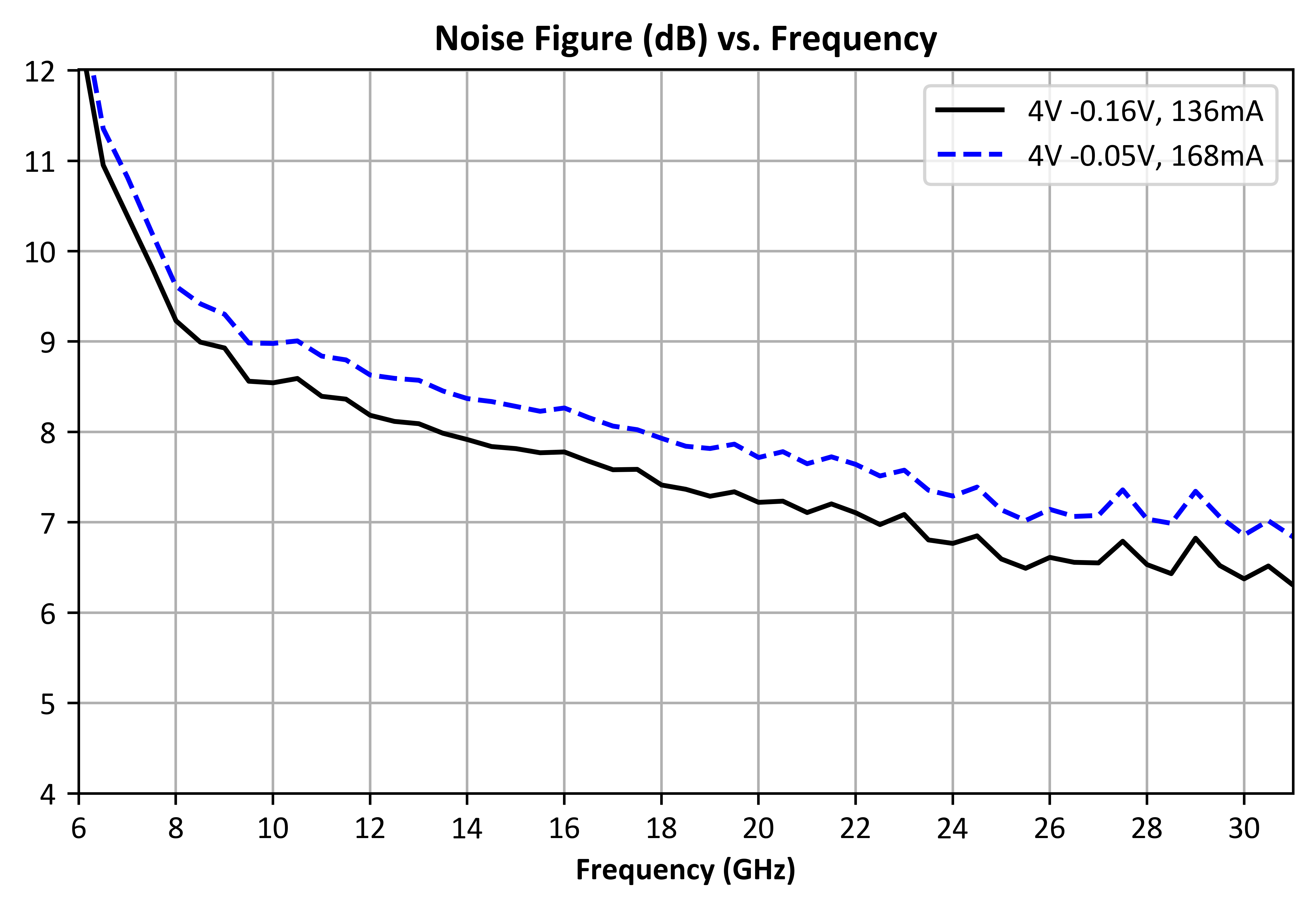

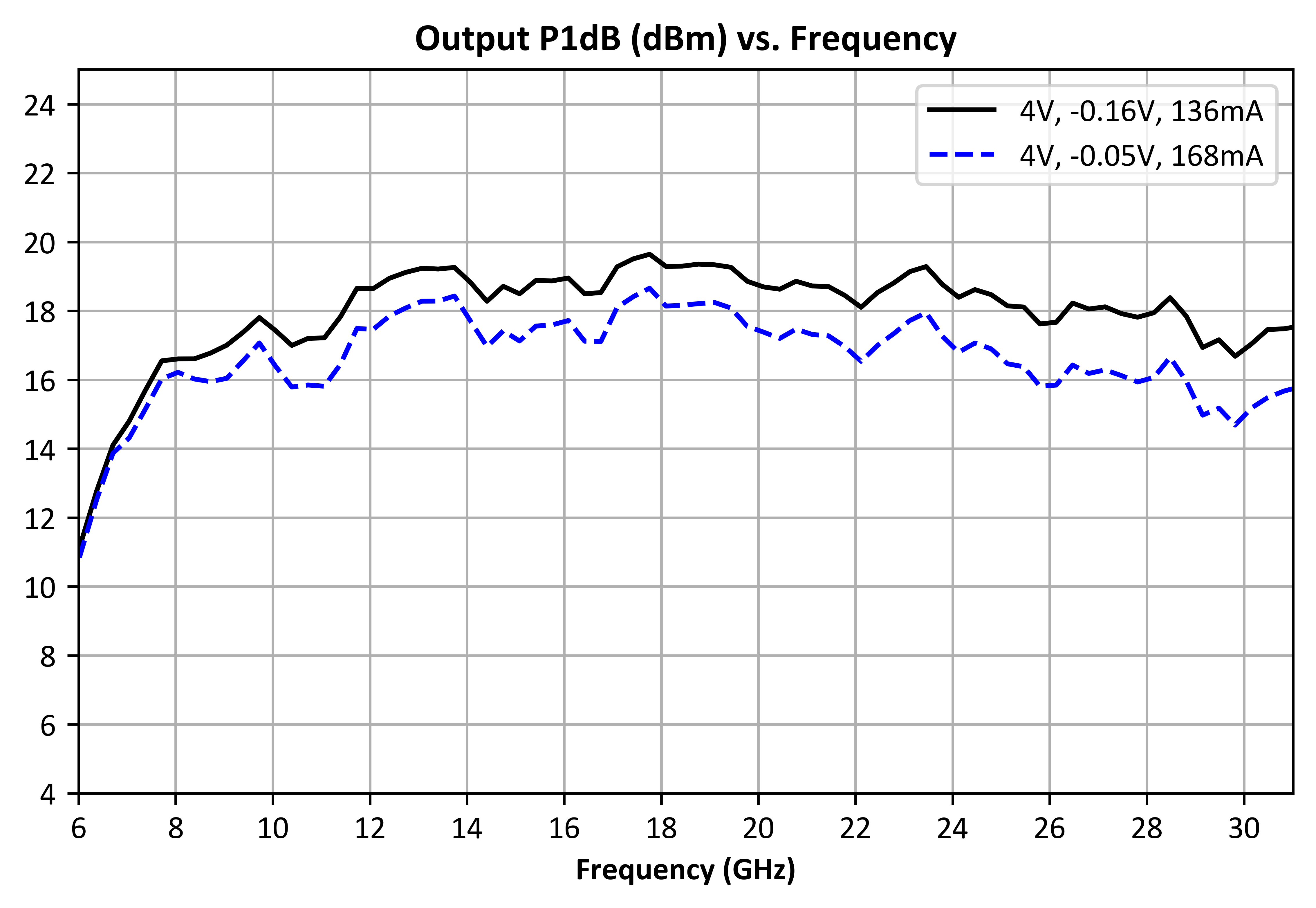

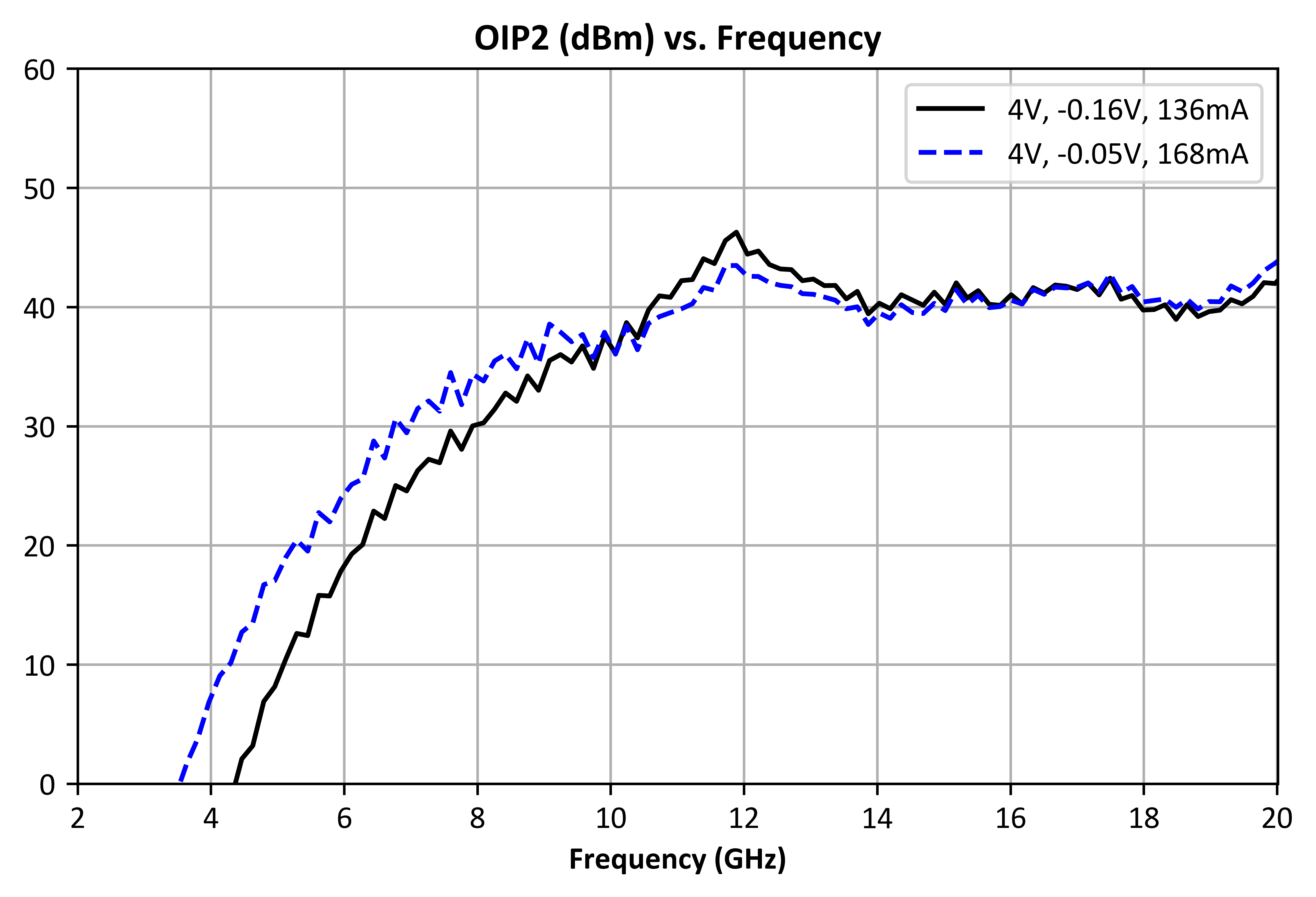

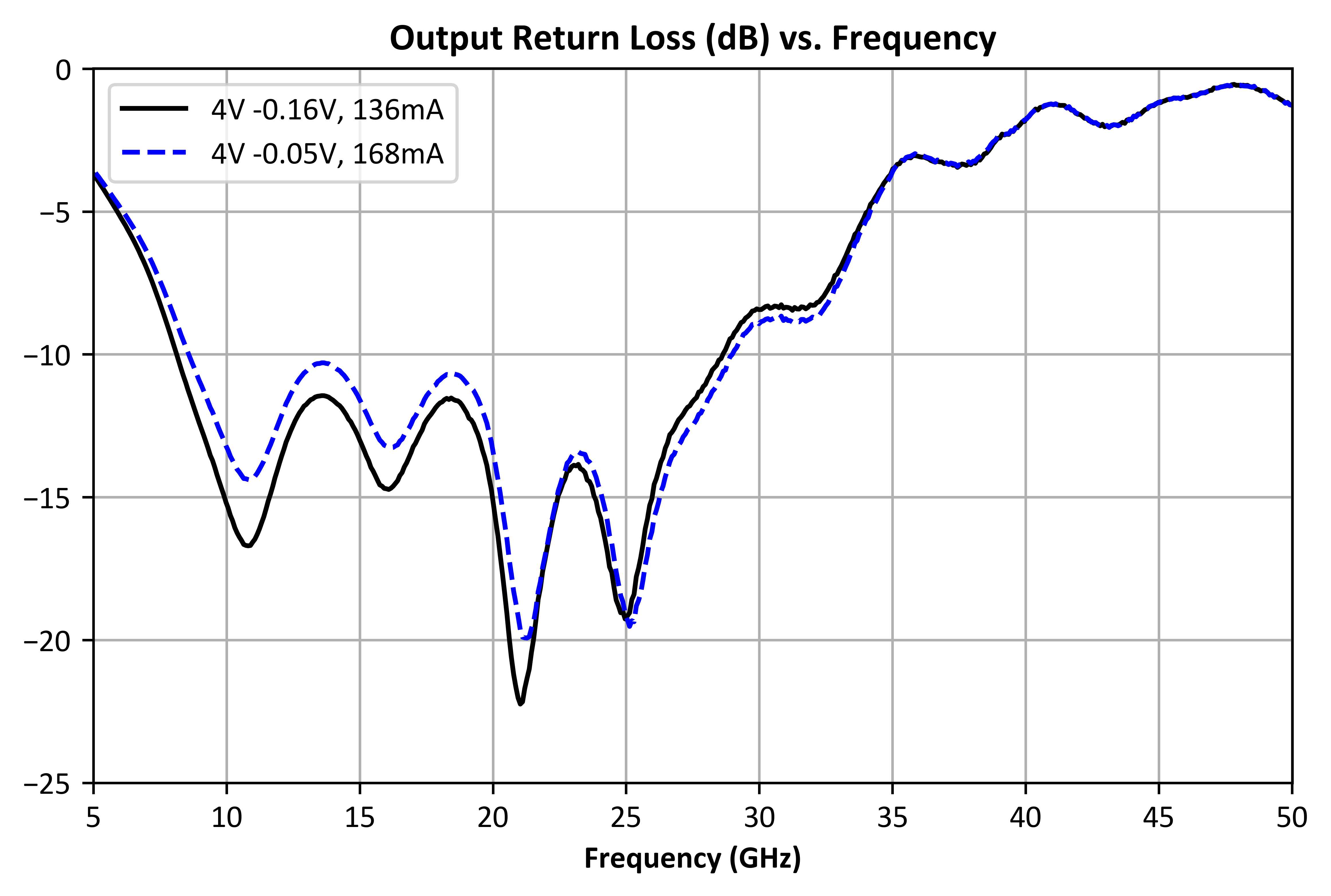

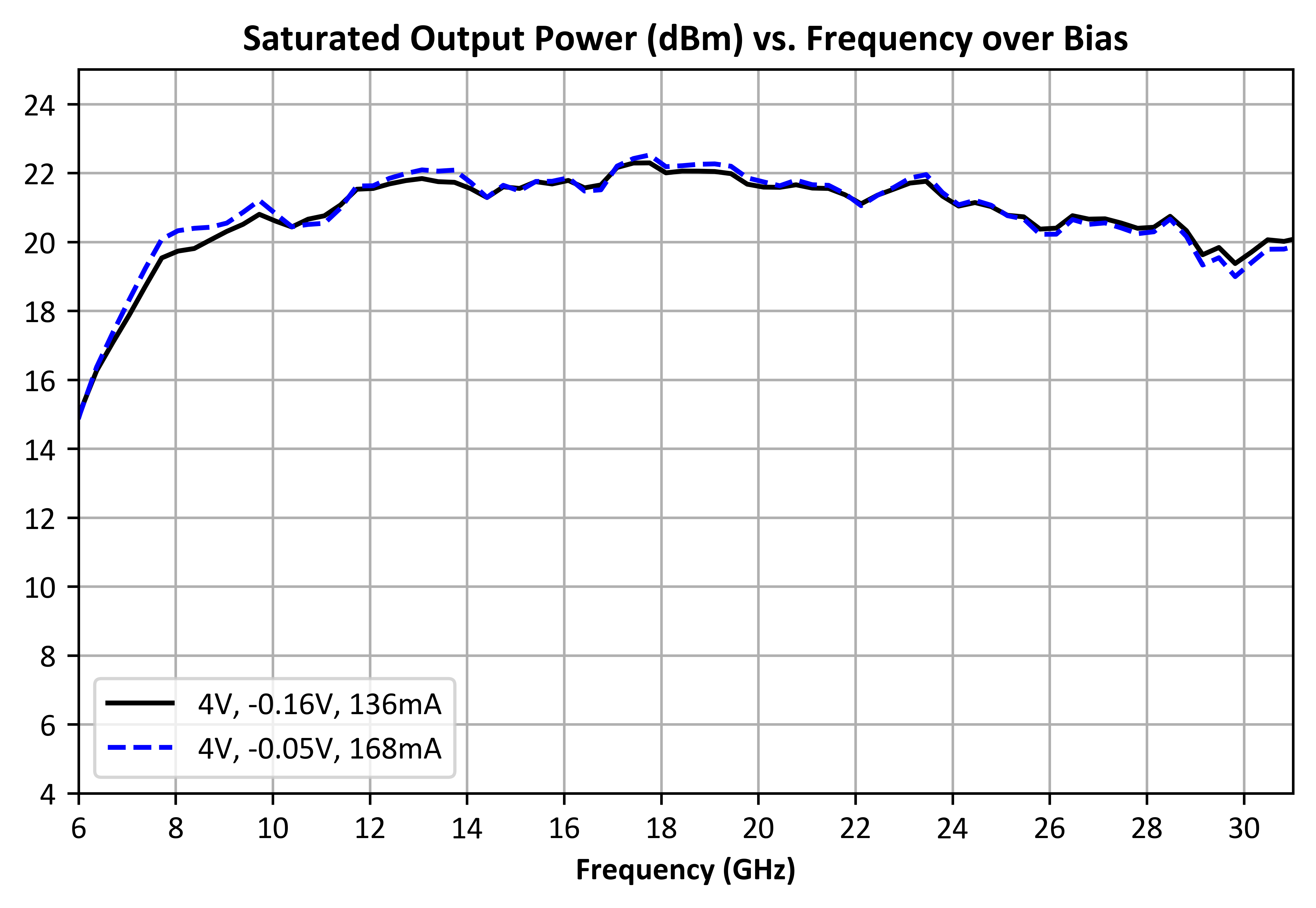

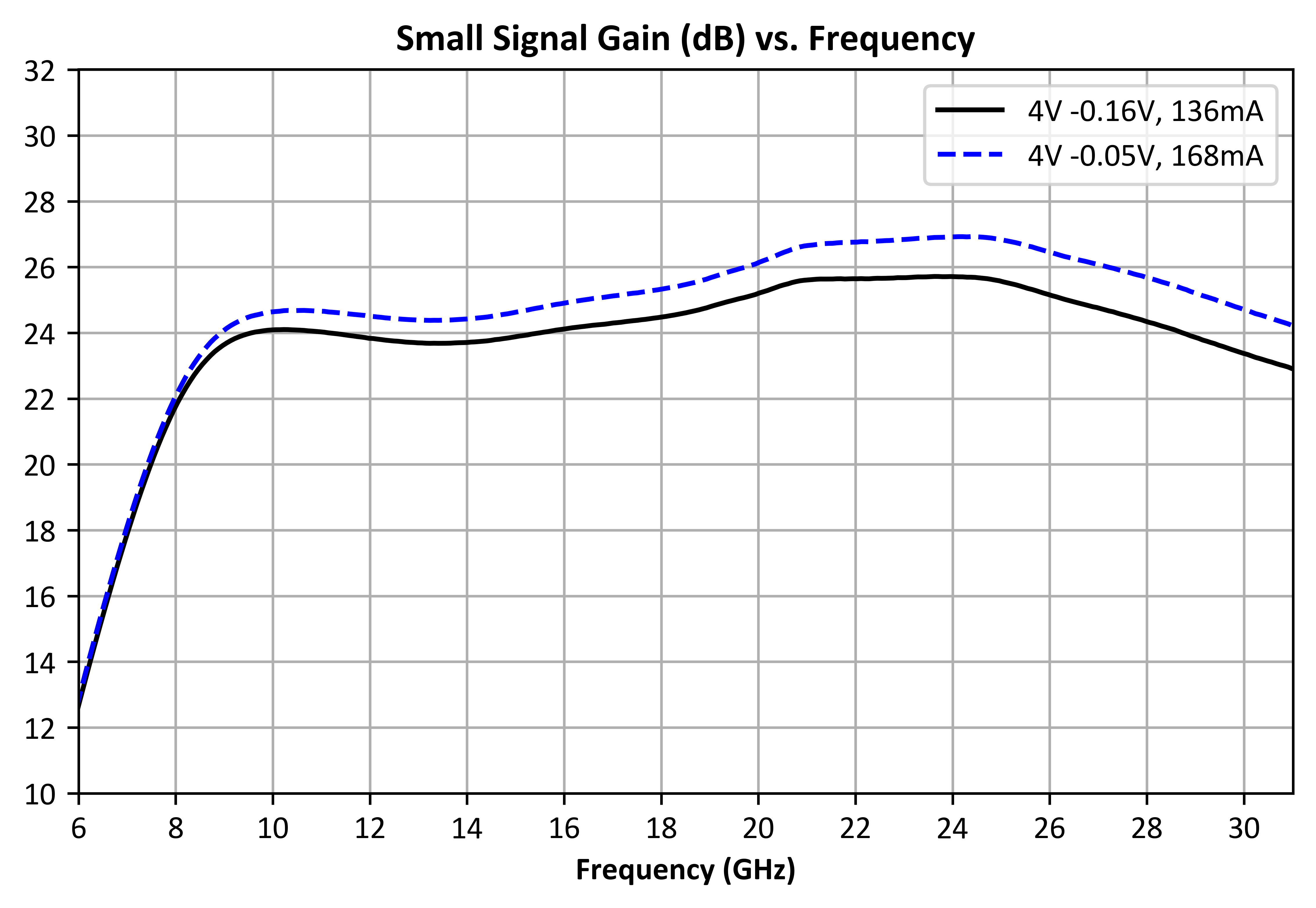

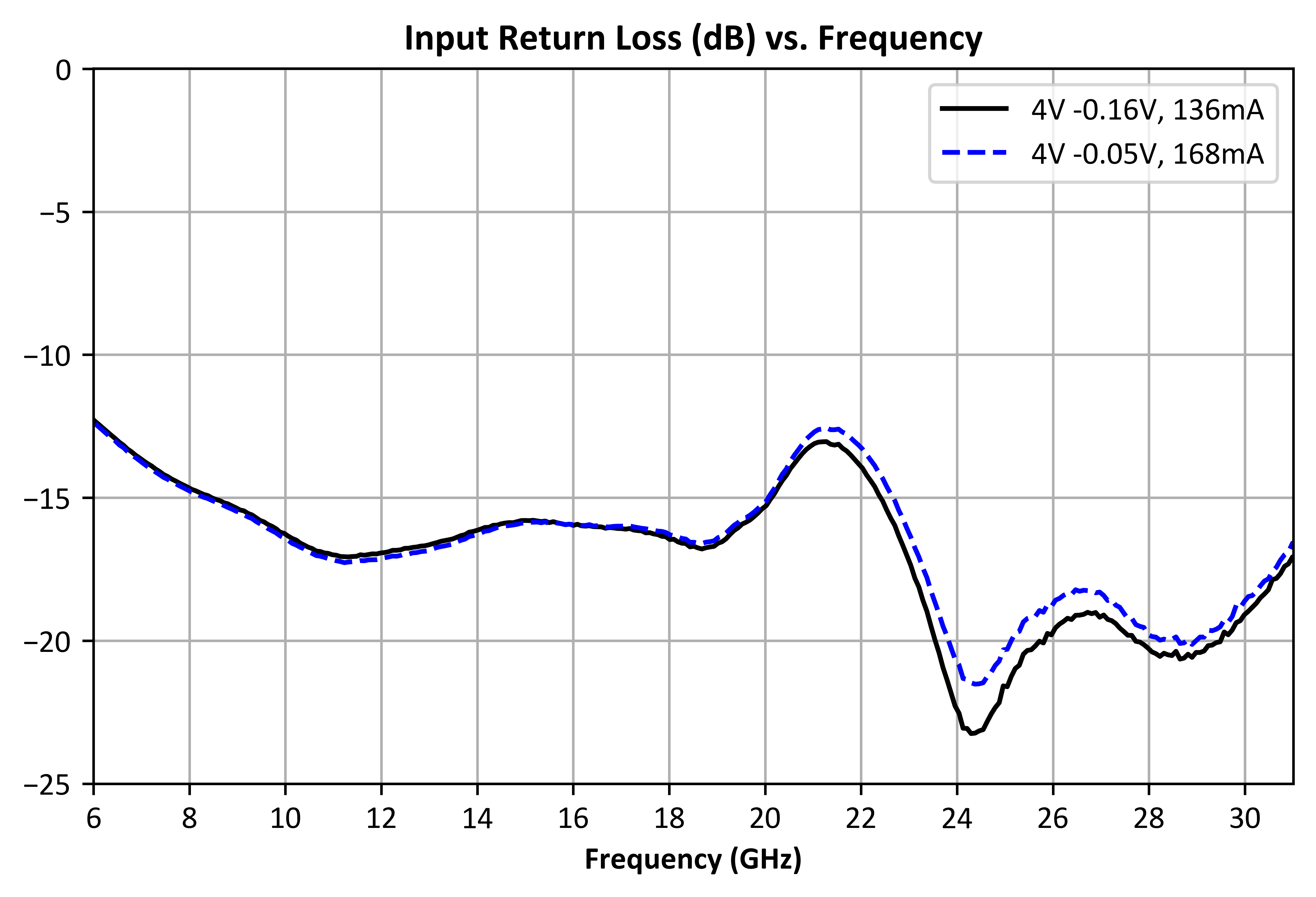

Typical Performance Plots (vs Bias)
Measurement data de-embedded using standard evaluation board.
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
%20vs.%20Frequency.png)
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier
%20vs.%20Frequency%20over%20Bias.png)
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier

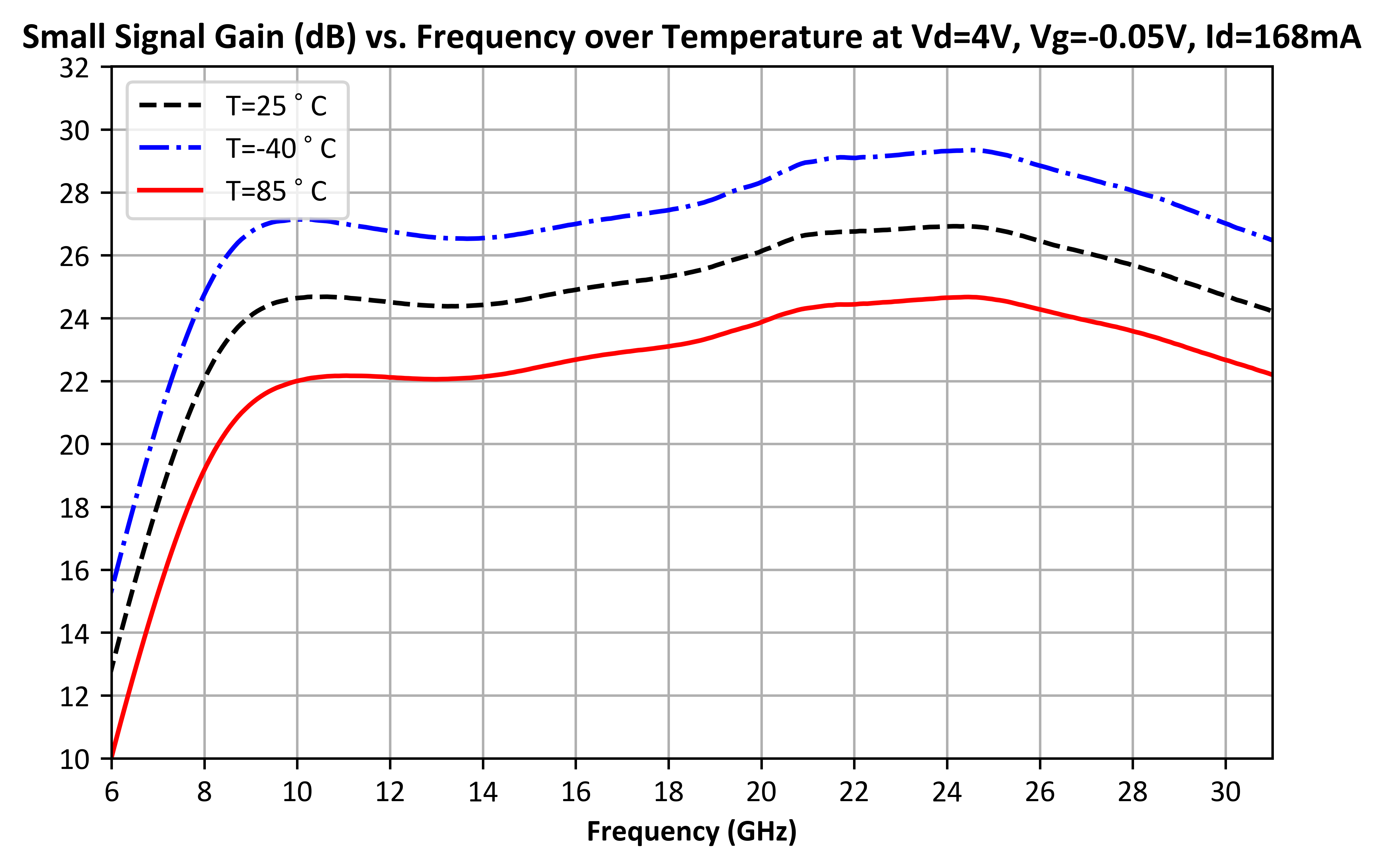

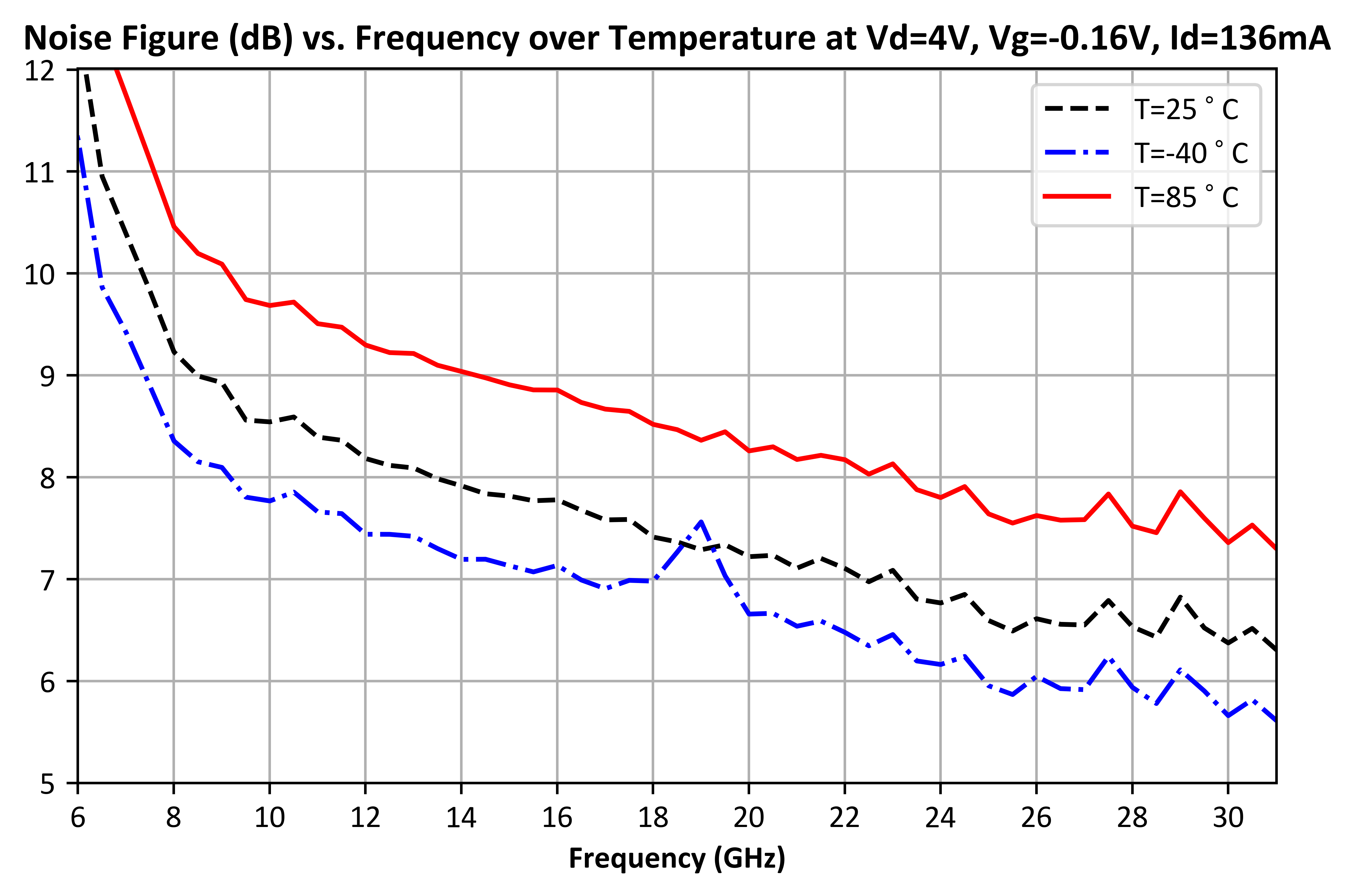

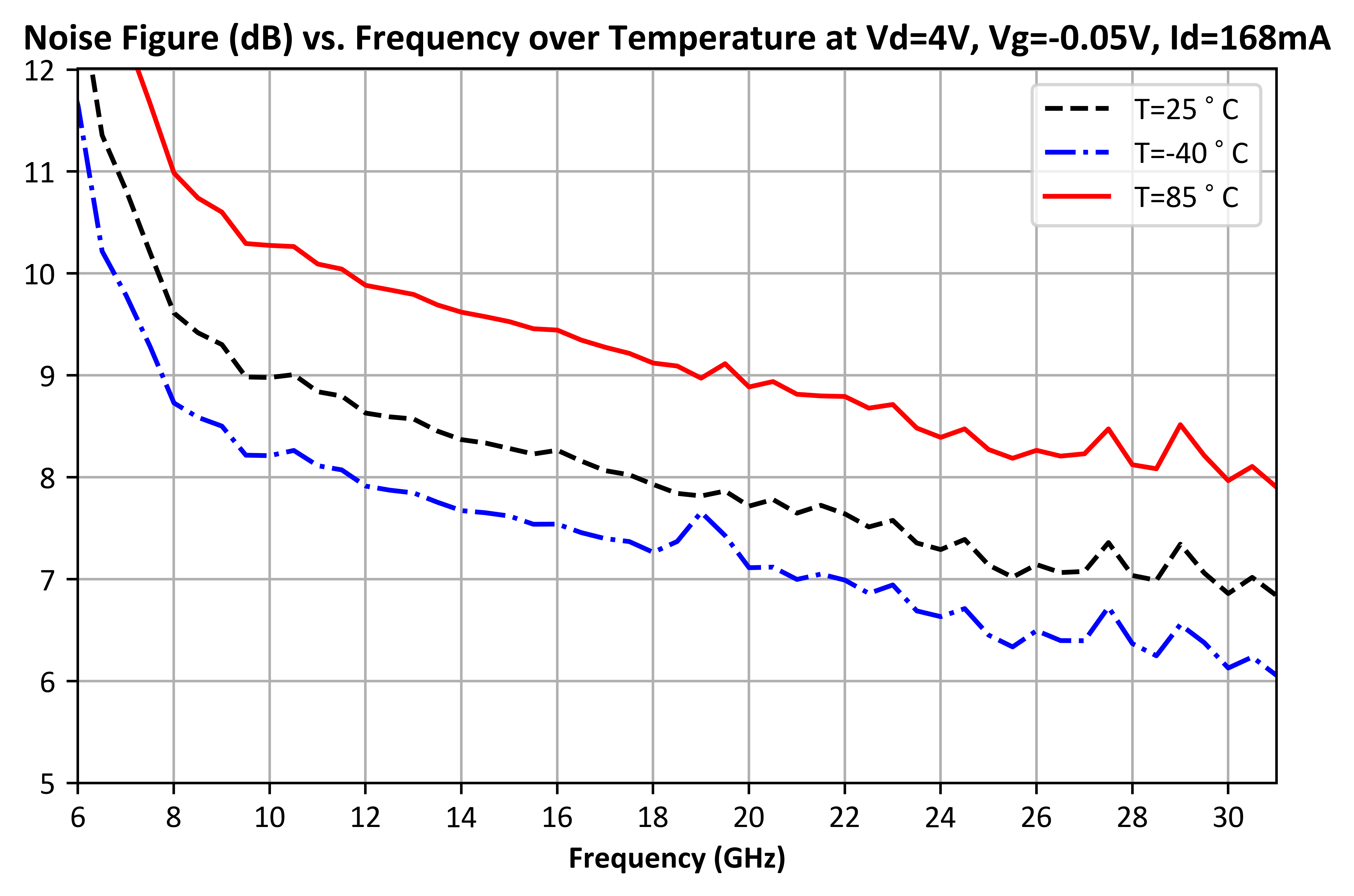

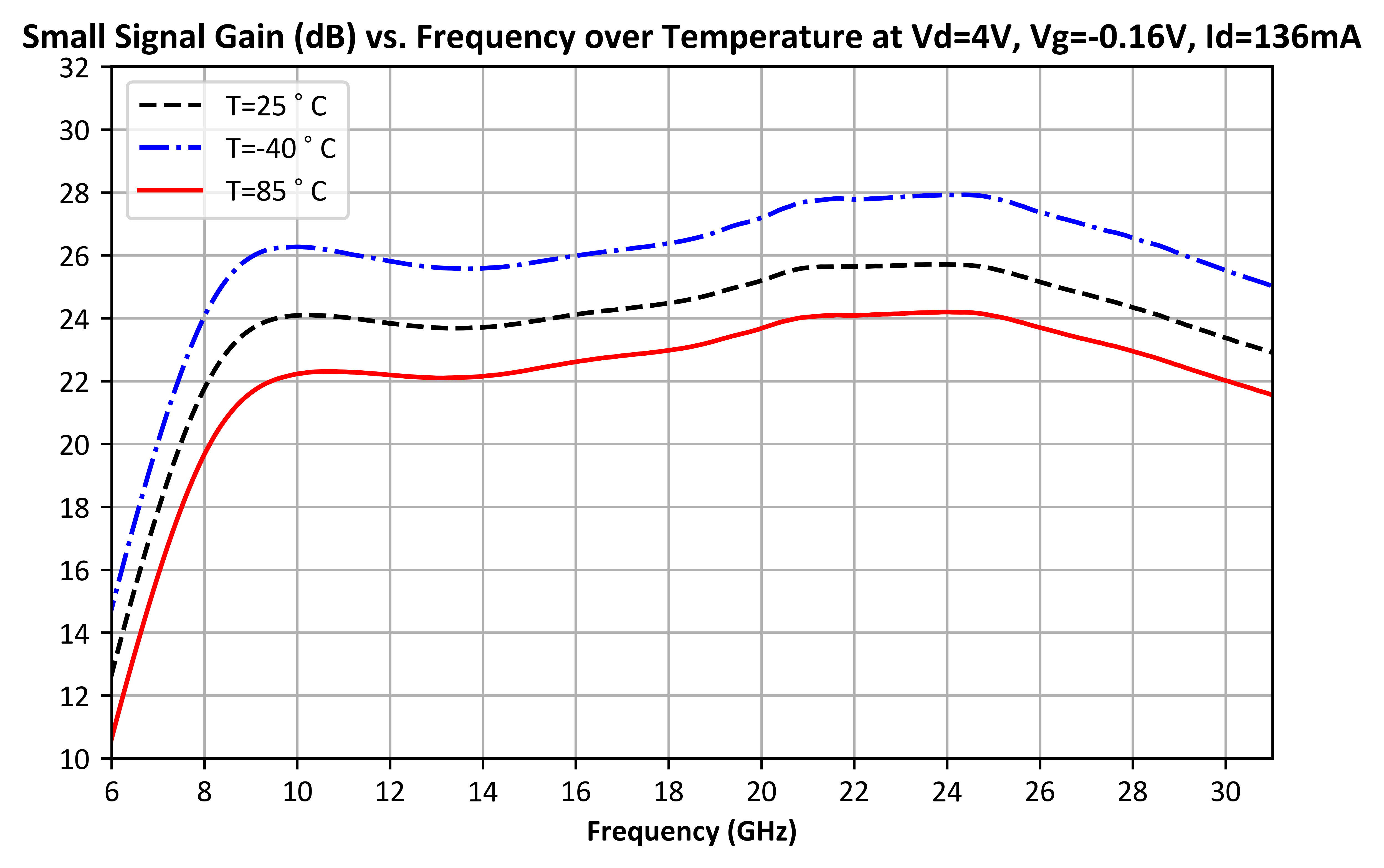

Typical Performance Plots (vs Temperature)
%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.16V,%20Id=136mA.png)
%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.05V,%20Id=168mA.png)
%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.16V,%20Id=136mA.png)
%20vs.%20Frequency%20over%20Temperature%20at%20Vd=4V,%20Vg=-0.05V,%20Id=168mA.png)
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier
Application Circuit
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier

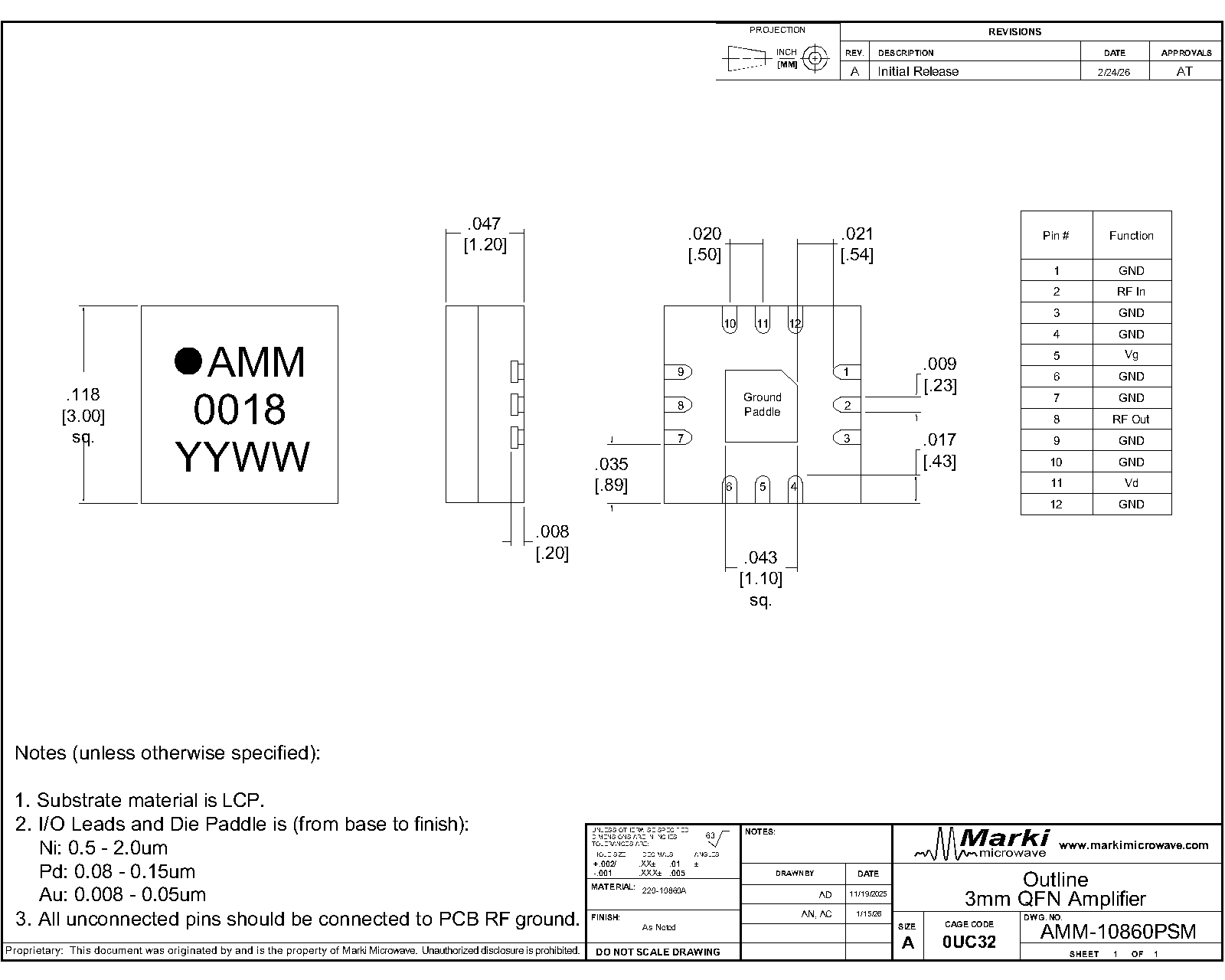

Mechanical Data
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier

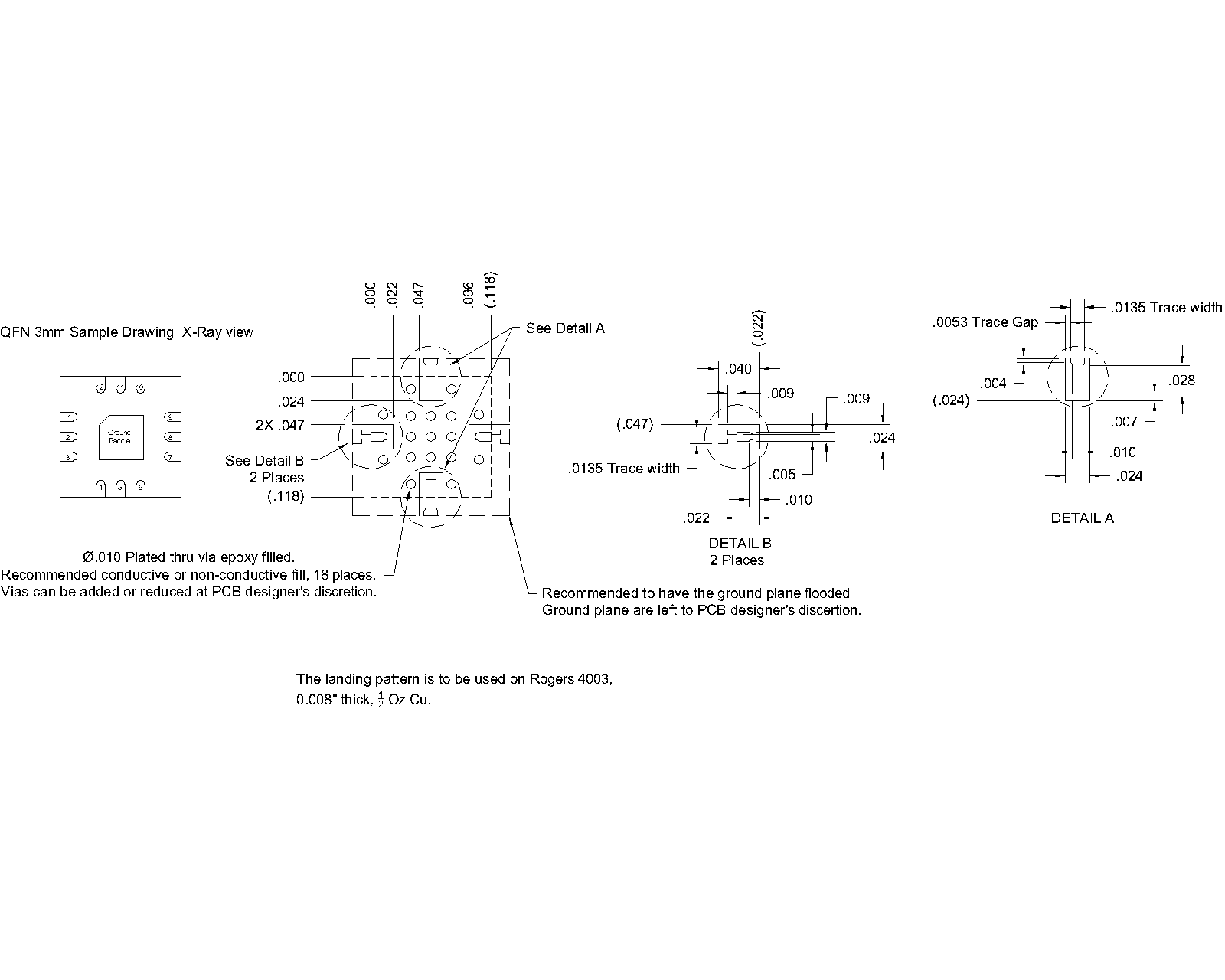

Footprint Image
Download : Footprint Drawing
AMM-10860PSM
10-30 GHz Broadband Driver Gain Block Amplifier

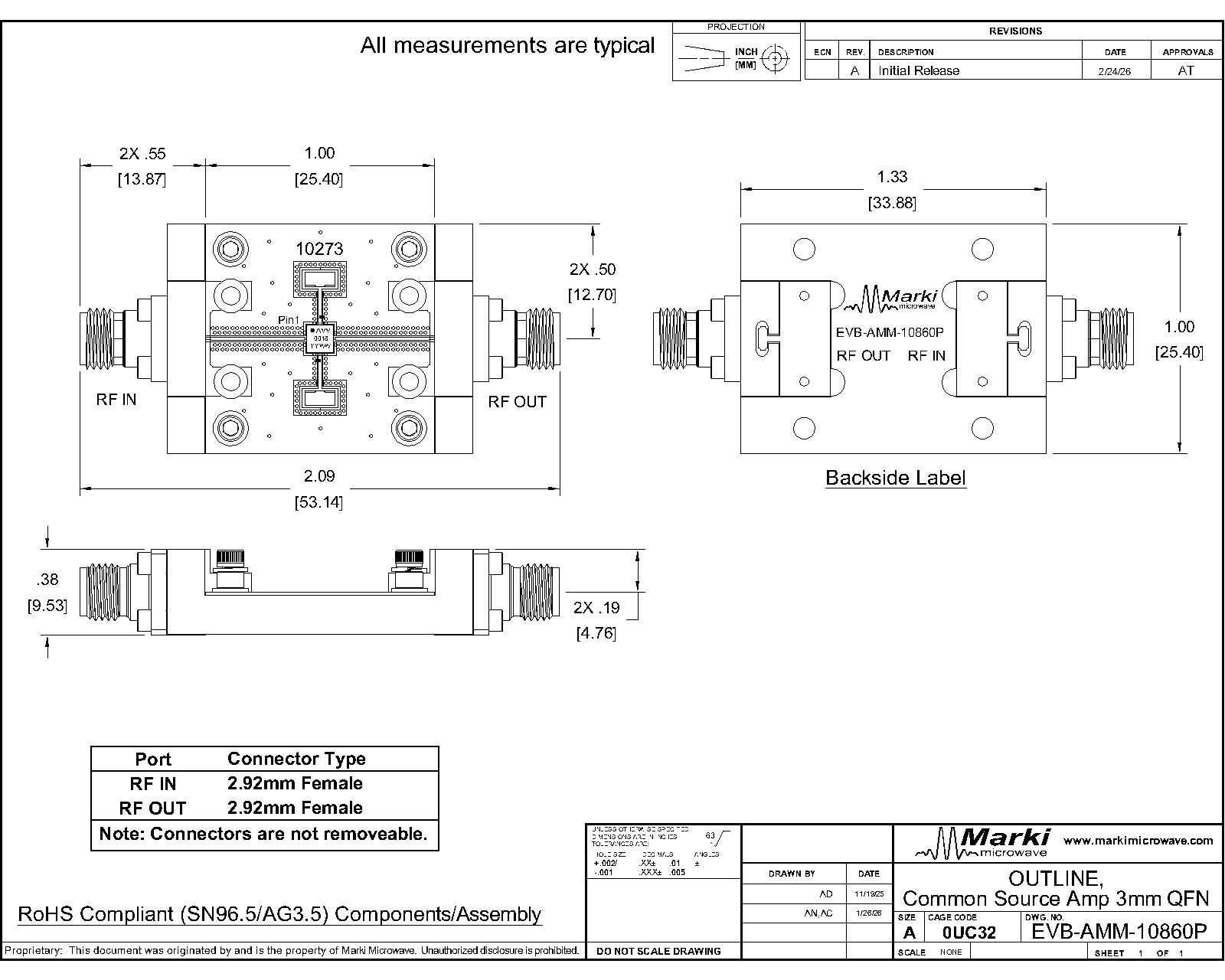

Evaluation Board - Outline Drawing
