AMM-10860PSM

10-30 GHz Broadband Driver Gain Block Amplifier

The AMM-10860PSM is a wideband pHEMT-based GaAs surface-mount gain block driver amplifier operating from 10 to 30 GHz. This amplifier offers high gain at 24.5 dB, +21.5 dBm saturated output power, and strong linearity with output IP3 of +28.5 dBm. It’s an excellent driver for our H- and S-diode mixers and multipliers, and comes in a compact 3 mm surface-mount package for easy integration onto printed circuit boards.

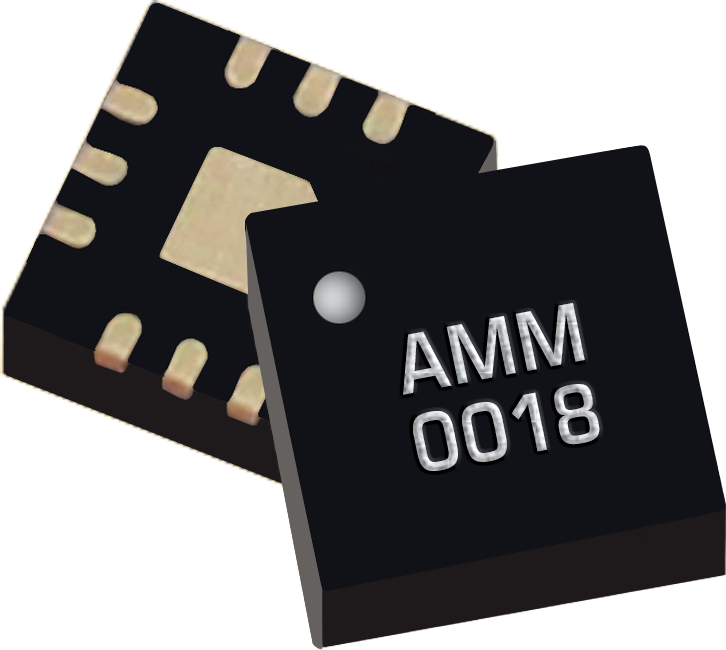

Product Variant : AMM-10860PSM
Sorted by: No sorting applied
EVB-AMM-10860P
Driver
Gain Block
1030-----3.00 x 3.00 mmReleased
AMM-10860PSM
Driver
Gain Block
103024.47.321.5428.518.53 x 3 mmReleased
