AMM-10202PSM

15-50 GHz GaAs Surface Mount LO Driver Amplifier

The AMM-10202PSM is a surface-mount LO driver amplifier that is designed to provide sufficient LO drive for an H or S diode mixer such as the MM1-1850HSM or MM1-1850SSM across temperature with input power from 0-10 dBm. The AMM-10202PSM provides high 23 dB gain, +19 dBm saturated output power, and +24 dBm OIP3. This amplifier offers a compact, stable, wideband LO driver solution. The AMM-10202PSM is packaged in a compact 4mm package for surface mount integration onto printed circuit boards.

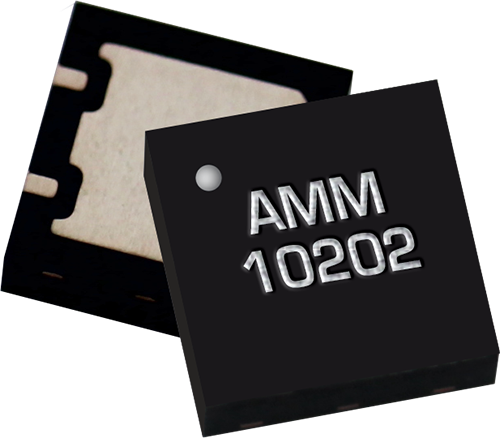

Product Variant : AMM-10202PSM
Sorted by: No sorting applied
EVB-AMM-10202P
Request Quote
Driver
mm-wave
1550------Released
AMM-10202PSM
Request Quote
Driver
mm-wave
1550236.5202417.54 x 4 mmReleased
