Device Overview
General Description
This is the evaluation board for the AMM-10202PSM. The AMM-10202PSM is a surface-mount LO driver amplifier that is designed to provide sufficient LO drive for an H or S diode mixer such as the MM1-1850HSM or MM1-1850SSM across temperature with input power from 0-10 dBm. The AMM-10202PSM provides high 23 dB gain, +19 dBm saturated output power, and +24 dBm OIP3. This amplifier offers a compact, stable, wideband LO driver solution.
Features
- 1.85mm edge mount connectors
- Vd and Vg clip rings
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-10202PSM | 15-50 GHz GaAs Surface Mount LO Driver Amplifier | DFN | REACH RoHS | Released | 3A001.b.2.d |
| EVB-AMM-10202P | Evaluation Board, AMM-10202PSM, 15-50 GHz GaAs Surface Mount LO Driver Amplifier | EVB | REACH RoHS | Released | - |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| AMM-10202PSM | 15-50 GHz GaAs Surface Mount LO Driver Amplifier | DFN | REACH RoHS | Released | 3A001.b.2.d |
| EVB-AMM-10202P | Evaluation Board, AMM-10202PSM, 15-50 GHz GaAs Surface Mount LO Driver Amplifier | EVB | REACH RoHS | Released | - |
EVB-AMM-10202P
Evaluation Board, AMM-10202PSM, 15-50 GHz GaAs Surface Mount LO Driver Amplifier
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-07-23 | Initial Release |
EVB-AMM-10202P
Evaluation Board, AMM-10202PSM, 15-50 GHz GaAs Surface Mount LO Driver Amplifier
Mechanical Data
EVB-AMM-10202P
Evaluation Board, AMM-10202PSM, 15-50 GHz GaAs Surface Mount LO Driver Amplifier

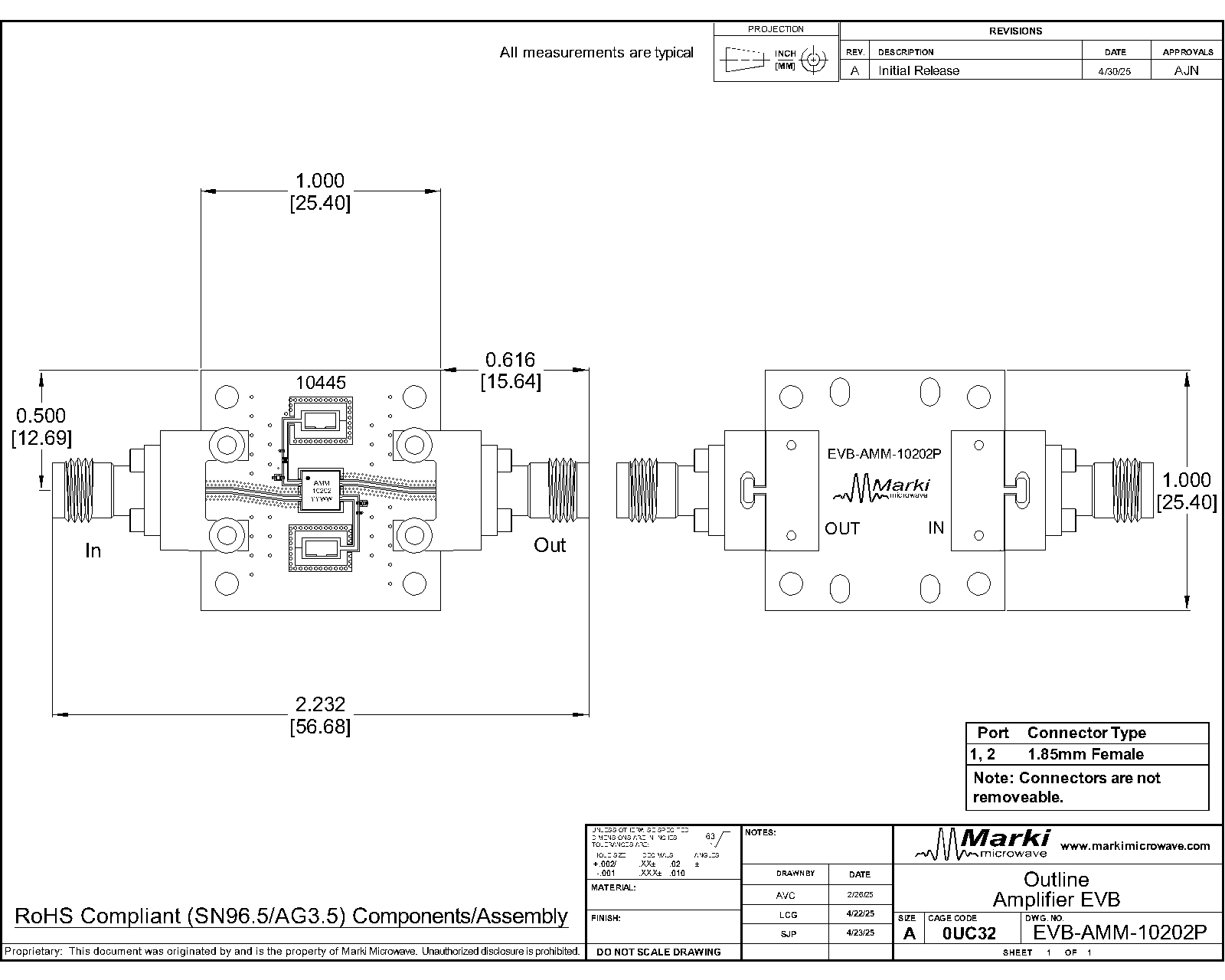

Evaluation Board - Outline Drawing
