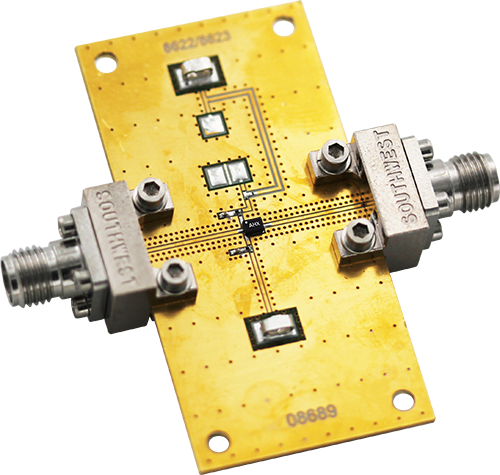

EVB-ADM-8622P

Evaluation Board, DC - 10 GHz High Dynamic Range Gain Block Amplifier

The EVB-ADM-8622P is the evaluation board for the ADM-8622PSM high-linearity low noise amplifier. This EVB is not self-contained and requires an external bias-tee or inductor to connect RF In (input RF connector) and +Vref pins (top clip on EVB). See ADM-8622PSM datasheet for details. The EVB is built using 2.92mm RF connectors. The ADM-8622PSM is capable of providing 15.5 dB gain, 2 dB noise figure and +26 dBm OIP3 up to 10 GHz.
