Device Overview
General Description
The MFB-3300 is a passive MMIC bandpass filter. It is a low loss integrated filter that passes the Ka (26-40GHz) band. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional filter technologies. The MFB-3300 is available as a wire bondable chip. Low unit to unit variation allow for accurate simulations using the provided S2P file taken from measured production units.
Features
- Designed for Ka Band
- Insertion Loss Typically 1.5dB at Center Frequency
- Excellent Return Loss
- High Stop Band Suppression
- Wide Stop Band
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFB-3300CH | Passive MMIC 26-40GHz Bandpass Filter | CH | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFB-3300CH | Passive MMIC 26-40GHz Bandpass Filter | CH | REACH RoHS | Released | EAR99 |
MFB-3300CH
Passive MMIC 26-40GHz Bandpass Filter
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Die Mounting Recommendations

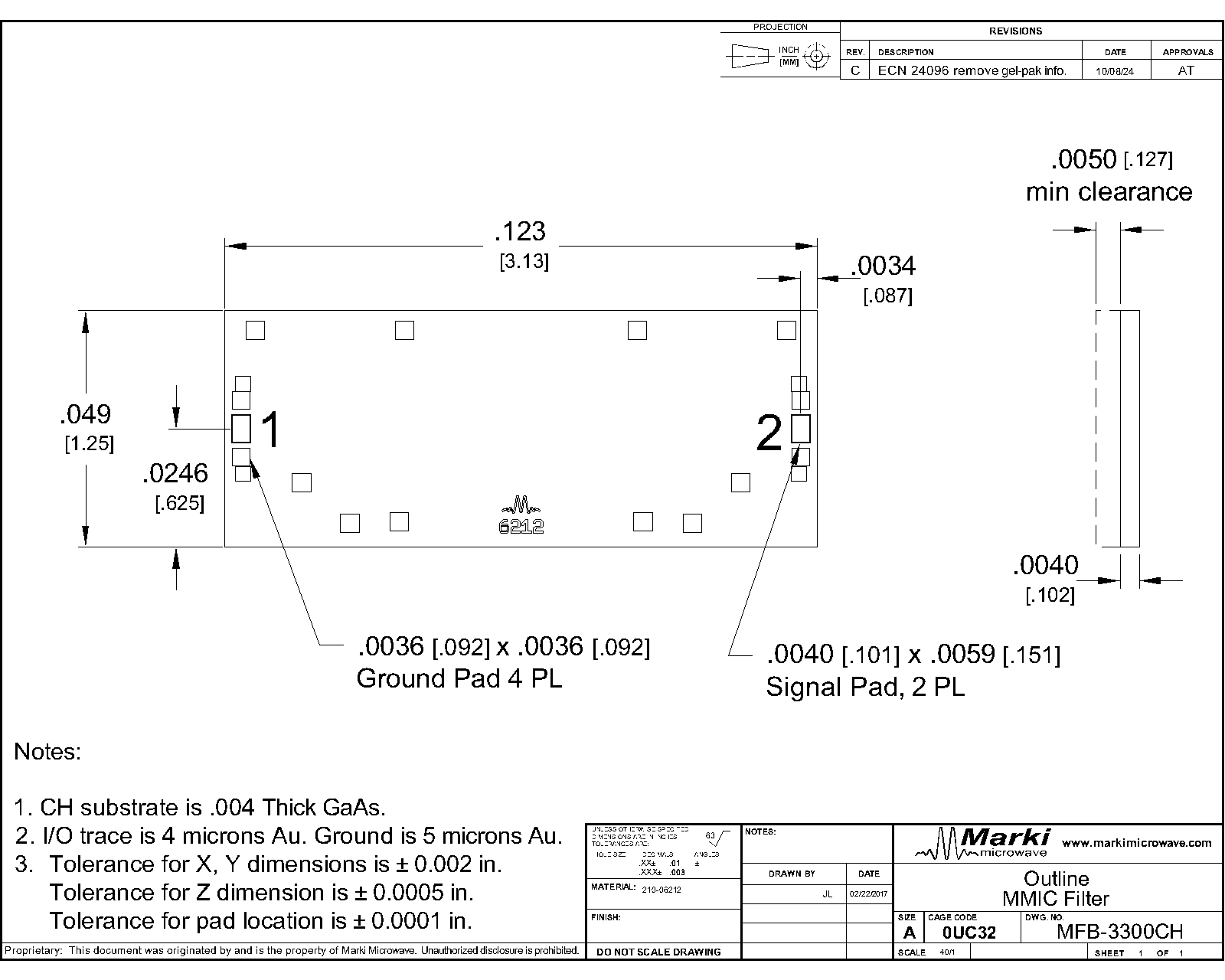

- Mechanical Data
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-05-22 | Datasheet Initial Release |
MFB-3300CH
Passive MMIC 26-40GHz Bandpass Filter

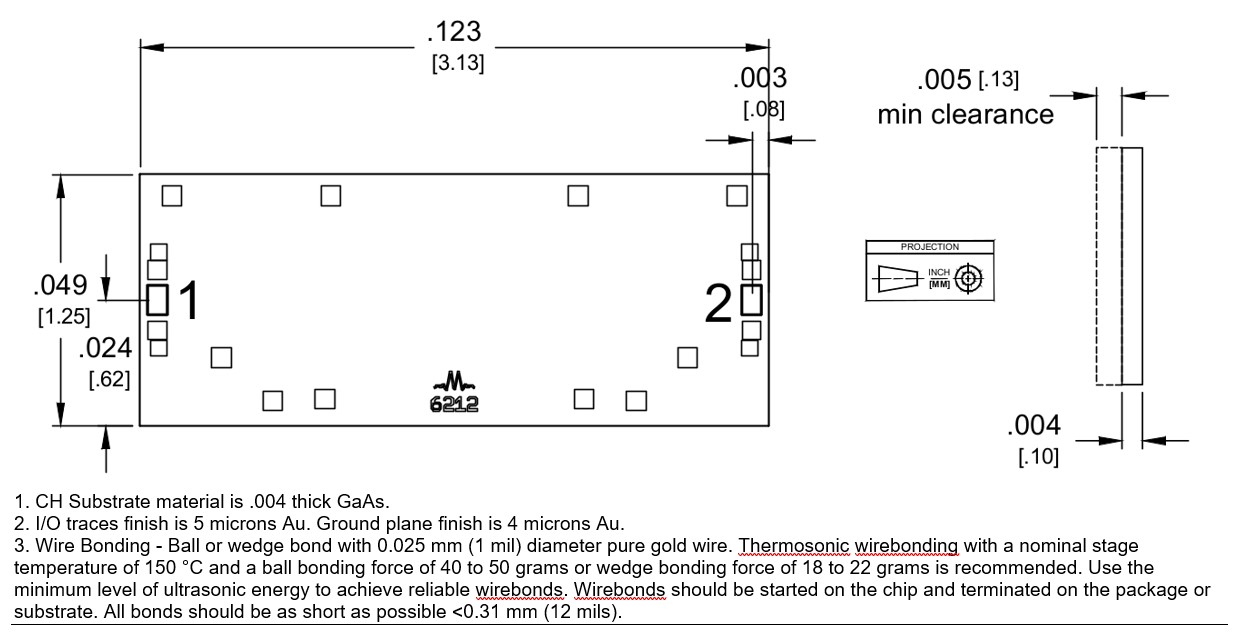

Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pad | Ground | CH package ground path is provided through the substrate and ground bond pads. |  |
| Port 1 | Input/Output | Port 1 is DC open to ground for the CH package. |  |
| Port 2 | Input/Output | Port 2 is DC open to ground for the CH package. | |
MFB-3300CH
Passive MMIC 26-40GHz Bandpass Filter
Specifications
Absolute Maximum Ratings
Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 125 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -65 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 30 | dBm |
| Spec Guaranteed Operating Temperature | 25 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3.13 x 1.25 mm |
MFB-3300CH
Passive MMIC 26-40GHz Bandpass Filter
Electrical Specifications
Specifications guaranteed +25°C for chip (CH) package, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 26.3 | 39.37 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 25.38 | 40.79 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 18.35 | 45.06 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 32.18 | - | GHz |
| Insertion Loss @ fc | Temp = 25°C | - | - | - | 1.3 | 3.0 | dB |
| Passband Return Loss | Temp = 25°C | - | - | - | 17 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 98 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Stopband Suppression | - | 18.7 | 44.8 | 25 | 30 | - | dB |
| Stopband Suppression | - | 11.1 | 50 | 40 | 50 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 26.3 | 39.37 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 25.38 | 40.79 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 18.35 | 45.06 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 32.18 | - | GHz |
| Insertion Loss @ fc | Temp = 25°C | - | - | - | 1.3 | 3.0 | dB |
| Passband Return Loss | Temp = 25°C | - | - | - | 17 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 98 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Stopband Suppression | - | 18.7 | 44.8 | 25 | 30 | - | dB |
| Stopband Suppression | - | 11.1 | 50 | 40 | 50 | - | dB |
MFB-3300CH
Passive MMIC 26-40GHz Bandpass Filter
Typical Performance Plots
