Marki Microwave Passives in a Single Chart
By Marki Microwave, Posted Tue Dec 17 2013 20:00:00 GMT+0000 (Coordinated Universal Time)

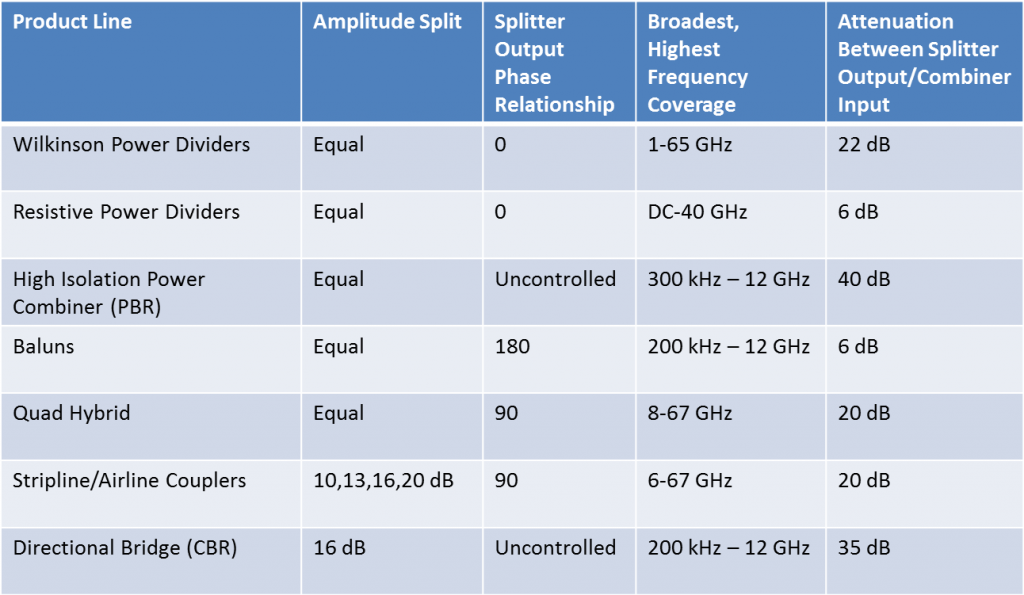

I was thinking about the difference between power dividers, baluns, and couplers, and realized that they could all be thought of as power splitters. The characteristics that make them different are the relationship between the outputs in terms of amplitude, phase, and attenuation between outputs. Here is a brief chart that explains them all:
