Balun Eye Diagrams at 14 Gb/s

I got an email asking if our baluns would work to 16 Gb/s data signals, so I tested them with the fastest data signal we can generate here before our BERT starts to go loopy. Here are the results:

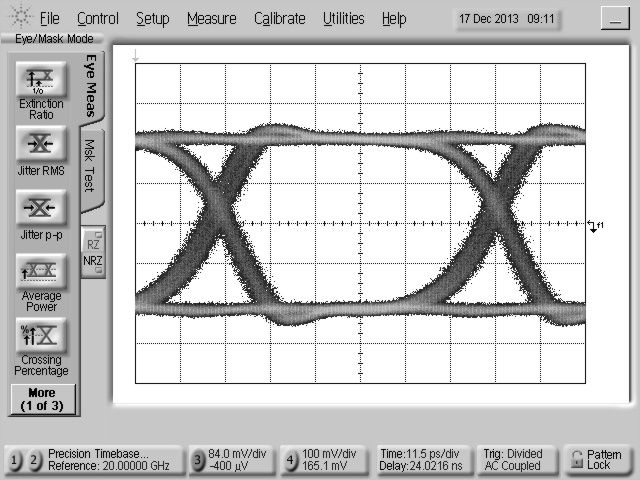

Input:

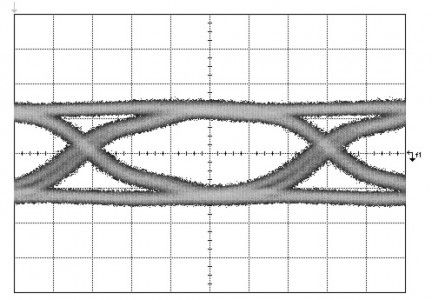

Non-inverted output:

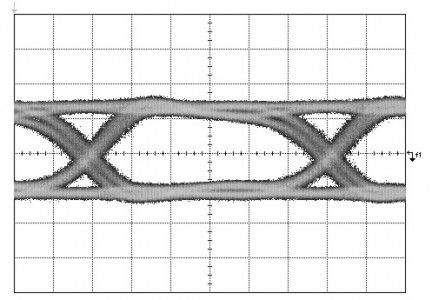

Inverted Output:

So there you go, the connectorized baluns are suitable for datarates up to at least 14 Gb/s without significant data degradation.
