Port Diagram
A port diagram of the MSW2-1001ELGA is shown below. (View looking down from the top side.)
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MSW2-1001ELGA is a reflective, single-pole double throw (SPDT) switch. The part is manufactured using a Silicon-On-Insulator (SOI) process. The switch operates from 100MHz to 40GHz with average insertion loss and isolation of 1.2dB and 40dB respectively and input power handling and hot switching capability of 27 dBm. The MSW2-1001ELGA requires positive and negative 3.3V supply inputs and is controlled via a single input pin compatible with LVTTL logic. This switch has a 50-Ohm characteristic impedance. The MSW2-1001ELGA is packaged in a compact 2.25x2.25 mm LGA for surface mount integration on circuit board-based systems.
Features
- Wide Bandwidth (0.1 - 40GHz)
- Low Insertion loss
- High Isolation
- Hot Switching Capable
- Internal Supply Regulation
- Low Power Consumption
Applications
- Mobile test and measurement equipment
- Radar
- SATCOM
- Electronic Warfare
- 5G
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MSW2-1001ELGA | 0.1-40 GHz Surface Mount SPDT Switch | LGA | REACH RoHS | Released | EAR99 |
| EVB-MSW2-1001E | 0.1 - 40 GHz Surface Mount SPDT Switch | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MSW2-1001ELGA | 0.1-40 GHz Surface Mount SPDT Switch | LGA | REACH RoHS | Released | EAR99 |
| EVB-MSW2-1001E | 0.1 - 40 GHz Surface Mount SPDT Switch | EVB | REACH RoHS | Released | EAR99 |
MSW2-1001ELGA
0.1-40 GHz Surface Mount SPDT Switch
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2022-06-01 | Initial Datasheet Release |
| A | 2025-05-13 | Vctrl Logic Table Updated |
MSW2-1001ELGA
0.1-40 GHz Surface Mount SPDT Switch
Port Configuration and Functions
MSW2-1001ELGA
0.1-40 GHz Surface Mount SPDT Switch
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| 11 | RF2 | RF port 2 of the device, impedance looking into this port matches RFC load impedance in the ON state. This port is reflective and shorted to GND in the OFF state. This port is DC coupled. A DC blocking capacitor is required ONLY if max DC voltages will be exceeded. | - |
| 1,3,4,6,10,12 | Ground | These pins should be connected to RF/DC ground. All GND pins are internally connected. | - |
| 2 | RFC | RF common port of the device. This port is DC coupled. A DC blocking capacitor is required ONLY if max DC voltages will be exceeded. This port has a 50 Ohm input impedance when the active port is terminated with a 50 Ohm load. | - |
| 5 | RF1 | RF port 1 of the device, impedance looking into this port matches RFC load impedance in the ON state. This port is reflective and shorted to GND in the OFF state. This port is DC coupled. A DC blocking capacitor is required ONLY if max DC voltages will be exceeded. | - |
| 7 | VDD | Positive DC supply pin. (+3.3V). Port has an ESD clamp to GND. | - |
| 8 | VCTRL | Control voltage input pin. Low Voltage Transistor-Transistor Logic (LVTTL) compatible. Port has ESD clamp to GND and VDD. An external pull-down resistor is recommended on this pin. | - |
| 9 | VSS | Negative DC supply pin. (-3.3V). Port has an ESD clamp to GND. | - |
| Paddle | Ground | IC backside must be connected to a DC/RF ground with high thermal and electrical conductivity. | - |
MSW2-1001ELGA
0.1-40 GHz Surface Mount SPDT Switch
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may become inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Control Voltage | 3.9 | V |
| Max Current on any RF Port, Unbiased | 50 | μA |
| Max DC on any RF Port, Unbiased | 0.5 | V |
| Max Hot Switching RF Input Power | 27 | dBm |
| Maximum Operating Temperature for MTTF > 1E6 hours | 105 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF of > 1E6 hours | 135 | °C |
| Max Power Dissipation for MTTF of > 1E6 hours at 85°C Baseplate Temperature | 140 | mW |
| Negative Supply Voltage | -3.6 | V |
| Positive Supply Voltage | 3.6 | V |
| RF Input Power, Nominal Bias | 27.5 | dBm |
| RF Input Power, Unbiased | 21 | dBm |
| θJC, Junction to Ambient Thermal Resistance | 352 | ºC/W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 2.25 x 2.25 mm |
| Moisture Sensitivity Level | - | MSL 3 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ta Ambient Temperature | -40 | 25 | 101 | °C |
| Positive DC Voltage | 3.15 | 3.3 | 3.45 | V |
| Negative DC Voltage | -3.45 | -3.3 | -3.15 | V |
| Positive Supply Current | - | 590 | - | μA |
| Negative Supply Current | - | 660 | - | μA |
| Control Voltage Low, VINL | 0 | - | 1.55 | V |
| Control Current, IINL | - | - | 1 | μA |
| Control Current, IINH | - | - | 1 | μA |
| Control Voltage High, VINH | 1.63 | - | 3.45 | V |
MSW2-1001ELGA
0.1-40 GHz Surface Mount SPDT Switch
Electrical Specifications
The electrical specifications apply at TA=+25 °C in a 50 Ω system. Unless otherwise noted, all specifications are for VDD=3.3V, VSS=-3.3V and VCTRL = 0 or 3.3V (both switch paths) with all ports terminated into 50 Ω loads.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Input IP3 | Two Tones @ +12dBm, dF = 1 MHz | 2 | 40 | - | 50 | - | dBm |
| Input P1dB | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 2 | 18 | - | 27 | - | dBm |
| Insertion Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 35 | 40 | - | 1.5 | - | dB |
| Insertion Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 0.1 | 18 | - | 0.7 | - | dB |
| Insertion Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 18 | 35 | - | 1 | - | dB |
| Isolation | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 35 | 40 | - | 43 | - | dB |
| Isolation | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 0.1 | 18 | - | 57 | - | dB |
| Isolation | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 18 | 35 | - | 47 | - | dB |
| Isolation, RFC to any non-active Port | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 35 | 40 | - | 38 | - | dB |
| Isolation, RFC to any non-active Port | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 0.1 | 18 | - | 47 | - | dB |
| Isolation, RFC to any non-active Port | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 18 | 35 | - | 40 | - | dB |
| Make-before-break overlap | - | 0.1 | 40 | - | 36 | - | ns |
| Negative Supply Current | Vdd = 3.3V, Vss = -3.3V, Vctrl = 0 or 3.3V | - | - | - | 660 | - | μA |
| Nominal RF Impedance | Vdd = 3.3V. Vss = -3.3V, Vctrl = 0 or 3.3V | - | - | - | 50 | - | Ω |
| Off-Time | 50% VCTRL to 90% RF output | 0.1 | 40 | - | 85 | - | ns |
| On-Time | 50% VCTRL to 90% RF output | 0.1 | 40 | - | 85 | - | ns |
| Positive Supply Current | Vdd = 3.3V, Vss = -3.3V, Vctrl = 0 or 3.3V | - | - | - | 590 | - | μA |
| Return Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 35 | 40 | - | 11 | - | dB |
| Return Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 0.1 | 18 | - | 24 | - | dB |
| Return Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 18 | 35 | - | 22 | - | dB |
| RF Settling Time | 50% VCTRL to 0.05dB final RF output | 0.1 | 40 | - | 95 | - | ns |
| RF Settling Time | 50% VCTRL to 0.1dB final RF output | 0.1 | 40 | - | 90 | - | ns |
| Risetime/Falltime | 10-90% of RF output | 0.1 | 40 | - | 10 | - | ns |
| VCTRL Latency | 50% VCTRL to start of RF state transition | 0.1 | 40 | - | 45 | - | ns |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Input IP3 | Two Tones @ +12dBm, dF = 1 MHz | 2 | 40 | - | 50 | - | dBm |
| Input P1dB | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 2 | 18 | - | 27 | - | dBm |
| Insertion Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 35 | 40 | - | 1.5 | - | dB |
| Insertion Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 0.1 | 18 | - | 0.7 | - | dB |
| Insertion Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 18 | 35 | - | 1 | - | dB |
| Isolation | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 35 | 40 | - | 43 | - | dB |
| Isolation | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 0.1 | 18 | - | 57 | - | dB |
| Isolation | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 18 | 35 | - | 47 | - | dB |
| Isolation, RFC to any non-active Port | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 35 | 40 | - | 38 | - | dB |
| Isolation, RFC to any non-active Port | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 0.1 | 18 | - | 47 | - | dB |
| Isolation, RFC to any non-active Port | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 18 | 35 | - | 40 | - | dB |
| Make-before-break overlap | - | 0.1 | 40 | - | 36 | - | ns |
| Negative Supply Current | Vdd = 3.3V, Vss = -3.3V, Vctrl = 0 or 3.3V | - | - | - | 660 | - | μA |
| Nominal RF Impedance | Vdd = 3.3V. Vss = -3.3V, Vctrl = 0 or 3.3V | - | - | - | 50 | - | Ω |
| Off-Time | 50% VCTRL to 90% RF output | 0.1 | 40 | - | 85 | - | ns |
| On-Time | 50% VCTRL to 90% RF output | 0.1 | 40 | - | 85 | - | ns |
| Positive Supply Current | Vdd = 3.3V, Vss = -3.3V, Vctrl = 0 or 3.3V | - | - | - | 590 | - | μA |
| Return Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 35 | 40 | - | 11 | - | dB |
| Return Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 0.1 | 18 | - | 24 | - | dB |
| Return Loss | Vdd=3.3V, Vss=-3.3V, Vctrl = 0 or 3.3V | 18 | 35 | - | 22 | - | dB |
| RF Settling Time | 50% VCTRL to 0.05dB final RF output | 0.1 | 40 | - | 95 | - | ns |
| RF Settling Time | 50% VCTRL to 0.1dB final RF output | 0.1 | 40 | - | 90 | - | ns |
| Risetime/Falltime | 10-90% of RF output | 0.1 | 40 | - | 10 | - | ns |
| VCTRL Latency | 50% VCTRL to start of RF state transition | 0.1 | 40 | - | 45 | - | ns |
MSW2-1001ELGA
0.1-40 GHz Surface Mount SPDT Switch
Typical Performance Plots
MSW2-1001ELGA
0.1-40 GHz Surface Mount SPDT Switch
Mechanical Data

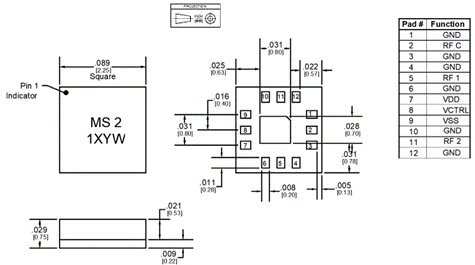

Outline Drawing
Download : Outline 2D Drawing
- Dimensions are shown in both inches and [mm]
- Ground paddle chamfer indicates pin 1 location
- Plastic over-molded laminate
- I/O Leads and ground paddle are 0.03 microns AU over 5-10 microns Ni
MSW2-1001ELGA
0.1-40 GHz Surface Mount SPDT Switch
Footprint Image
Download : Footprint Drawing
MSW2-1001ELGA
0.1-40 GHz Surface Mount SPDT Switch
Evaluation Board - Outline Drawing
