Port Diagram

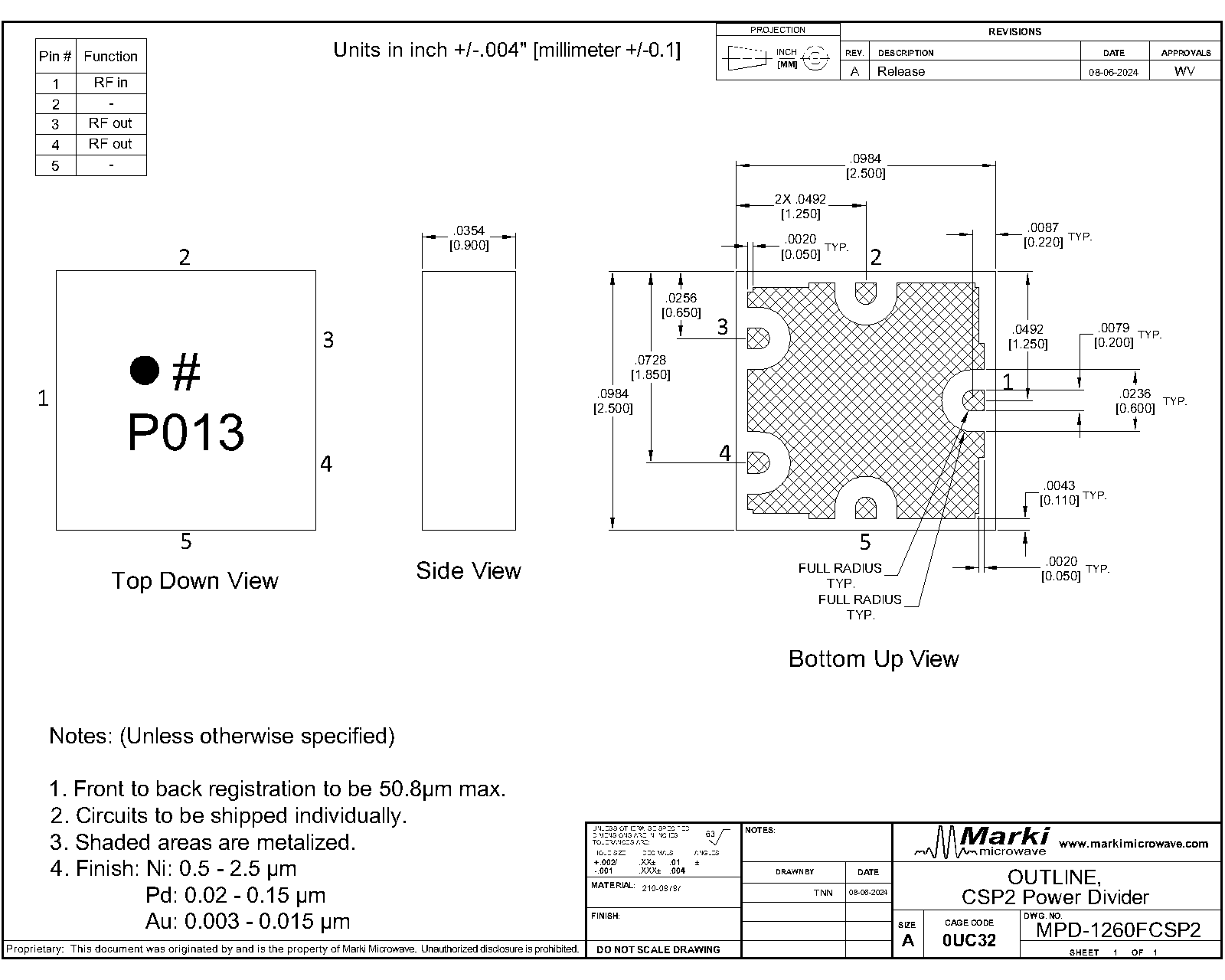

A bottom-up view of the MPD-1260FCSP2 package outline drawing is shown below. The MMIC Power dividers are passive reciprocal devices allowing either power splitting or power combining.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MPD-1260FCSP2 is a small footprint MMIC 12-60 GHz 2-Way power divider/power splitter featuring high 22 dB isolation and low 0.3 dB insertion loss in our compact CSP2 chip scale package. It is much smaller than a printed PCB Wilkinson Power Divider/Combiner. It can be used as an equal amplitude/phase power splitter or a power combiner with excellent isolation. Tight fabrication tolerances result in less unit-to-unit variation than traditional power divider technologies, allowing for accurate simulations using the provided S3P file taken from measured production units. The MPD-1260FCSP2 features front port outputs opposite to the common port. For side port outputs, refer to the MPD-1260SCSP2. The 2.5 mm CSP2 package enables extreme miniaturization of SMT footprint making the MPD-1260FCSP2 ideal for applications prioritizing low SWaP.
Features
- 2-way splitter or combiner in a compact 2.5mm package
- Front ports
- Low 0.3 dB typical insertion loss
- High 22 dB isolation
- Excellent 0.2 dB amplitude and 1° phase balance
- This product embodies Marki Microwave's U.S. Pat. 11,869,858
Applications
- Test Equipment
- Electronic Warfare
- Radar and satellite communications
- High Channel Count Systems
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD-1260FCSP2 | 12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MPD-1260F | Evaluation Board, 12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD-1260FCSP2 | 12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MPD-1260F | Evaluation Board, 12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports | EVB | RoHS REACH | Released | EAR99 |
MPD-1260FCSP2
12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-11-21 | Initial Release |
| A | 2025-04-28 | Updated Moisture Sensitivity from MSL3 to MSL1 |
| B | 2025-09-12 | Power Handling Added |
| C | 2025-12-17 | Power Handling Updated |
MPD-1260FCSP2
12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Gnd | Ground paddle should be connected to RF ground |  |
| Pin 1 | Common | Pin 1 is the common input/output pin. It is DC short to Pin 3 and Pin 4 and open to ground. |  |
| Pin 3 | Input/Output 1 | Pin 3 is an input/output pin. It is DC short to the common and Pin 4 and open to ground. | |
| Pin 4 | Input/Output 2 | Pin 4 is an input/output pin. It is DC short to the common and Pin 3 and open to ground. | |
MPD-1260FCSP2
12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 40 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling as a Power Divider | 10 | W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 2.50 x 2.50 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MPD-1260FCSP2
12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 50 | 60 | - | 0.2 | - | dB |
| Isolation | - | 18 | 60 | - | 22 | - | dB |
| Phase Balance | - | 50 | 60 | - | 4.3 | - | ° |
| Amplitude Balance | - | 12 | 50 | - | 0.04 | - | dB |
| Common Port Return Loss | - | 12 | 60 | - | 17 | - | dB |
| Excess Insertion Loss 1 | - | 12 | 60 | - | 0.3 | - | dB |
| Impedance | - | - | - | - | 50 | - | Ω |
| Isolation | - | 12 | 18 | - | 12 | - | dB |
| Nominal Phase Shift | - | 12 | 60 | - | 0 | - | ° |
| Nominal Power Splitting | - | 12 | 60 | - | 3 | - | dB |
| Output Return Loss | - | 12 | 60 | - | 22 | - | dB |
| Phase Balance | - | 12 | 50 | - | 1 | - | ° |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 50 | 60 | - | 0.2 | - | dB |
| Isolation | - | 18 | 60 | - | 22 | - | dB |
| Phase Balance | - | 50 | 60 | - | 4.3 | - | ° |
| Amplitude Balance | - | 12 | 50 | - | 0.04 | - | dB |
| Common Port Return Loss | - | 12 | 60 | - | 17 | - | dB |
| Excess Insertion Loss 1 | - | 12 | 60 | - | 0.3 | - | dB |
| Impedance | - | - | - | - | 50 | - | Ω |
| Isolation | - | 12 | 18 | - | 12 | - | dB |
| Nominal Phase Shift | - | 12 | 60 | - | 0 | - | ° |
| Nominal Power Splitting | - | 12 | 60 | - | 3 | - | dB |
| Output Return Loss | - | 12 | 60 | - | 22 | - | dB |
| Phase Balance | - | 12 | 50 | - | 1 | - | ° |
[1] Excess Insertion Loss is loss in addition to power splitting loss, calculated as (Common Port to Output Port Insertion Loss) – (Power splitting loss of 3 dB)
MPD-1260FCSP2
12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports
Typical Performance Plots
Measured data is de-embedded from fixture using automatic fixture removal (AFR).
MPD-1260FCSP2
12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports
Mechanical Data
MPD-1260FCSP2
12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports

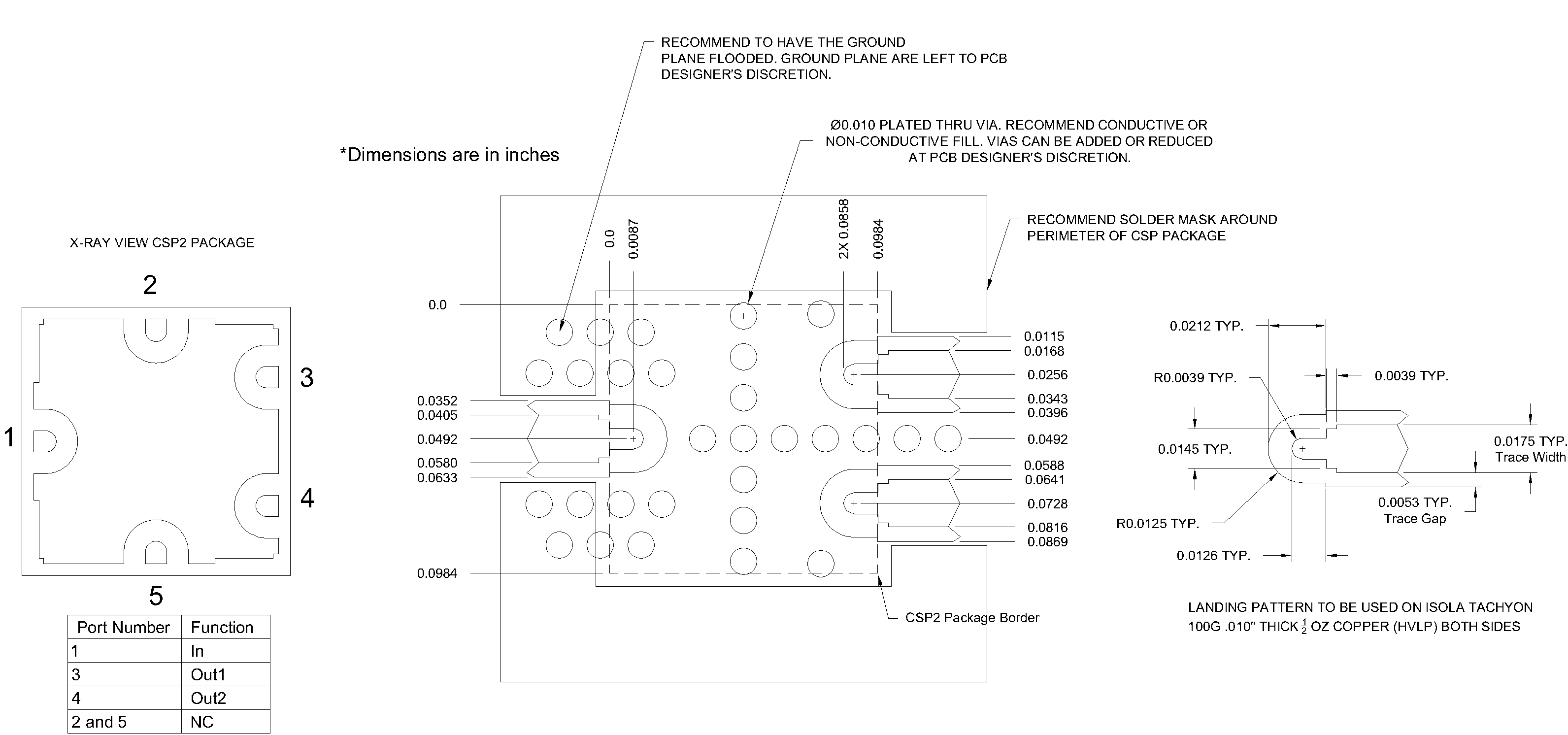

Footprint Image
Download : Footprint Drawing
MPD-1260FCSP2
12 - 60 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports

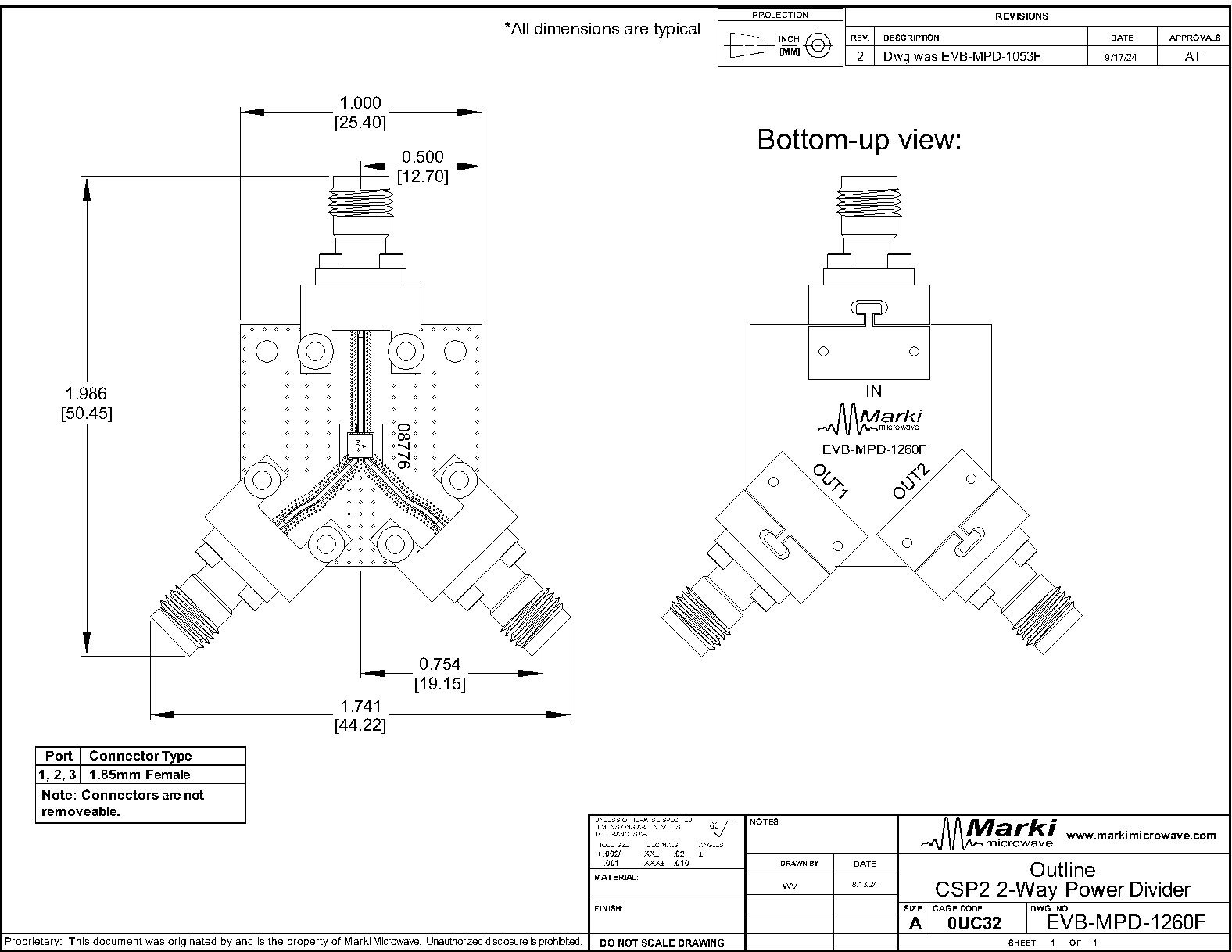

Evaluation Board - Outline Drawing
