MPD-0422FCSP2

4 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Front Ports

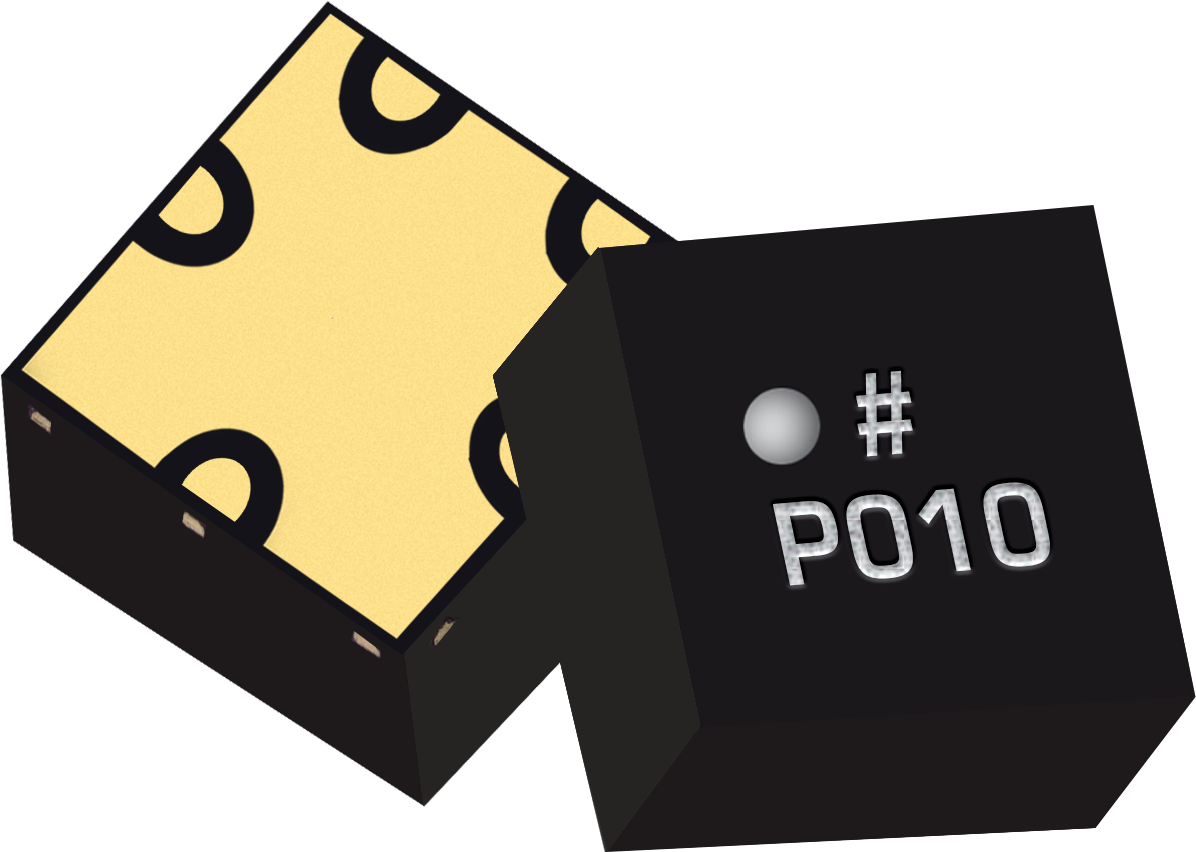

The MPD-0422FCSP2 is a small footprint MMIC 4-22 GHz 2-Way power divider/power splitter featuring high 24 dB isolation and low 0.7 dB insertion loss in our compact CSP2 chip scale package. It is much smaller than a printed PCB Wilkinson Power Divider/Combiner. It can be used as an equal amplitude/phase power splitter or a power combiner with excellent isolation. Tight fabrication tolerances result in less unit-to-unit variation than traditional power divider technologies, allowing for accurate simulations using the provided S3P file taken from measured production units. The MPD-0422FCSP2 features front port outputs opposite to the common port. For side port outputs, refer to the MPD-0422SCSP2. The 2.5 mm CSP2 package enables extreme miniaturization of SMT footprint making the MPD-0422FCSP2 ideal for applications prioritizing low SWaP.
