Port Diagram

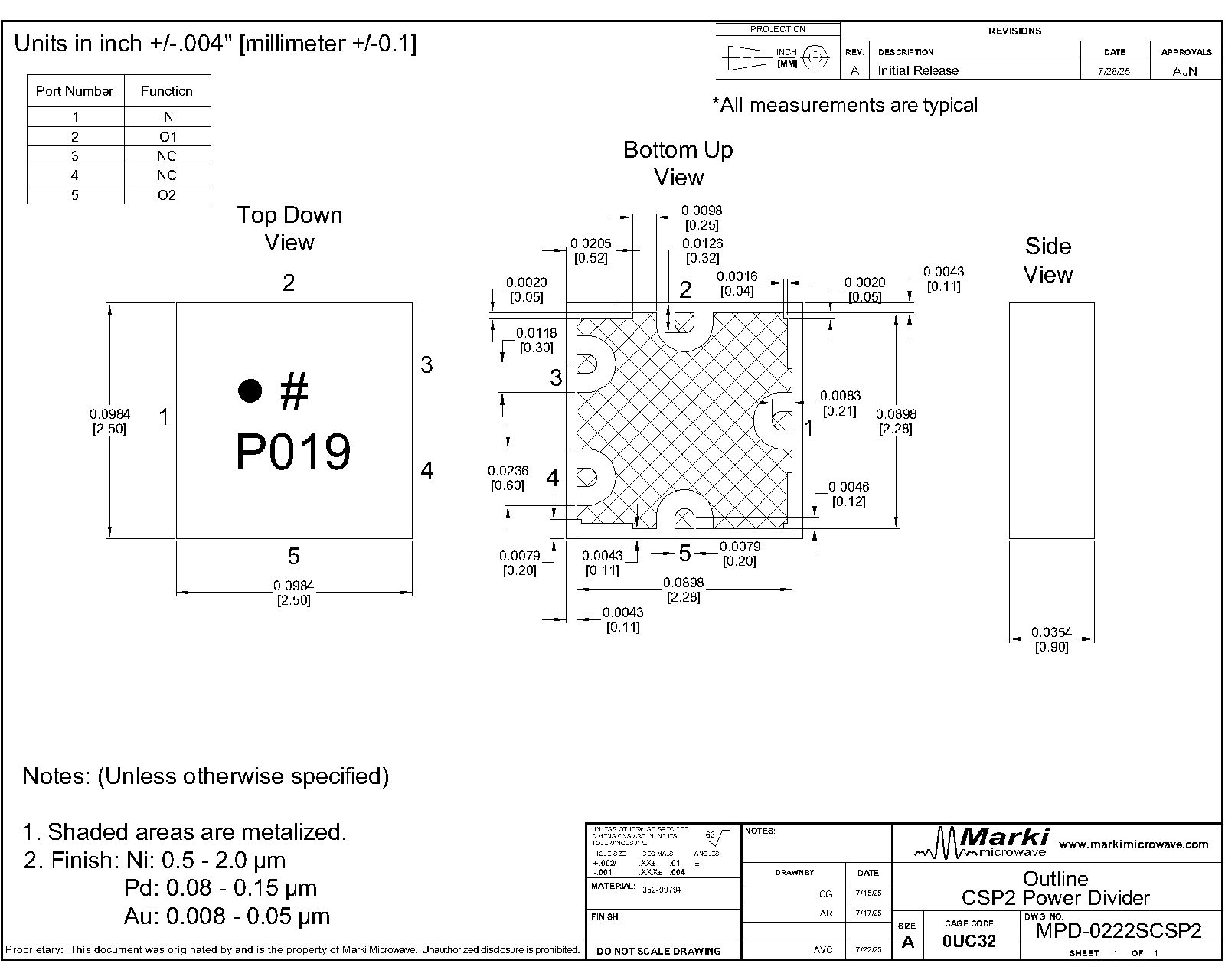

A bottom-up view of the MPD-0222SCSP2 package outline drawing is shown below. The MMIC Power dividers are passive reciprocal devices allowing either power splitting or power combining.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MPD-0222SCSP2 is a small footprint MMIC 2-22 GHz 2-Way power divider/power splitter featuring high 22 dB isolation and low 0.7 dB insertion loss in our compact 2.5 mm CSP2 chip scale package. It is much smaller than a printed PCB Wilkinson Power Divider/Combiner. It can be used as an equal amplitude/phase power splitter or a power combiner with excellent isolation. Tight fabrication tolerances result in less unit-to-unit variation than traditional power divider technologies, allowing for accurate simulations using the provided S3P file taken from measured production units. The MPD-0222SCSP2 features side port outputs. For front port outputs, refer to the MPD-0222FCSP2.
Features
- 2-way splitter or combiner in a compact 2.5mm package
- Side ports
- Low 0.7 dB typical insertion loss
- High 22 dB isolation
- Excellent 0.04 dB amplitude and 0.6° phase balance
- This product embodies Marki Microwave's U.S. Pat. 11,869,858.
Applications
- Test Equipment
- Electronic Warfare
- Radar and satellite communications
- High Channel Count Systems
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD-0222SCSP2 | 2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MPD-0222S | Evaluation Board, 2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MPD-0222SCSP2 | 2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MPD-0222S | Evaluation Board, 2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports | EVB | RoHS REACH | Released | EAR99 |
MPD-0222SCSP2
2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-08-13 | Initial Release |
MPD-0222SCSP2
2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Gnd | Ground paddle should be connected to RF ground |  |
| Pin 1 | Common | Pin 1 is the common input/output pin. It is DC open to Pin 2 and Pin 5 and short to ground. |  |
| Pin 2 | Input/Output 1 | Pin 2 is an input/output pin. It is DC short to Pin 5 and open to Pin 1 and ground. | |
| Pin 5 | Input/Output 2 | Pin 5 is an input/output pin. It is DC short to Pin 2 and open to Pin 1 and ground. | |
MPD-0222SCSP2
2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 40 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling, as a Divider 1 | 10 | W |
[1] Measured CW @ 22 GHz
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 2.50 x 2.50 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MPD-0222SCSP2
2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 2 | 22 | - | 0.04 | - | dB |
| Common Port Return Loss | - | 2 | 22 | - | 24 | - | dB |
| Excess Insertion Loss 1 | - | 2 | 22 | - | 0.72 | - | dB |
| Impedance | - | 2 | 22 | - | 50 | - | Ω |
| Isolation | - | 2 | 22 | - | 22 | - | dB |
| Nominal Phase Shift | - | 2 | 22 | - | 0 | - | ° |
| Nominal Power Splitting | - | 2 | 22 | - | 3 | - | dB |
| Output Return Loss | - | 2 | 22 | - | 24 | - | dB |
| Phase Balance | - | 2 | 22 | - | 0.6 | - | ° |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 2 | 22 | - | 0.04 | - | dB |
| Common Port Return Loss | - | 2 | 22 | - | 24 | - | dB |
| Excess Insertion Loss 1 | - | 2 | 22 | - | 0.72 | - | dB |
| Impedance | - | 2 | 22 | - | 50 | - | Ω |
| Isolation | - | 2 | 22 | - | 22 | - | dB |
| Nominal Phase Shift | - | 2 | 22 | - | 0 | - | ° |
| Nominal Power Splitting | - | 2 | 22 | - | 3 | - | dB |
| Output Return Loss | - | 2 | 22 | - | 24 | - | dB |
| Phase Balance | - | 2 | 22 | - | 0.6 | - | ° |
[1] Excess Insertion Loss is loss in addition to power splitting loss, calculated as (Common Port to Output Port Insertion Loss) – (Power splitting loss of 3 dB)
MPD-0222SCSP2
2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports
Typical Performance Plot
Measured data is de-embedded from fixture using automatic fixture removal (AFR).
MPD-0222SCSP2
2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports
Mechanical Data
MPD-0222SCSP2
2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports
Footprint Image
Download : Footprint Drawing
MPD-0222SCSP2
2 - 22 GHz MMIC 2-Way Wilkinson Power Divider/Power Splitter, Side Ports
Evaluation Board - Outline Drawing
