Surface Mount Multiplexers

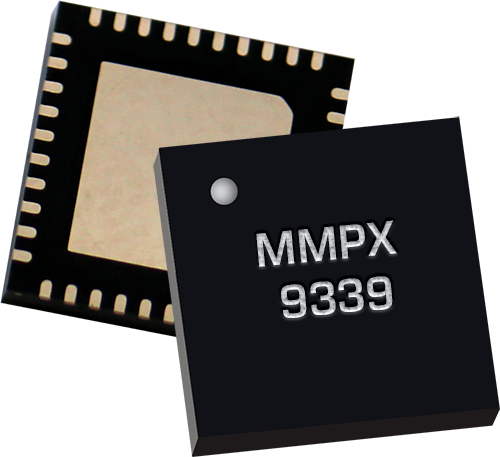

MMPX-00001PSM

Passive MMIC DC-16 GHz Quadplexer

The MMPX-00001PSM is a MMIC surface mount quadplexer capable of multiplexing DC-4 GHz / 6-8 GHz / 10-12 GHz / 14-16 GHz signals. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MMPX-00001PSM is available as a 6x6mm QFN. Low unit to unit variation allows for accurate simulations using the provided SnP files taken from measured production units.
