T3-07LCQG-2

Two-Tone-Terminator Mixer

The T3-07 is a high performance mixer featuring LO/RF from 1 MHz to 7 GHz and IF from 1 MHz to 4 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +15 dBm to +27 dBm. The T3-07 is offered in connectorized, surface mount, and drop-in style packaging, suitable for any type of system level integration. RoHS compliant versions are also available.

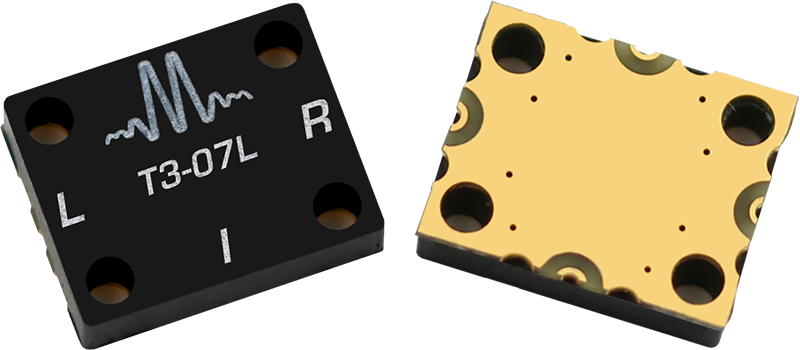

Product Variant : T3-07LCQG-2
Sorted by: No sorting applied
T3-07LCQG-2
Triple Balanced
T3
0.00170.001415256.53232ADM-0026-5929SM10.16 x 8.13 mmReleased
T3-07LCQG-1
Triple Balanced
T3
0.00170.001415256.53232ADM-0026-5929SM10.16 x 8.13 mmReleased
T3-07MCQG-1
Triple Balanced
T3
0.00170.001417276.53232ADM-0026-5929SM10.16 x 8.13 mmReleased
T3-07MCQG-2
Triple Balanced
T3
0.00170.001417276.53232ADM-0026-5929SM10.16 x 8.13 mmReleased
T3-07L-2-TR
Triple Balanced
T3
0.00170.001415256.53232ADM-0026-5929SM10.16 x 8.13 mmReleased
