T3-07LCQG-1_Two-Tone-Terminator Mixer

Device Overview

General Description

The T3-07 is a high performance mixer featuring LO/RF from 1 MHz to 7 GHz and IF from 1 MHz to 4 GHz. As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +15 dBm to +27 dBm. The T3-07 is offered in connectorized, surface mount, and drop-in style packaging, suitable for any type of system level integration. RoHS compliant versions are also available.

Features

Ultra-Broadband RF, LO, and IF
Compatible with Sine or Square-Wave LO
Square-Wave LO delivers Industry-Leading Spurious, IP3, and P_1dB Performance

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Packing Size	Green Status	Product Lifecycle	Export Classification
T3-07LCQG-2	Two-Tone-Terminator Mixer	CQG	-	REACH RoHS	Released	EAR99
T3-07MCQG-2	Two-Tone-Terminator Mixer	CQG	-	REACH RoHS	Released	EAR99
T3-07MCQG-1	Two-Tone-Terminator Mixer	CQG	-	REACH RoHS	Released	EAR99
T3-07LCQG-1	Two-Tone-Terminator Mixer	CQG	-	REACH RoHS	Released	EAR99
T3-07L-1-TR	Tape and Reel, Two-Tone-Terminator Mixer	CQG	13"	REACH RoHS	Released	EAR99

Part Number	Description	Package	Packing Size	Green Status	Product Lifecycle	Export Classification
T3-07LCQG-2	Two-Tone-Terminator Mixer	CQG	-	REACH RoHS	Released	EAR99
T3-07MCQG-2	Two-Tone-Terminator Mixer	CQG	-	REACH RoHS	Released	EAR99
T3-07MCQG-1	Two-Tone-Terminator Mixer	CQG	-	REACH RoHS	Released	EAR99
T3-07LCQG-1	Two-Tone-Terminator Mixer	CQG	-	REACH RoHS	Released	EAR99
T3-07L-1-TR	Tape and Reel, Two-Tone-Terminator Mixer	CQG	13"	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Mechanical Data
- Outline Drawing
Notes

Revision History

Revision Code	Revision Date	Comment
-	2008-01-01	Initial Release
A	2018-12-01	Removed Leaded Surface Mount CQ package
B	2021-10-01	Updated SMT Package Outlines

Port Configuration and Functions

Port Diagram

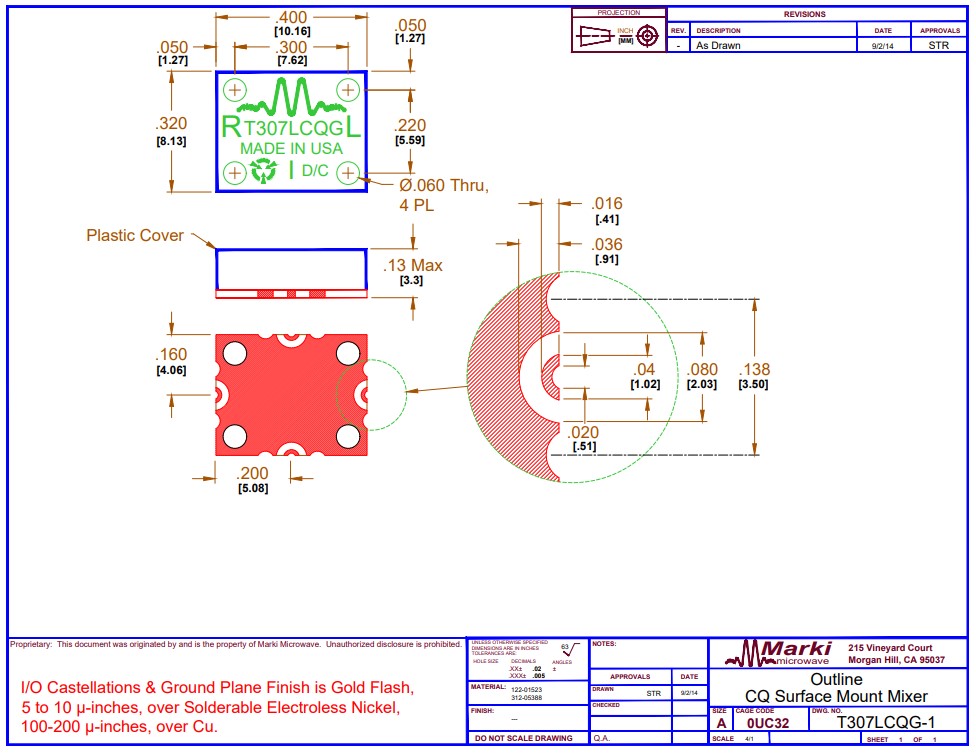

Diagram of the port configuration for T3-07LCQG-1

Port Functions

Port	Function	Description
IF	IF	The IF port is DC blocked and AC matched to 50 Ohms from 1 MHz to 4 GHz.
LO	LO	The LO port is DC short to ground and AC matched to 50 Ohms from 1 MHz to 7 GHz. Blocking capacitor is optional.
RF	RF	The RF port is DC short to ground and AC matched to 50 Ohms from 1 MHz to 7 GHz. Blocking capacitor is optional.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
LO DC Current	1	Amp
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
RF DC Current	1	Amp
RF Power Handling (RF+LO)	25	dBm

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Dimensions	-	10.16 x 8.13 mm
Moisture Sensitivity Level	-	MSL 1

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	15	-	25	-

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

Parameter	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	LO/RF=.001-7GHz IF=.001-0.5GHz	-	6.5	9	dB
Conversion Loss	LO/RF=.001-7GHz IF=.001-4GHz	-	8	10.5	dB
IF Frequency Range	-	0.001	-	4	GHz
LO Frequency Range	-	0.001	-	7	GHz
RF Frequency Range	-	0.001	-	7	GHz
Input IP3	-	-	32	-	dBm
LO-RF Isolation	-	-	32	-	dB

Parameter	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	LO/RF=.001-7GHz IF=.001-0.5GHz	-	6.5	9	dB
Conversion Loss	LO/RF=.001-7GHz IF=.001-4GHz	-	8	10.5	dB
IF Frequency Range	-	0.001	-	4	GHz
LO Frequency Range	-	0.001	-	7	GHz
RF Frequency Range	-	0.001	-	7	GHz
Input IP3	-	-	32	-	dBm
LO-RF Isolation	-	-	32	-	dB
