Surface Mount Mixers

MM2-0432HPSM-1

GaAs MMIC Triple Balanced Mixer

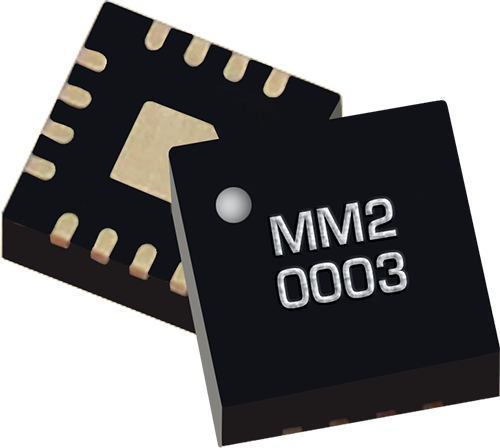

The MM2-0432HPSM-1 is a passive GaAs MMIC triple-balanced mixer designed with broadband operation from 4 to 32 GHz. It delivers low conversion loss, high linearity, and excellent port-to-port isolation. The device supports a wide LO input power range of +15 to +21 dBm (nominal +18 dBm), providing flexibility across system implementations. Packaged in a 3 × 3 mm QFN, the MM2-0432HPSM-1 enables compact, repeatable implementations in space-constrained RF assemblies. Evaluation boards are available.
