Port Diagram
A top-down x-ray view of the MM1A-1855HPSM’s PSM Package outline drawing is shown below. The MM1A-1855HPSM has the input and output ports given in Port Functions.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MM1A-1855HPSM is a versatile, robust, and broadband double balanced mixer with an integrated broadband LO driver amplifier. The MM1A-1855HPSM is ideal for applications with wide bandwidths and operation at mmWave frequencies. The integrated LO driver amplifier allows for operation with LO powers as low as +4dBm while retaining exceptional conversion loss and linearity.
Features
RF/LO response: 18GHz - 55GHz
IF response: DC – 21GHz
Conversion Loss: 9 dB
Minimum LO drive: +4dBm
Applications
- Test and Measurement Equipment
- SATCOM
- Radar
- 5G
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1A-1855HPSM-2 | Double Balanced Mixer/LO Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1A-1855HP | Evaluation Board, Double Balanced Mixer/LO Amplifier | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1A-1855HPSM-2 | Double Balanced Mixer/LO Amplifier | QFN | REACH RoHS | Released | EAR99 |
| EVB-MM1A-1855HP | Evaluation Board, Double Balanced Mixer/LO Amplifier | EVB | REACH RoHS | Released | EAR99 |
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2022-09-01 | Datasheet Initial Release |
| A | 2024-09-11 | Updated Recommended Power Supply Voltage |
| B | 2026-01-12 | MSL updated from MSL3 to MSL1. |
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier
Port Configuration and Functions
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | Ground paddle and non-connected pins must be connected to a DC/RF ground potential with high thermal and electrical conductivity, and low inductance. |  |
| Pin 11 | RF | Pin 11 is DC open and AC matched to 50 Ohms from 18 to 55 GHz. Blocking capacitor is optional. |  |
| Pin 16 | Positive DC Supply Vd | Pins 16 provides +2.5V to +4V DC voltage to the amplifier’s third stage. Negative voltage must be supplied to Pin 5 before turning on the positive supply voltage. |  |
| Pin 17 | Positive DC Supply Vd | Pins 17 provides +2.5V to +4V DC voltage to the amplifier’s second stage. Negative voltage must be supplied to Pin 5 before turning on the positive supply voltage. | |
| Pin 18 | Positive DC Supply Vd | Pins 18 provides +2.5V to +4V DC voltage to the amplifier’s first stage. Negative voltage must be supplied to Pin 5 before turning on the positive supply voltage. | |
| Pin 2 | LO | Pin 2 is the input of the integrated LO driver amplifier and is matched to 50 ohms. It is internally DC blocked. | |
| Pin 5 | Negative DC Supply Vg | Pin 5 requires -0.4V to -0.6V of DC voltage. This must be turned on before turning on the positive supply voltage to Pin 5. |  |
| Pin 8 | IF | Pin 8 is DC coupled to the diodes. Blocking capacitor is optional. |  |
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. All limits are individual and should not be met in parallel, doing so will degrade the lifetime of the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Voltage on VD | 4.5 | V |
| DC Voltage on VG | -2 | V |
| LO Power Handling | 20 | dBm |
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 125 | °C |
| Max Junction Temperature for MTTF> 1E6 hours | 175 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Positive Drain Supply Current with RF Input (Id) | 450 | mA |
| RF Power Handling | 25 | dBm |
| θJC, Junction to Case Thermal Resistance | 94 | ºC/W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3 x 4.6 mm |
| Moisture Sensitivity Level | - | MSL 1 |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 85 | °C |
| LO Input Power | 4 | 6 | 10 | dBm |
| Gate Bias DC Voltage (Vg) | -0.6 | -0.5 | -0.4 | V |
| Saturated Current Draw | 115 | 180 | 300 | mA |
| Positive DC Voltage (Vd1) | 2.5 | 3 | 4 | V |
| Positive DC Voltage (Vd2) | 2.5 | 3 | 4 | V |
| Positive DC Voltage (Vd3) | 2.5 | 3 | - | V |
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +6dBm LO input to the integrated LO driver amp biased at +3Vd1/+3Vd2/+3.5Vd3/-0.5Vg unless otherwise specified.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss 1 | RF/LO = 18 - 55 GHz I = 2 – 21 GHz | - | 12 | - | dB |
| Conversion Loss 2 | RF/LO = 18 - 55 GHz I = DC - 2 GHz | - | 9 | 15 | dB |
| Current Consumption | +3Vd1/+3Vd2/+3.5Vd3/-0.5Vg | 115 | 180 | 300 | mA |
| IF Frequency Range | - | 0 | - | 21 | GHz |
| Input IP3 | RF/LO = 18 - 55 GHz I = DC - 2 GHz | - | 20 | - | dBm |
| Input P1dB | - | - | 9 | - | dBm |
| LO Frequency Range | - | 18 | - | 55 | GHz |
| Noise Figure 3 | RF/LO = 1.5 - 13 GHz I = DC - 2 GHz | - | 9 | - | dB |
| RF Frequency Range | - | 18 | - | 55 | GHz |
| RF-IF Isolation | RF/LO = 18 - 55 GHz | - | 38 | - | dB |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss 1 | RF/LO = 18 - 55 GHz I = 2 – 21 GHz | - | 12 | - | dB |
| Conversion Loss 2 | RF/LO = 18 - 55 GHz I = DC - 2 GHz | - | 9 | 15 | dB |
| Current Consumption | +3Vd1/+3Vd2/+3.5Vd3/-0.5Vg | 115 | 180 | 300 | mA |
| IF Frequency Range | - | 0 | - | 21 | GHz |
| Input IP3 | RF/LO = 18 - 55 GHz I = DC - 2 GHz | - | 20 | - | dBm |
| Input P1dB | - | - | 9 | - | dBm |
| LO Frequency Range | - | 18 | - | 55 | GHz |
| Noise Figure 3 | RF/LO = 1.5 - 13 GHz I = DC - 2 GHz | - | 9 | - | dB |
| RF Frequency Range | - | 18 | - | 55 | GHz |
| RF-IF Isolation | RF/LO = 18 - 55 GHz | - | 38 | - | dB |
[1][2] Measured as a down converter to a fixed 91 MHz IF.
[3] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier

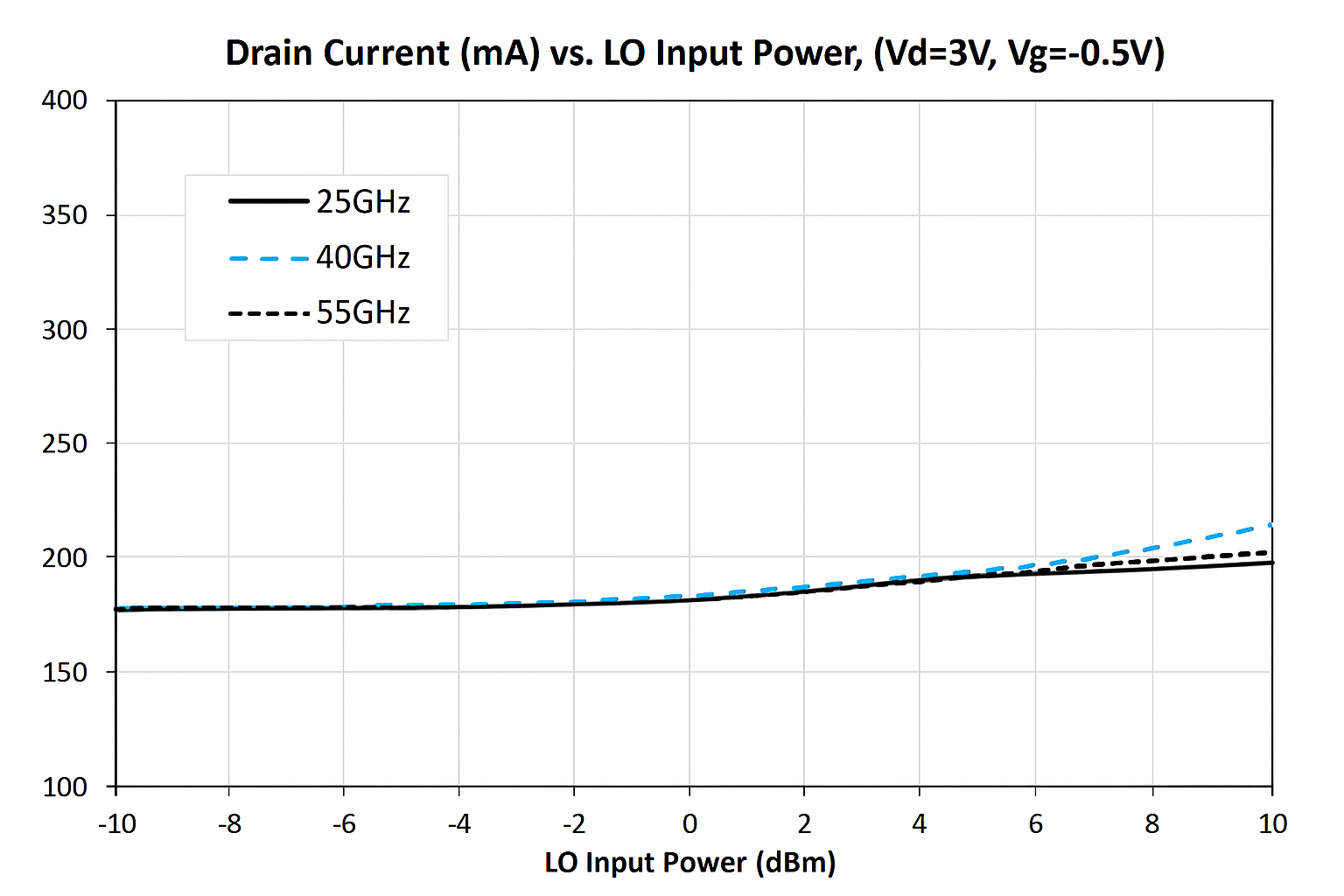

Typical Performance Plots
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier

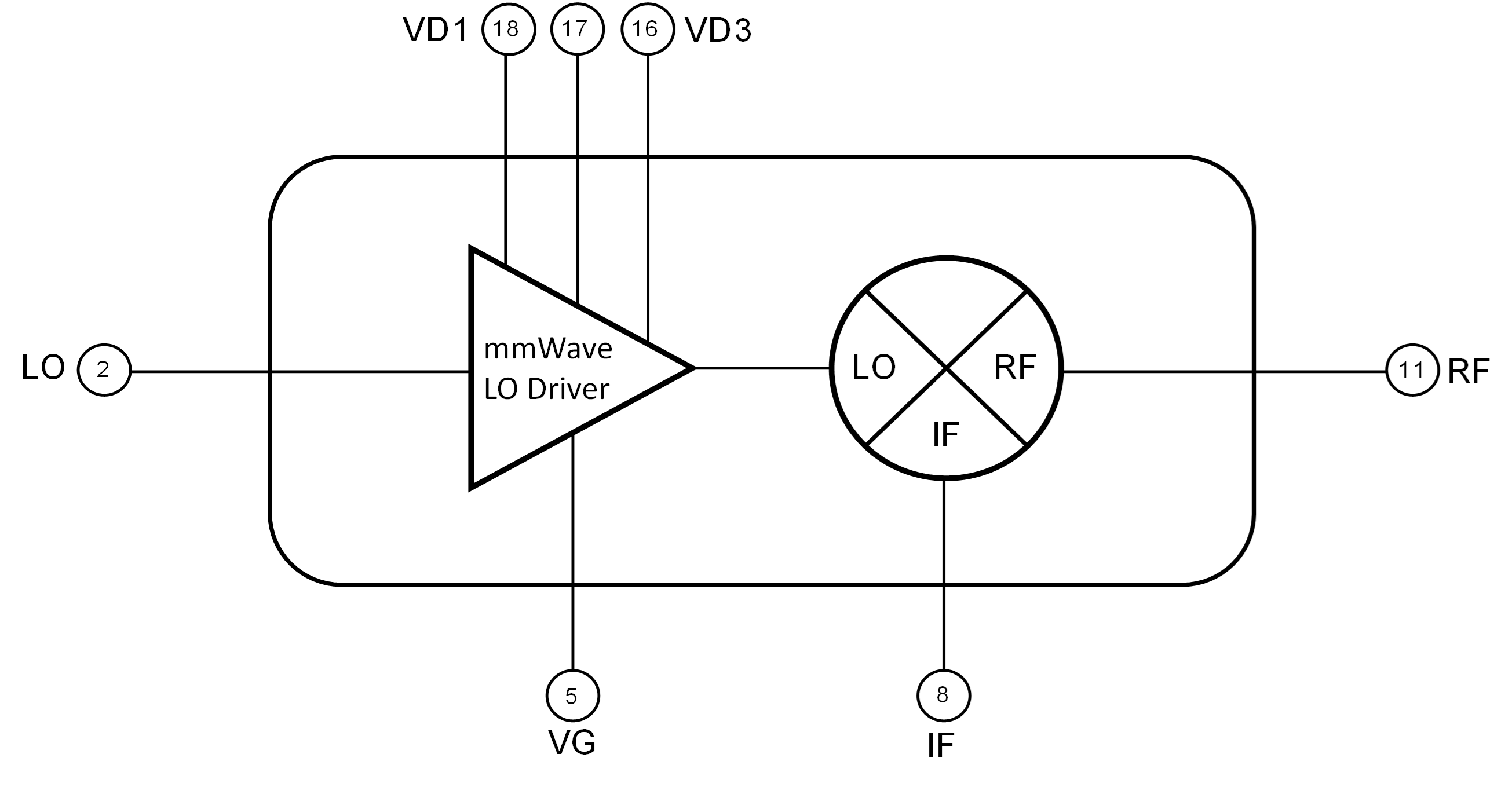

Application Circuit
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier
Mechanical Data
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier

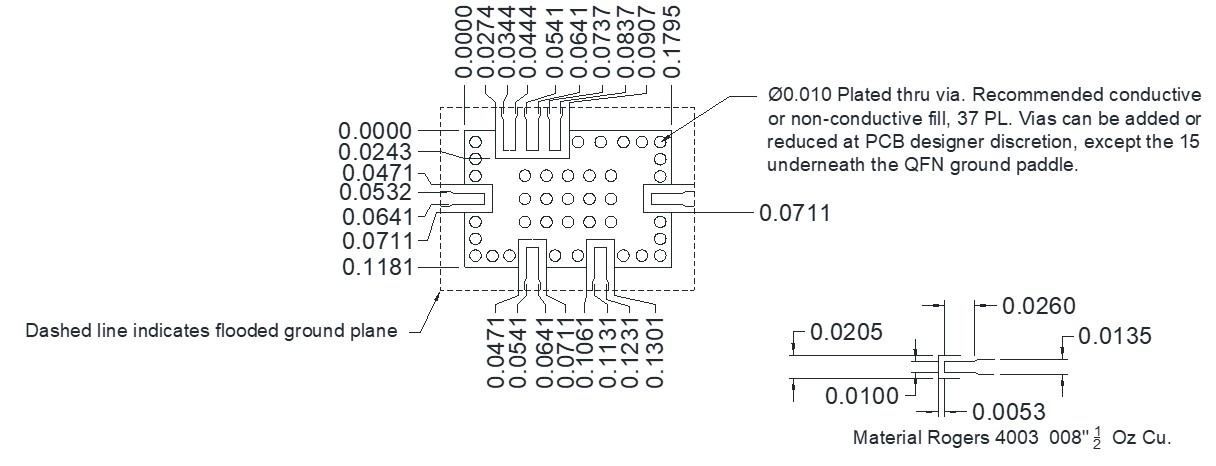

Footprint Image
Download : Footprint Drawing
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier

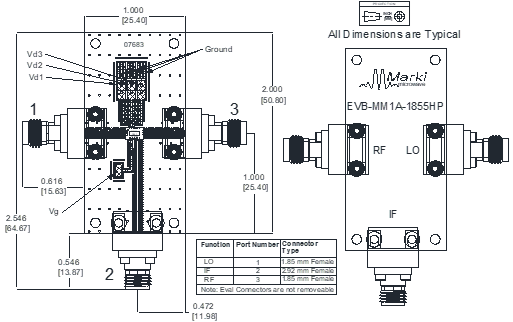

Evaluation Board - Outline Drawing
MM1A-1855HPSM-2
Double Balanced Mixer/LO Amplifier
Evaluation Board - Application Circuit
