Device Overview
General Description

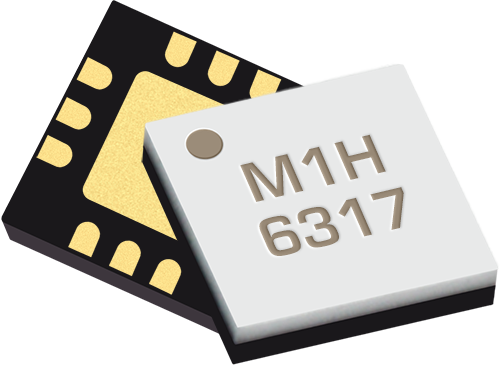

The MM1-1130HSM is a passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor. The MM1-1130HSM is available in a lead-free, RoHS compliant QFN surface mount package and is compatible with standard leaded and lead-free PCB reflow soldering processes. The MM1-1130HSM is a superior alternative to Marki Microwave surface mount M1 and M3 mixers.
Features
- Compact 3mm QFN SMT Style Package
- Broadband Performance
- Excellent Unit-to-Unit Repeatability
- RoHS Compliant
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-1130HSM-2 | GaAs Double-Balanced Mixer | QFN | REACH RoHS | Obsolete | EAR99 |
| EVAL-MM1-1130H | Evaluation Board, Gaas 11 - 30 GHz Double-balanced Mixer | EVAL | REACH RoHS | Obsolete | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-1130HSM-2 | GaAs Double-Balanced Mixer | QFN | REACH RoHS | Obsolete | EAR99 |
| EVAL-MM1-1130H | Evaluation Board, Gaas 11 - 30 GHz Double-balanced Mixer | EVAL | REACH RoHS | Obsolete | EAR99 |
MM1-1130HSM-2
GaAs Double-Balanced Mixer
Table Of Contents
MM1-1130HSM-2
GaAs Double-Balanced Mixer
Port Configuration and Functions
Port Functions
Configuration A
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Port 2 | LO | Port 2 is DC short to ground and AC matched to 50 Ohms from 11 to 30 GHz. Blocking capacitor is optional. |  |
| Port 5 | IF | Port 5 is DC coupled to the diodes. Blocking capacitor is optional. |  |
| Port 8 | RF | Port 8 is DC open and AC matched to 50 Ohms from 11 to 30 GHz. Blocking capacitor is optional. |  |
MM1-1130HSM-2
GaAs Double-Balanced Mixer
Configuration B
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Port 2 | RF | Port 2 is DC short to ground and AC matched to 50 Ohms from 11 to 30 GHz. Blocking capacitor is optional. | |
| Port 5 | IF | Port 5 is DC coupled to the diodes. Blocking capacitor is optional. | |
| Port 8 | LO | Port 8 is DC open and AC matched to 50 Ohms from 11 to 30 GHz. Blocking capacitor is optional. | |
MM1-1130HSM-2
GaAs Double-Balanced Mixer
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 2 DC Current | 15 | mA |
| Port 5 DC Current | 24 | mA |
| RF Power Handling (RF+LO), 100°C | 21 | dBm |
| RF Power Handling (RF+LO), 25°C | 25 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 3 x 3 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MM1-1130HSM-2
GaAs Double-Balanced Mixer
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss | A | LO/RF=11-30 GHz IF=DC-12 GHz | - | 7 | 14 | dB |
| Input IP3 | A | LO/RF=11-30 GHz IF=DC-12 GHz LO drive level=13-20 dBm | - | 21 | - | dBm |
| Input P1dB | A | LO/RF=11-30 GHz IF=DC-12 GHz LO drive level=13-20 dBm | - | 9 | - | dBm |
| Conversion Loss | B | LO/RF=11-30 GHz IF=DC-12 GHz | - | 7.5 | 16 | dB |
| Input IP3 | B | LO/RF=11-30 GHz IF=DC-12 GHz LO drive level=12-17 dBm | - | 21 | - | dBm |
| Input P1dB | B | LO/RF=11-30 GHz IF=DC-12 GHz LO drive level=12-17 dBm | - | 9 | - | dBm |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss | A | LO/RF=11-30 GHz IF=DC-12 GHz | - | 7 | 14 | dB |
| Input IP3 | A | LO/RF=11-30 GHz IF=DC-12 GHz LO drive level=13-20 dBm | - | 21 | - | dBm |
| Input P1dB | A | LO/RF=11-30 GHz IF=DC-12 GHz LO drive level=13-20 dBm | - | 9 | - | dBm |
| Conversion Loss | B | LO/RF=11-30 GHz IF=DC-12 GHz | - | 7.5 | 16 | dB |
| Input IP3 | B | LO/RF=11-30 GHz IF=DC-12 GHz LO drive level=12-17 dBm | - | 21 | - | dBm |
| Input P1dB | B | LO/RF=11-30 GHz IF=DC-12 GHz LO drive level=12-17 dBm | - | 9 | - | dBm |
MM1-1130HSM-2
GaAs Double-Balanced Mixer
Typical Performance
MM1-1130HSM-2
GaAs Double-Balanced Mixer
MM1-1130HSM-2
GaAs Double-Balanced Mixer
MM1-1130HSM-2
GaAs Double-Balanced Mixer

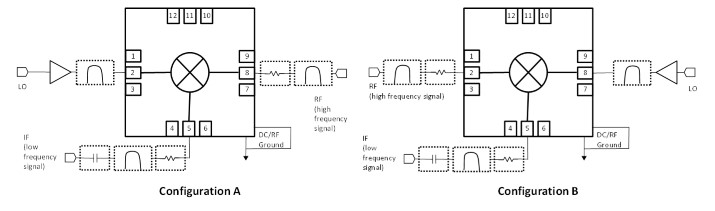

Application Circuit
MM1-1130HSM-2
GaAs Double-Balanced Mixer

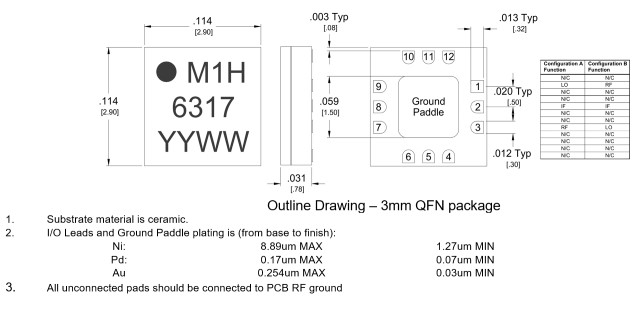

Mechanical Data
MM1-1130HSM-2
GaAs Double-Balanced Mixer
Footprint Image
Download : Footprint Drawing
