Device Overview

General Description

The MM1-0726HSM is a passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor. The MM1-0726HSM is available in a lead-free, RoHS compliant QFN surface mount package and is compatible with standard leaded and lead-free PCB reflow soldering processes. Owing to its passive balun circuitry, the mixer can be used in two different configurations: Configuration A for highest efficiency and Configuration B for highest linearity. Refer to page 2 for more information on the operating configurations.

Photo of MM1-0726HSM-2

Features

  • Compact 3mm QFN SMT Style Package
  • Broadband Performance
  • Excellent Unit-to-Unit Repeatability
  • RoHS Compliant

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MM1-0726HSM-2GaAs DOUBLE-BALANCED MIXERQFN

REACH

RoHS

ReleasedEAR99
EVAL-MM1-0726HEvaluation Board, GaAs 7 - 26.5 GHz Double-balanced MixerEVAL

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2015-01-01Initial Release
A2019-04-01Updated plating to ENEPIG

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MM1-0726HSM-2

Port Functions

Configuration A

PortFunctionDescriptionDC Equivalent
Circuit
Port 2IF Port 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 5LO Port 5 is DC open to ground and AC matched to 50 Ohms from 7 GHz to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
Port 8RF Port 8 is DC short to ground and AC matched to 50 Ohms from 7 GHz to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

3

Configuration B

PortFunctionDescriptionDC Equivalent
Circuit
Port 2IF Port 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 5RF Port 5 is DC open to ground and AC matched to 50 Ohms from 7 GHz to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the RF
Port 8LO Port 8 is DC short to ground and AC matched to 50 Ohms from 7 GHz to 26.5 GHz. Blocking capacitor is optional.Equivalent circuit for the LO

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 2 DC Current 30mA
Port 5 DC Current 30mA
Port 8 DC Current 30mA
RF Power Handling (RF+LO), 100°C 20dBm
RF Power Handling (RF+LO), 25°C 25dBm

Package Information

ParameterDetailsRating
Dimensions-3 x 3 mm
Moisture Sensitivity Level-MSL 1
ParameterMinNominalMaxUnit
LO Input Power 15-23-

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

5

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

ParameterPort ConfigurationTest ConditionsMinTypMaxUnit
Conversion Loss ALO/RF=7-26.5GHz
IF=DC-9GHz
-6.512dB
IF Frequency Range A-0-9GHz
Input IP3 ALO/RF=7-26.5GHz
IF=DC-9GHz
LO drive level=17-23dBm
-17-dBm
Input P1dB ALO/RF=7-26.5GHz
IF=DC-9GHz
LO drive level=17-23dBm
-9-dBm
LO Frequency Range A-7-26.5GHz
RF Frequency Range A-7-26.5GHz
Conversion Loss BLO/RF=7-26.5GHz
IF=DC-9GHz
-9.514.5dB
Input IP3 BLO/RF=7-26.5GHz
IF=DC-9GHz
LO drive level=14-20dBm
-23-dBm
Input P1dB BLO/RF=7-26.5GHz
IF=DC-9GHz
LO drive level=14-20dBm
-10-dBm
LO-RF Isolation ---27-dB

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

6

Typical Performance Plots

Conversion Loss (dB) graph for MM1-0726HSM-2
Relative IF Response (dB) graph for MM1-0726HSM-2
Configuration A Conversion Loss vs. LO Power (dB) graph for MM1-0726HSM-2
Configuration B Conversion Loss vs. LO Power (dB) graph for MM1-0726HSM-2
Input IP3 (dBm) graph for MM1-0726HSM-2
Output IP3 (dBm) graph for MM1-0726HSM-2
LO to RF Isolation (dB) graph for MM1-0726HSM-2
LO to IF Isolation (dB) graph for MM1-0726HSM-2

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

7

RF to IF Isolation (dB) graph for MM1-0726HSM-2
IF Return Loss (dB) graph for MM1-0726HSM-2
RF Return Loss (dB) graph for MM1-0726HSM-2
LO Return Loss (dB) graph for MM1-0726HSM-2
2xLO Harmonic to RF Isolation (dB) graph for MM1-0726HSM-2
2xLo Harmonic to IF Isolation (dB) graph for MM1-0726HSM-2
3xLO Harmonic to RF Isolation (dB) graph for MM1-0726HSM-2
3xLO Harmonic to IF Isolation (dB) graph for MM1-0726HSM-2

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

8

2RF x 2LO Spurious Suppression (dBc) -10 dBm RF Input graph for MM1-0726HSM-2
2IF x 1LO Spurious Suppression (dBc) -10 dBm IF input graph for MM1-0726HSM-2

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

9

Application Circuit

Application Circuit for MM1-0726HSM-2

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

10

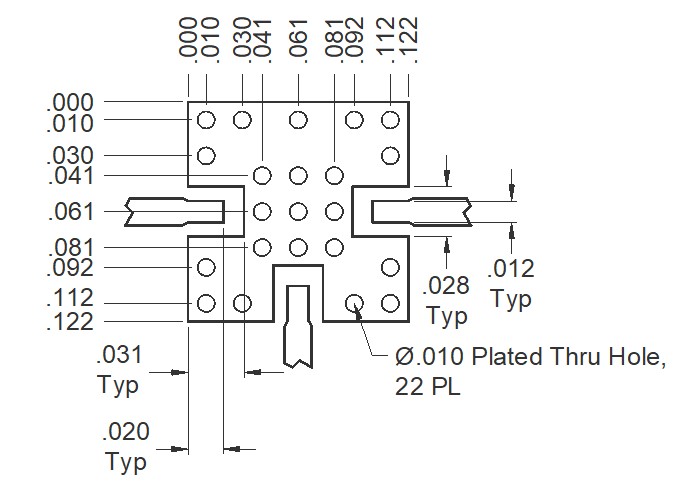

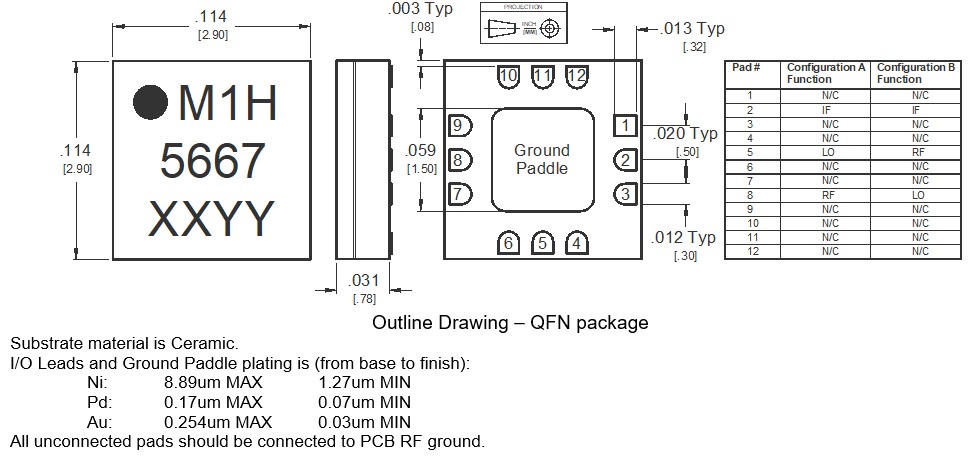

Mechanical Data

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

11

Rev: A | Copyright © 2015, 2019 Marki Microwave LLC.

12
