The MM1-0626SCSP2 is a highly linear passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor. The MM1-0626SCSP2 is available in a lead-free, RoHS compliant 2.5x2.5 mm chip scale surface mount package (CSP2) and is compatible with standard leaded and lead-free PCB reflow soldering processes. The MM1-0626SCSP2 is a smaller alternative to the standard MM1-0626SSM.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-0626SCSP2 | GaAs MMIC Chip Scale Package Double Balanced Mixer | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MM1-0626S | CSP Double Balanced Mixer Evaluation Board | EVB | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MM1-0626SCSP2 | GaAs MMIC Chip Scale Package Double Balanced Mixer | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MM1-0626S | CSP Double Balanced Mixer Evaluation Board | EVB | Released | EAR99 |
MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-07-30 | Initial Release |
| A | 2025-04-28 | Updated Moisture Sensitivity from MSL3 to MSL1 |
MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer

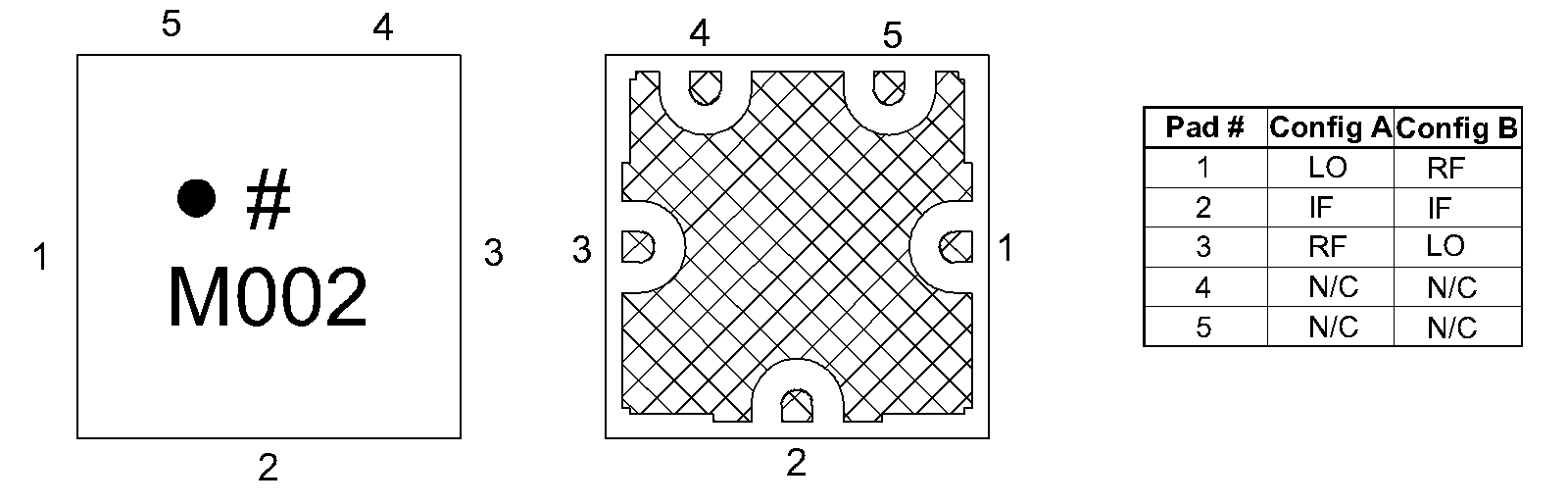

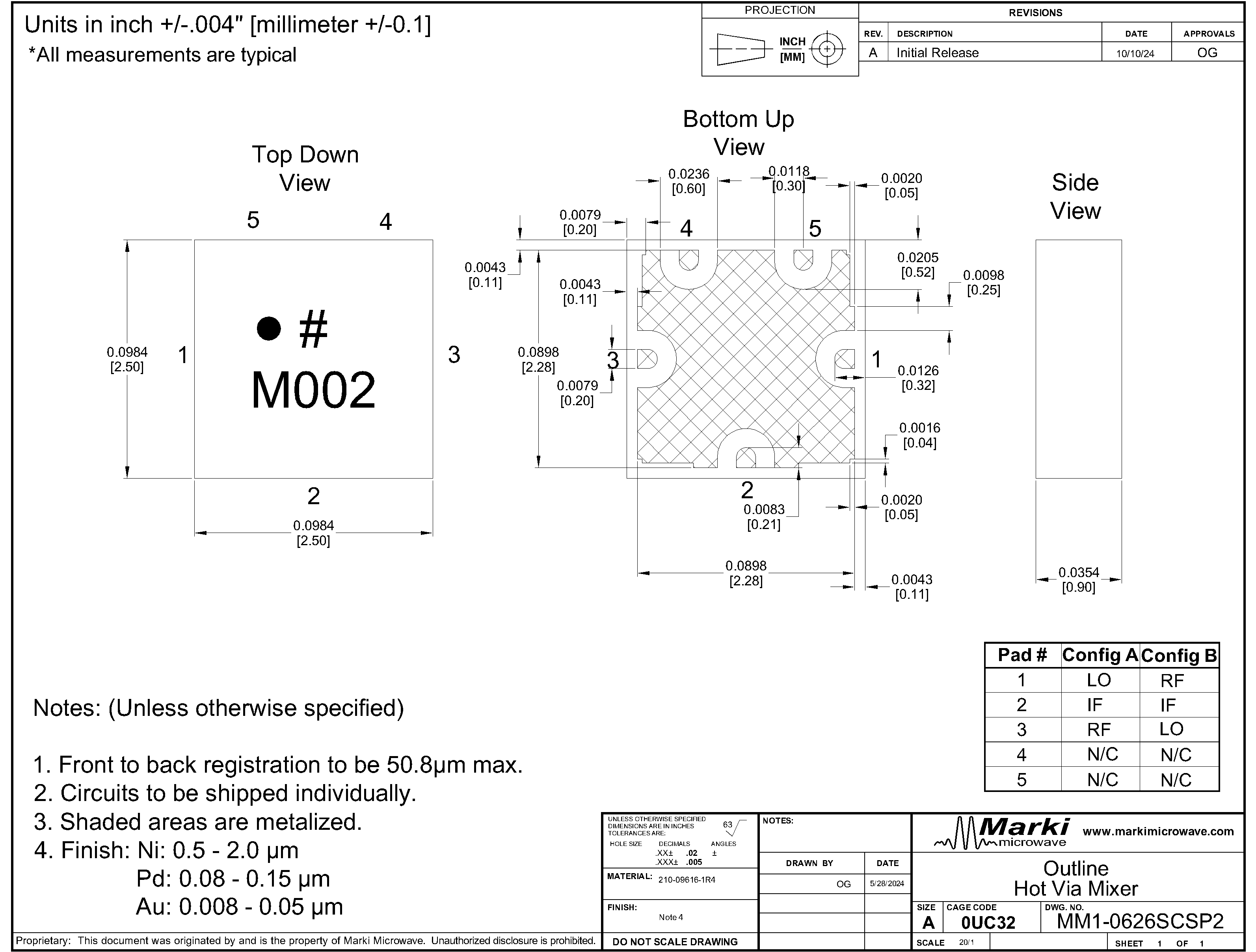

A bottom-up view of the MM1-0626SCSP2's CSP2 package outline drawing is shown below. The MM1-0626SCSP2 has the input and output ports given in Port Functions. The MM1-0626SCSP2 can be used in either an up or down conversion application. For configuration A, input the LO into pin 1, use pin 3 for the RF, and pin 2 for the IF. For configuration B, input the LO into pin 3, use pin 1 for the RF, and pin 2 for the IF.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pin 1 | LO | Pin 1 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional. |  |
| Pin 2 | IF | Pin 2 is DC coupled to the diodes. Blocking capacitor is optional. |  |
| Pin 3 | RF | Pin 3 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional. | |
| Pin 4,5 | N/C | Pins 4 and 5 are not internally connected to the circuit and should be connected to GND. | - |
MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Pin 1 | RF | Pin 1 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional. | |
| Pin 2 | IF | Pin 2 is DC coupled to the diodes. Blocking capacitor is optional. | |
| Pin 3 | LO | Pin 3 is DC open and AC matched to 50 Ohms from 6 to 26.5 GHz. Blocking capacitor is optional. | |
| Pin 4,5 | N/C | Pins 4 and 5 are not internally connected to the circuit and should be connected to GND. | - |
MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Pin 2 DC Current | 15 | mA |
| RF Power Handling (RF+LO), 100°C | 21 | dBm |
| RF Power Handling (RF+LO), 25°C | 28 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 2.50 x 2.50 mm |
| Moisture Sensitivity Level | - | MSL 1 |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 13 | 20 | 24 | - |
MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a +20 dBm sine wave LO input.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 7.5 | - | dB |
| Input IP3 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=18-23dBm | - | 25 | - | dBm |
| Input P1dB | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 14 | - | dBm |
| LO-IF Isolation 2 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=18-23dBm | - | 35 | - | dB |
| LO-RF Isolation 3 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=18-23dBm | - | 45 | - | dB |
| Noise Figure 4 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 7.5 | - | dB |
| RF-IF Isolation 5 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=18-23dBm | - | 40 | - | dB |
| Conversion Loss 6 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 8.5 | - | dB |
| Input IP3 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 27 | - | dBm |
| Input P1dB | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 14 | - | dBm |
| LO-IF Isolation 7 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 40 | - | dB |
| LO-RF Isolation 8 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 45 | - | dB |
| Noise Figure 9 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 8.5 | - | dB |
| RF-IF Isolation 10 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 35 | - | dB |
| IF Frequency Range | - | - | 0 | - | 9 | GHz |
| LO Frequency Range | - | - | 6 | - | 26 | GHz |
| RF Frequency Range | - | - | 6 | - | 26 | GHz |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 7.5 | - | dB |
| Input IP3 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=18-23dBm | - | 25 | - | dBm |
| Input P1dB | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 14 | - | dBm |
| LO-IF Isolation 2 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=18-23dBm | - | 35 | - | dB |
| LO-RF Isolation 3 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=18-23dBm | - | 45 | - | dB |
| Noise Figure 4 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 7.5 | - | dB |
| RF-IF Isolation 5 | A | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=18-23dBm | - | 40 | - | dB |
| Conversion Loss 6 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 8.5 | - | dB |
| Input IP3 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 27 | - | dBm |
| Input P1dB | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 14 | - | dBm |
| LO-IF Isolation 7 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 40 | - | dB |
| LO-RF Isolation 8 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 45 | - | dB |
| Noise Figure 9 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 8.5 | - | dB |
| RF-IF Isolation 10 | B | LO=6-26GHz RF=6-26.5GHz IF=DC-9GHz LO drive level=20dBm | - | 35 | - | dB |
| IF Frequency Range | - | - | 0 | - | 9 | GHz |
| LO Frequency Range | - | - | 6 | - | 26 | GHz |
| RF Frequency Range | - | - | 6 | - | 26 | GHz |
[1][6] Measured as a down converter to a fixed 91MHz IF. Eval board IF and RF traces were de-embedded and LO trace power correction was applied.
[2][3][5][7][8][10] Eval board IF and RF traces were de-embedded and LO trace power correction was applied
[4][9] Mixer Noise Figure typically measures within 0.5dB of conversion loss for IF frequencies greater than 5 MHz.

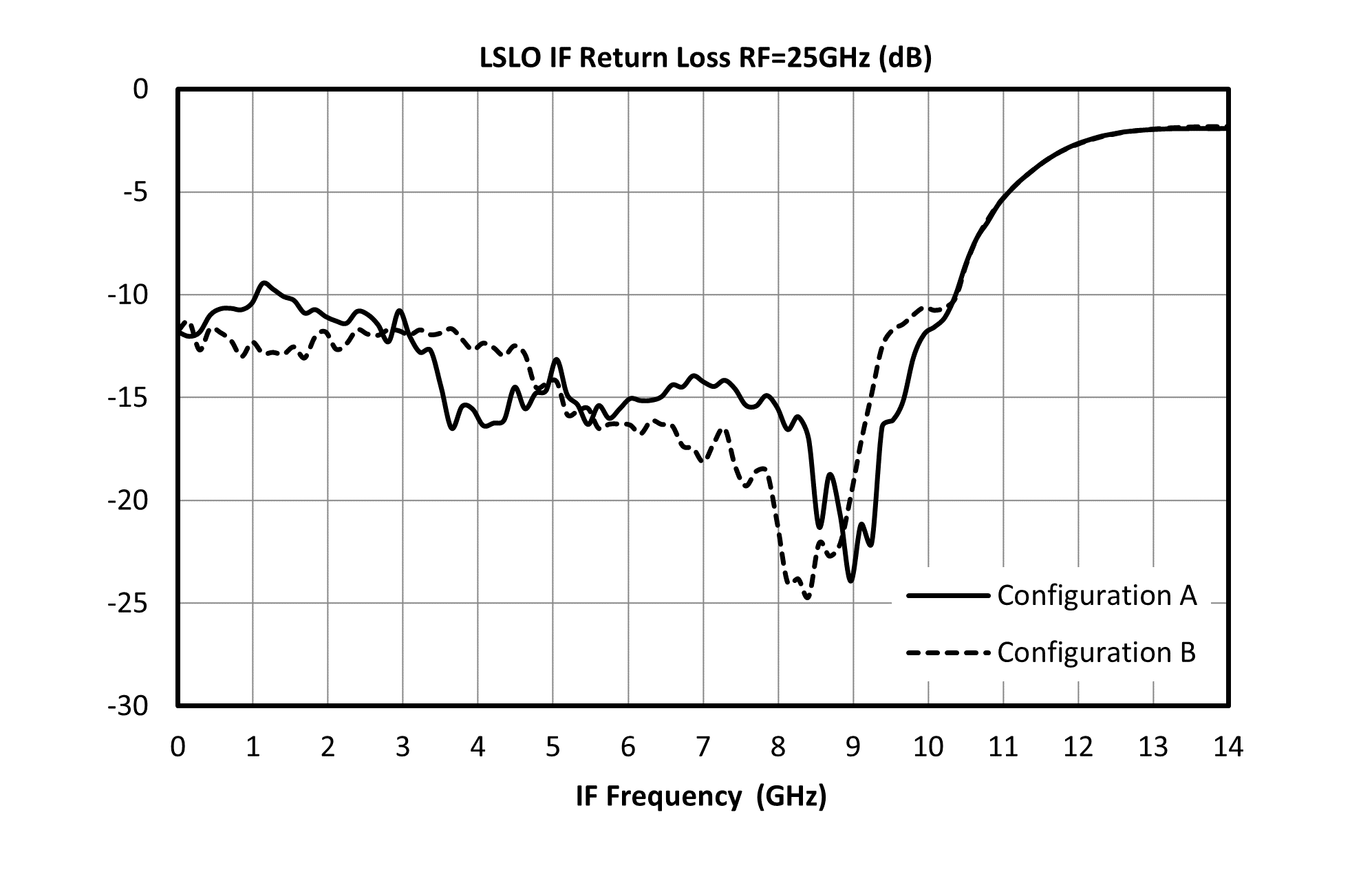

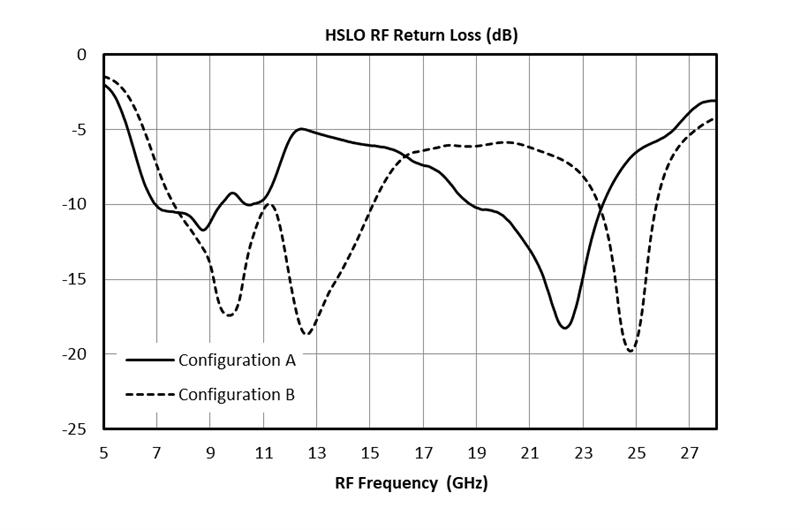

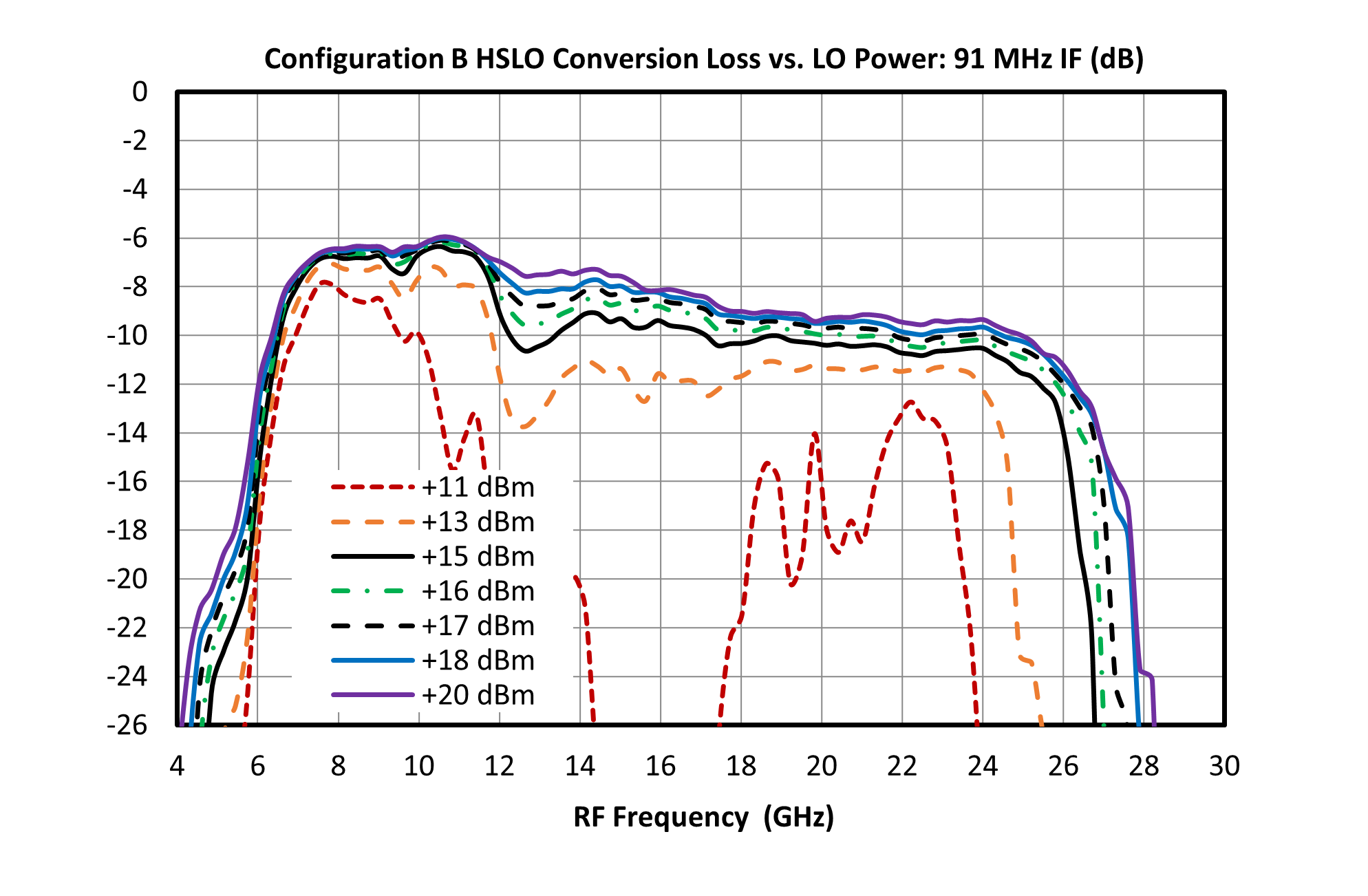

MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer

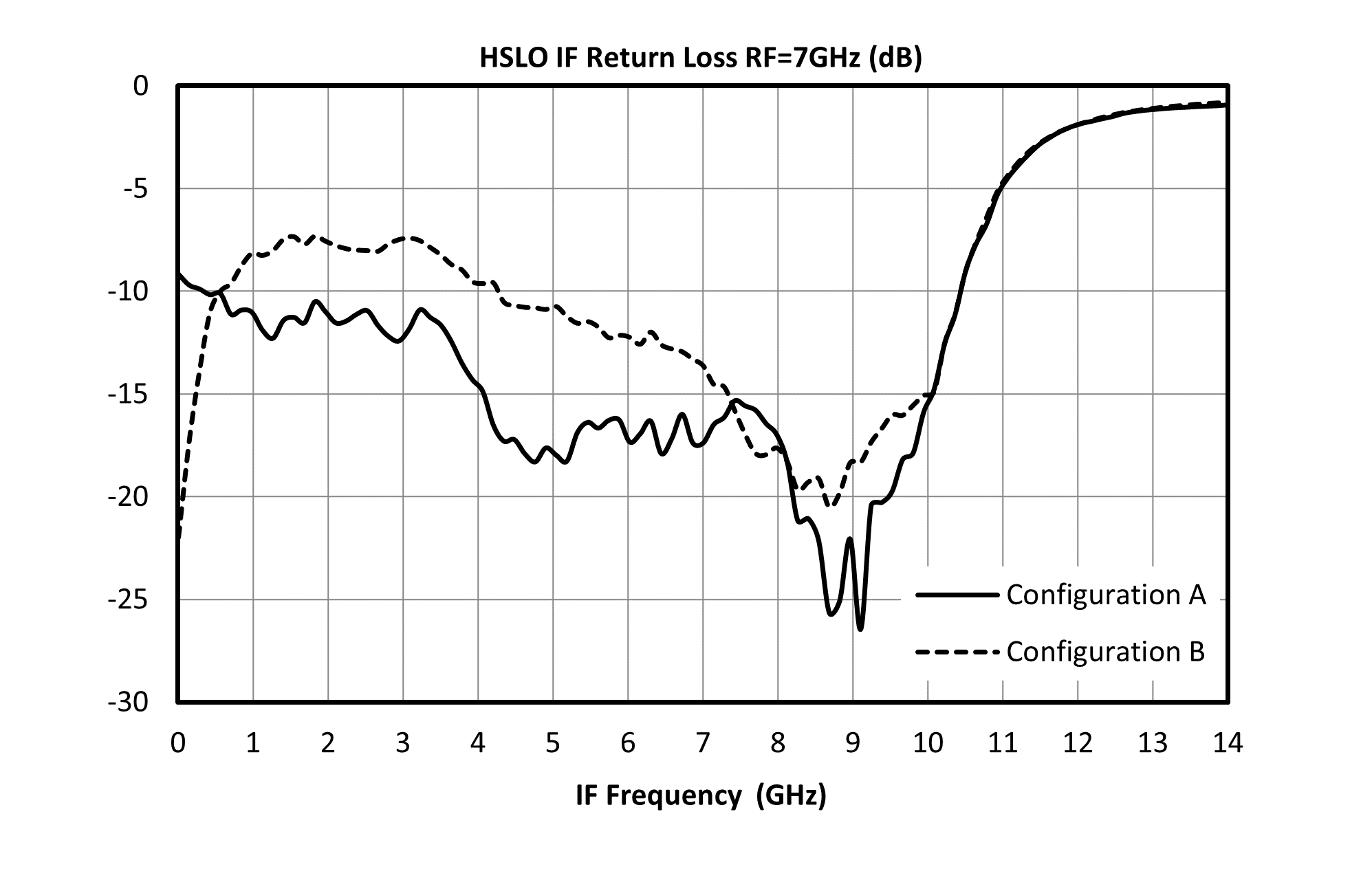

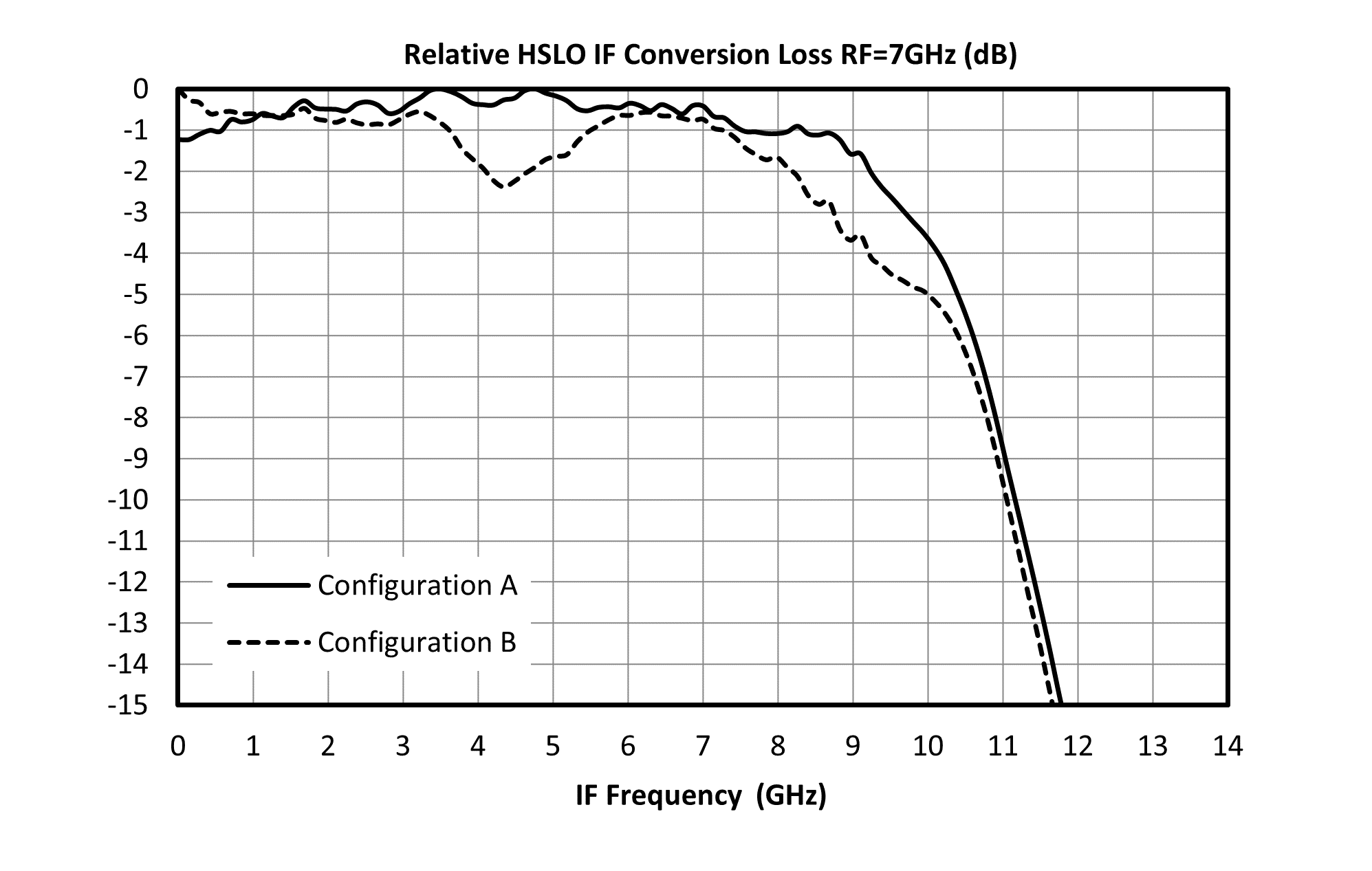

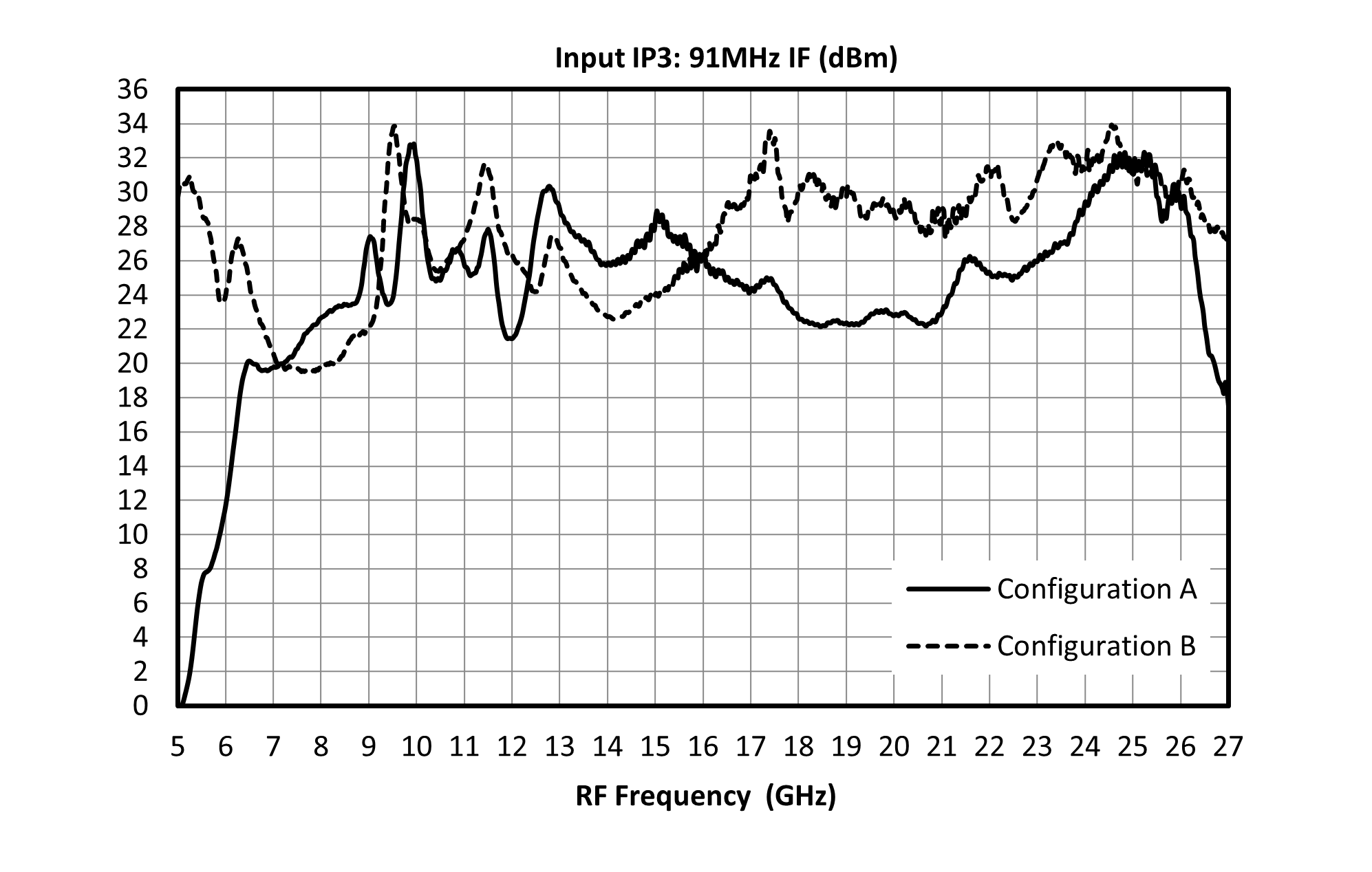

MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer

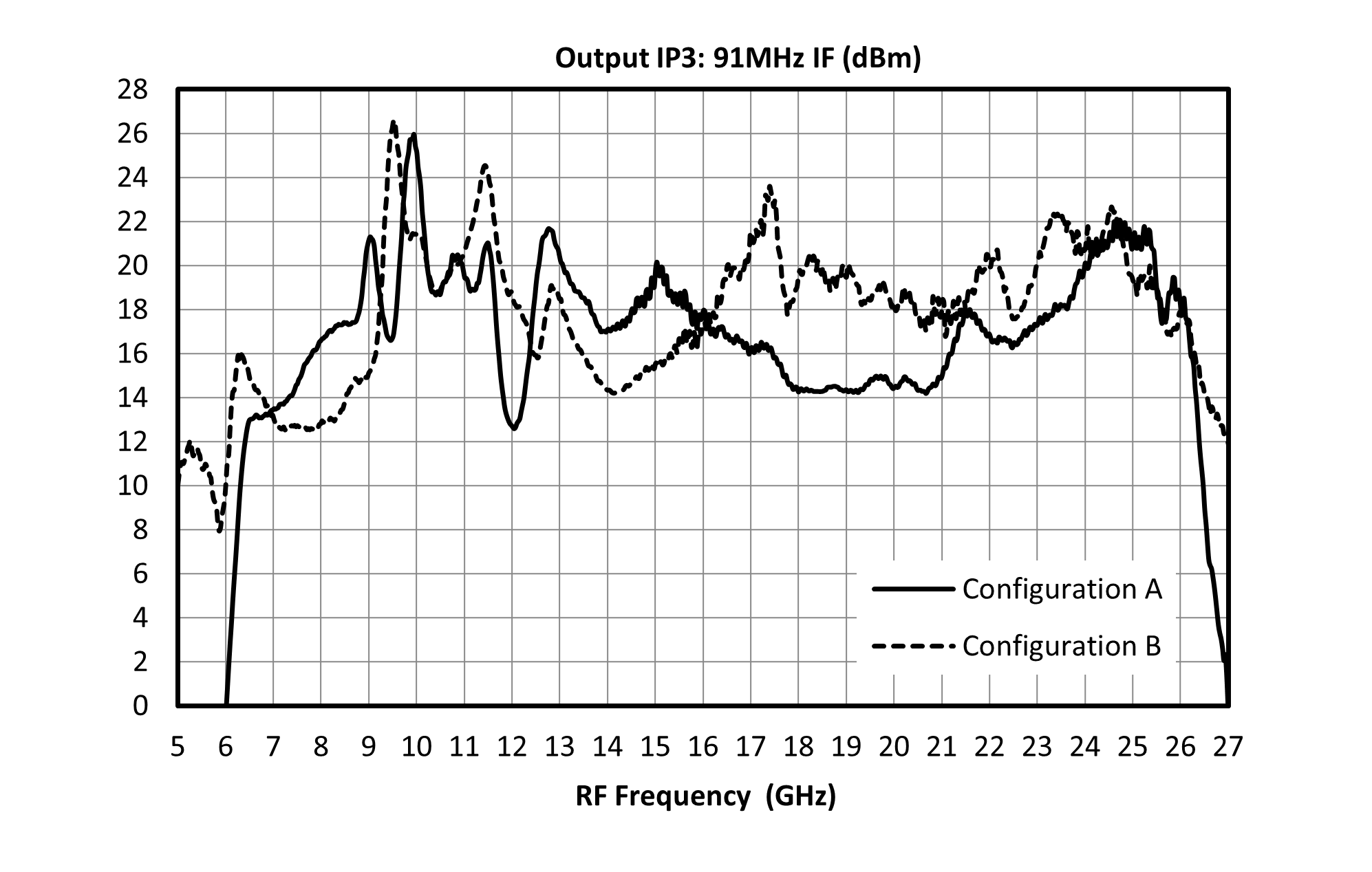

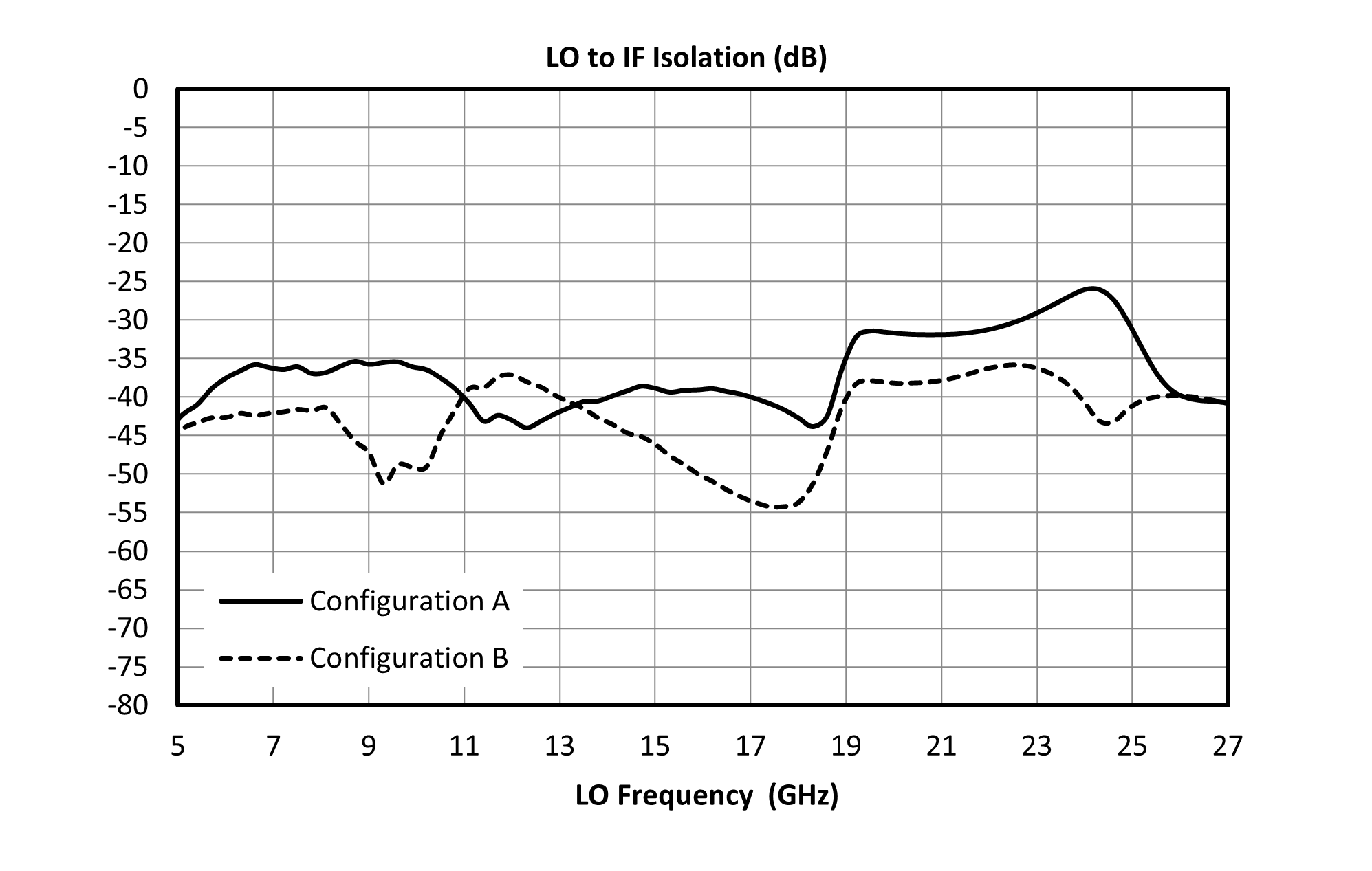

MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer

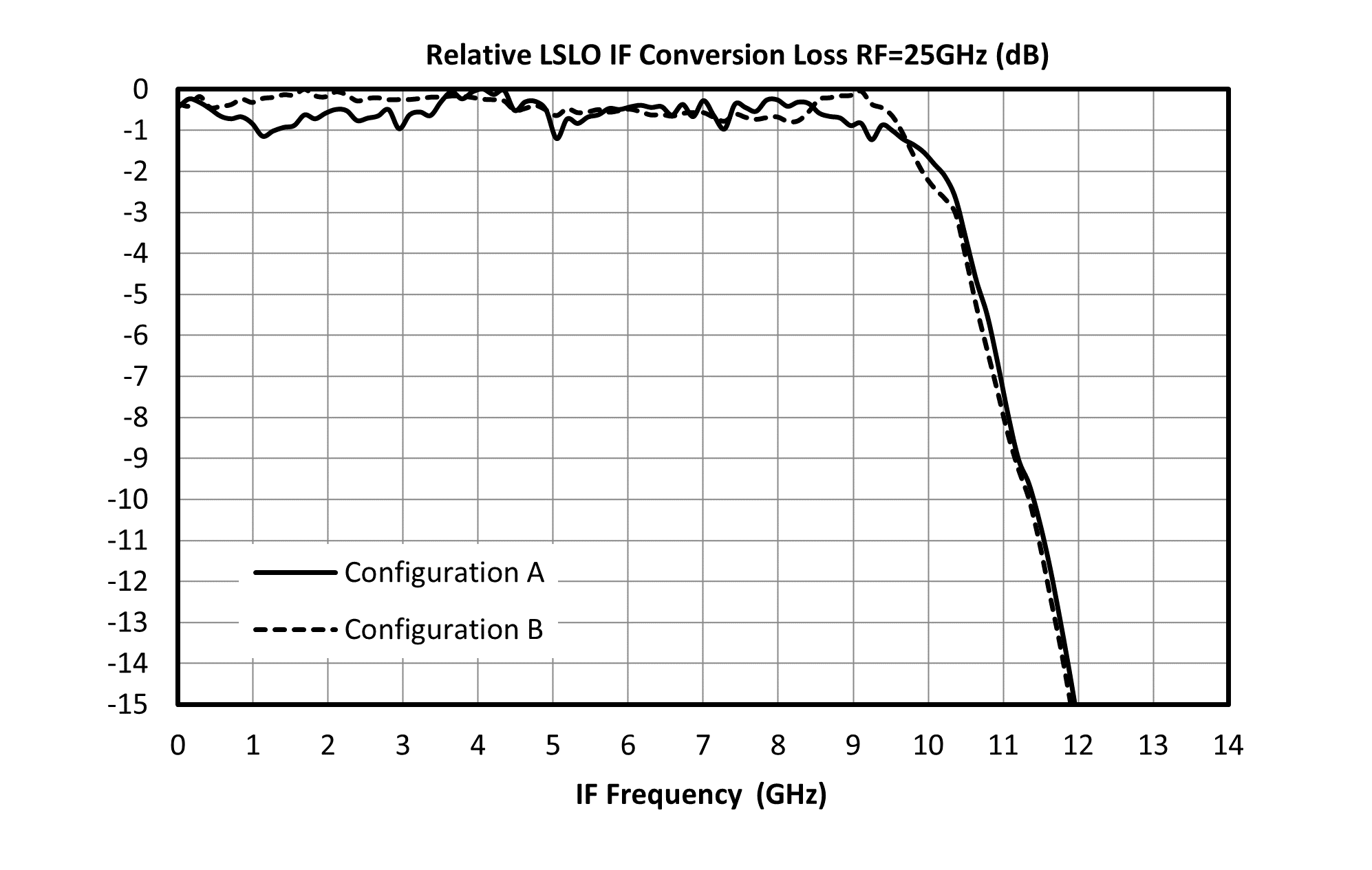

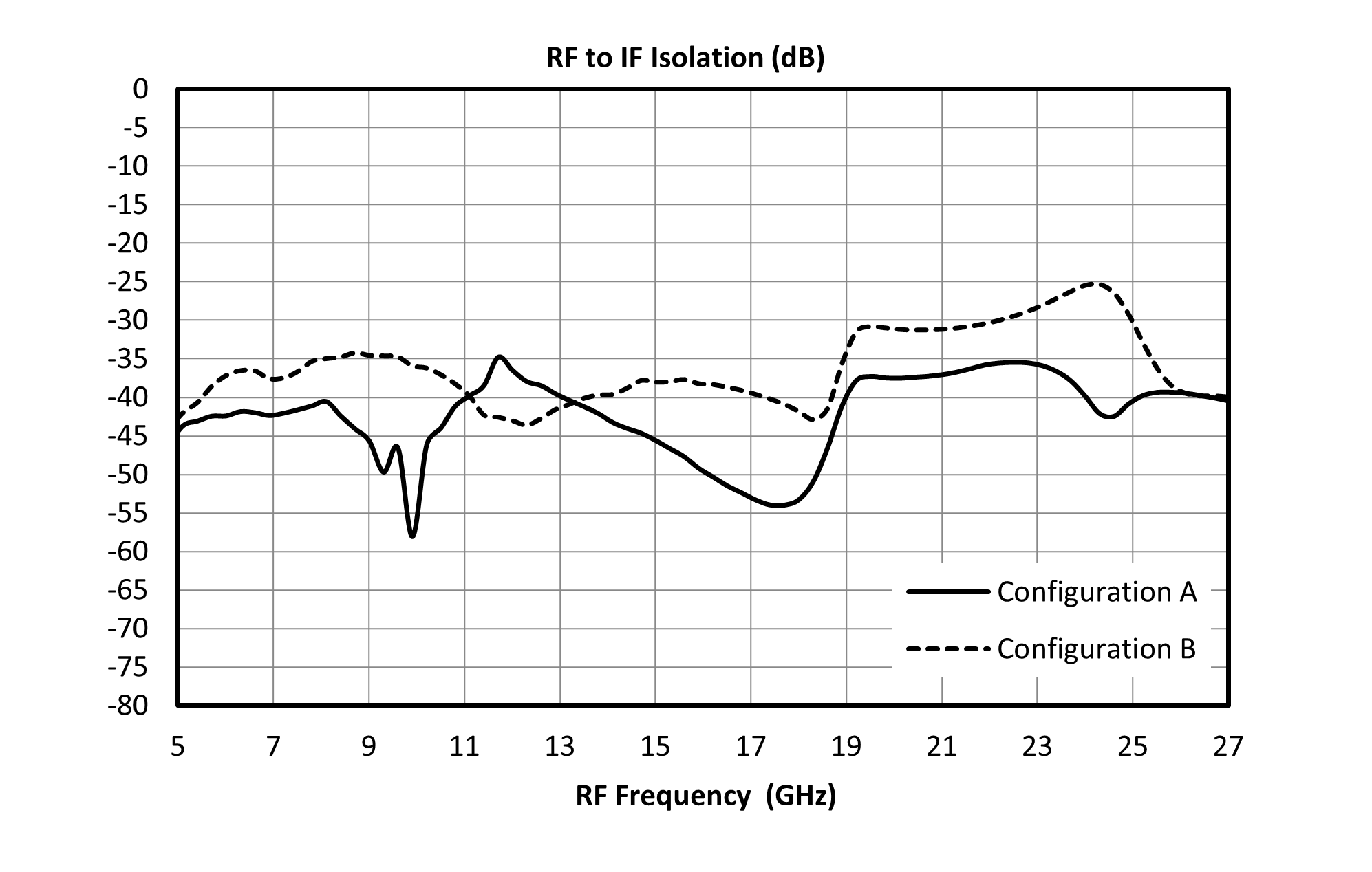

MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer

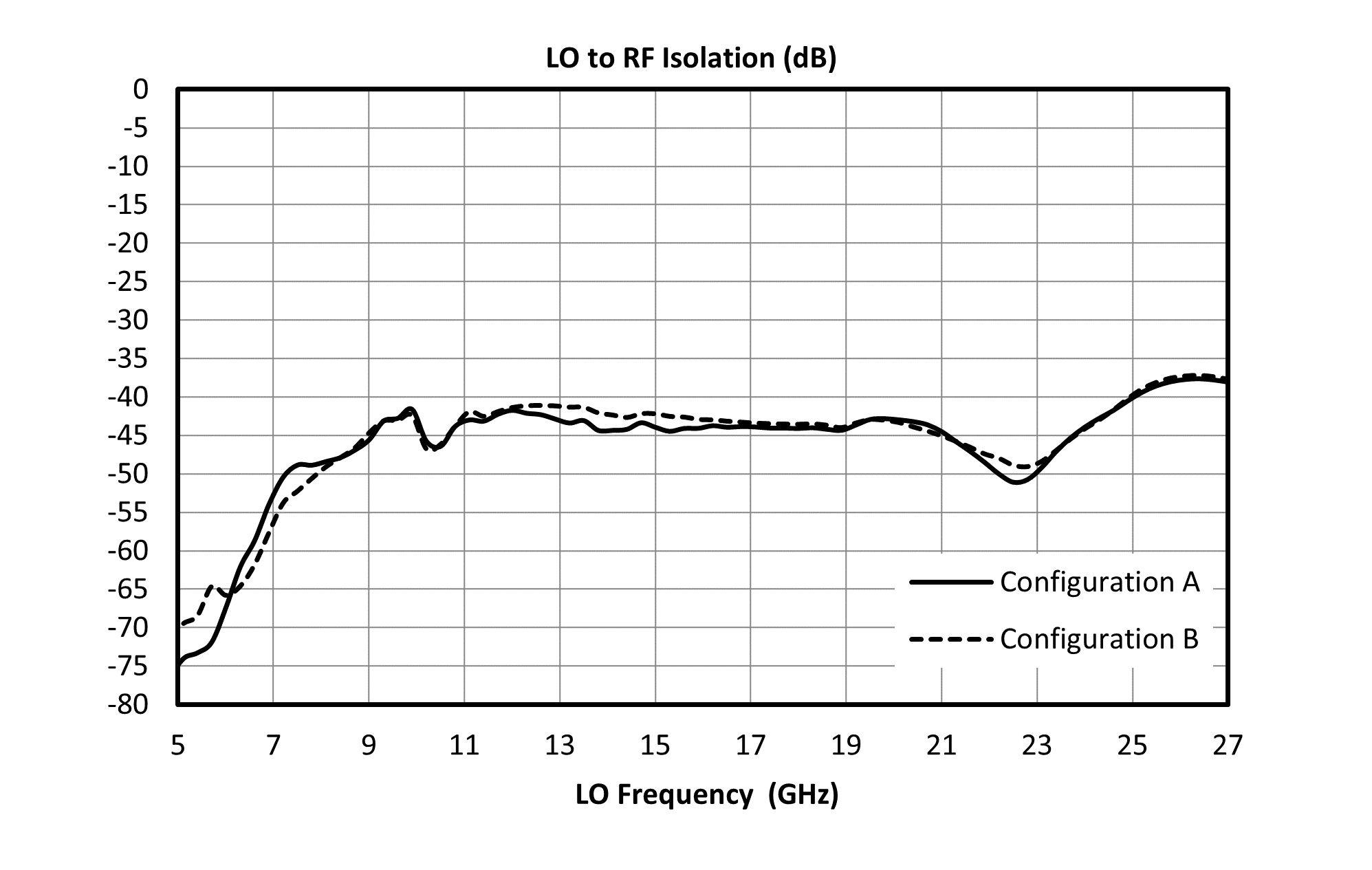

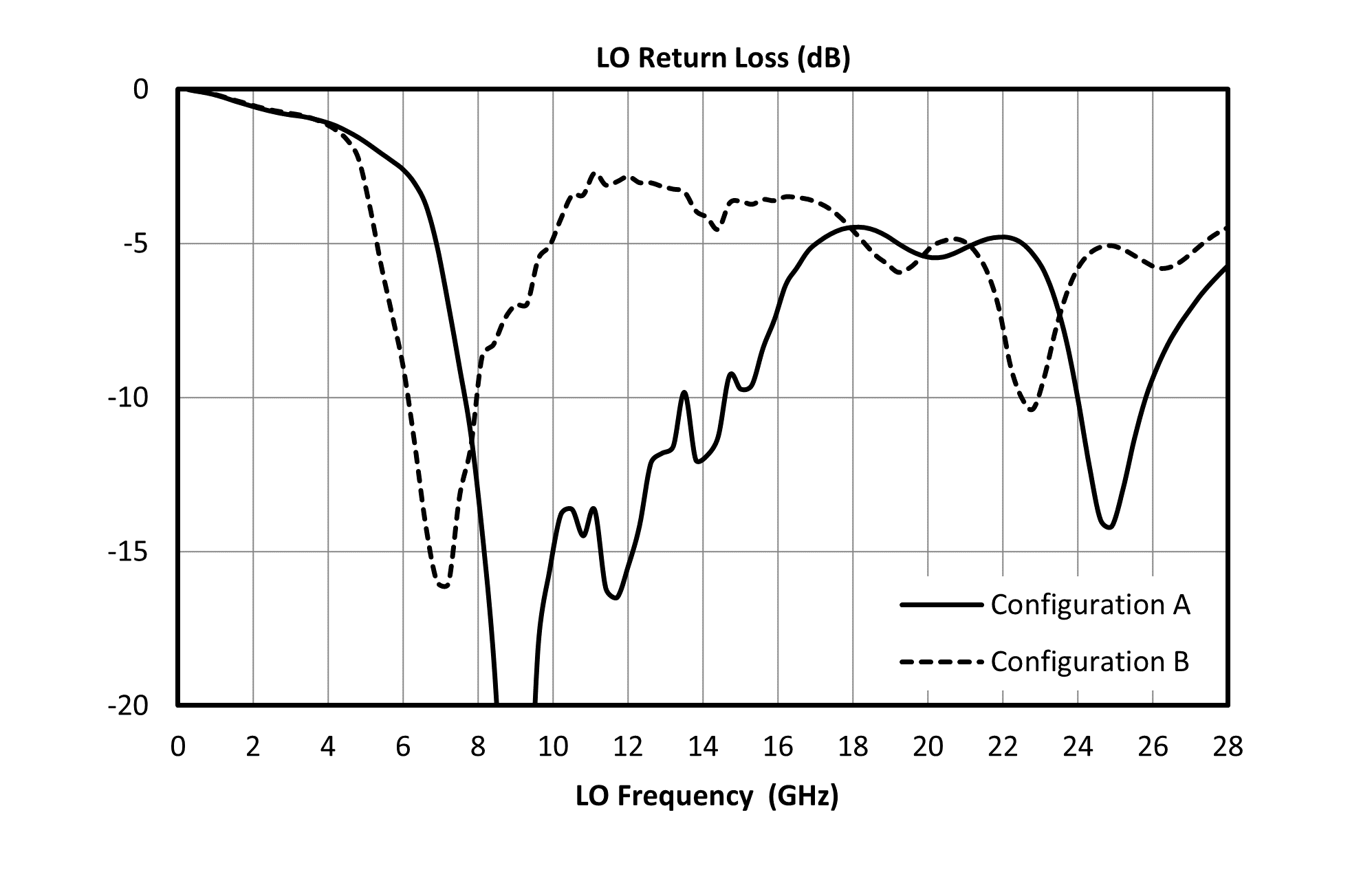

MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer

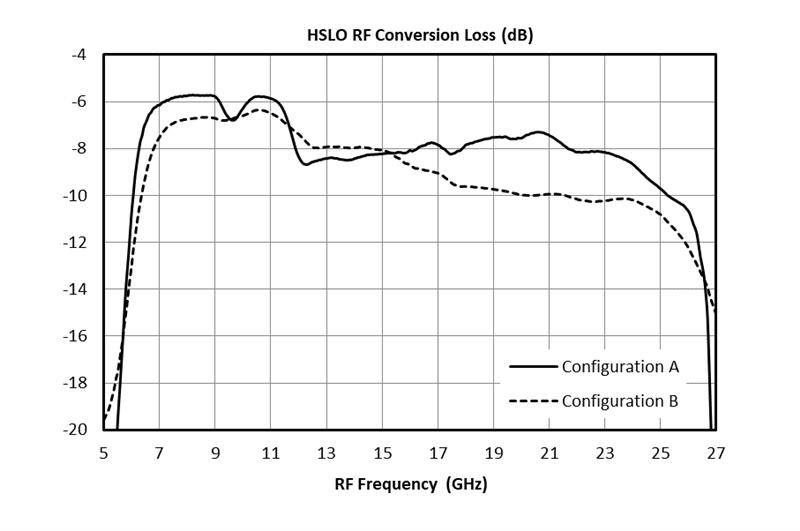

MM1-0626SCSP2
GaAs MMIC Chip Scale Package Double Balanced Mixer

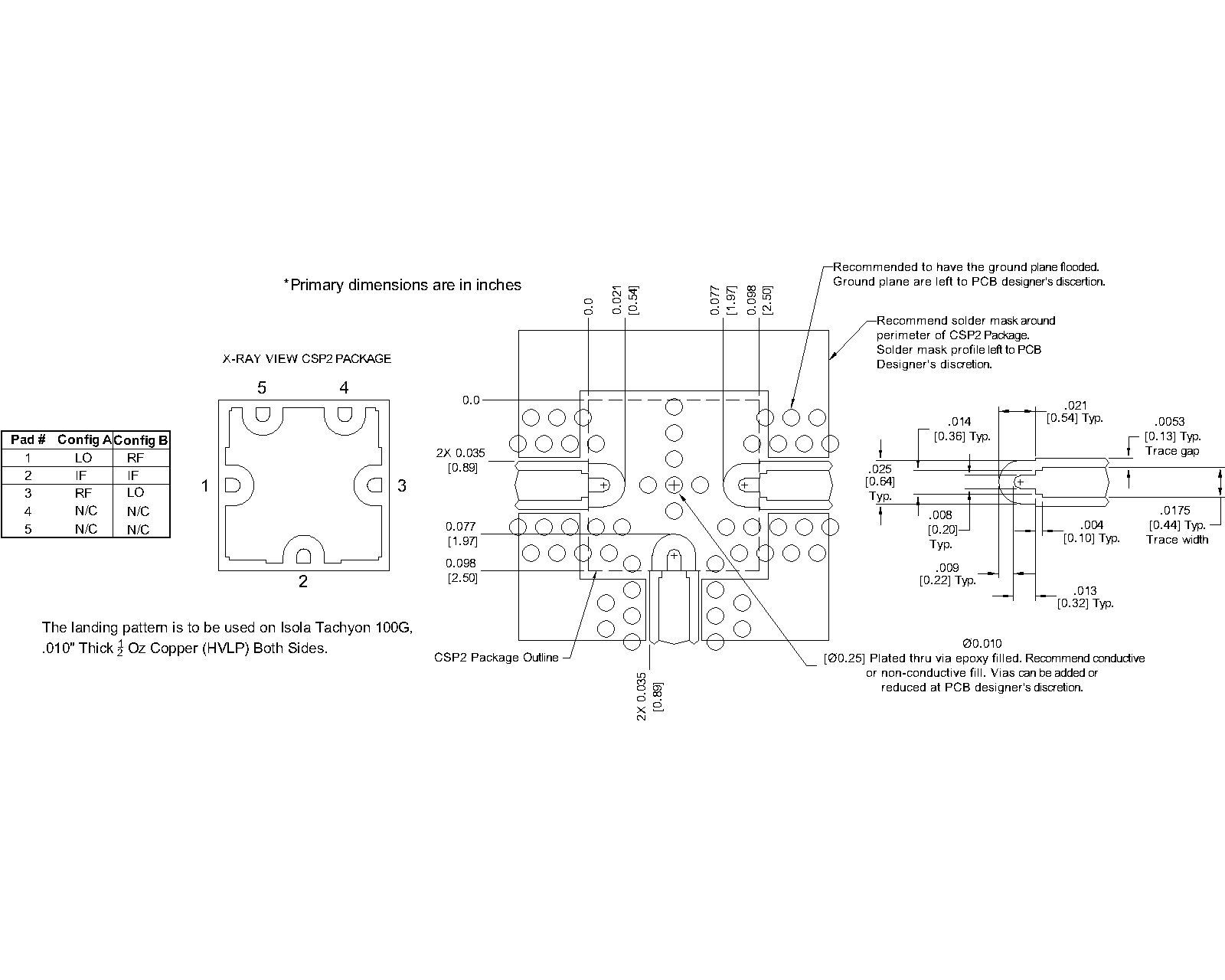

Download : Footprint Drawing
