The MM1-0212SSM is a highly linear GaAs MMIC double balanced mixer. MM1-0212SSM is a low frequency, high linearity S band mixer that works well as both an up and down converter through X band. This mixer offers low conversion loss and high LO to RF isolations at the nominal LO drive. The sister MM1-0212HSM and MM1-0212LSM are recommended for applications which need LO operation at lower powers. The MM1-0212SSM is available in a 4X4 mm QFN package. Evaluation boards are available.
| Part Number | Description | Package | Packing Size | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0212SSM-2 | GaAs MMIC Double Balanced Mixer | QFN | - | REACH RoHS | Released | EAR99 |

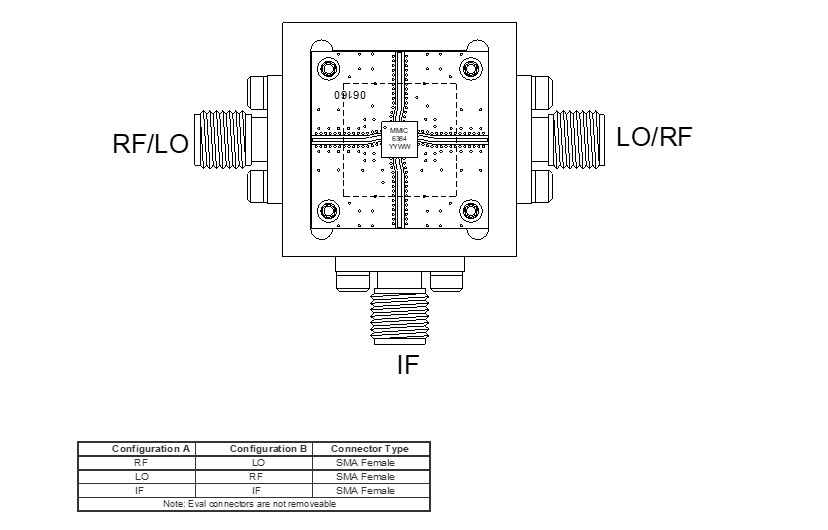

| EVAL-MM1-0212S | Evaluation Board, GaAs MMIC Double Balanced Mixer | EVAL | - | REACH RoHS | Released | EAR99 |
| MM1-0212S-2-TR | Tape and Reel, GaAs MMIC Double Balanced Mixer | QFN | 7" | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Packing Size | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0212SSM-2 | GaAs MMIC Double Balanced Mixer | QFN | - | REACH RoHS | Released | EAR99 |
| EVAL-MM1-0212S | Evaluation Board, GaAs MMIC Double Balanced Mixer | EVAL | - | REACH RoHS | Released | EAR99 |
| MM1-0212S-2-TR | Tape and Reel, GaAs MMIC Double Balanced Mixer | QFN | 7" | REACH RoHS | Released | EAR99 |
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2018-07-01 | Datasheet Initial Release |
| A | 2018-11-01 | Section 5.1, Note 2 |
| B | 2019-01-01 | Added max power/current spec, ESD rating |
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer

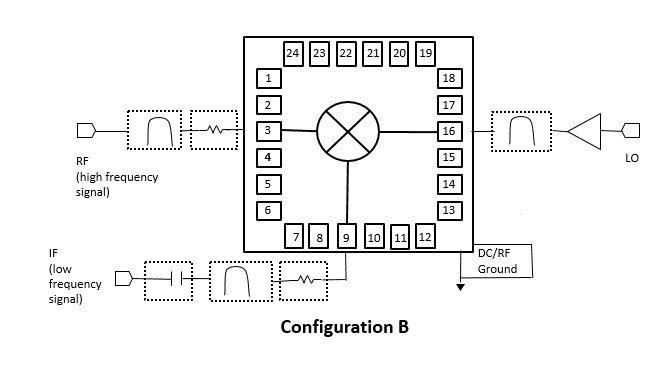

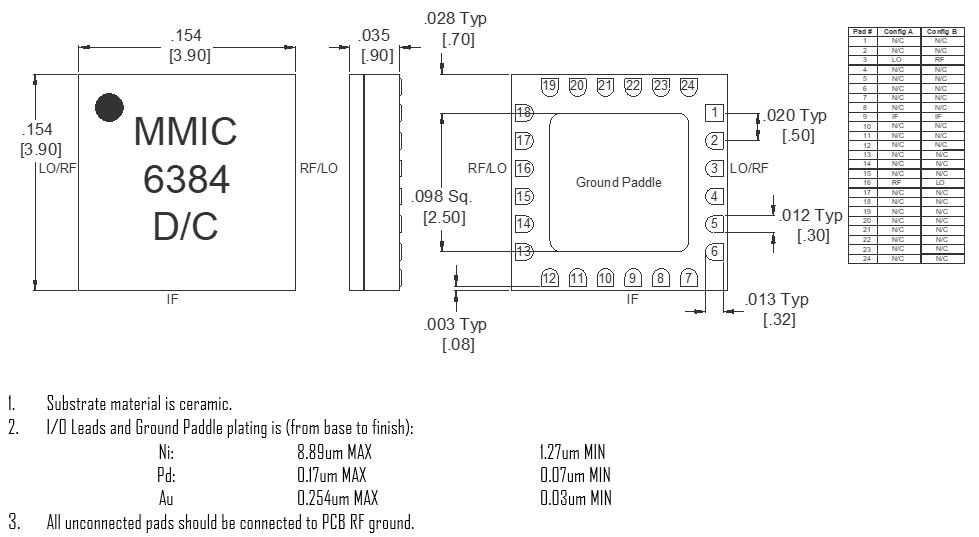

A bottom-up view of the MM1-0212SSM’s SM package outline drawing is shown below. The MM1-0212SSM has the input and output ports given in Port Functions. The MM1-0212SSM can be used in either an up or down conversion. For configuration A, input the LO into Pin 3, use pin 16 for the RF, and pin 9 for the IF. For configuration B, input the LO into pin 16, use pin 3 for the RF, and pin 9 for the IF.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. |  |
| Pin 16 | RF | Pin 16 is DC open and AC matched to 50 Ohms from 2 to 12 GHz. Blocking capacitor is optional. |  |
| Pin 3 | LO | Pin 3 is DC short and AC matched to 50 Ohms from 2 to 12 GHz. Blocking capacitor is optional. |  |
| Pin 9 | IF | Pin 9 is DC coupled to the diodes. Blocking capacitor is optional. |  |
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | SM package ground path is provided through the ground paddle. | |
| Pin 16 | LO | Pin 16 is DC open and AC matched to 50 Ohms from 2 to 12 GHz. Blocking capacitor is optional. | |
| Pin 3 | RF | Pin 3 is DC short and AC matched to 50 Ohms from 2 to 12 GHz. Blocking capacitor is optional. | |
| Pin 9 | IF | Pin 9 is DC coupled to the diodes. Blocking capacitor is optional. | |
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Pin 3 DC Current | 30 | mA |
| Pin 9 DC Current | 30 | mA |
| Power Handling, at any Port | 30 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 4 x 4 mm |
| Moisture Sensitivity Level | - | MSL 1 |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| LO Input Power | 17 | - | 23 | dBm |
| LO Input Power | 17 | - | 23 | - |
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized S package mixer used in the forward direction with a +20 dBm sine wave input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 2 - 12 GHz I = 0.2 - 3 GHz | - | 9 | - | dB |
| Conversion Loss 2 | A | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 9.5 | 12 | dB |
| Input IP3 | A | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 28 | - | dBm |
| Input P1dB | A | - | - | 16.5 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 2 - 12 GHz I = 0.2 - 3 GHz | - | 12 | - | dB |
| Conversion Loss 4 | B | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 11 | 13 | dB |
| Input IP3 | B | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 29.5 | - | dBm |
| Input P1dB | B | - | - | 18 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 3 | GHz |
| LO Frequency Range | - | - | 2 | - | 12 | GHz |
| LO-IF Isolation | - | IF/LO = 2 - 12 GHz | - | 27 | - | dB |
| LO-RF Isolation | - | RF/LO = 2 - 12 GHz | - | 52 | - | dB |
| Noise Figure 5 | - | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 10 | - | dBm |
| RF Frequency Range | - | - | 2 | - | 12 | GHz |
| RF-IF Isolation | - | RF/IF = 2 - 12 GHz | - | 40 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 2 - 12 GHz I = 0.2 - 3 GHz | - | 9 | - | dB |
| Conversion Loss 2 | A | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 9.5 | 12 | dB |
| Input IP3 | A | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 28 | - | dBm |
| Input P1dB | A | - | - | 16.5 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 2 - 12 GHz I = 0.2 - 3 GHz | - | 12 | - | dB |
| Conversion Loss 4 | B | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 11 | 13 | dB |
| Input IP3 | B | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 29.5 | - | dBm |
| Input P1dB | B | - | - | 18 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 3 | GHz |
| LO Frequency Range | - | - | 2 | - | 12 | GHz |
| LO-IF Isolation | - | IF/LO = 2 - 12 GHz | - | 27 | - | dB |
| LO-RF Isolation | - | RF/LO = 2 - 12 GHz | - | 52 | - | dB |
| Noise Figure 5 | - | RF/LO = 2 - 12 GHz I = DC - 0.2 GHz | - | 10 | - | dBm |
| RF Frequency Range | - | - | 2 | - | 12 | GHz |
| RF-IF Isolation | - | RF/IF = 2 - 12 GHz | - | 40 | - | dB |
[1][2][3][4] Measured as a down converter to a fixed 91MHz IF.
[5] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
Download : Footprint Drawing
MM1-0212SSM-2
GaAs MMIC Double Balanced Mixer
