HLM-8010CSP1_DC - 40GHz Surface Mount Limiter

Device Overview

General Description

The HLM-8010CSP1 is a high-power GaAs Schottky diode signal limiter featuring high IP3 over a broad DC - 40GHz bandwidth. It offers low insertion loss and excellent return loss from DC through Ka band and has a typical 1 dB compression point of +11 dBm. Its small size makes it ideal for protecting sensitive components and for applications requiring high channel counts. It is available as a plastic surface mount chip scale package or as a connectorized evaluation board.

Download s-parameters here

Features

Low 1dB loss at 38 GHz
3.2 W Peak Power (pulsed), 1.9 W CW
Typical P1dB of +11dBm
This product embodies Marki Microwave's U.S. Pat. 11,869,858.

Applications

RF Transceivers
Test and Measurement Equipment
SATCOM

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
HLM-8010CSP1	DC - 40GHz Surface Mount Limiter	CSP1	REACH RoHS	Released	EAR99
EVB-HLM-8010	DC - 40GHz Surface Mount Limiter	EVB	REACH RoHS	Released	EAR99

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

HLM-8010CSP1

DC - 40GHz Surface Mount Limiter

CSP1

REACH

RoHS

Released

EAR99

EVB-HLM-8010

DC - 40GHz Surface Mount Limiter

EVB

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Green Status	Product Lifecycle	Export Classification
HLM-8010CSP1	DC - 40GHz Surface Mount Limiter	CSP1	REACH RoHS	Released	EAR99
EVB-HLM-8010	DC - 40GHz Surface Mount Limiter	EVB	REACH RoHS	Released	EAR99

Part Number

Description

Package

Green Status

Product Lifecycle

Export Classification

HLM-8010CSP1

DC - 40GHz Surface Mount Limiter

CSP1

REACH

RoHS

Released

EAR99

EVB-HLM-8010

DC - 40GHz Surface Mount Limiter

EVB

REACH

RoHS

Released

EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Mechanical Data

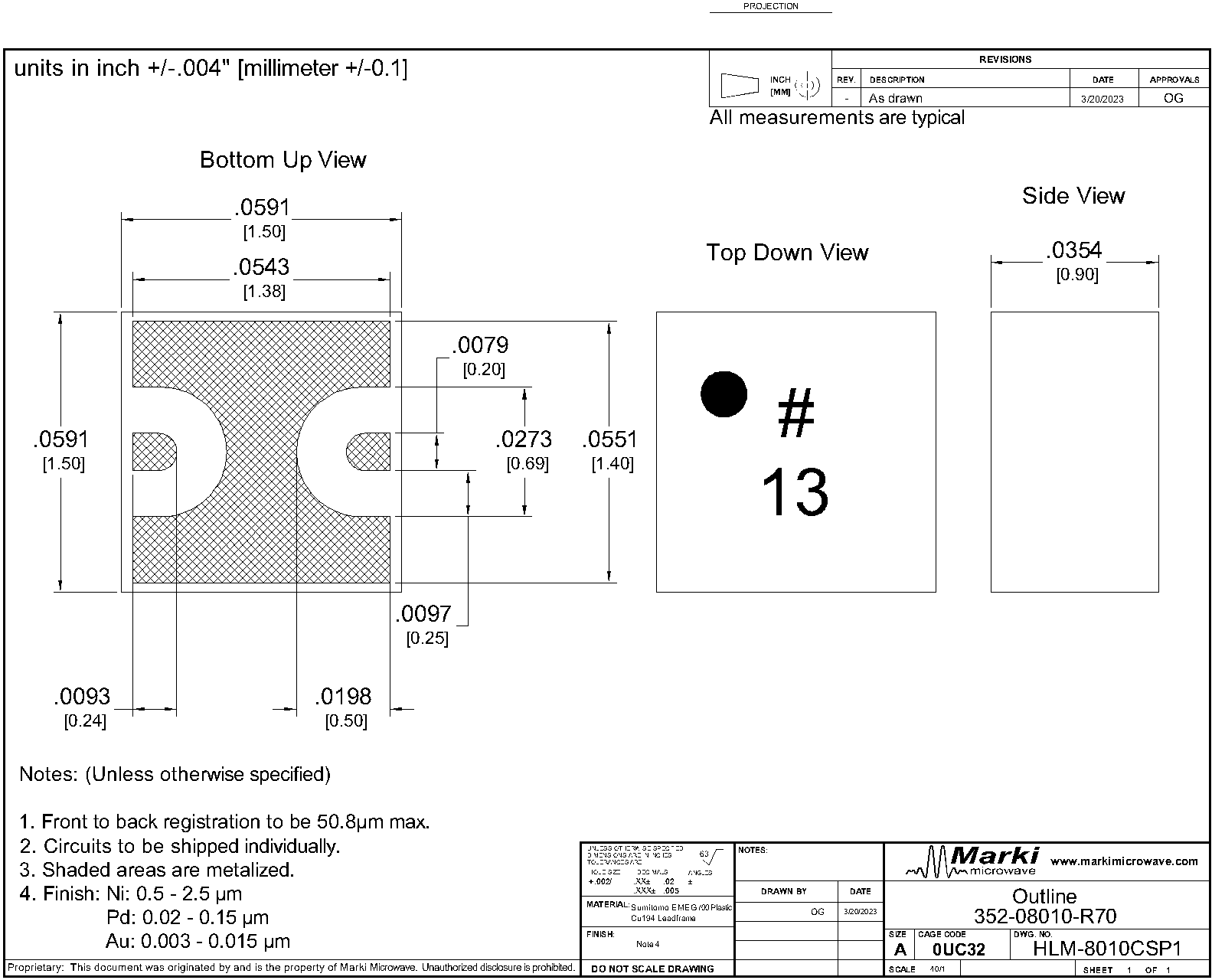

- Outline Drawing
Footprint Image
Evaluation Board
- Evaluation Board Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2023-05-01	Datasheet Initial Release
A	2024-09-26	Included table of input power at observed failure
B	2025-02-11	Updates to Harmonic Sup vs Input Power Plot

Port Configuration and Functions

Port Diagram

A top-down view of the HLM-8010’s CSP1 package outline drawing is shown below. The HLM-8010CSP1 has the input and output ports given in Port Functions.

Diagram of the port configuration for HLM-8010CSP1

Port Functions

Port	Function	Description
Ground Paddle	Ground	CSP1 package ground path is provided through the ground paddle and should be connected to RF ground
IN	Input	The input port is diode connected for the CSP1 and EVAL package.
Output	Output	The output port is diode connected for the CSP1 and EVAL package.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
RF Power Handling , Average	1.9	W
RF Power Handling , Peak	3.2	W
θJC, Junction to Case Thermal Resistance	35	ºC/W

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Weight	Package name: CSP1	0.0067g
Dimensions	-	1.5 x 1.5 mm
Moisture Sensitivity Level	-	MSL 3

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized EVAL-package limiter unless otherwise specified. CSP1-package data shown is deembedded from the EVAL-package data. Linear Specifications valid for input power up to the 0.1dB compression point. See page 5 for P0.1dB graph. Min and Max limits are guaranteed at TA=+25°C.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Flat Leakage	1GHz – 20dBm input	-	-	-	14	-	dBm
Flat Leakage	20GHz – 20dBm input	-	-	-	11	-	dBm
Flat Leakage	40GHz – 16dBm input	-	-	-	8	-	dBm
Input IP3	DC – 40GHz	0	40	-	25	-	dBm
Input P1dB	DC – 40GHz	0	40	-	11	-	dBm
Insertion Loss	DC – 40GHz	0	40	-	0.5	1.2	dB
Return Loss	DC – 40GHz	0	40	16	24	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Flat Leakage	1GHz – 20dBm input	-	-	-	14	-	dBm
Flat Leakage	20GHz – 20dBm input	-	-	-	11	-	dBm
Flat Leakage	40GHz – 16dBm input	-	-	-	8	-	dBm
Input IP3	DC – 40GHz	0	40	-	25	-	dBm
Input P1dB	DC – 40GHz	0	40	-	11	-	dBm
Insertion Loss	DC – 40GHz	0	40	-	0.5	1.2	dB
Return Loss	DC – 40GHz	0	40	16	24	-	dB

Typical Performance Plots

Small Signal Insertion Loss (dB) graph for HLM-8010CSP1

Small Signal Return Loss (dB) graph for HLM-8010CSP1

Typical Performance Plots EVB Package

P0.1dB Compression Point (dBm) graph for HLM-8010CSP1

Output Power vs Input Power graph for HLM-8010CSP1

Output Power vs. Input Power, Extended Power Range (dBm) graph for HLM-8010CSP1

Insertion Loss, Output Power vs. Input Power @ 1 GHz graph for HLM-8010CSP1

Insertion Loss, Output Power vs. Input Power @ 25GHz graph for HLM-8010CSP1

Insertion Loss, Output Power vs. Input Power @ 30 GHz graph for HLM-8010CSP1

Insertion Loss, Output Power vs. Input Power @ 40 GHz graph for HLM-8010CSP1

3F Harmonic Output Power vs. Frequency (dBm) graph for HLM-8010CSP1

5F Harmonic Output Power vs. Frequency (dBm) graph for HLM-8010CSP1

Harmonic Suppression vs Input Power graph for HLM-8010CSP1

Input Power at Observed Failure

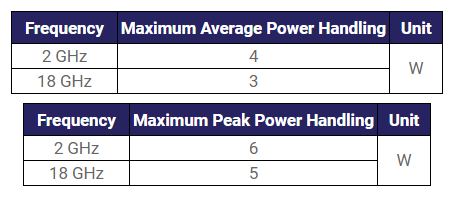

Power handling specification is based on tests performed at different combinations of temperature and frequency. Input power was increased until catastrophic failure was observed. Results are shown in the following table. The power handling specification listed in section 3.1 is based on the worst observed power handling derated by 2dB.
