Evaluation Board Limiters

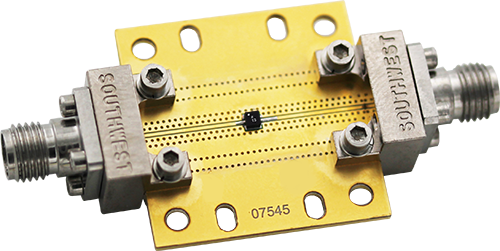

EVB-HLM-8010

DC - 40GHz Surface Mount Limiter

The EVB-HLM-8010 is a high-power GaAs Schottky diode signal limiter featuring high IP3 over a broad DC - 40GHz bandwidth. It offers low insertion loss and excellent return loss from DC through Ka band and has a typical 1 dB compression point of +11 dBm. Its small size makes it ideal for protecting sensitive components and for applications requiring high channel counts. It is available as a plastic surface mount chip scale package or as a connectorized evaluation board.
