The MFLP-00010PSM is a passive MMIC surface mount 4.5 GHz lowpass filter that is an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFLP-00010PSM is available as a 5x5mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFLP-00010PSM | Passive GaAs MMIC 4.5 GHz Lowpass Filter | QFN | RoHS REACH | Released | EAR99 |

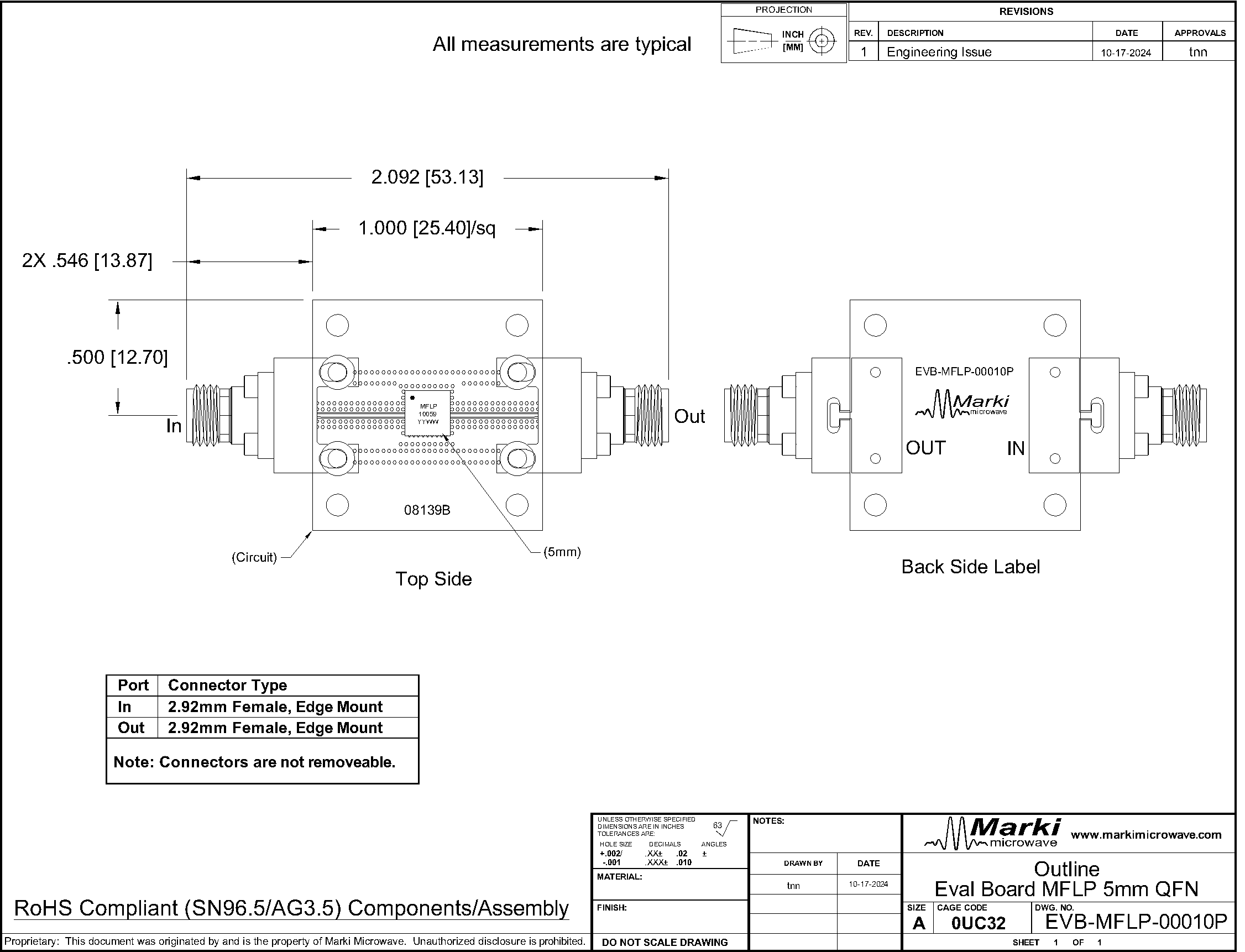

| EVB-MFLP-00010P | Evaluation Board, Passive GaAs MMIC 4.5GHz Lowpass Filter | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFLP-00010PSM | Passive GaAs MMIC 4.5 GHz Lowpass Filter | QFN | RoHS REACH | Released | EAR99 |
| EVB-MFLP-00010P | Evaluation Board, Passive GaAs MMIC 4.5GHz Lowpass Filter | EVB | RoHS REACH | Released | EAR99 |
MFLP-00010PSM
Passive GaAs MMIC 4.5 GHz Lowpass Filter
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-12-13 | Initial Release |
MFLP-00010PSM
Passive GaAs MMIC 4.5 GHz Lowpass Filter
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Ground | PSM package ground path is provided through the ground paddle and should be connected to RF ground. |  |
| Pin 20 | Output | Pin 20 is DC short to Pin 5. |  |
| Pin 5 | Input | Pin 5 is DC short to Pin 20. | |
MFLP-00010PSM
Passive GaAs MMIC 4.5 GHz Lowpass Filter
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 5 x 5 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MFLP-00010PSM
Passive GaAs MMIC 4.5 GHz Lowpass Filter
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the filter in a PSM package with a sine wave input applied to Pin 5. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | - | 3.36 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | - | 4.5 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | - | 5.42 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 1.68 | - | GHz |
| Passband Return Loss | Temp = 25°C | - | - | - | 28 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 200 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | - | 3.36 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | - | 4.5 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | - | 5.42 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 1.68 | - | GHz |
| Passband Return Loss | Temp = 25°C | - | - | - | 28 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 200 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
MFLP-00010PSM
Passive GaAs MMIC 4.5 GHz Lowpass Filter
.png)
.png)
.png)
.png)
.png)

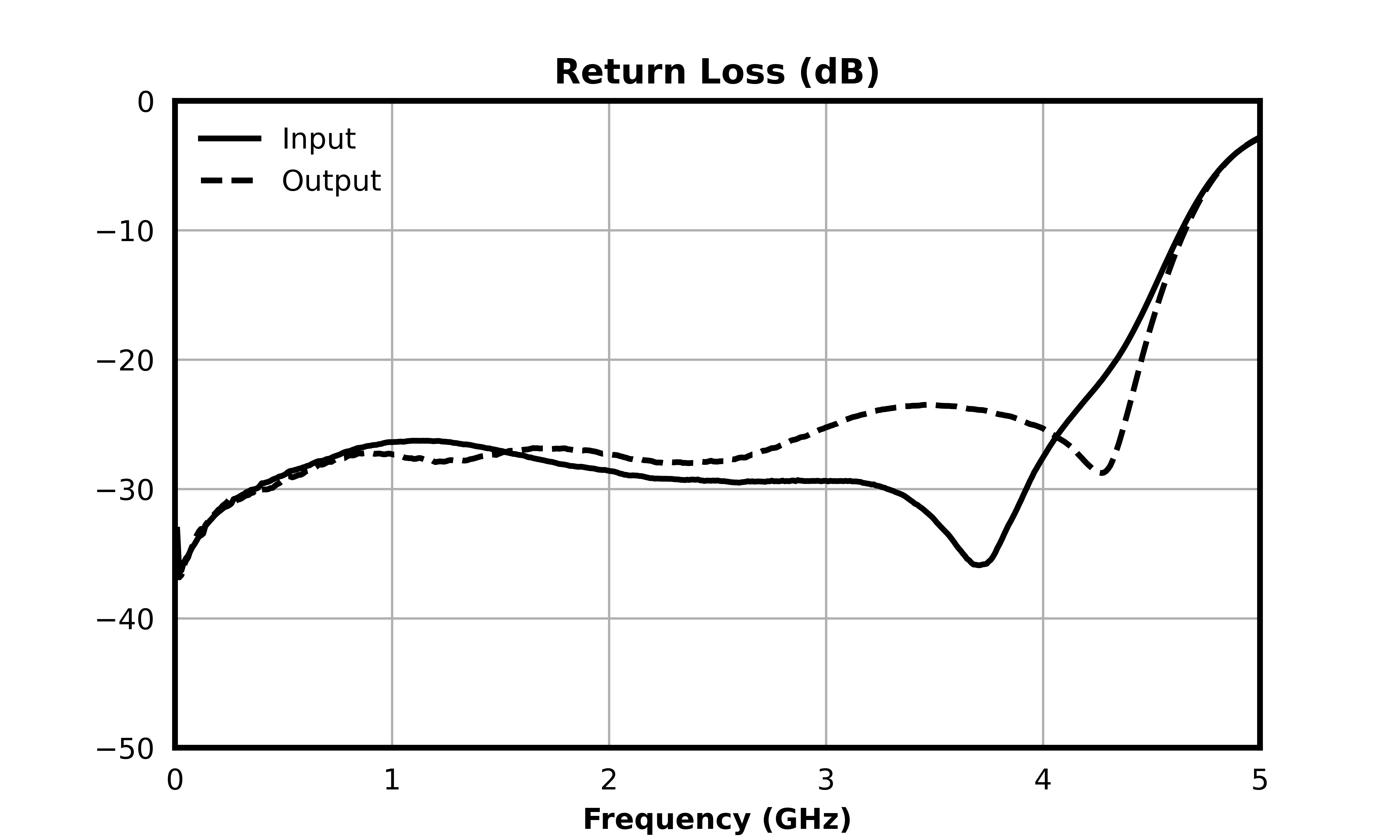

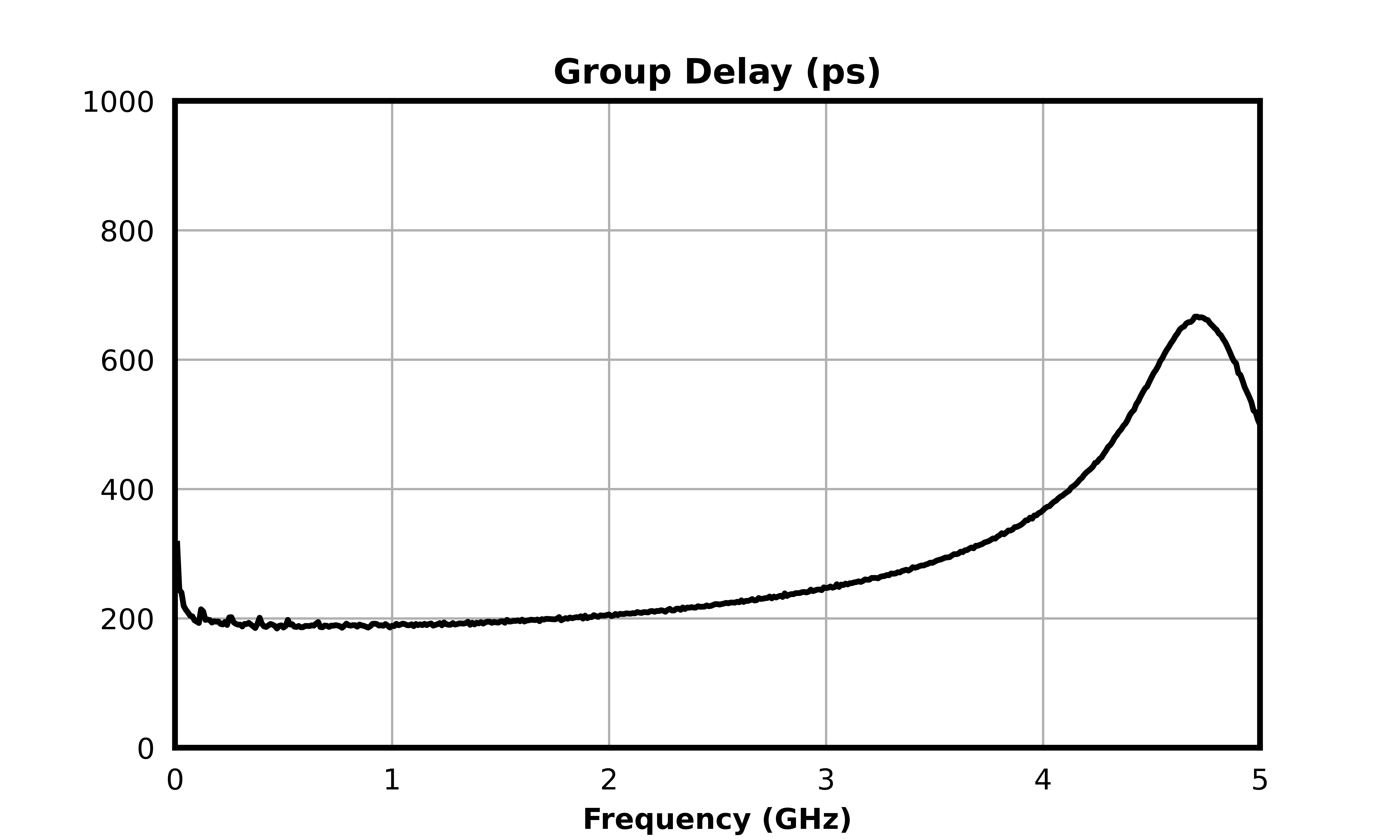

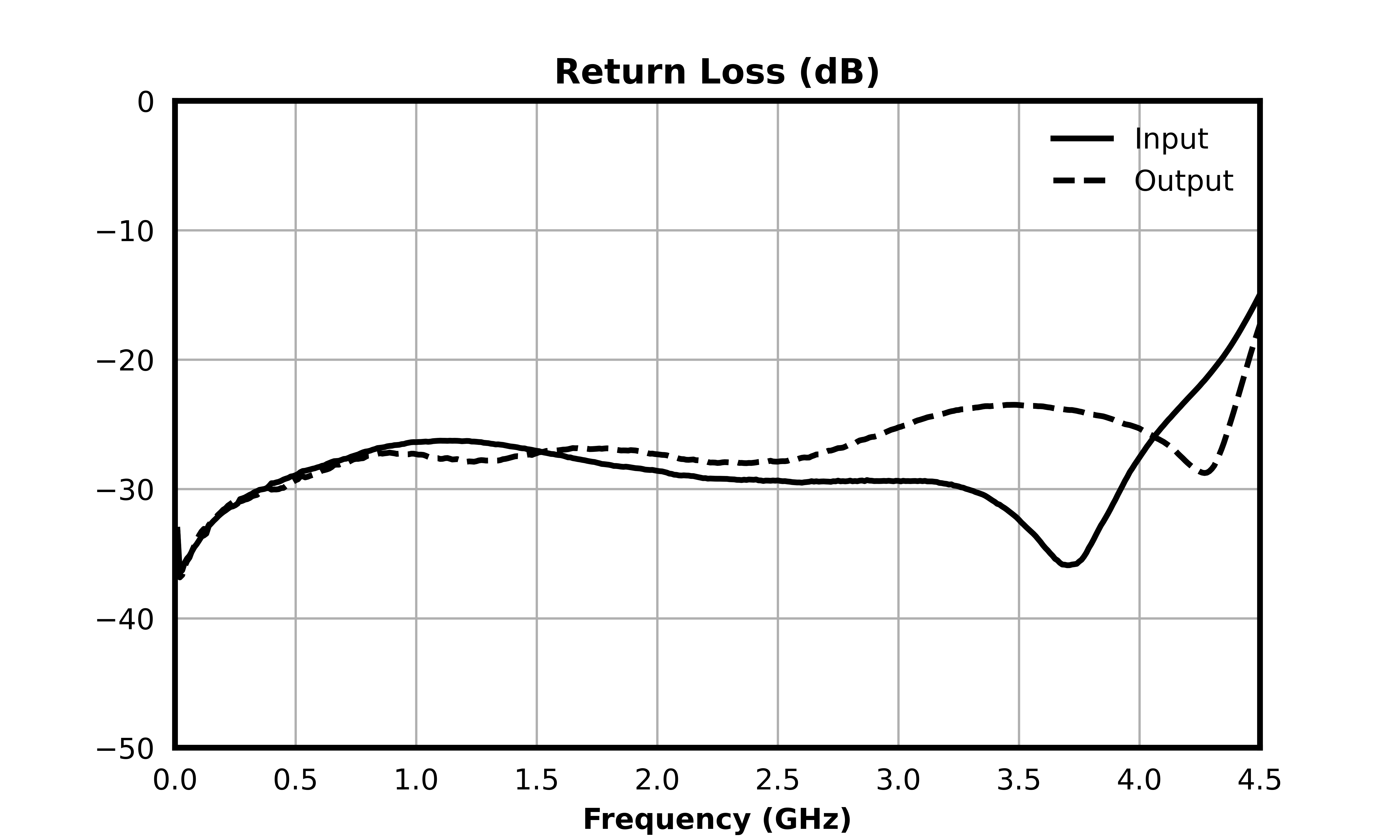

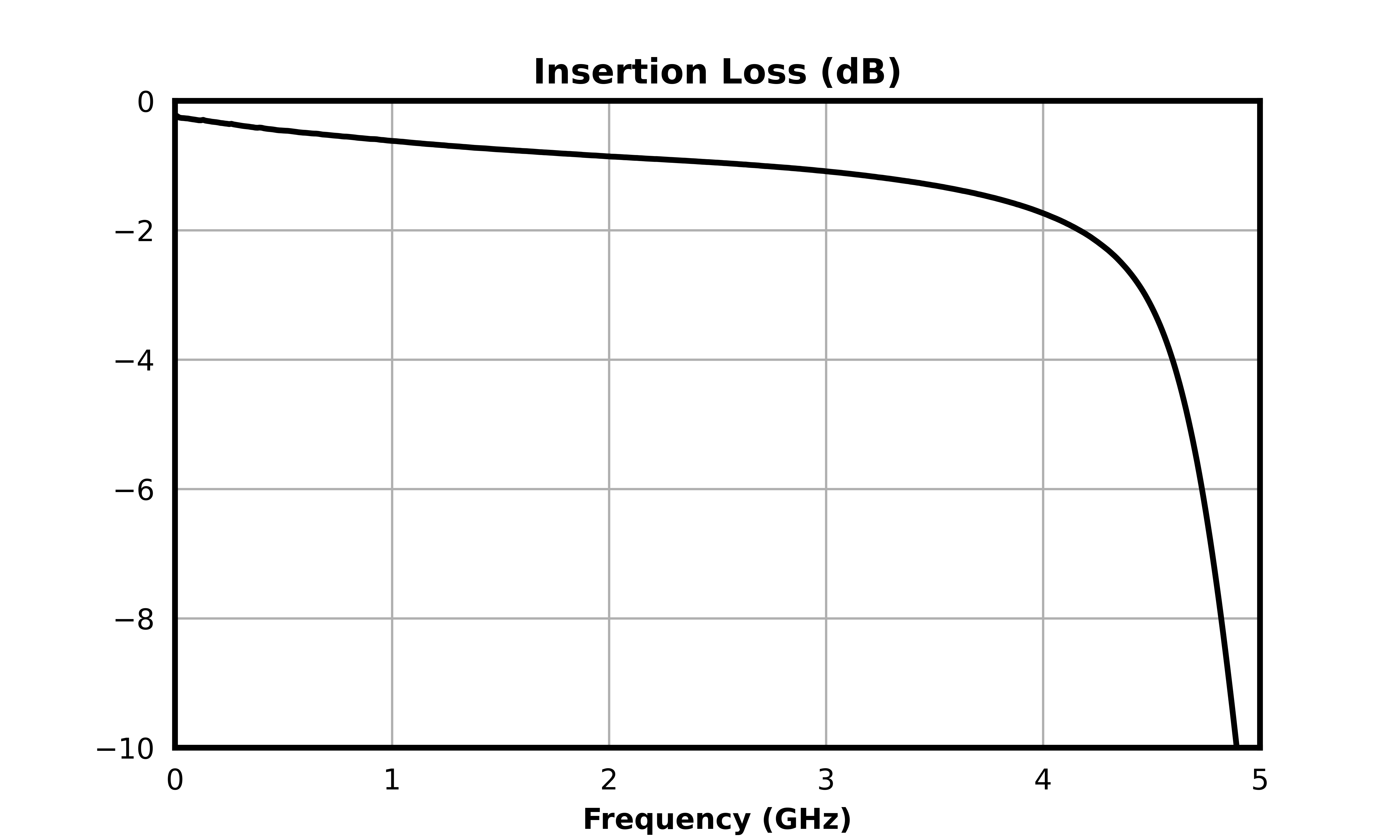

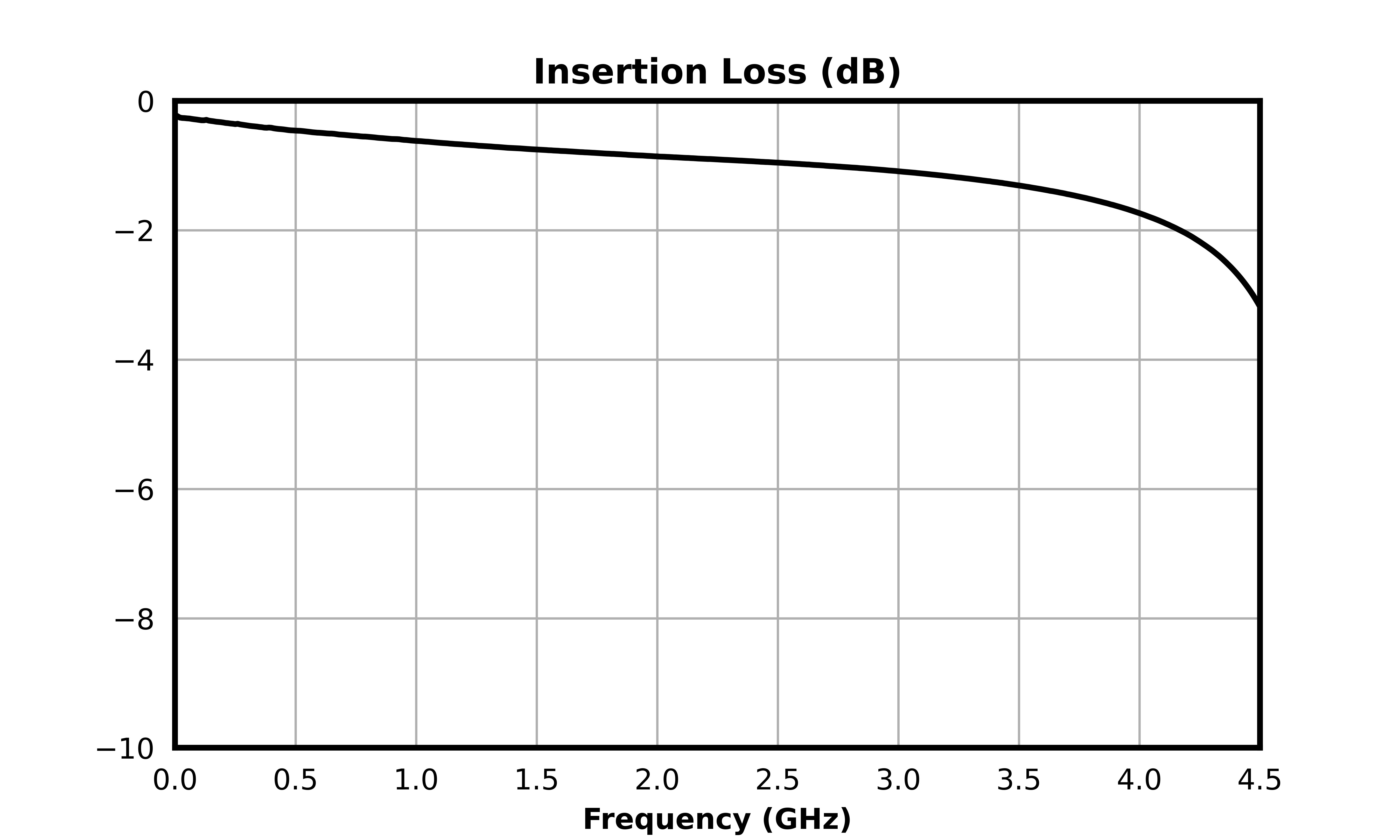

Typical performance is de-embedded from EVB using Automatic Fixture Removal (AFR).
MFLP-00010PSM
Passive GaAs MMIC 4.5 GHz Lowpass Filter
MFLP-00010PSM
Passive GaAs MMIC 4.5 GHz Lowpass Filter

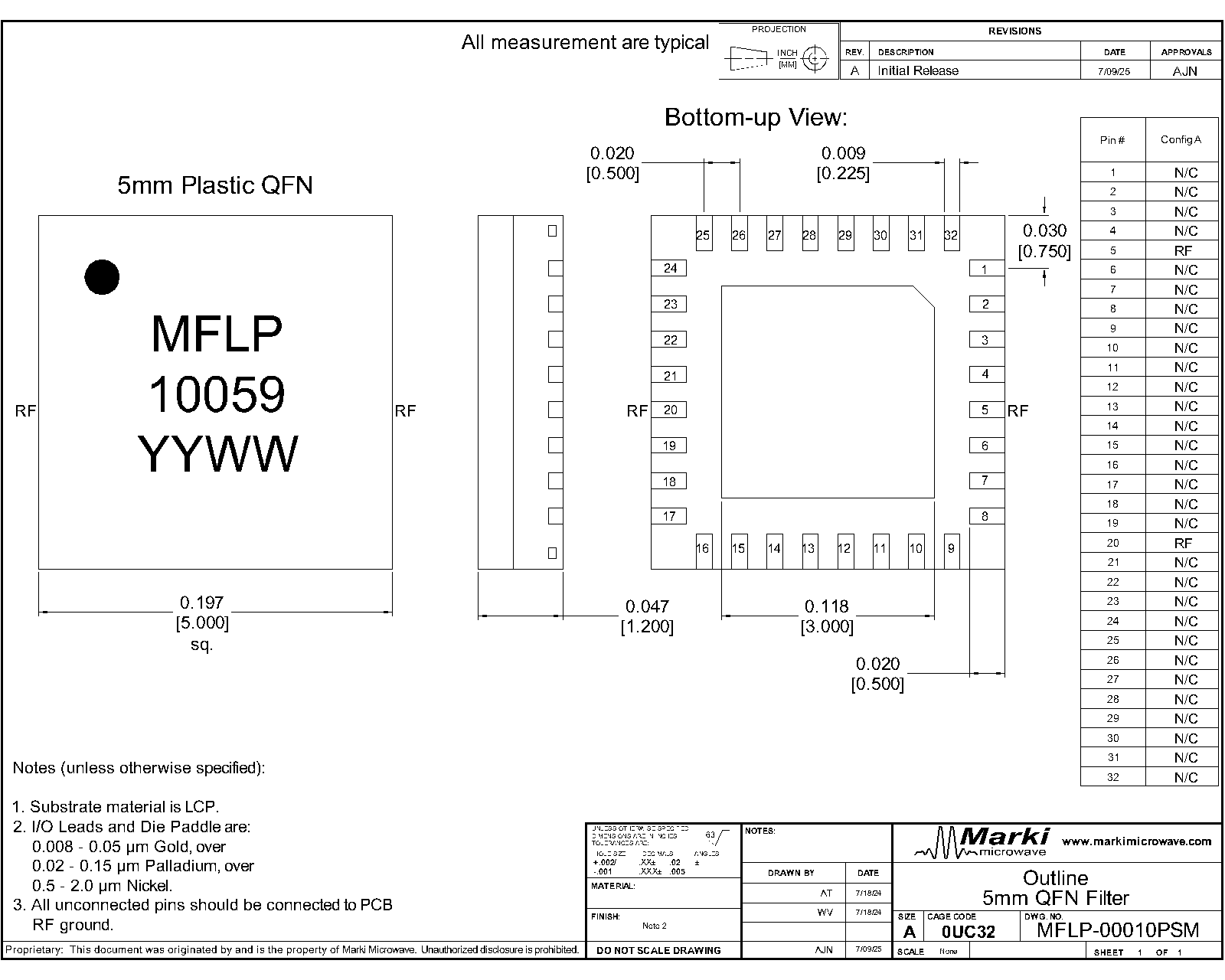

Download : Footprint Drawing
