Port Diagram

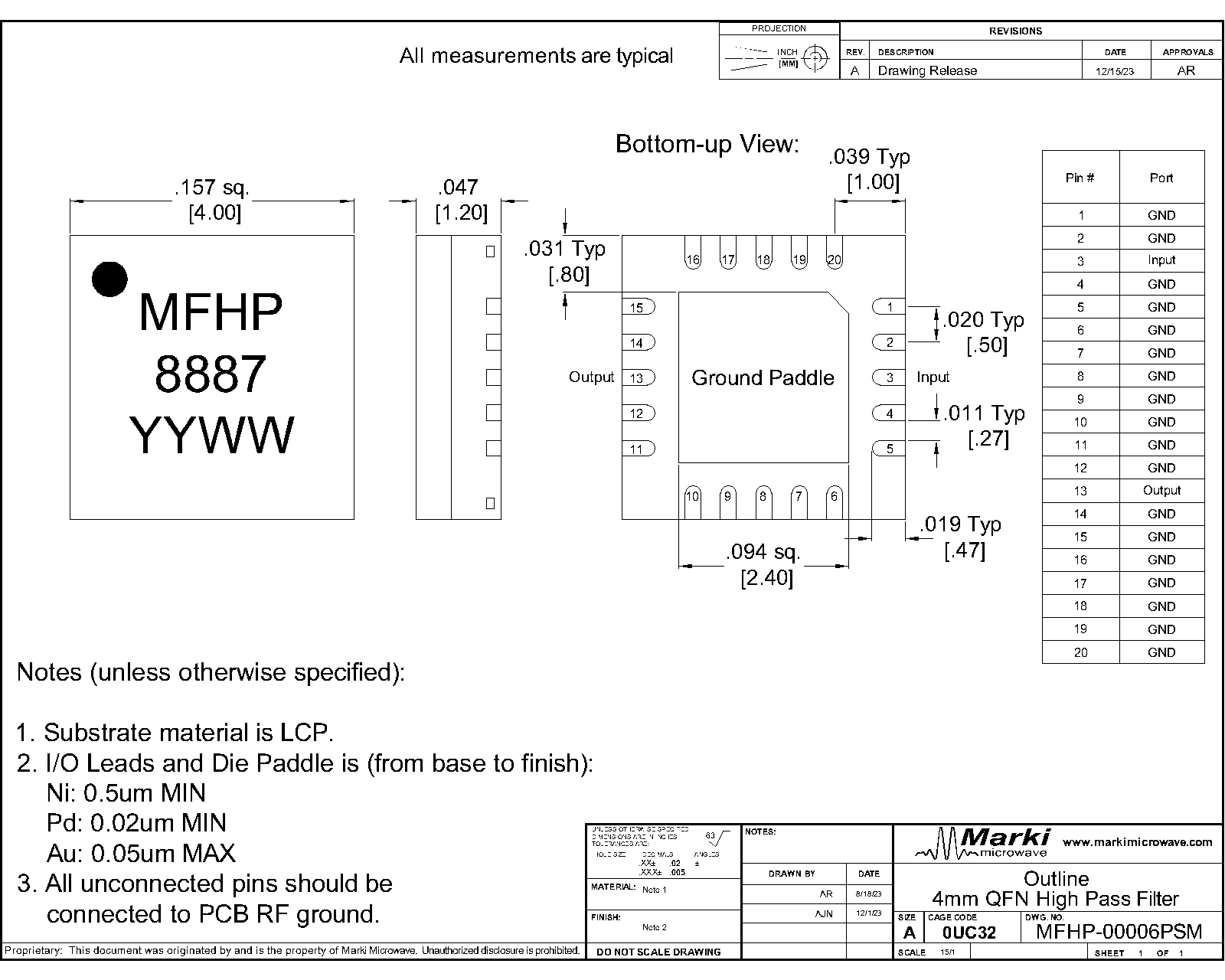

A top-down x-ray view of the MFHP-00006PSM package outline drawing is shown below.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MFHP-00006PSM family of passive MMIC surface mount highpass filters are an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFHP-00006PSM is available as a 4x4mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.
Features
- Low Passband Insertion Loss with Fast Roll-off
- Excellent Return Loss
- High Stop Band Suppression
Applications
- SATCOM
- Radar
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFHP-00006PSM | Passive GaAs MMIC 12 GHz Highpass Filter | QFN | RoHS REACH | Released | EAR99 |
| EVB-MFHP-00006P | Evaluation Board, Passive GaAs MMIC 12GHz Highpass Filter | EVB | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MFHP-00006PSM | Passive GaAs MMIC 12 GHz Highpass Filter | QFN | RoHS REACH | Released | EAR99 |
| EVB-MFHP-00006P | Evaluation Board, Passive GaAs MMIC 12GHz Highpass Filter | EVB | RoHS REACH | Released | EAR99 |
MFHP-00006PSM
Passive GaAs MMIC 12 GHz Highpass Filter
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2023-10-04 | Datasheet Initial Release |
MFHP-00006PSM
Passive GaAs MMIC 12 GHz Highpass Filter
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Ground | PSM package ground path is provided through the ground paddle and should be connected to RF ground. |  |
| Pin 13 | Output | Pin 13 is DC open to ground for the PSM package. |  |
| Pin 3 | Input | Pin 3 is DC open to ground for the PSM package. | |
MFHP-00006PSM
Passive GaAs MMIC 12 GHz Highpass Filter
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 4 x 4 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MFHP-00006PSM
Passive GaAs MMIC 12 GHz Highpass Filter
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the filter in a PSM package with a sine wave input applied to Pin 3. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 12.06 | - | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 11.44 | - | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 10.04 | - | - | - | - | GHz |
| Group Delay | - | 13.5 | 35 | - | 48 | - | ps |
| Passband Insertion Loss | - | 13.5 | 35 | - | 0.5 | - | dB |
| Passband Return Loss | - | 13.5 | 35 | 10 | 21 | - | dB |
| Stopband Suppression | - | 0 | 8.3 | 40 | 55 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 12.06 | - | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 11.44 | - | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 10.04 | - | - | - | - | GHz |
| Group Delay | - | 13.5 | 35 | - | 48 | - | ps |
| Passband Insertion Loss | - | 13.5 | 35 | - | 0.5 | - | dB |
| Passband Return Loss | - | 13.5 | 35 | 10 | 21 | - | dB |
| Stopband Suppression | - | 0 | 8.3 | 40 | 55 | - | dB |
MFHP-00006PSM
Passive GaAs MMIC 12 GHz Highpass Filter
Typical performance is de-embedded from EVB using AFR.
Typical Performance Plots
MFHP-00006PSM
Passive GaAs MMIC 12 GHz Highpass Filter
Mechanical Data
MFHP-00006PSM
Passive GaAs MMIC 12 GHz Highpass Filter
Footprint Image
Download : Footprint Drawing
MFHP-00006PSM
Passive GaAs MMIC 12 GHz Highpass Filter
Evaluation Board - Outline Drawing
