General Description

The MEQ6-20CSP1 is a passive MMIC equalizer CSP ideal for compensating for low pass filtering effects in RF/microwave and high speed digital systems. The MEQ6-20CSP1 provides 5.6dB positive slope equalization from DC to 20GHz with a DC attenuation of 6dB. The chip scale package allows for extreme miniaturization of the SMT footprint. The unique design offers superior 25dB return loss to competitors in an extremely small footprint. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.

Features

  • Small 1.5 x 1.5 mm package size
  • DC attenuation of 6dB
  • Typical Insertion Loss 0.5dB at 20GHz
  • Typical VSWR of 1.12 Over Operating Band
  • Low SWaP
  • This product embodies Marki Microwave's U.S. Pat. 11,869,858.

Functional Block Diagram

Block Diagram
Photo of MEQ6-20CSP1

Electrical Performance Summary

ParameterTypUnit
Frequency Range0 to 20GHz
Return Loss 25dB
Insertion Loss 0.5dB
Insertion Loss at DC 6.0dB

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part NumberDescriptionPackageGreen StatusProduct LifecycleExport Classification
MEQ6-20CSP1Chip Scale Package MMIC 20 GHz 6 dB EqualizerCSP1

REACH

RoHS

ReleasedEAR99
EVB-MEQ6-20Evaluation Board, Chip Scale Package MMIC 20 GHz EqualizerEVB

REACH

RoHS

ReleasedEAR99

Table Of Contents

Typical Performance Plot

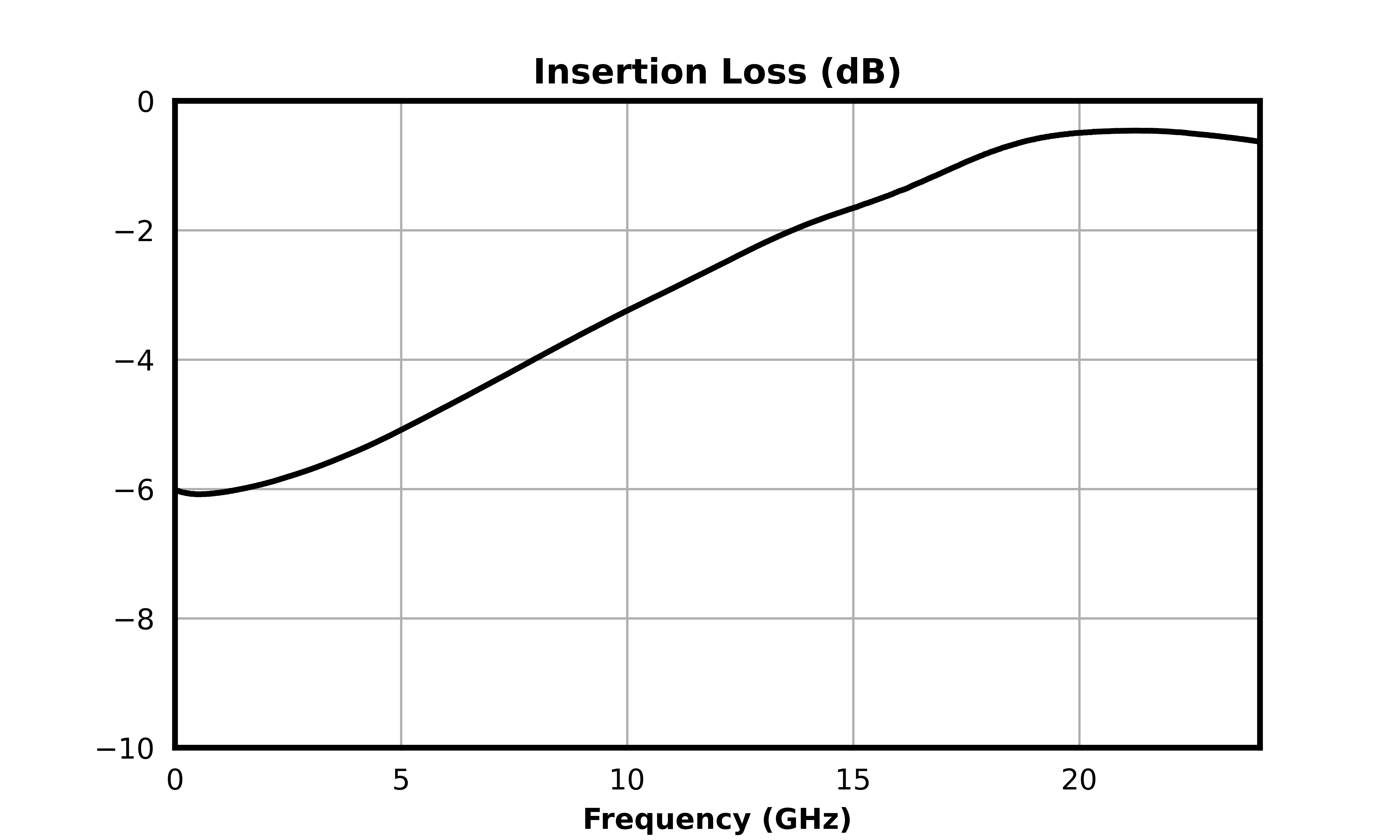

Insertion Loss (dB) graph for MEQ6-20CSP1

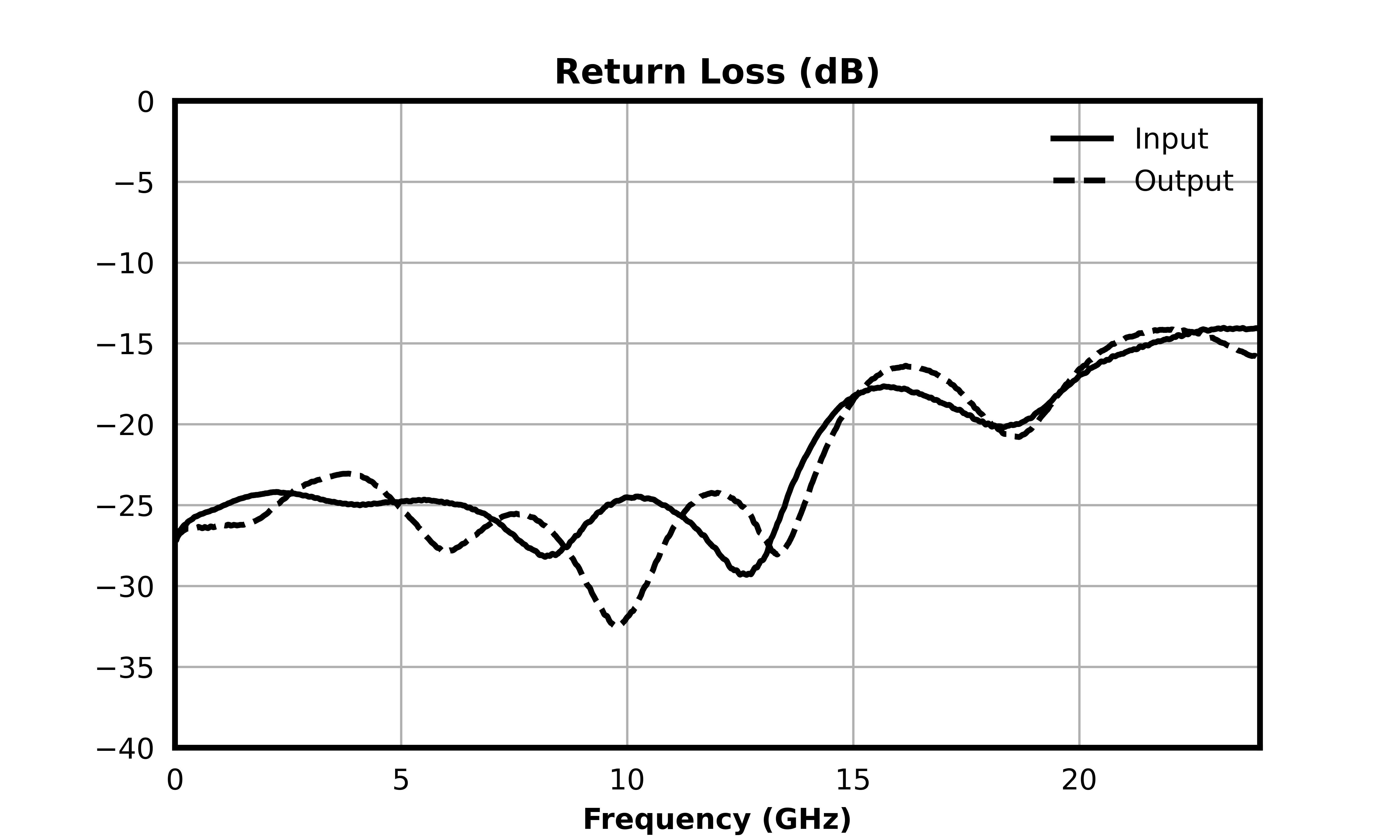

Return Loss (dB) graph for MEQ6-20CSP1

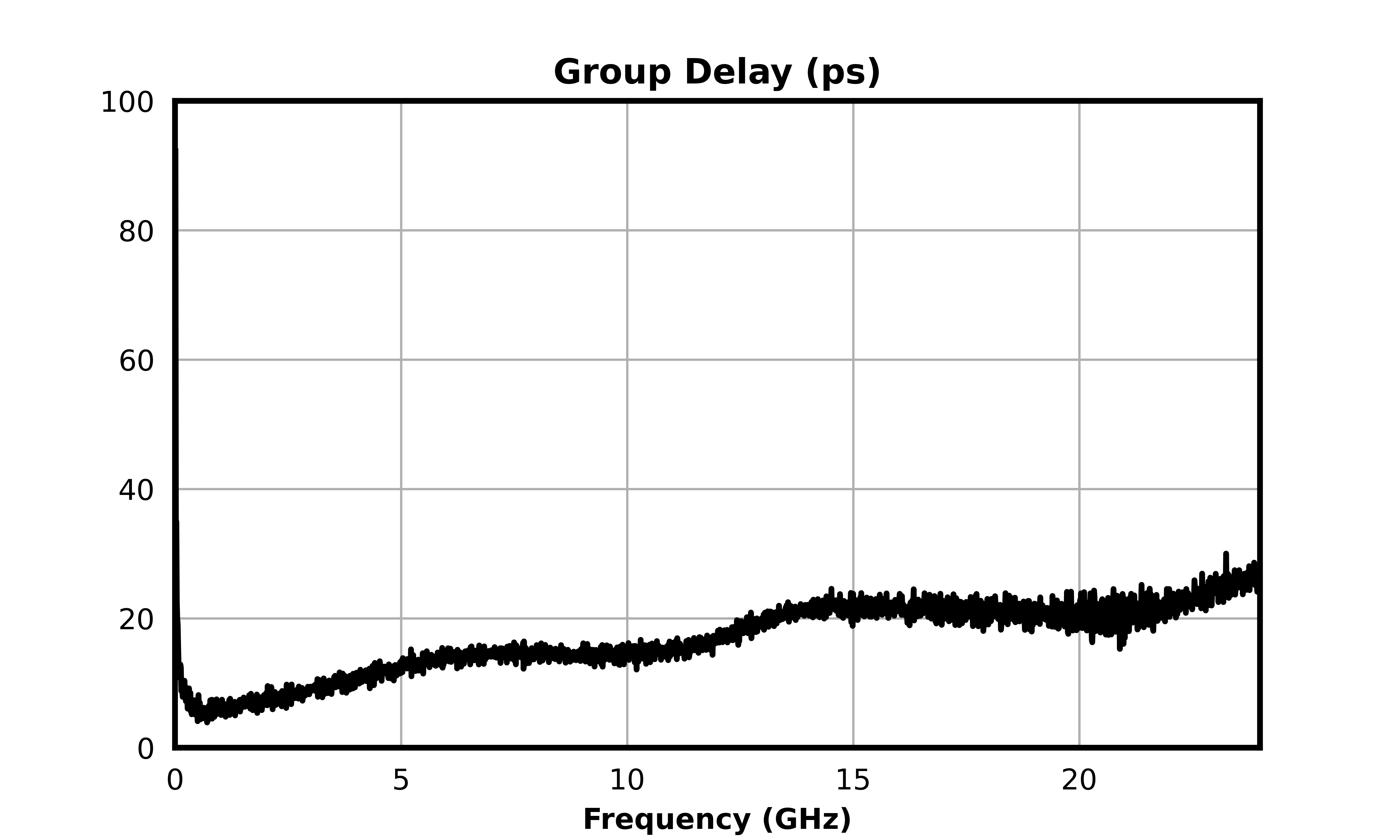

Group Delay (ps) graph for MEQ6-20CSP1

Specifications

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a SM package with a sine wave input applied to port 1. Min and Max limits are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Frequency Range-0 20---GHz
Insertion Loss at DC Configuration A, Temp = 25°C
0 0-6.0-dB
Insertion Loss Configuration A, Temp = 25°C
10 10-3.3-dB
Insertion Loss Configuration A, Temp = 25°C
20 20-0.5-dB
Equalization Value 1Configuration A, Temp = 25°C
0 20-5.6-dB
Return Loss Configuration A, Temp = 25°C
0 20-25-dB
Group Delay Configuration A, Temp = 25°C
0 20-15-ps

[1] Equalization Value = Max Insertion Loss - Min Insertion Loss

Equalizer is symmetrical. Reverse measurement is equivalent to forward measurement. All measurements taken in EVB package and de-embedded to the CSP1 pad interface.

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
WeightPackage name: CSP10.04g
Dimensions-1.50 x 1.50 mm
Moisture Sensitivity Level-MSL 3

Port Configuration and Functions

Port Diagram

An x-ray view of the MEQ6-20CSP1 package outline drawing is shown below. The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.

Diagram of the port configuration for MEQ6-20CSP1

Port Functions

PortFunctionDescriptionDC Equivalent
Circuit
GNDGround SM package ground path is provided through the ground paddle.Equivalent circuit for the Ground
Pin 1Input/Output Pin 1 is DC connected to ground through a resistor. DC block is required if voltage present.Equivalent circuit for the Input/Output
Pin 2Input/Output Pin 2 is DC connected to ground through a resistor. DC block is required if voltage present.Equivalent circuit for the Input/Output

Mechanical Data

Outline Drawing

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP

Outline Drawing

Evaluation Board

Evaluation Board - Outline Drawing

Outline Drawing

Revision History

Revision CodeRevision DateComment
-2025-06-13Initial Release
