MEQ6-20CSP1

Chip Scale Package MMIC 20 GHz 6 dB Equalizer

The MEQ6-20CSP1 is a passive MMIC equalizer CSP ideal for compensating for low pass filtering effects in RF/microwave and high speed digital systems. The MEQ6-20CSP1 provides 5.6dB positive slope equalization from DC to 20GHz with a DC attenuation of 6dB. The chip scale package allows for extreme miniaturization of the SMT footprint. The unique design offers superior 25dB return loss to competitors in an extremely small footprint. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.

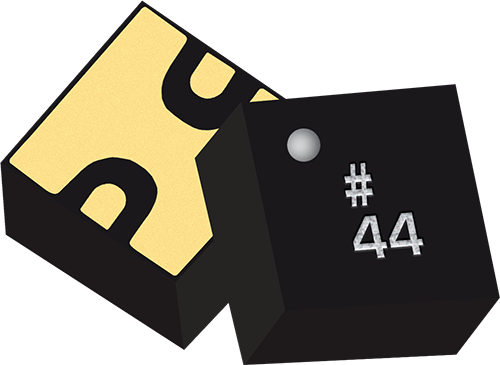

Product Variant : MEQ6-20CSP1
Sorted by: No sorting applied
EVB-MEQ6-20

-

020---Released
MEQ6-20CSP1

-

0206.0251.50 x 1.50 mmReleased

Technical Resources
