MDPX-00011CSP3

Passive MMIC 24.7 GHz Diplexer/Reflectionless filter

The MDPX-00011CSP3 is a MMIC surface mount high pass low pass diplexer featuring a 24.7 GHz crossover frequency. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-00011CSP3 is available as a 3.5x3.5mm CSP3. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.

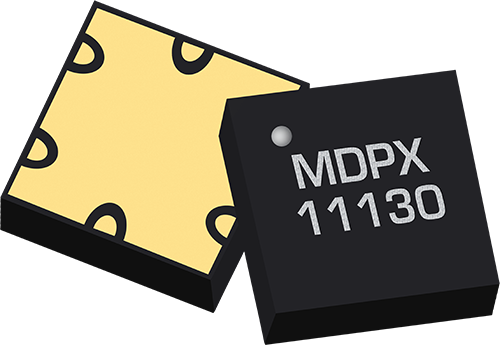

Product Variant : MDPX-00011CSP3
Sorted by: No sorting applied
EVB-MDPX-00011
Request Quote
Diplexer
----Released
MDPX-00011CSP3
Request Quote
Diplexer
---3.50 x 3.50 mmReleased

Technical Resources
