MDPX-00004PSM
Passive MMIC 7GHz Diplexer/Reflectionless Filter
The MDPX-00004PSM is a MMIC surface mount diplexer capable of multiplexing low frequency DC to 6 GHz and high frequency 8 to 28 GHz signals. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-00004PSM is available as a 4x4mm QFN and connectorized evaluation board. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.
| Parameter | Typ | Unit |
|---|---|---|
| 30 dBc Low Pass Rejection Point | 7.85 to 7.85 | GHz |
| 1 dBc High Passband | 8.29 to 27.87 | GHz |
| Cross Over Frequency | 7.21 to 7.21 | GHz |
| 30 dBc High Pass Rejection Point | 6.31 to 6.31 | dB |
| 1 dBc Low Passband | 0 to 5.61 | GHz |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MDPX-00004PSM | Passive MMIC 7GHz Diplexer/Reflectionless Filter | QFN | RoHS REACH | Released | EAR99 |
| EVB-MDPX-00004P | Evaluation Board, Passive MMIC 7 GHz Diplexer/Reflectionless Filter | EVB | RoHS REACH | Released | EAR99 |

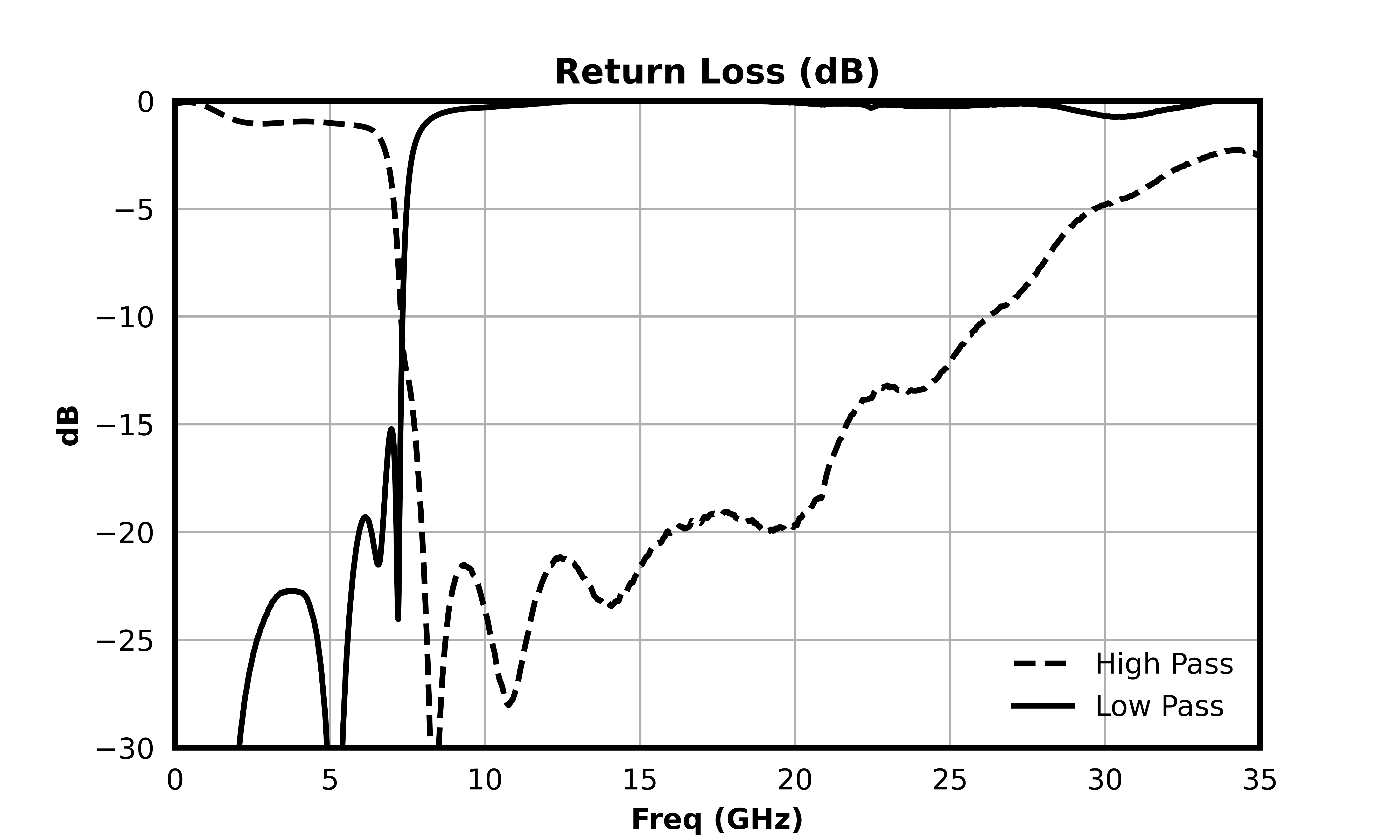

.png)

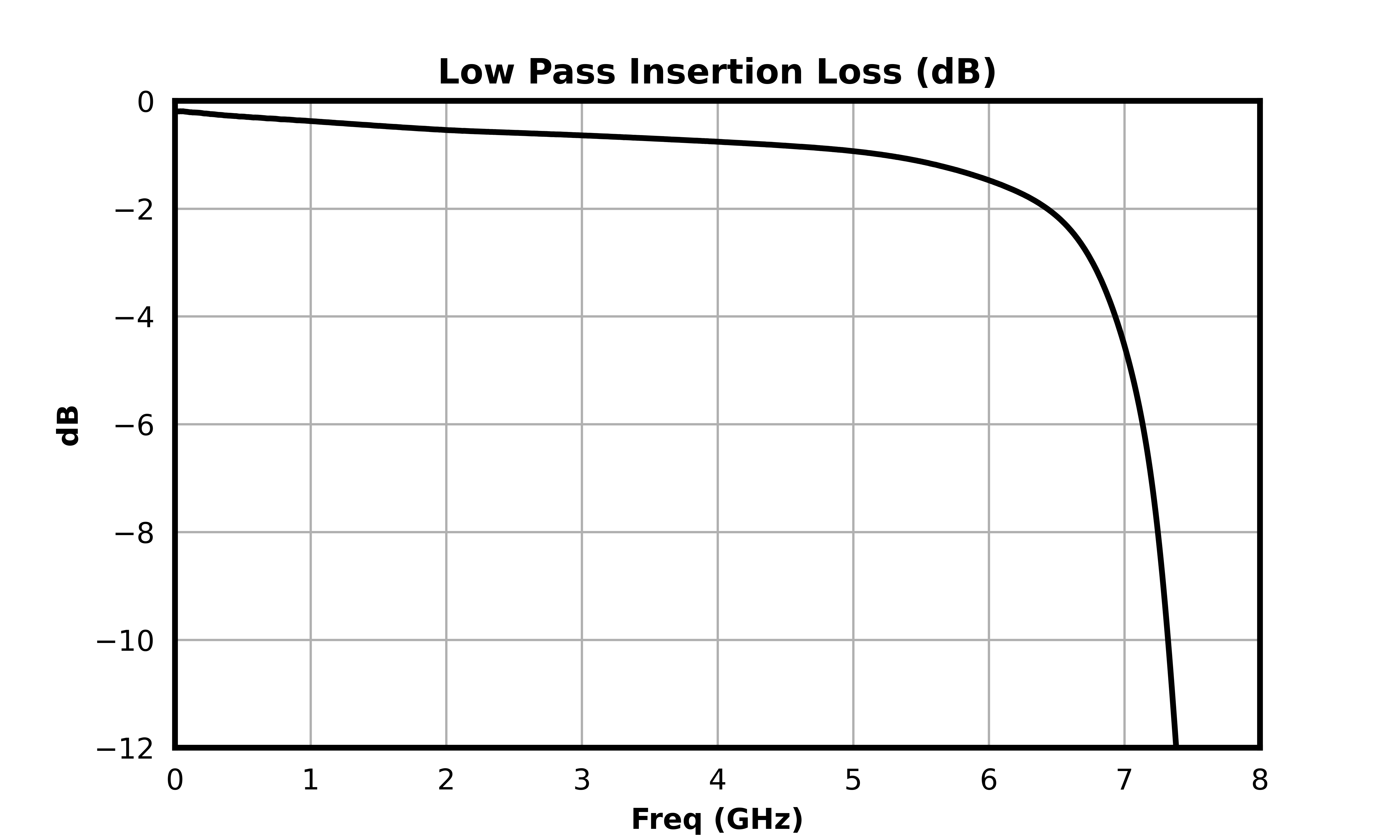

.png)

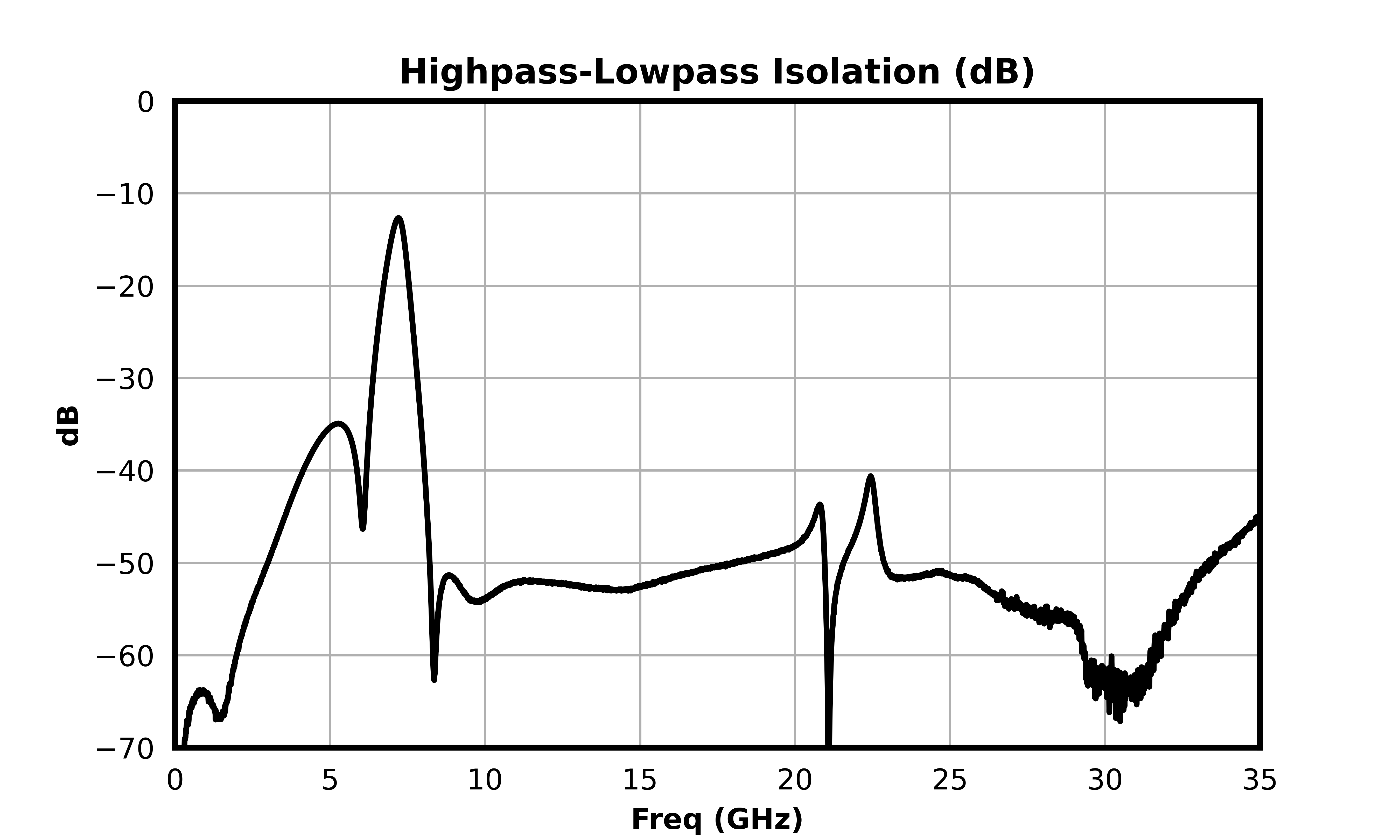

.png)

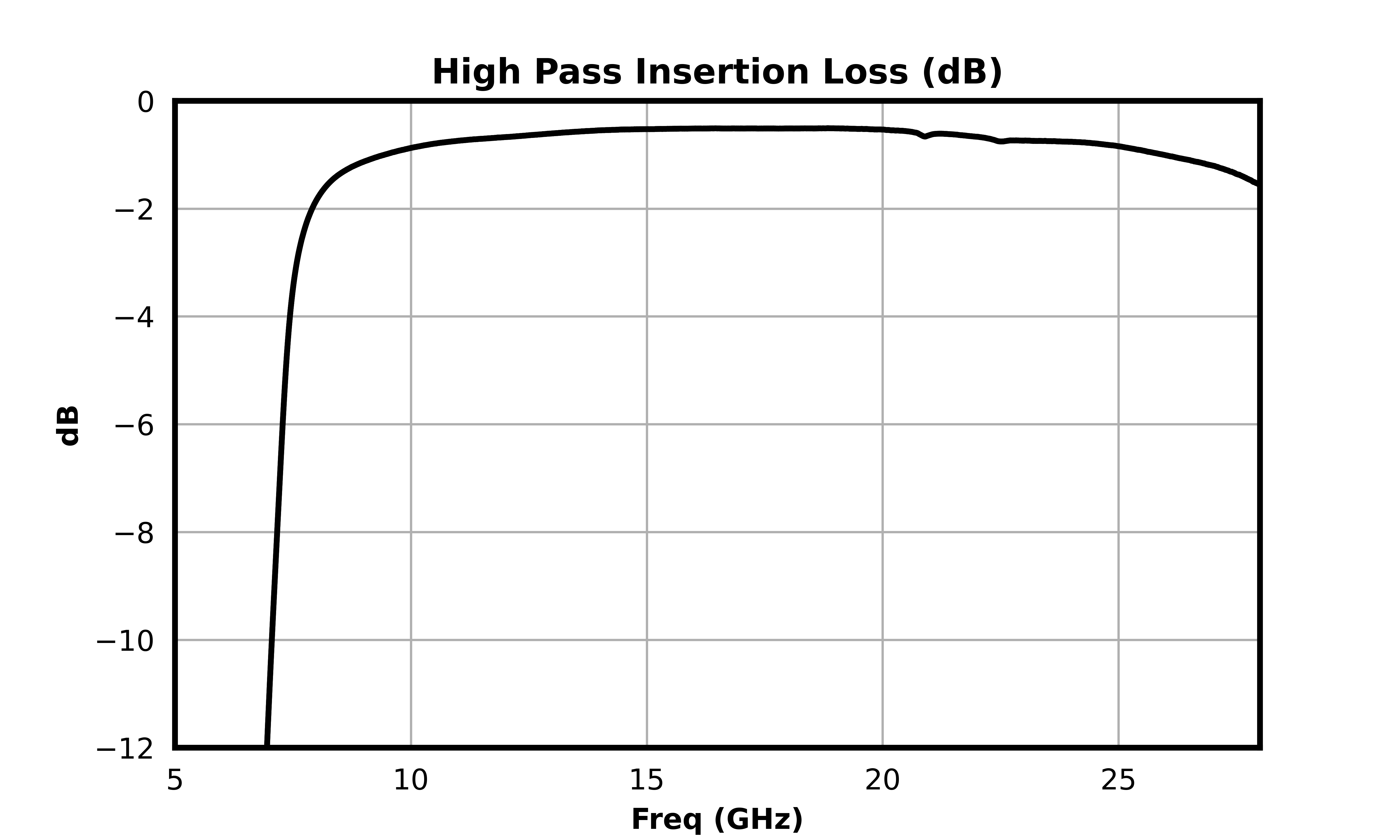

.png)

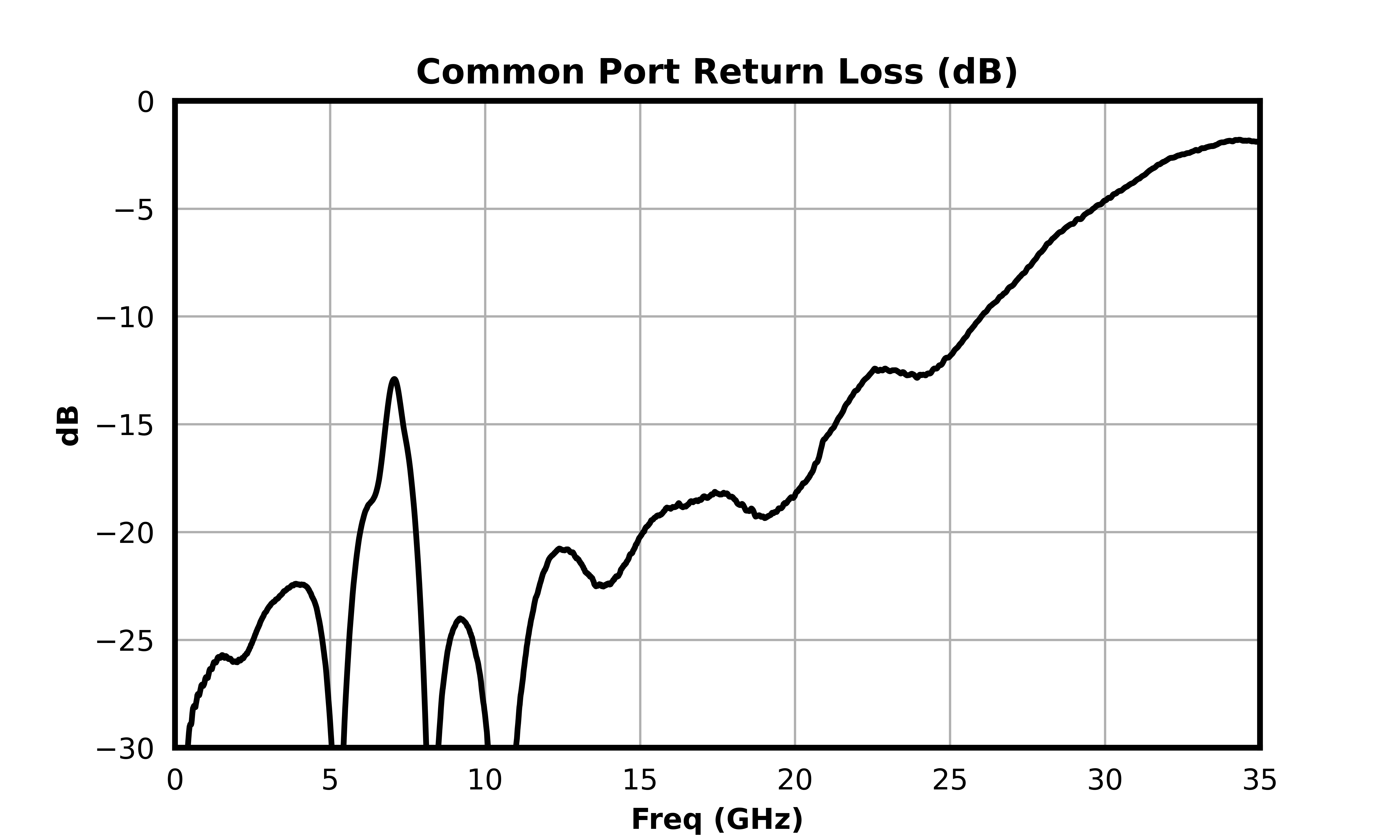

.png)

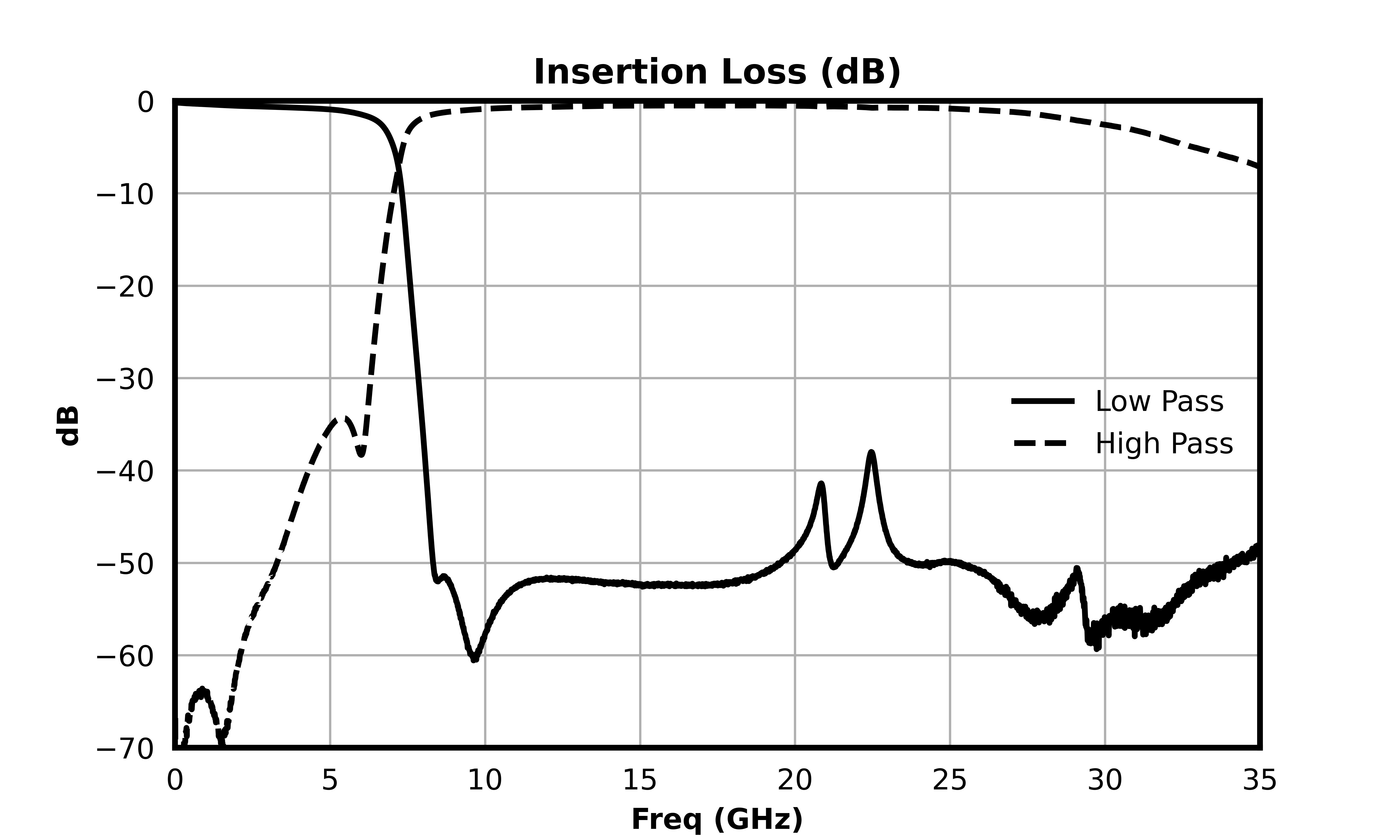

.png)

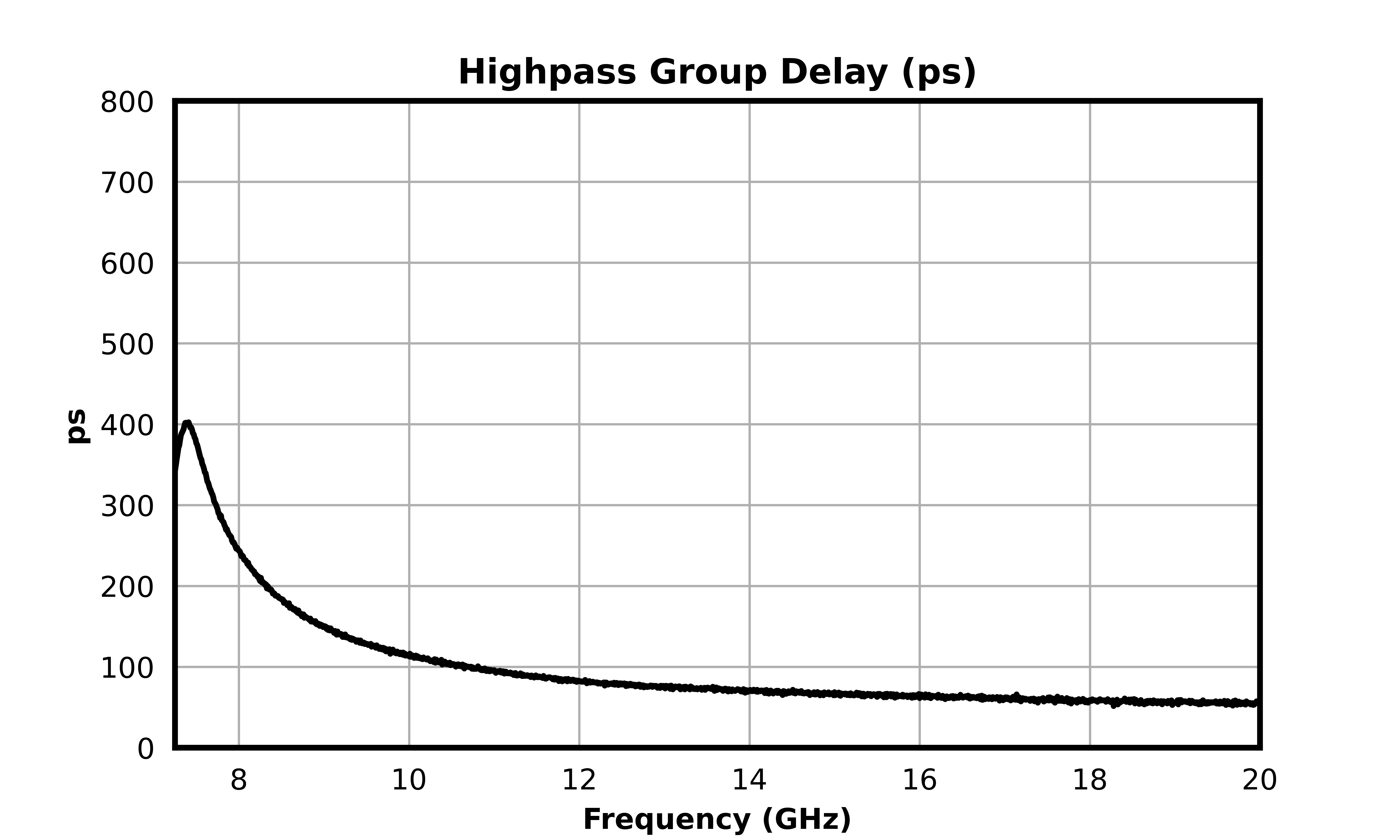

.png)

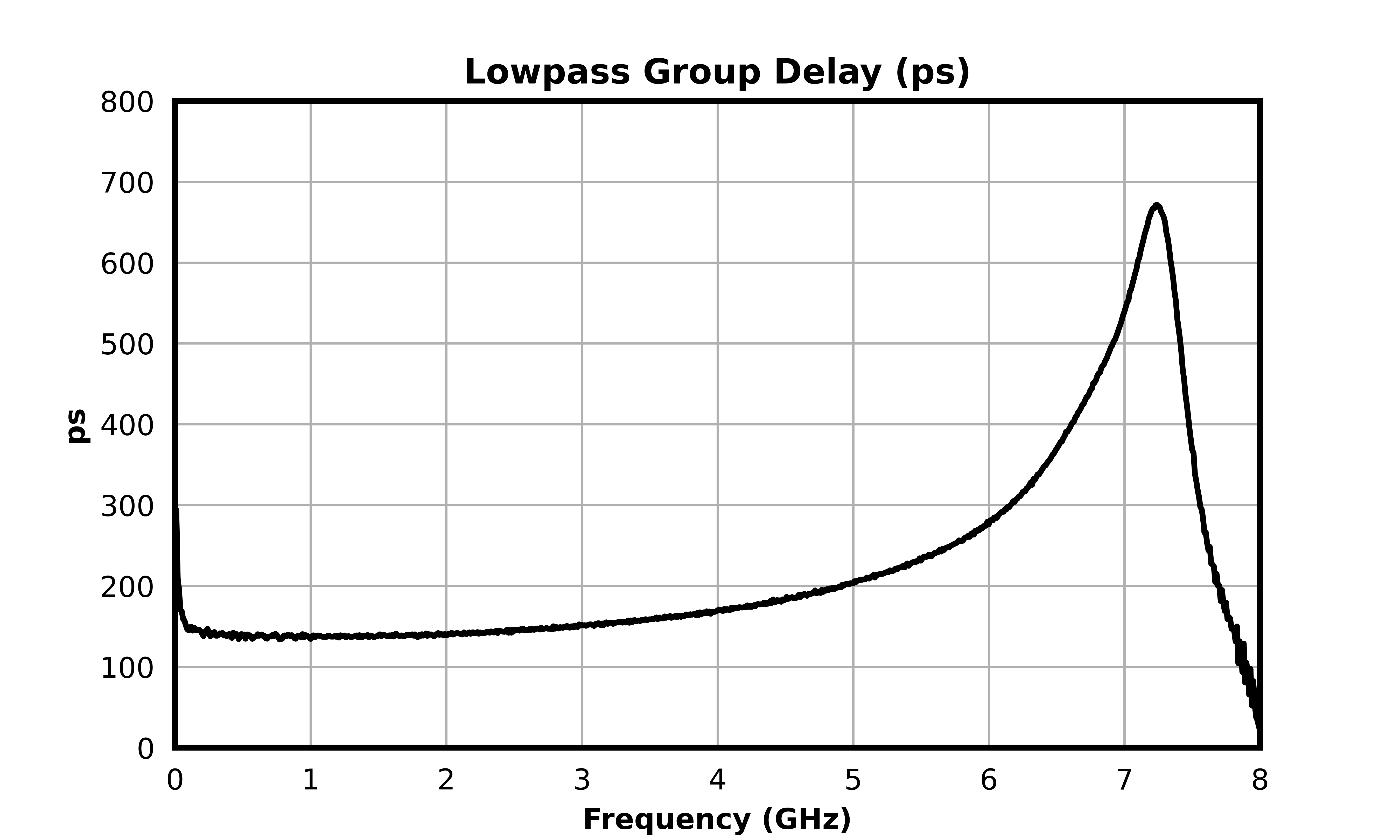

.png)
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the filter in a PSM package with a sine wave input applied to Pin 17. Min and Max limits are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc High Passband | - | - | - | 8.29 | - | 27.87 | GHz |
| 1 dBc Low Passband | - | - | - | 0 | - | 5.61 | GHz |
| 30 dBc High Pass Rejection Point | - | 6.31 | 6.31 | - | - | - | dB |
| 30 dBc Low Pass Rejection Point | - | 7.85 | 7.85 | - | - | - | GHz |
| 3 dBc High Passband | - | 7.5 | - | - | - | - | GHz |
| 3 dBc Low Passband | - | - | 6.8 | - | - | - | GHz |
| Common Port Return Loss | - | 0 | 28 | - | 20 | - | dB |
| Cross Over Frequency | - | 7.21 | 7.21 | - | - | - | GHz |
| Crossover Isolation | - | 5.61 | 8.29 | - | 15 | - | dB |
| Group Delay, High Band | - | - | - | - | 59 | - | ps |
| Group Delay, Low Band | - | - | - | - | 149 | - | ps |
| High Band Center Frequency | - | 18.08 | 18.08 | - | - | - | GHz |
| High Pass Filter, Pass Band Insertion Loss | - | - | - | - | 0.5 | - | dB |
| High Pass Filter, Pass Band Return Loss | - | 8.29 | 27.87 | - | 19 | - | dB |
| High Pass Isolation | - | 8.29 | 27.87 | - | 52 | - | dB |
| Impedance | - | - | - | - | 50 | - | Ω |
| Low Band Center Frequency | - | 2.81 | 2.81 | - | - | - | GHz |
| Low Pass Filter, Pass Band Insertion Loss | - | - | - | - | 0.6 | - | dB |
| Low Pass Filter, Pass Band Return Loss | - | 0 | 5.61 | - | 31 | - | dB |
| Low Pass Isolation | - | 0 | 5.61 | - | 47 | - | dB |
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded or met simultaneously the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 100 | °C |
| Minimum Operating Temperature | -65 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 30 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 4 x 4 mm |
| Moisture Sensitivity Level | - | MSL 1 |

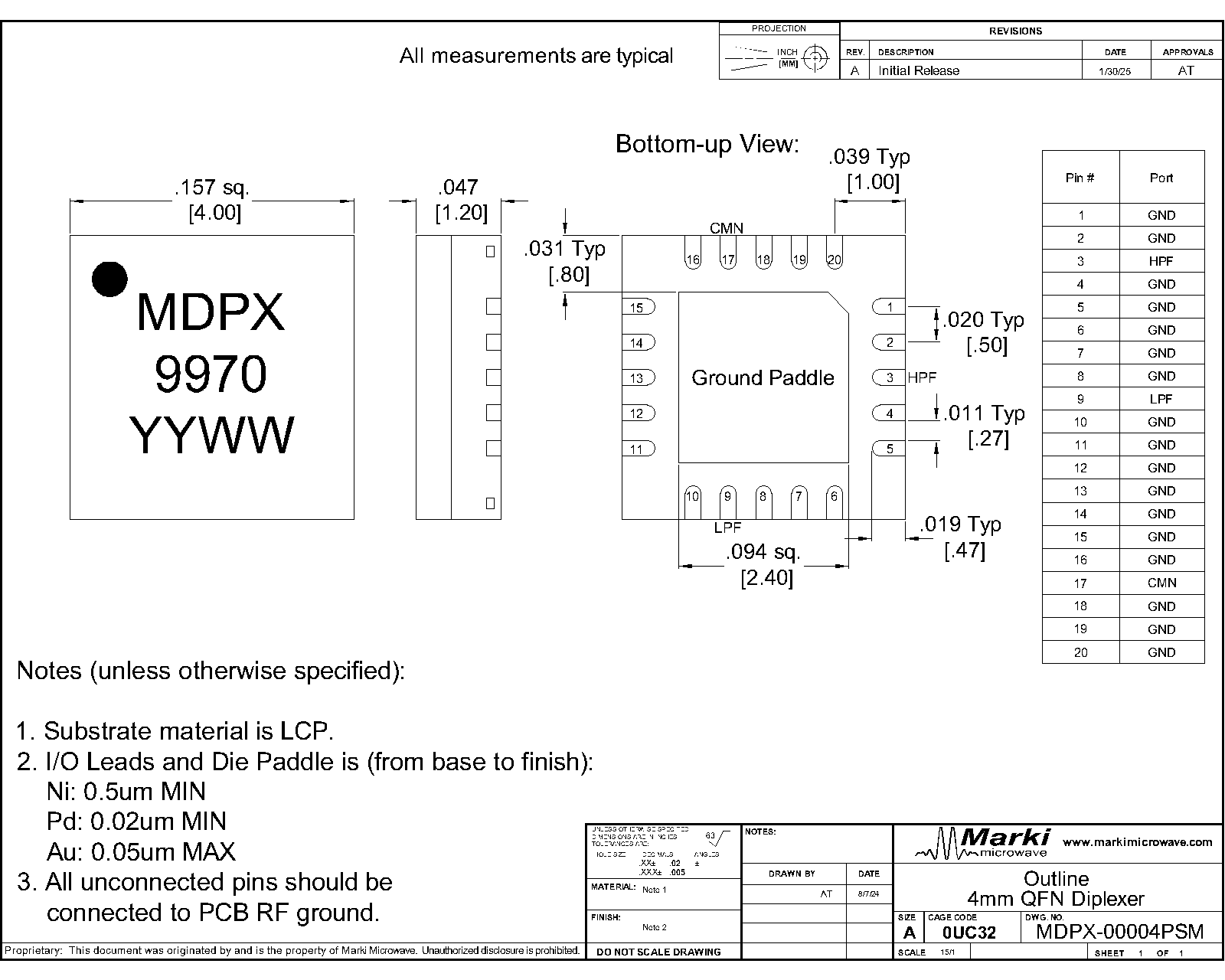

A top-down x-ray view of the MDPX-00004PSM’s PSM package outline drawing is shown below. Input to the diplexer is on Pin 17, Pin 3 will be the output after passing through a high pass filter and Pin 9 will be the output after passing through the low pass filter.
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| Ground Paddle | Ground | PSM package ground path is provided through the ground paddle and should be connected to RF ground. |  |
| Pin 17 | Common/Input | Pin 17 is DC short to Pin 9 and open to GND and Pin 3. |  |
| Pin 3 | RF High Band | Pin 3 is DC short to GND and open to the other ports. |  |
| Pin 9 | RF Low Band | Pin 9 is DC short to Pin 17 and open to GND and Pin 3. | |
Terminating the High-Pass port (Pin 3) with 50 Ω enables one-way reflectionless low-pass filtering from the Common port (Pin 17) to the Low-Pass port (Pin 9).
Terminating the Low-Pass port (Pin 9) with 50 Ω enables one-way reflectionless high-pass filtering from the Common port (Pin 17) to the High-Pass port (Pin 3).

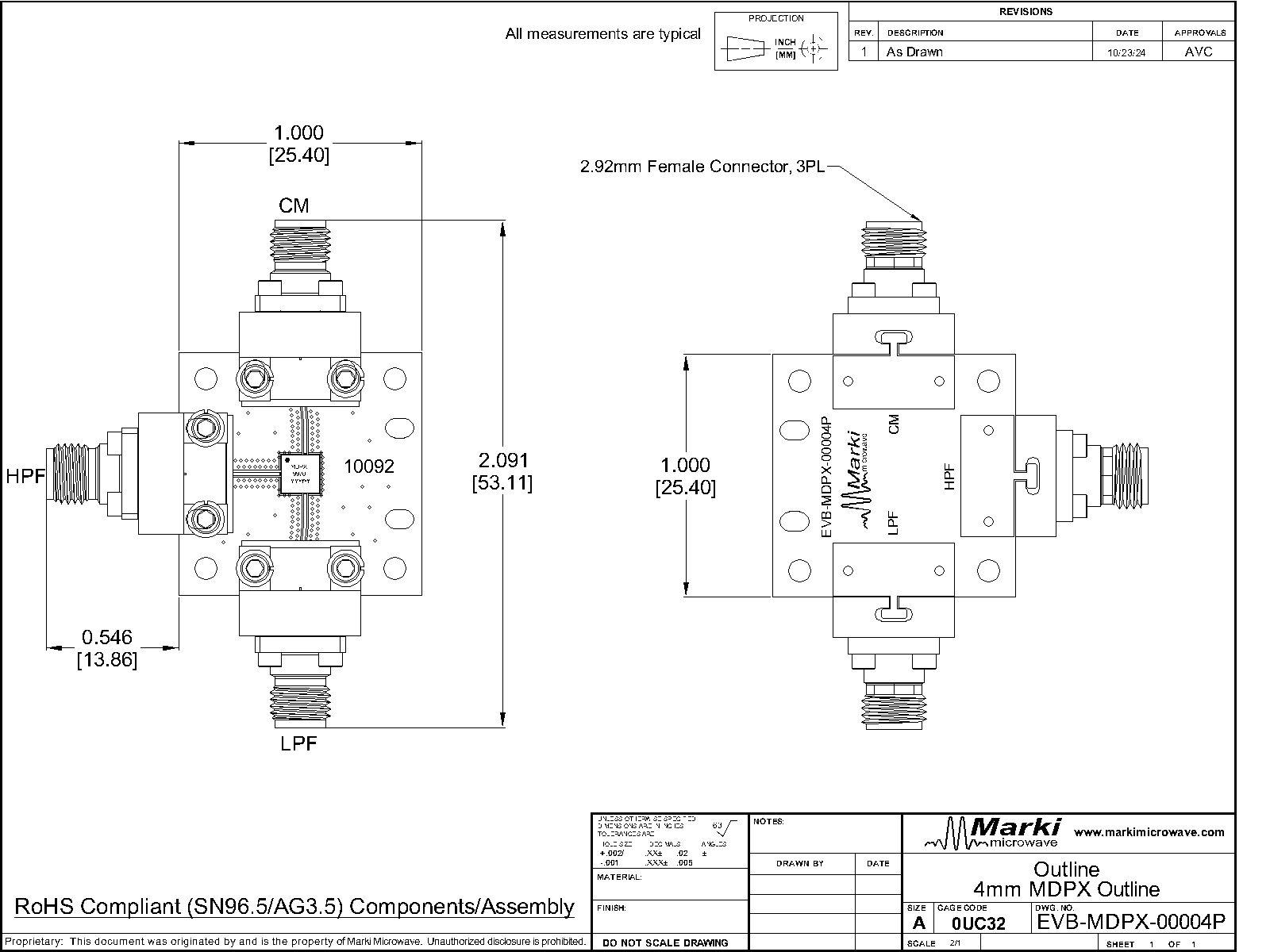

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
Download : Footprint Drawing
-Model.png)
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-12-04 | Initial Release |
