Surface Mount Diplexers

MDPX-00004PSM

Passive MMIC 7GHz Diplexer/Reflectionless Filter

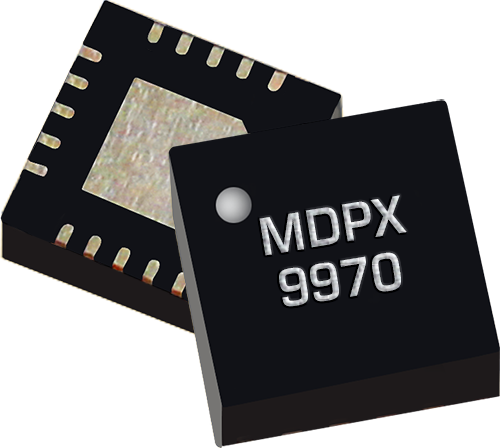

The MDPX-00004PSM is a MMIC surface mount diplexer capable of multiplexing low frequency DC to 6 GHz and high frequency 8 to 28 GHz signals. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-00004PSM is available as a 4x4mm QFN and connectorized evaluation board. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.
