MBALH-0R520CSP2

0.5-20 GHz Passive MMIC Chip Scale Package 1:1 Balun

The MBALH-0R520CSP2 is a GaAs passive MMIC 1:1 balun that features excellent 32 dB common mode rejection over a 0.5 to 20 GHz operational bandwidth. The MBALH-0R520CSP2 is footprint compatible with the 2:1 MBAL-0R520CSP2, offering flexibility in system design. For ADC and DAC interface applications, the choice between the 1:2 and 1:1 configurations will depend on specific system requirements. This device is an ideal solution for digital beamforming and other higher-order Nyquist sampling applications, as well as clock distribution and balanced amplifier interfaces. Available in a lead-free, RoHS compliant 2.5 x 2.5 mm CSP2 package, it is compatible with standard pick-and-place assembly processes.

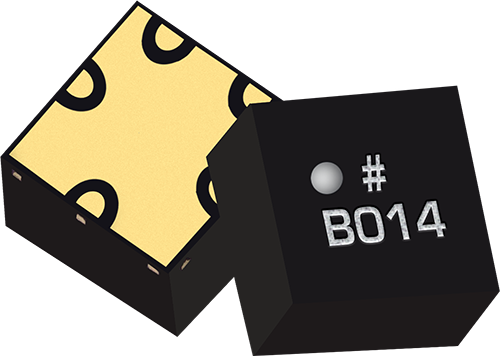

Product Variant : MBALH-0R520CSP2
Sorted by: No sorting applied
EVB-MBALH-0R520
Banded
1:10.520------Released
MBALH-0R520CSP2
Banded
1:10.5200.323.69322.50 x 2.50 mmReleased

Technical Resources
