Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MBALH-0R106CSP2 is a GaAs passive MMIC 1:1 balun that features excellent 35 dB common mode rejection over a 0.1 to 6 GHz operational bandwidth. The MBALH-0R106CSP2 is footprint compatible with the 1:2 MBAL-0R106CSP2, offering flexibility in system design. For ADC and DAC interface applications, the choice between the 1:2 and 1:1 configurations will depend on specific system requirements. This device is an ideal solution for digital beamforming and other higher-order Nyquist sampling applications, as well as clock distribution and balanced amplifier interfaces. Available in a lead-free, RoHS compliant 2.5 x 2.5 mm CSP2 package, it is compatible with standard pick-and-place assembly processes.
Features
- 0.1 GHz to 6 GHz
- 1:1 Balun (50Ω Common to 50Ω Differential)
- Optimal Phase and Amplitude Balance of 0.4° and 0.2 dB
- 35 dB Common Mode Rejection
- Compact 2.5mm chip scale package
- This product embodies Marki Microwave's U.S. Pat. 11,869,858.
Applications
- Balanced Receivers
- Signal Integrity
- Analog to Digital Converters
- Balanced Amplifiers
- Clock Distribution
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MBALH-0R106CSP2 | 0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MBALH-0R106 | Evaluation Board, 0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun | EVB | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| MBALH-0R106CSP2 | 0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun | CSP2 | REACH RoHS | Released | EAR99 |
| EVB-MBALH-0R106 | Evaluation Board, 0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun | EVB | REACH RoHS | Released | EAR99 |
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Absolute Maximum Ratings
- Package Information
- Electrical Specifications
- Mixed Mode Scattering Parameters in 50 Ohm Differential System
- Typical Performance Scattering Parameters in 50 Ohm Differential System
- Mixed Mode Scattering Parameters in 100 Ohm Differential System
- Typical Performance Scattering Parameters in 100 Ohm Differential System
- Mechanical Data
- Footprint Image
- Evaluation Board
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-04-21 | Initial Release |
| B | 2025-04-28 | Updated Moisture Sensitivity from MSL3 to MSL1 |
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun
Port Configuration and Functions
Port Functions
| Port | Function | Description | DC Equivalent Circuit |
|---|---|---|---|
| GND | Ground | Ground pad should be connected to RF/DC ground with low electrical and thermal resistance. |  |
| Pin 1 | Common Port / In (Unbalanced) | The common port is DC short to ground. |  |
| Pin 3 | Out 1 / 0° Port (Balanced) | The 0° port is DC short to ground. | |
| Pin 4 | Out 2 / 180° Port (Balanced) | The 180° port is DC short to ground. | |
| Pins 2,5 | NC | Pins 2 and 5 are not internally connected. They can be connected to ground for normal operation. |  |
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 2.50 x 2.50 mm |
| Moisture Sensitivity Level | - | MSL 1 |
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | Configuration A, 25°C | 0.1 | 6 | - | 0.2 | - | dB |
| Common Mode Rejection | Configuration A, 25°C | 0.1 | 6 | - | 35 | - | dB |
| Common Port Return Loss | Configuration A, 25°C | 0.1 | 6 | - | 12 | - | dB |
| Impedance | Configuration A, 25°C | 0.1 | 6 | - | 50 | - | Ω |
| Insertion Loss as a Mode Converter | Configuration A, 25°C | 0.1 | 6 | - | 3.5 | - | dB |
| Isolation | Configuration A, 25°C | 0.1 | 6 | - | 9 | - | dB |
| Nominal Phase Shift | Configuration A, 25°C | 0.1 | 6 | - | 180 | - | ° |
| Output Return Loss | Configuration A, 25°C | 0.1 | 6 | - | 4 | - | dB |
| Phase Balance | Configuration A, 25°C | 0.1 | 6 | - | 0.4 | - | ° |
| Impedance Ratio | - | - | - | - | 1:1 | - |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | Configuration A, 25°C | 0.1 | 6 | - | 0.2 | - | dB |
| Common Mode Rejection | Configuration A, 25°C | 0.1 | 6 | - | 35 | - | dB |
| Common Port Return Loss | Configuration A, 25°C | 0.1 | 6 | - | 12 | - | dB |
| Impedance | Configuration A, 25°C | 0.1 | 6 | - | 50 | - | Ω |
| Insertion Loss as a Mode Converter | Configuration A, 25°C | 0.1 | 6 | - | 3.5 | - | dB |
| Isolation | Configuration A, 25°C | 0.1 | 6 | - | 9 | - | dB |
| Nominal Phase Shift | Configuration A, 25°C | 0.1 | 6 | - | 180 | - | ° |
| Output Return Loss | Configuration A, 25°C | 0.1 | 6 | - | 4 | - | dB |
| Phase Balance | Configuration A, 25°C | 0.1 | 6 | - | 0.4 | - | ° |
| Impedance Ratio | - | - | - | - | 1:1 | - |
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun

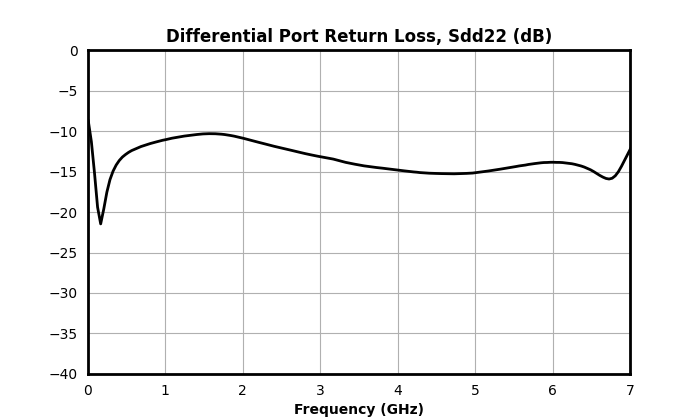

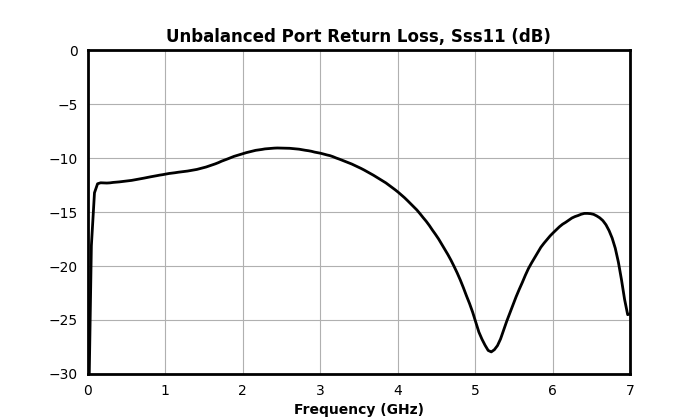

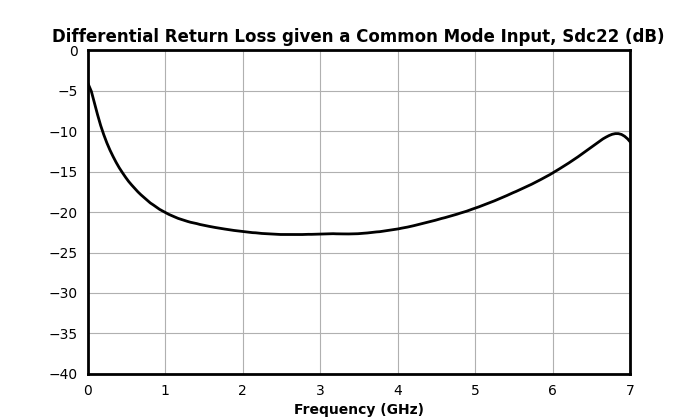

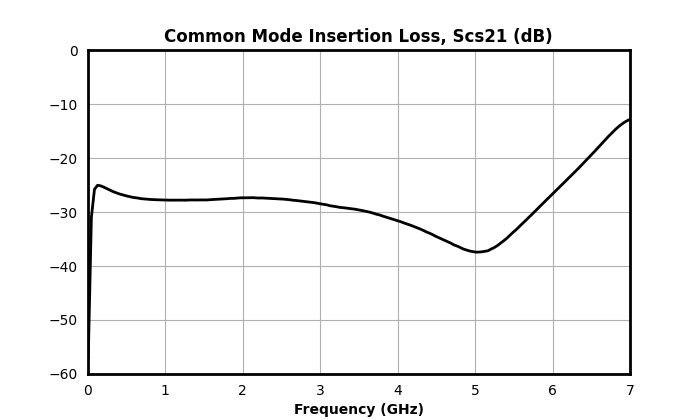

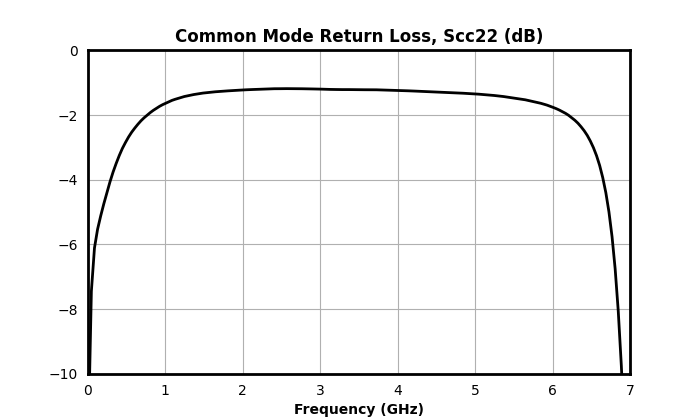

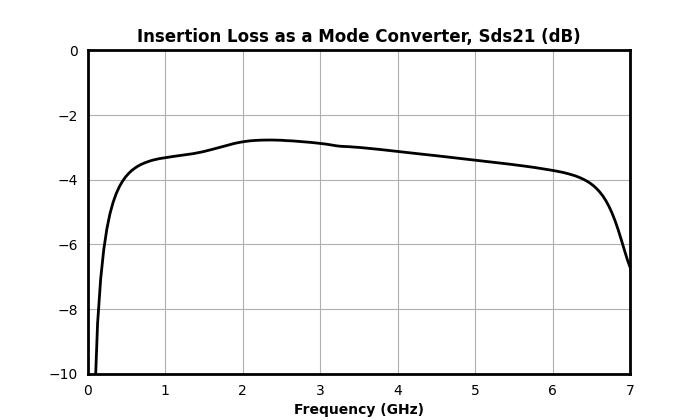

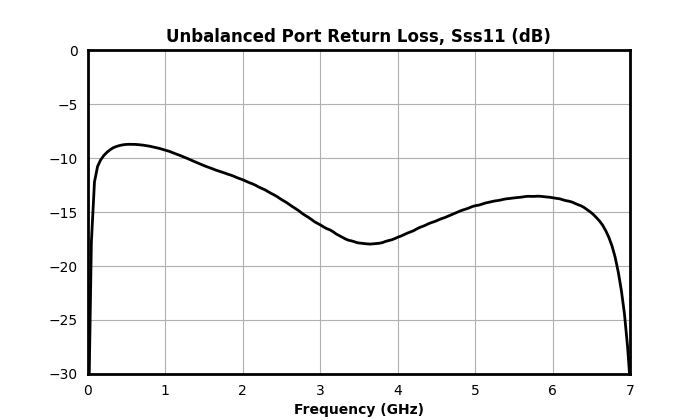

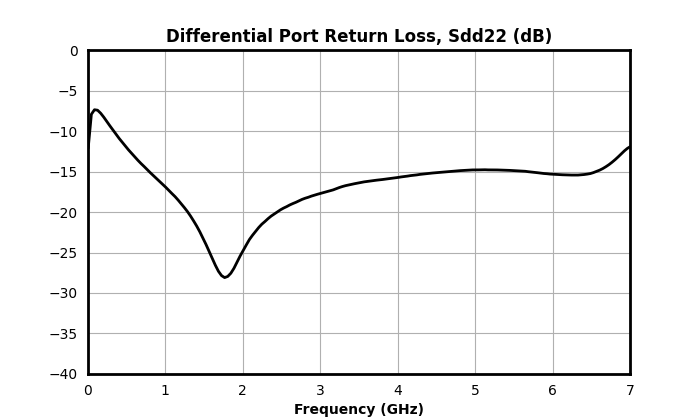

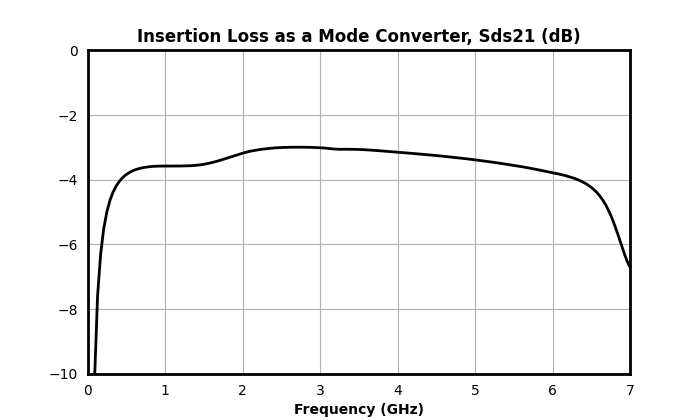

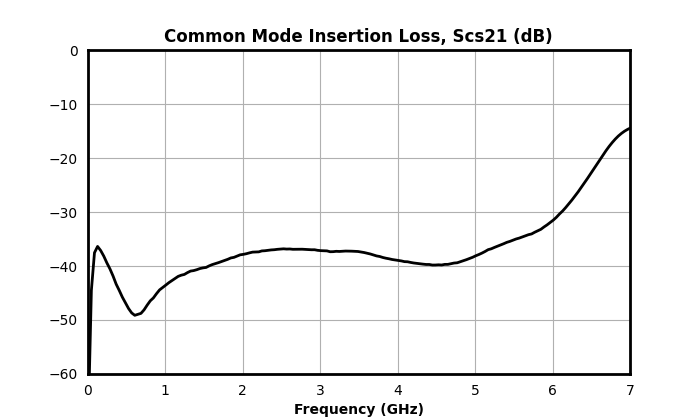

Mixed Mode Scattering Parameters in 50 Ohm Differential System
Mixed mode scattering parameters are used to characterize differential circuits. For baluns, this means that the 0° and 180° ports become a single 50Ω differential port and the common port remains the same 50Ω common port. For more information about 1:1 balun data, visit MBAL vs. MBALH Data. The two-port s-parameters of the balun are then characterized based on differential (d), common mode (c), or single-ended (s) signals. For example: Scs12 is the Common output response given a single ended input.
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun

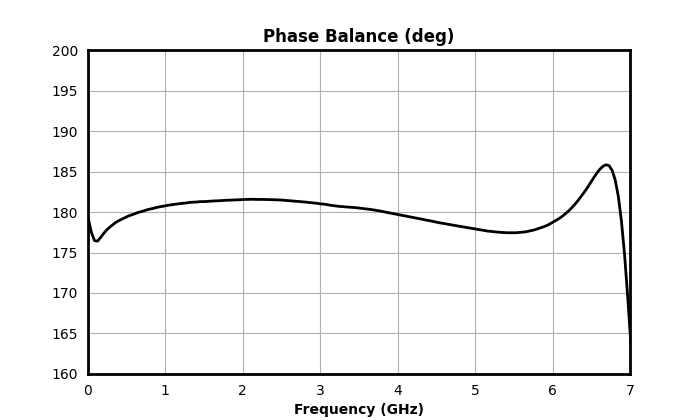

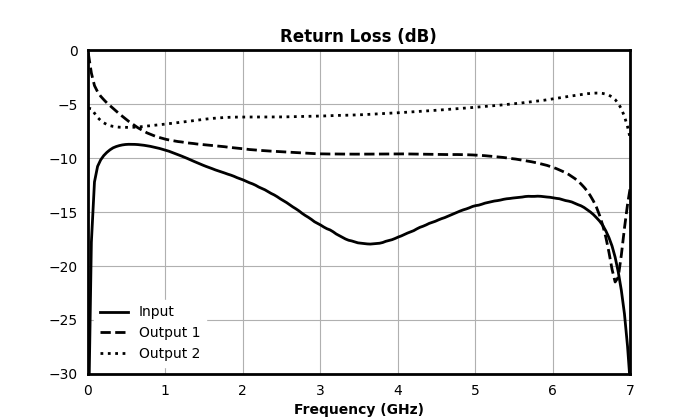

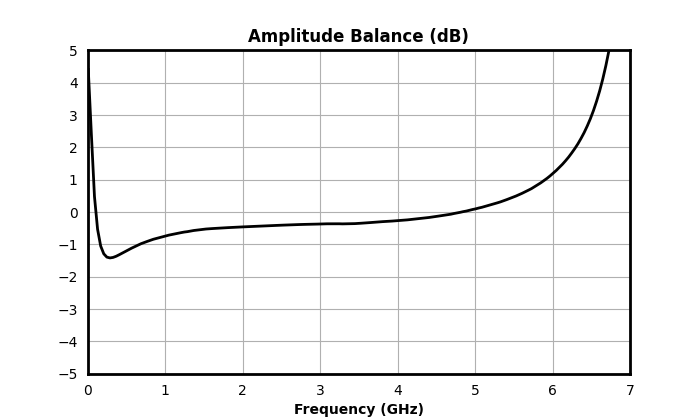

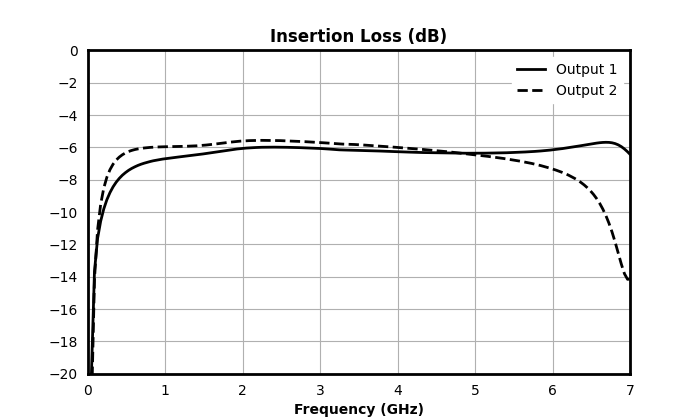

Typical Performance Scattering Parameters in 50 Ohm Differential System
.png)
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun

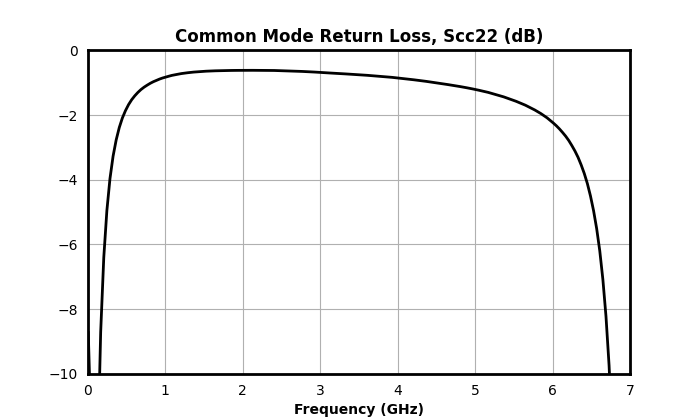

Mixed Mode Scattering Parameters in 100 Ohm Differential System
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun
Typical Performance Scattering Parameters in 100 Ohm Differential System
All measurements are de-embedded from the fixture with Automatic Fixture Removal (AFR).
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun
Mechanical Data
Outline Drawing
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
-(0R106,%200R520)CSP2%20Catalog%20Outline-Model.png)
EVB Out- refers to output Out 1
EVB Out+ refers to output Out 2
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun
Footprint Image
Download : Footprint Drawing
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun

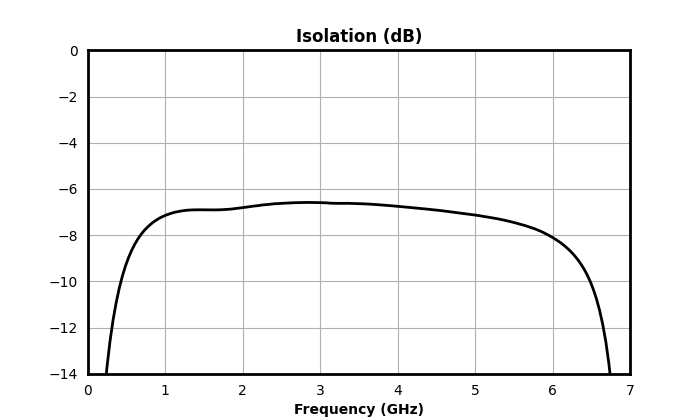

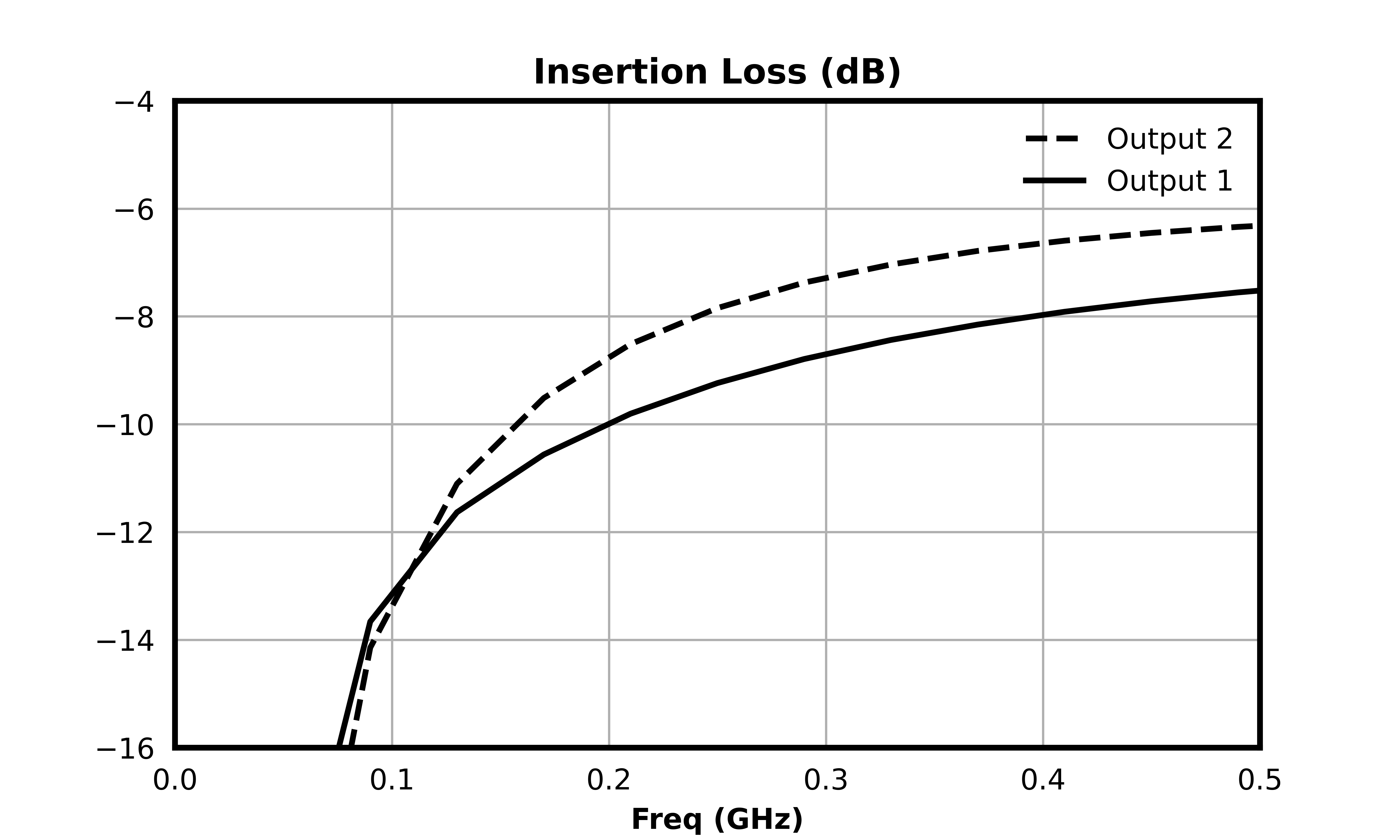

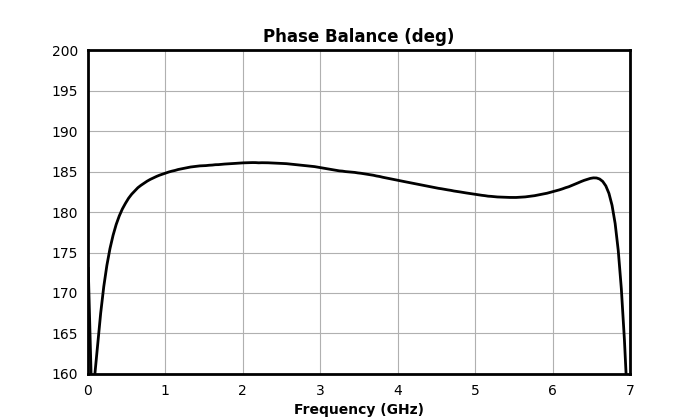

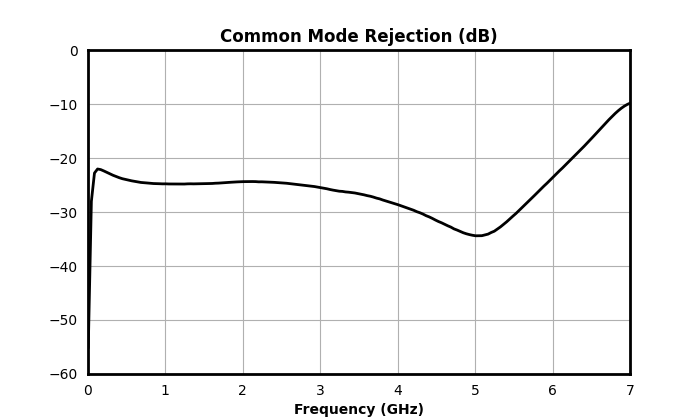

Evaluation Board - Performance Data
| Parameter | Test Conditions | Frequency Range (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Impedance Ratio | - | - | - | 1 | - |
MBALH-0R106CSP2
0.1-6 GHz Passive MMIC Chip Scale Package 1:1 Balun
Evaluation Board - Outline Drawing
-(0R106,%200R520)%20Catalog%20Outline-Model.png)
